REAR WIPER ARM

WW-75

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Adjustment

INFOID:0000000009596024

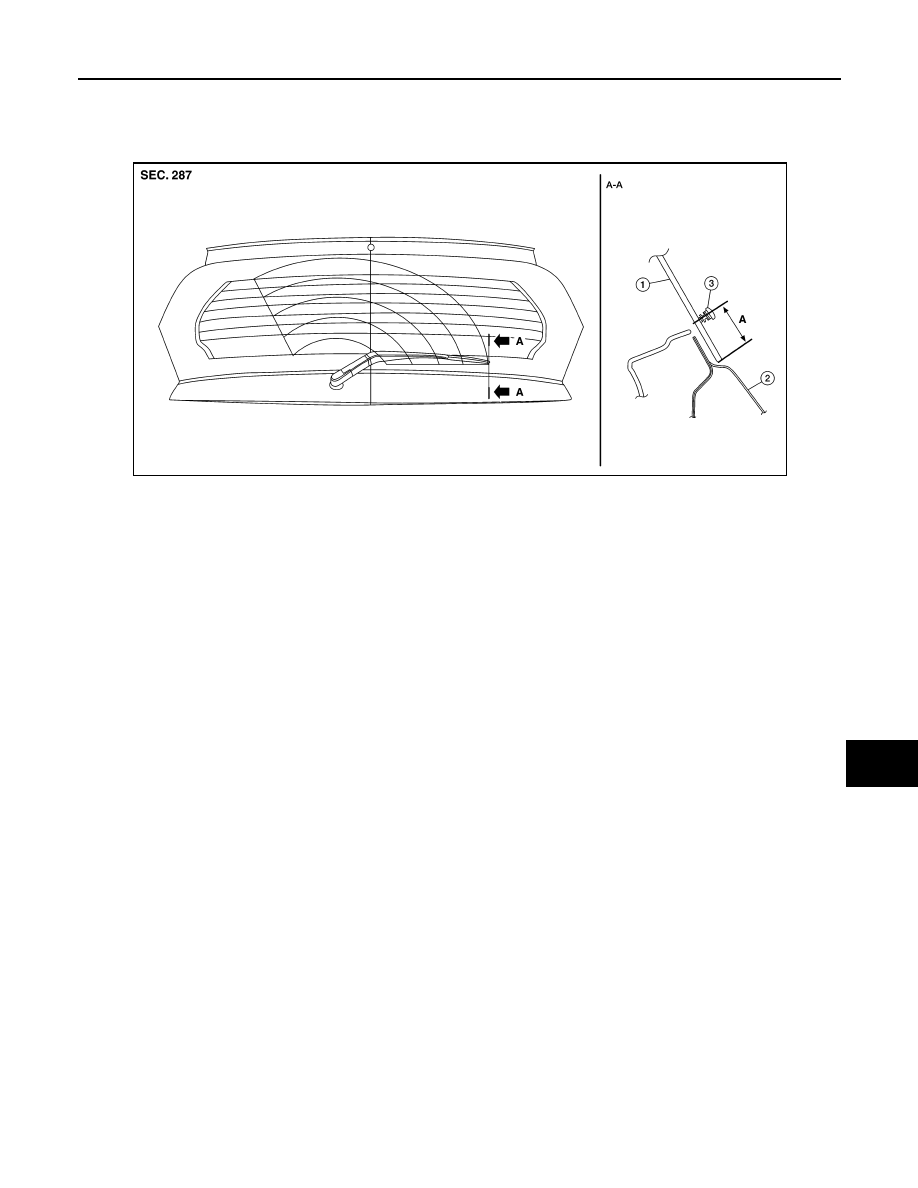

WIPER BLADE POSITION ADJUSTMENT

1.

Back door window glass

2.

Back door

3.

Rear wiper blade

A.

30.7

± 7.5 mm (1.21 ± 0.30 in)

ALLIA1313ZZ

WW-76

< REMOVAL AND INSTALLATION >

REAR WIPER BLADE

REAR WIPER BLADE

Removal and Installation

INFOID:0000000009596025

REMOVAL

1. Lift the rear wiper arm and blade assembly away from the back window glass.

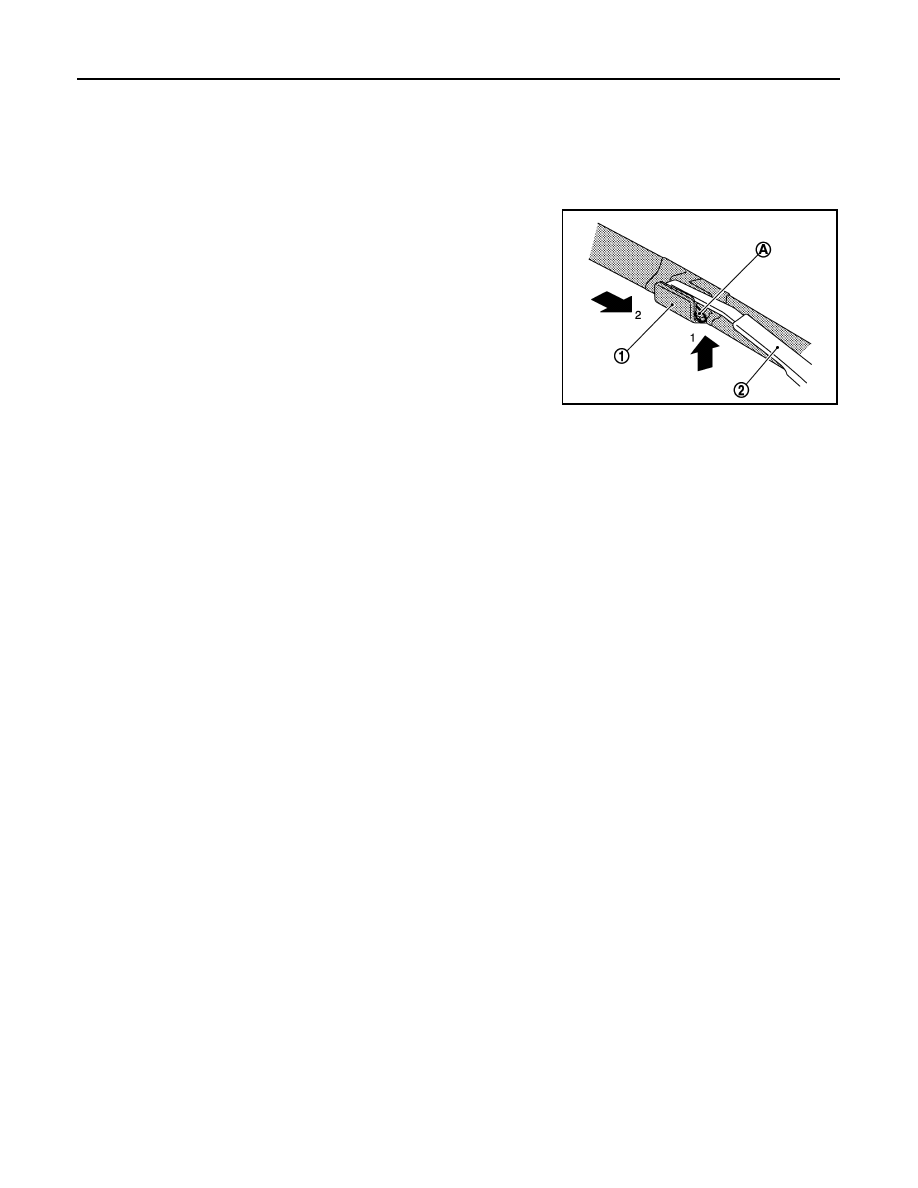

2. Push the release tab (A) of the rear wiper blade (1), then move

the rear wiper blade down the rear wiper arm (2) to remove.

INSTALLATION

1. Insert the rear wiper blade onto the rear wiper arm until it clicks into place.

JMLIA1044ZZ

REAR WIPER MOTOR

WW-77

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

REAR WIPER MOTOR

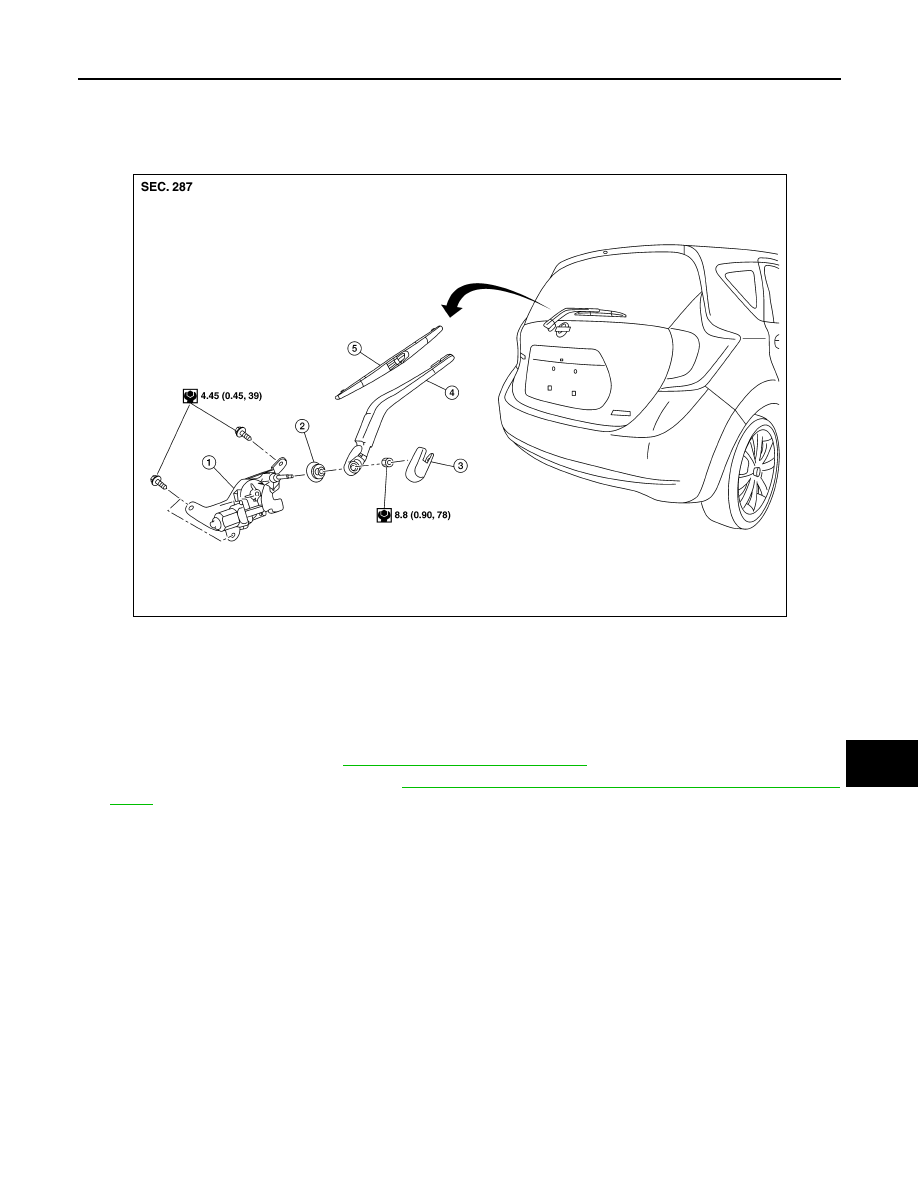

Exploded View

INFOID:0000000009578894

Removal and Installation

INFOID:0000000009578895

REMOVAL

1. Remove rear wiper arm. Refer to

WW-74, "Removal and Installation"

.

2. Remove back door inner finisher. Refer to

INT-36, "BACK DOOR INNER FINISHER : Removal and Instal-

lation"

.

3. Disconnect the harness connector from the rear wiper motor.
4. Remove bolts and rear wiper motor.

INSTALLATION

Installation is in the reverse order of removal.

1.

Rear wiper motor

2.

Rear wiper arm seal

3.

Rear wiper arm cover

4.

Rear wiper arm

5.

Rear wiper blade

ALLIA1312ZZ

WW-78

< REMOVAL AND INSTALLATION >

REAR WASHER NOZZLE AND TUBE

REAR WASHER NOZZLE AND TUBE

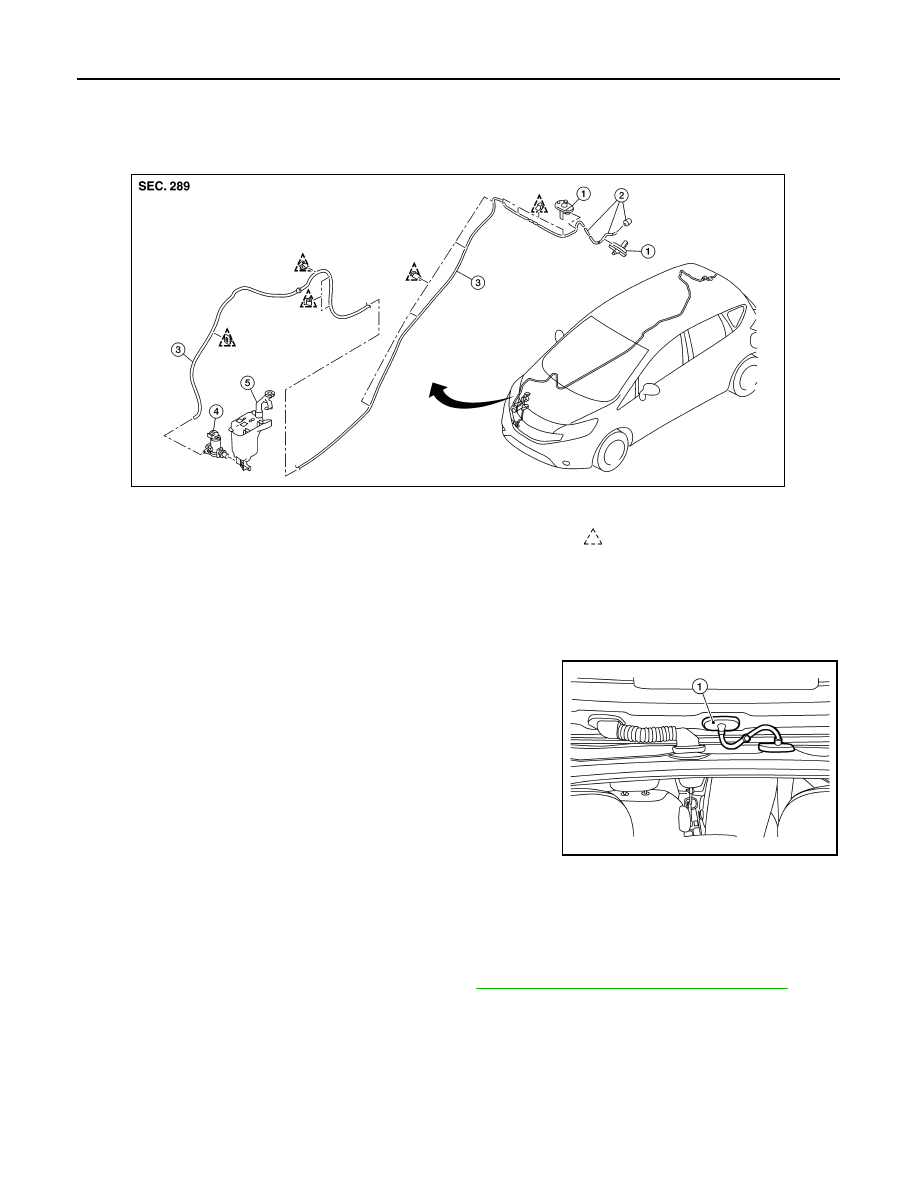

Component Parts Location

INFOID:0000000009578897

WASHER NOZZLE
WASHER NOZZLE : Removal and Installation

INFOID:0000000009578898

REMOVAL

1. Disconnect the rear washer tube grommet (1) from the back

door.

2. Disconnect the rear washer tube from the rear washer nozzle.
3. Remove the rear washer nozzle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Adjust the rear washer nozzle spray pattern. Refer to

WW-78, "WASHER NOZZLE : Adjustment"

.

WASHER NOZZLE : Adjustment

INFOID:0000000009606276

WASHER NOZZLE SPRAY PATTERN

1.

Grommet

2.

Rear washer nozzle

3.

Rear washer tube

4.

Front washer motor

5.

Washer tank

Clip

ALLIA1321ZZ

ALKIA3188ZZ
