Nissan Versa Note. Manual - part 841





TM-244

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

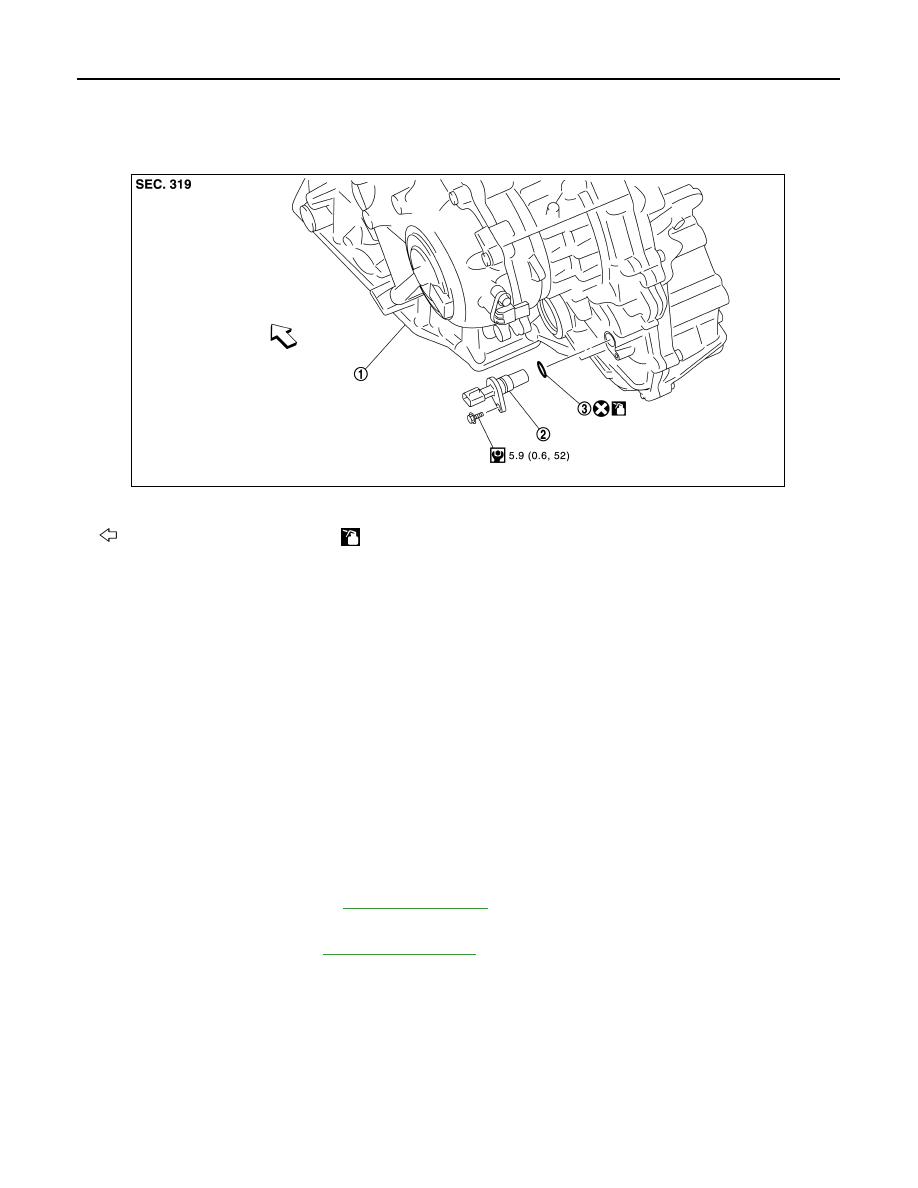

OUTPUT SPEED SENSOR

OUTPUT SPEED SENSOR

Exploded View

INFOID:0000000009019793

Removal and Installation

INFOID:0000000009019794

REMOVAL

1. Disconnect the harness connector from output speed sensor.

NOTE:

Lift up the vehicle and perform the work from rear of the transaxle assembly.

2. Remove the output speed sensor.
3. Remove the O-ring from the output speed sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.

Inspection and Adjustment

INFOID:0000000009019795

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to

TM-226, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

Check the CVT fluid level. Refer to

TM-227, "Adjustment"

.

1.

Transaxle assembly

2.

Output speed sensor

3.

O-ring

Front

Genuine NISSAN CVT Fluid NS-3

JSDIA1882GB

DIFFERENTIAL SIDE OIL SEAL

TM-245

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

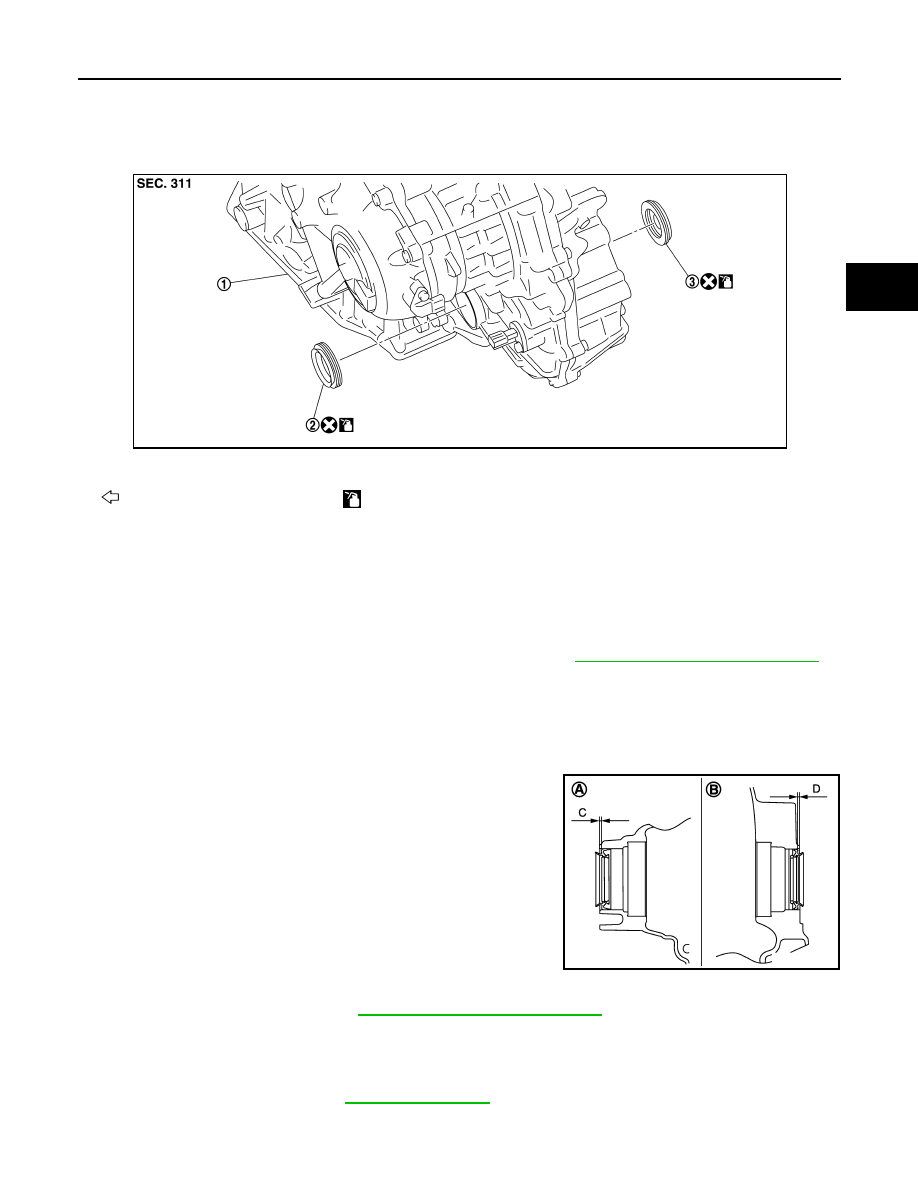

DIFFERENTIAL SIDE OIL SEAL

Exploded View

INFOID:0000000009019796

Removal and Installation

INFOID:0000000009019797

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove the front drive shaft from the transaxle assembly. Refer to

FAX-19, "Removal and Installation"

2. Remove the differential side oil seal using suitable tool.

CAUTION:

When removing the differential side oil seal, be careful not to scratch the oil seal mating surfaces

of the transaxle case and converter housing.

INSTALLATION

1. Drive the differential side oil seal into the transaxle case side (A)

and converter housing side (B) using suitable tool to the speci-

fied dimension.

CAUTION:

• Be careful not to scratch the lip of the differential side oil seal

when press-fitting it.

• Do not reuse differential side oil seal.

• Apply Genuine NISSAN CVT Fluid NS-3 to the differential side

oil seal lip and around the oil seal.

2. Install the front drive shaft. Refer to

FAX-19, "Removal and Installation"

.

Inspection and Adjustment

INFOID:0000000009019798

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to

TM-226, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

1.

Transaxle assembly

2.

Differential side oil seal (left side)

3.

Differential side oil seal (right side)

Front

Genuine NISSAN CVT Fluid NS-3

JSDIA1888ZZ

Dimension (C)

: 1.8

± 0.5 mm (0.071 ± 0.020 in).

Dimension (D)

: 1.8

± 0.5 mm (0.071 ± 0.020 in).

JSDIA1836ZZ

TM-246

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

DIFFERENTIAL SIDE OIL SEAL

Adjust the CVT fluid level. Refer to

TM-227, "Adjustment"

.

WATER HOSE

TM-247

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

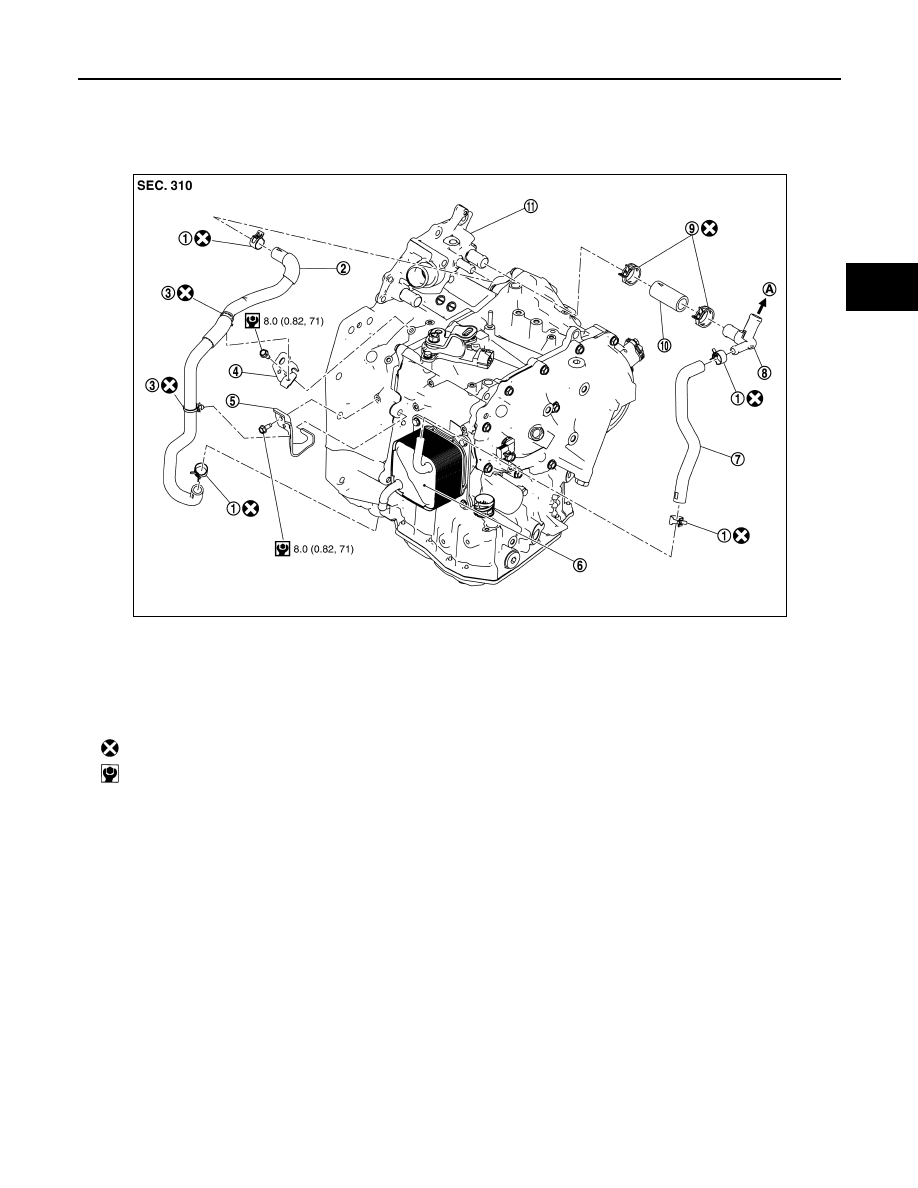

WATER HOSE

Exploded View

INFOID:0000000009019799

Removal and Installation

INFOID:0000000009019800

REMOVAL

WARNING:

Do not remove the radiator cap when the engine is hot. Serious burns could occur from high-pressure

engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly push down and

turn it a quarter turn to allow built-up pressure to escape. Carefully remove the cap by pushing it down

and turning it all the way.

CAUTION:

Perform these steps after the engine coolant temperature has cooled sufficiently.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.
1. Remove the hose clamp and pull out the water hose A.
2. Remove the hose clamp and pull out the water hose B.
3. Remove the hose clamp and pull out the water hose C.
4. Pull out the heater hose and remove the water bypass pipe.
5. Remove the heater thermostat assembly.

1.

Hose clamp

2.

Water hose A

3.

Clip

4.

Bracket A

5.

Bracket B

6.

CVT oil warner

7.

Water hose B

8.

Water bypass pipe

9.

Hose clamp

10. Water hose C

11. Water outlet

A.

To heater core
: Always replace after every disassembly.

: N·m (kg-m, in-lb)

JSDIA4111GB
