TM-240

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

OIL PAN

OIL PAN

Exploded View

INFOID:0000000009019784

Removal and Installation

INFOID:0000000009019785

REMOVAL

1. Remove the drain plug and overflow tube, and then drain the CVT fluid.

WARNING:

CVT fluid can splash when draining, use safety glasses to protect eyes.

2. Remove the drain plug gasket from the drain plug.
3. Remove the oil pan bolts (

), and then remove the oil pan and

oil pan gasket.

4. Remove the magnets from the oil pan.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse oil pan gasket and drain plug gasket.

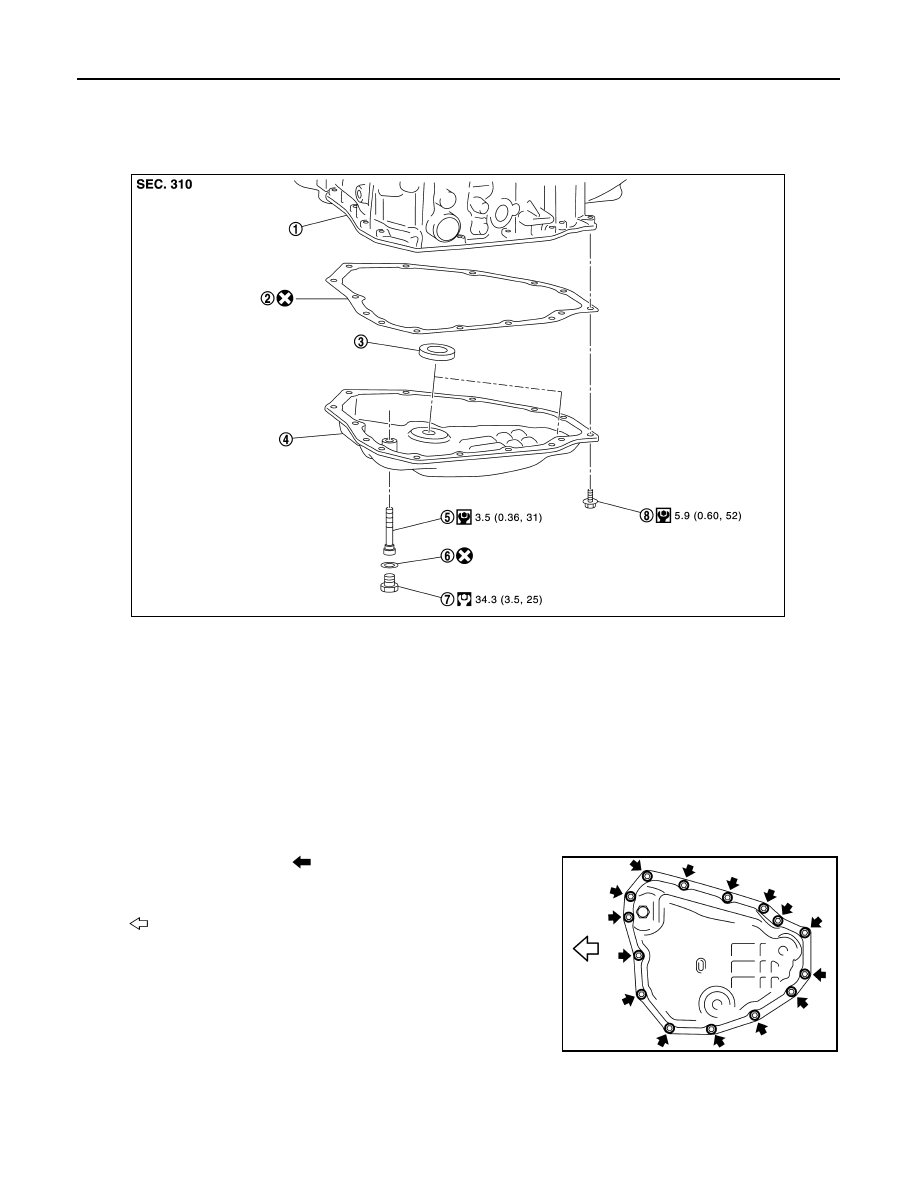

1.

Transaxle assembly

2.

Oil pan gasket

3.

Magnet

4.

Oil pan

5.

Overflow tube

6.

Drain plug gasket

7.

Drain plug

8.

Oil pan fitting bolt

JSDIA1879GB

: Front

JSDIA1874ZZ

OIL PAN

TM-241

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• Do not reuse oil pan bolts.

• Completely remove all moisture, oil and old gasket, etc. from the oil pan gasket mating surface of

transaxle case and oil pan.

• When installing the overflow tube, be sure to tighten to the specified torque. If it is not tightened to

the specified torque, the tube may be damaged.

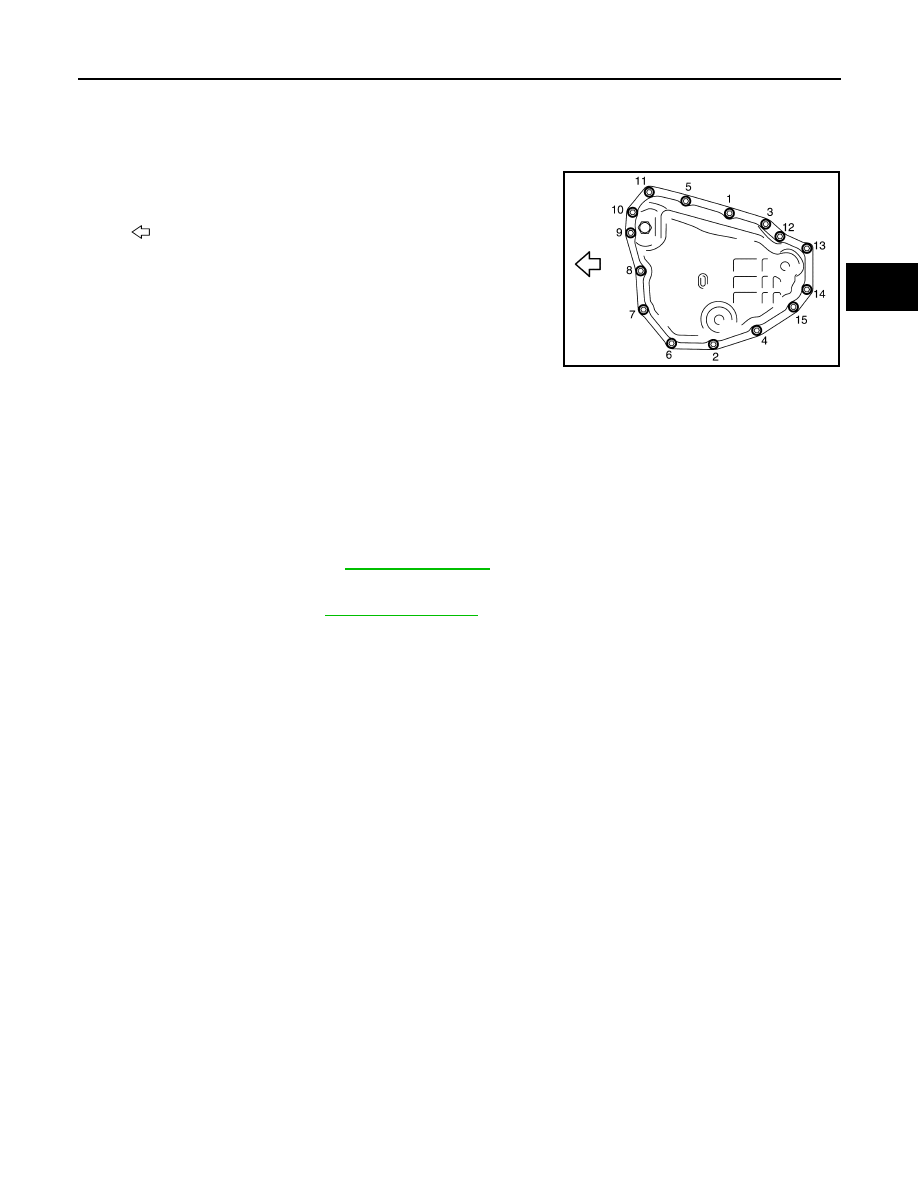

• When the oil pan is installed, temporarily tighten oil pan bolts, then

tighten the oil pan bolts to specification in the order shown.

Inspection and Adjustment

INFOID:0000000009019786

INSPECTION AFTER REMOVAL

Check oil pan for foreign material.

• If a large amount of worn material is found, clutch plate may be worn.

• If iron powder is found, bearings, gears, or clutch plates may be worn.

• If aluminum powder is found, bushing may be worn, or chips or burrs of aluminum casting parts may enter.

Check points where wear is found in all cases.

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to

TM-226, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

Check the CVT fluid level. Refer to

TM-227, "Adjustment"

.

: Front

JSDIA1884ZZ

TM-242

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

PRIMARY SPEED SENSOR

PRIMARY SPEED SENSOR

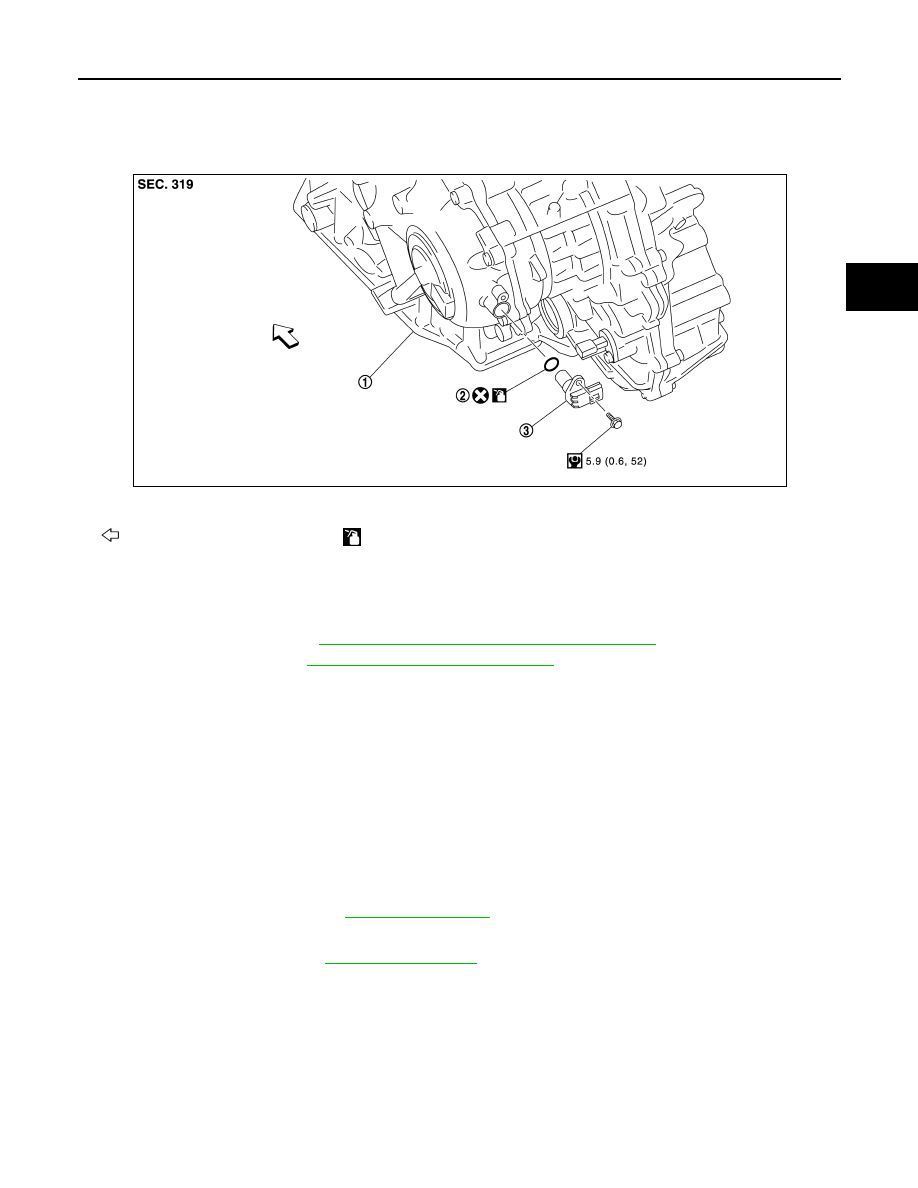

Exploded View

INFOID:0000000009019787

Removal and Installation

INFOID:0000000009019788

REMOVAL

1. Partially remove fender protector (LH). Refer to

TM-242, "Exploded View"

.

2. Disconnect the harness connector from  primary speed sensor.
3. Remove the primary speed sensor.
4. Remove the O-ring from the primary speed sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.

Inspection and Adjustment

INFOID:0000000009019789

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to

TM-226, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-227, "Adjustment"

.

1.

Transaxle assembly

2.

O-ring

3.

Primary speed sensor

Front

: Genuine NISSAN CVT Fluid NS-3

JSDIA1880GB

SECONDARY SPEED SENSOR

TM-243

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SECONDARY SPEED SENSOR

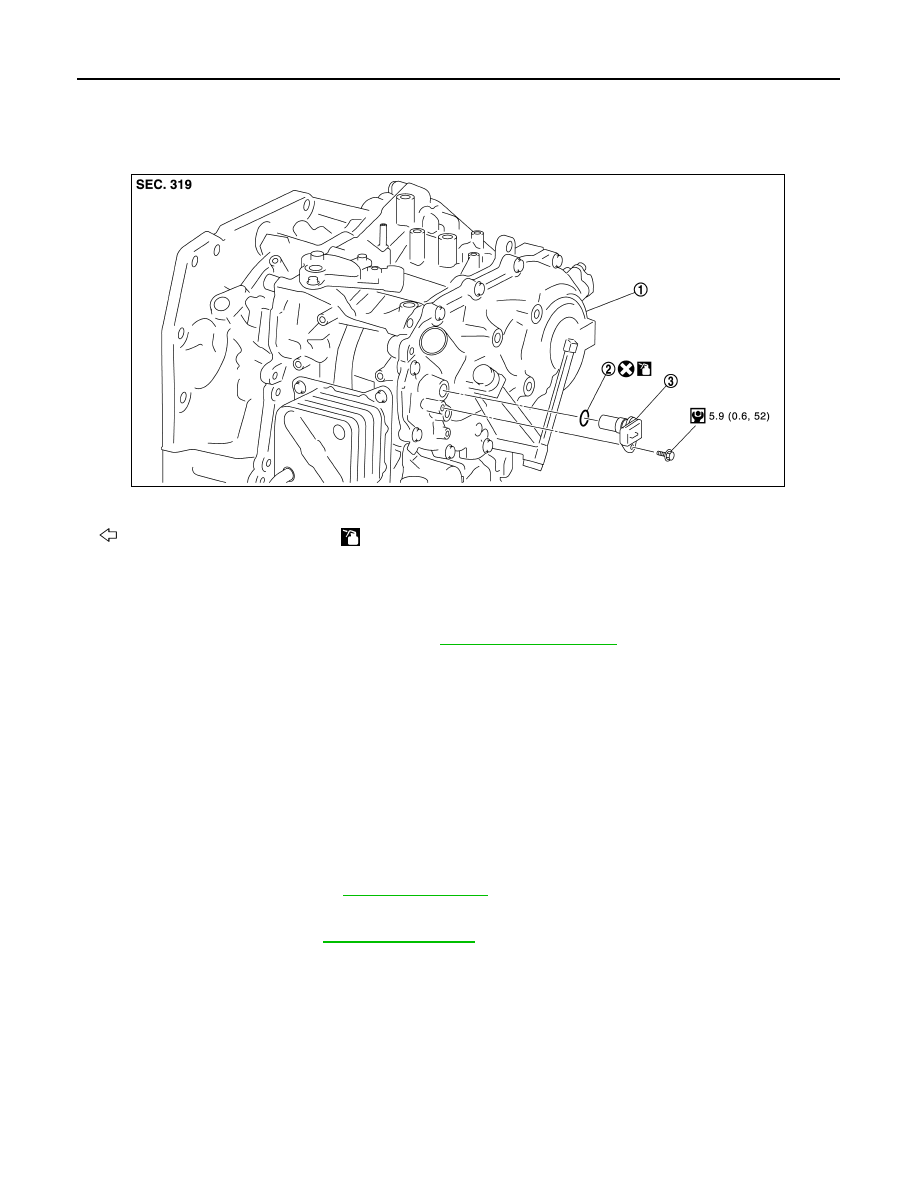

Exploded View

INFOID:0000000009019790

Removal and Installation

INFOID:0000000009019791

REMOVAL

1. Remove battery tray. Refer to

PG-68, "Removal and Installation (Battery Tray)"

.

2. Remove IPDM/ER. Refer to

PCS-60, "Removal and Installation"

.

3. Disconnect the harness connector from secondary speed sensor.
4. Remove the secondary speed sensor.
5. Remove the O-ring from the secondary speed sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.

Inspection and Adjustment

INFOID:0000000009019792

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to

TM-226, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-227, "Adjustment"

.

1.

Transaxle assembly

2.

O-ring

3.

Secondary speed sensor

Front

: Genuine NISSAN CVT Fluid NS-3

JSDIA1881GB
