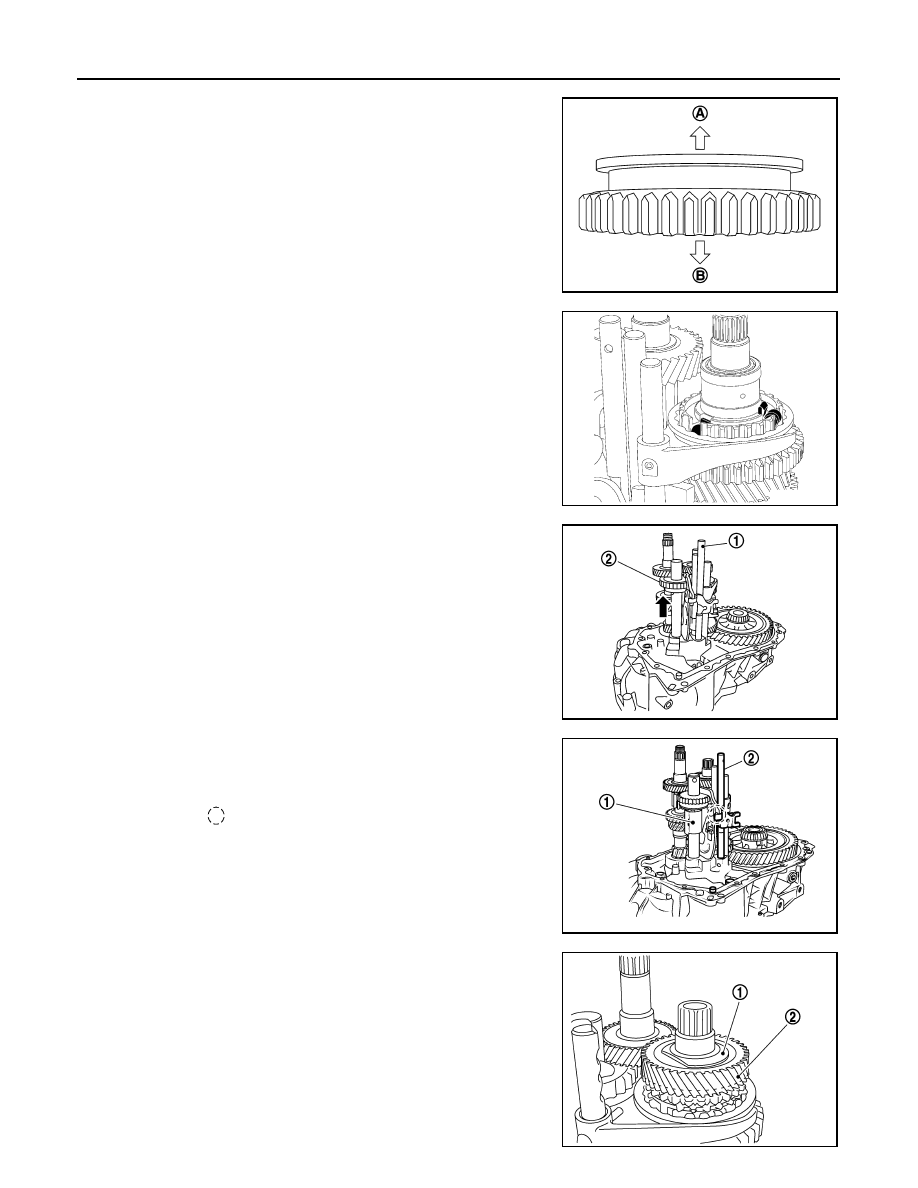

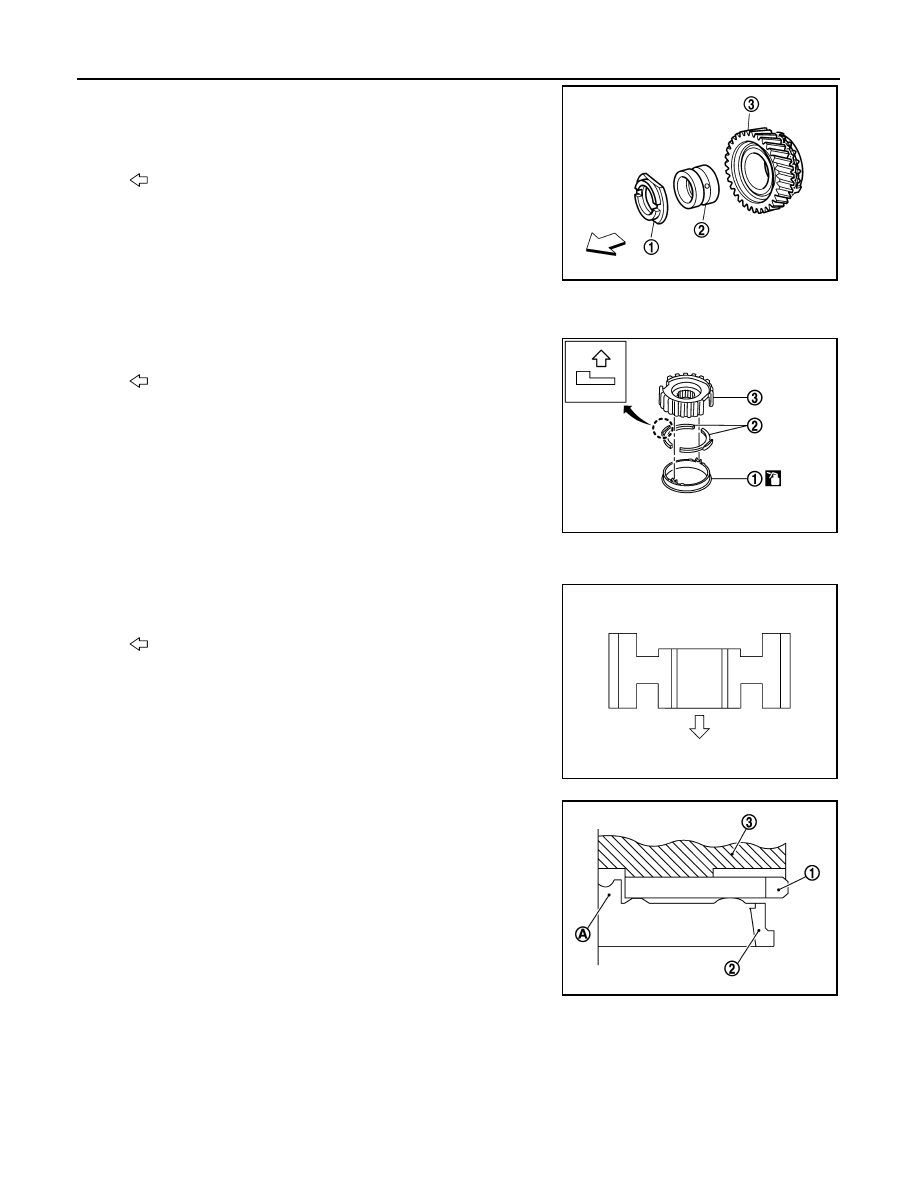

TM-40 < UNIT DISASSEMBLY AND ASSEMBLY > [5MT: RS5F91R] TRANSAXLE ASSEMBLY • Be careful with the orientation of 3rd-4th coupling sleeve. • Install 3rd input gear of input shaft assembly so that it is set under reverse main gear of 3rd-4th coupling sleeve. • Replace 3rd-4th coupling sleeve and 3rd-4th synchronizer hub as a set. c. Install springs and insert keys to 3rd-4th synchronizer hub. d. Apply gear oil to 4th baulk ring. 27. Install 5th-reverse fork rod (1) to clutch housing. CAUTION: Replace 5th-reverse fork rod and 5th-reverse shift fork as a set. a. Pull gear of reverse gear (2) up. c. Press gear of reverse gear (1) down and then install 5th-reverse fork rod (2) to clutch housing. CAUTION: Set levers of 5th-reverse fork rod so as to align with reverse 28. Install 4th main gear (2) and spacer (1) to mainshaft. CAUTION: Install spacer so that spacer protrusion faces rear side of transaxle. 29. Press 3rd-4th shift fork down and then shift 3rd-4th coupling sleeve to 3rd gear side. (A) : 4th main gear side (B) : 3rd main gear side PCIB1551E MCIB0061E PCIB1629E PCIB1552E PCIB1529E |
