PB-4

< PERIODIC MAINTENANCE >

PARKING BRAKE SYSTEM

PERIODIC MAINTENANCE

PARKING BRAKE SYSTEM

Inspection and Adjustment

INFOID:0000000009364868

INSPECTION

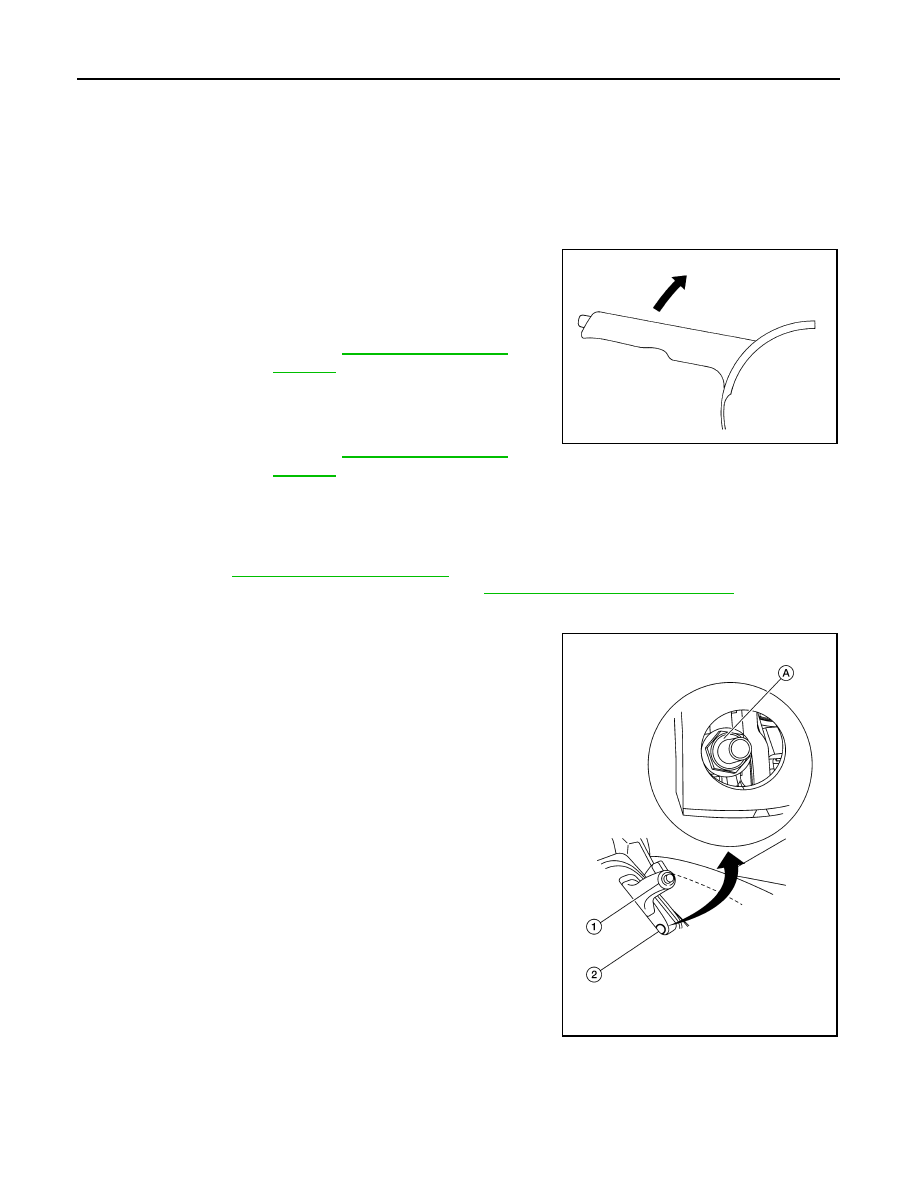

Parking Brake Control Stroke

1. When parking brake control is operated with a force of 196 N

(20.0 kg-f, 44.1 lb-f), make sure parking brake control stroke is

within the specified number of notches. (Check by listening and

counting the number of ratchet clicks.)

2. Check that the parking brake lamp illuminates, after parking

brake has been operated to the specified number of notches.

Inspect Components

• Check the parking brake components for bends, wear and or damage. Replace if any damage is noted.

• Check that the parking brake operates properly; be sure that it is not bound up or sticking.

• Check that the brake warning light illuminates after parking brake has been operated to the specified number

of notches. Refer to

PB-10, "Parking Brake Control"

.

• Inspect and adjust the rear brakes if necessary. Refer to

BR-42, "Inspection and Adjustment"

.

ADJUSTMENT

1. Pull parking brake control (1) until the access hole (2) is visible.

Use suitable tool to adjust nut (A).

2. Turn adjusting nut (A) using suitable tool to loosen the front

cable.

3. Depress the brake pedal with a force of 196 N (20.0 kg-f, 44.1 lb-f) about 10 times and adjust the brake

shoe clearance.

4. Adjust the cable with the following procedure.

CAUTION:

Number of
notches

: Refer to

PB-10, "Parking Brake

Control"

.

Number of
notches

: Refer to

PB-10, "Parking Brake

Control"

.

WFIA0508E

AWFIA1013ZZ

PARKING BRAKE SYSTEM

PB-5

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

To prevent damage to parts, do not bend the parking brake cables.

a. Adjust the parking brake lever stroke by turning the adjusting nut using suitable tool.

CAUTION:

Do not reuse the adjusting nut if the nut is removed.

b. Operate the parking brake lever with a force of 196 N (20.0 kg-f, 44.1lb-f). Check that the lever stroke is

within the specified number of notches. (Check by listening and counting the number of the ratchet clicks.)

Number of notches

: Refer to

PB-10, "Parking Brake Control"

.

PB-6

< REMOVAL AND INSTALLATION >

PARKING BRAKE CONTROL

REMOVAL AND INSTALLATION

PARKING BRAKE CONTROL

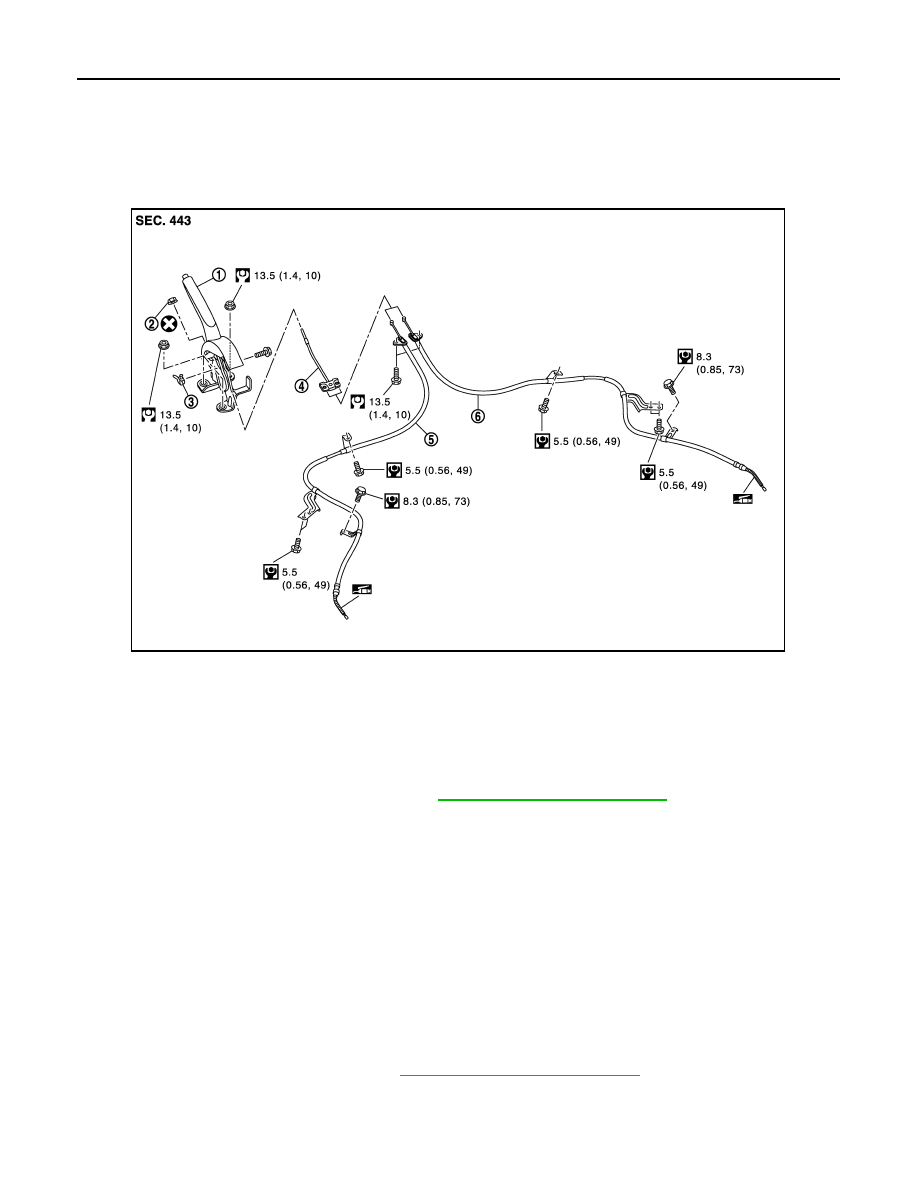

Exploded View

INFOID:0000000009364869

Removal and Installation

INFOID:0000000009364870

REMOVAL

1. Remove the center console assembly. Refer to

IP-18, "Removal and Installation"

.

2. Remove the adjusting nut.

CAUTION:

Do not reuse the adjusting nut.

3. Separate the parking brake front cable from the parking brake rear cables (RH/LH).
4. Disconnect the harness connector from the parking brake switch.
5. Remove the screw and remove the parking brake switch.
6. Remove the nuts and remove the parking brake control.

INSTALLATION

Installation is in the reverse order of the removal.

CAUTION:

• Replace the parking brake control if it has been dropped or sustained an impact.

• Replace the parking brake switch if it has been dropped or sustained an impact.

• Do not reuse the adjusting nut.

Inspect and adjust the parking brake. Refer to

PB-4, "Inspection and Adjustment"

.

1.

Parking brake control

2.

Adjusting nut

3.

Parking brake switch

4.

Parking brake front cable

5.

Parking brake rear cable (LH)

6.

Parking brake rear cable (RH)

JPFIB0133GB

PARKING BRAKE CABLE

PB-7

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

PARKING BRAKE CABLE

Removal and Installation

INFOID:0000000009606340

REMOVAL

1. Remove the center console assembly. Refer to

IP-18, "Removal and Installation"

.

2. Remove the adjusting nut. Refer to

PB-6, "Exploded View"

.

3. Separate the parking brake front cable from parking brake rear cables (RH/LH). Refer to

PB-6, "Exploded

View"

.

CAUTION:

To prevent damage to the parts, do not bend the parking brake cables.

4. Remove the parking brake front cable.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse the adjusting nut.

• Inspect and adjust the parking brake. Refer to

PB-4, "Inspection and Adjustment"

.
