THE DOOR OPEN WARNING CONTINUES DISPLAYING, OR DOES NOT
DISPLAY

Description

INFOID:0000000009654135

• The door ajar warning is displayed even though all of the doors are closed.

• The door ajar warning is not displayed even though a door is ajar.

Diagnosis Procedure

INFOID:0000000009654136

1.

CHECK BCM INPUT SIGNAL

Check the BCM input signal. Refer to

DLK-95, "Component Function Check"

 (with Intelligent Key) or

DLK-

225, "Component Function Check"

 (without Intelligent Key).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK COMBINATION METER INPUT SIGNAL

Select the METER/M&A Data Monitor and check the DOOR W/L monitor value while opening and closing

doors.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-54, "Removal and Installation"

.

NO

>> Replace BCM. Refer to

BCS-70, "Removal and Installation"

 (with Intelligent Key) or

BCS-127,

"Removal and Installation"

 (without Intelligent Key).

3.

CHECK DOOR SWITCH SIGNAL CIRCUIT

Check the door switch signal circuit. Refer to

DLK-95, "Diagnosis Procedure"

 (with Intelligent Key) or

DLK-

225, "Diagnosis Procedure"

 (without Intelligent Key).

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connector.

4.

CHECK DOOR SWITCH

Check the door switch. Refer to

DLK-96, "Component Inspection"

 (with Intelligent Key) or

DLK-227, "Compo-

nent Inspection"

 (without Intelligent Key).

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-54, "Removal and Installation"

.

NO

>> Replace applicable door switch. Refer to

DLK-175, "Removal and Installation"

 (with Intelligent

Key) or

DLK-301, "Removal and Installation"

 (without Intelligent Key).

Monitor item

Condition

Status

DOOR W/L

Door open

ON

Door closed

OFF

MWI-52

< SYMPTOM DIAGNOSIS >

THE PARKING BRAKE RELEASE WARNING CONTINUES DISPLAYING, OR

DOES NOT DISPLAY

THE PARKING BRAKE RELEASE WARNING CONTINUES DISPLAYING,
OR DOES NOT DISPLAY

Description

INFOID:0000000009654137

• The parking brake warning is displayed while driving the vehicle even though the parking brake is released.

• The parking brake warning is not displayed while driving the vehicle even though the parking brake is

applied.

Diagnosis Procedure

INFOID:0000000009654138

1.

CHECK PARKING BRAKE WARNING LAMP OPERATION

1. Start engine.

2. Check the operation of the brake warning lamp while operating the parking brake.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-54, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK PARKING BRAKE SWITCH

Check the parking brake switch. Refer to

WCS-39, "Component Inspection"

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace parking brake switch. Refer to

PB-9, "Removal and Installation"

.

3.

CHECK PARKING BRAKE SWITCH SIGNAL CIRCUIT

1. Turn ignition switch OFF.

2. Check the parking brake switch signal circuit. Refer to

WCS-38, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-54, "Removal and Installation"

.

NO

>> Repair or replace harness or connector.

Condition

Warning lamp status

Parking brake applied

ON

Parking brake released

OFF

MWI

THE LOW WASHER FLUID WARNING CONTINUES DISPLAYING, OR DOES

NOT DISPLAY

MWI-53

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

THE LOW WASHER FLUID WARNING CONTINUES DISPLAYING, OR
DOES NOT DISPLAY

Description

INFOID:0000000009682044

• The warning is still displayed even after washer fluid is added.

• The warning is not displayed even though the washer tank is empty.

Diagnosis Procedure

INFOID:0000000009682045

1.

CHECK WASHER FLUID LEVEL SWITCH

Check the washer fluid level switch. Refer to

MWI-47, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace washer fluid level switch. Refer to

WW-64, "Removal and Installation"

.

2.

CHECK WASHER FLUID LEVEL SWITCH SIGNAL CIRCUIT

Check the washer fluid level switch signal circuit. Refer to

MWI-47, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-54, "Removal and Installation"

.

NO

>> Repair or replace harness or connector.

MWI-54

< UNIT REMOVAL AND INSTALLATION >

COMBINATION METER

UNIT REMOVAL AND INSTALLATION

COMBINATION METER

Removal and Installation

INFOID:0000000009477606

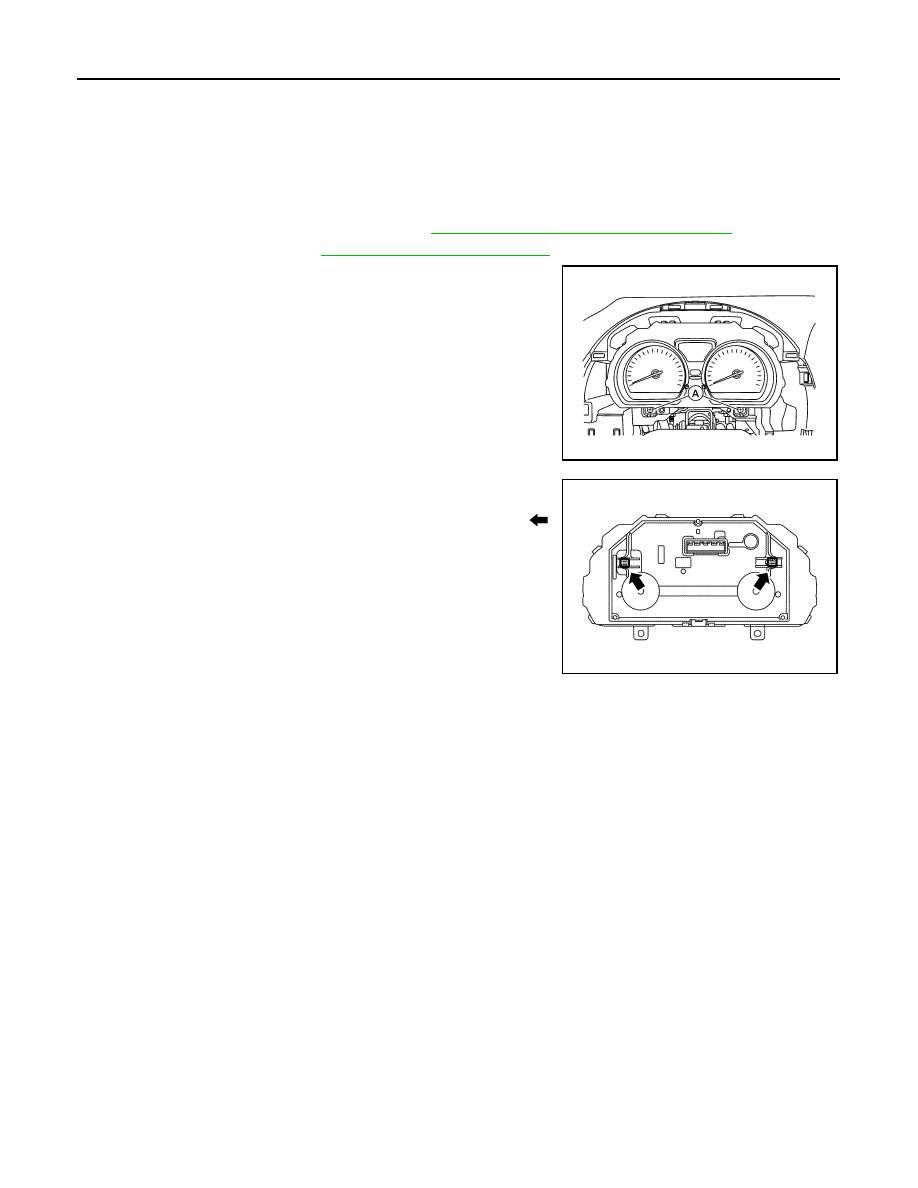

REMOVAL

1. Disconnect negative battery terminal. Refer to

PG-67, "Removal and Installation (Battery)"

.

2. Remove cluster lid A. Refer to

IP-21, "Removal and Installation"

.

3. Remove combination meter screws (A).

4. Pull the combination meter straight out to release clips.

NOTE:
Back side of the combination meter shown for clip position (

)

clarity.

5. Disconnect the harness connector from the combination meter.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1519ZZ

JSNIA3895ZZ
