COMBINATION METER

MWI-55

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

UNIT DISASSEMBLY AND ASSEMBLY

COMBINATION METER

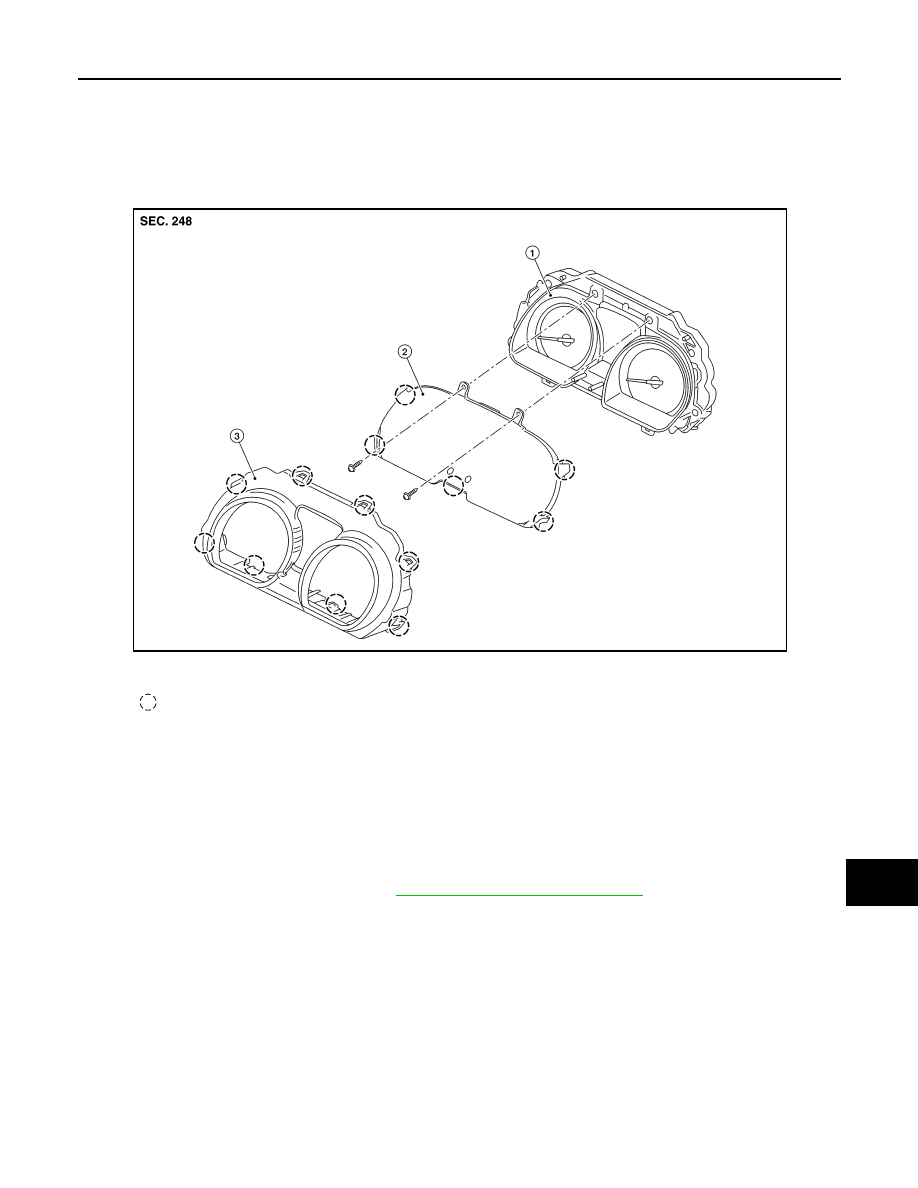

Exploded View

INFOID:0000000009477924

Disassembly and Assembly

INFOID:0000000009479172

CAUTION:

• Do not touch the display, pointer, the inside of combination meter and the printed area of the dial

during the work.

• Keep away from magnetic sources.

• Do not damage the combination meter finisher.

DISASSEMBLY

1. Remove the combination meter. Refer to

MWI-54, "Removal and Installation"

.

2. Release the pawls and remove combination meter finisher.
3. Remove screws, then release pawls and remove combination meter lens.

ASSEMBLY

Assembly is in the reverse order of disassembly.

1. Combination meter

2.

Combination meter lens

3.

Combination meter finisher

Pawl

AWNIA3052ZZ

PB-1

BRAKES

C

D

E

G

H

I

J

K

L

M

SECTION

PB

A

B

PB

N

O

P

CONTENTS

PARKING BRAKE SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Commercial Service Tool  ..........................................

3

PERIODIC MAINTENANCE ..........................

4

PARKING BRAKE SYSTEM ...............................

4

Inspection and Adjustment ........................................

4

REMOVAL AND INSTALLATION ................

6

PARKING BRAKE CONTROL ...........................

6

Exploded View ..........................................................

6

Removal and Installation  ..........................................

6

PARKING BRAKE CABLE  ................................

7

Removal and Installation  ..........................................

7

PARKING BRAKE REAR CABLE .....................

8

Removal and Installation  ..........................................

8

PARKING BRAKE SWITCH  ..............................

9

Removal and Installation  ..........................................

9

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

10

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

10

Parking Brake Control  .............................................

10

PB-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009606343

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

PREPARATION

PB-3

< PREPARATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

PREPARATION

PREPARATION

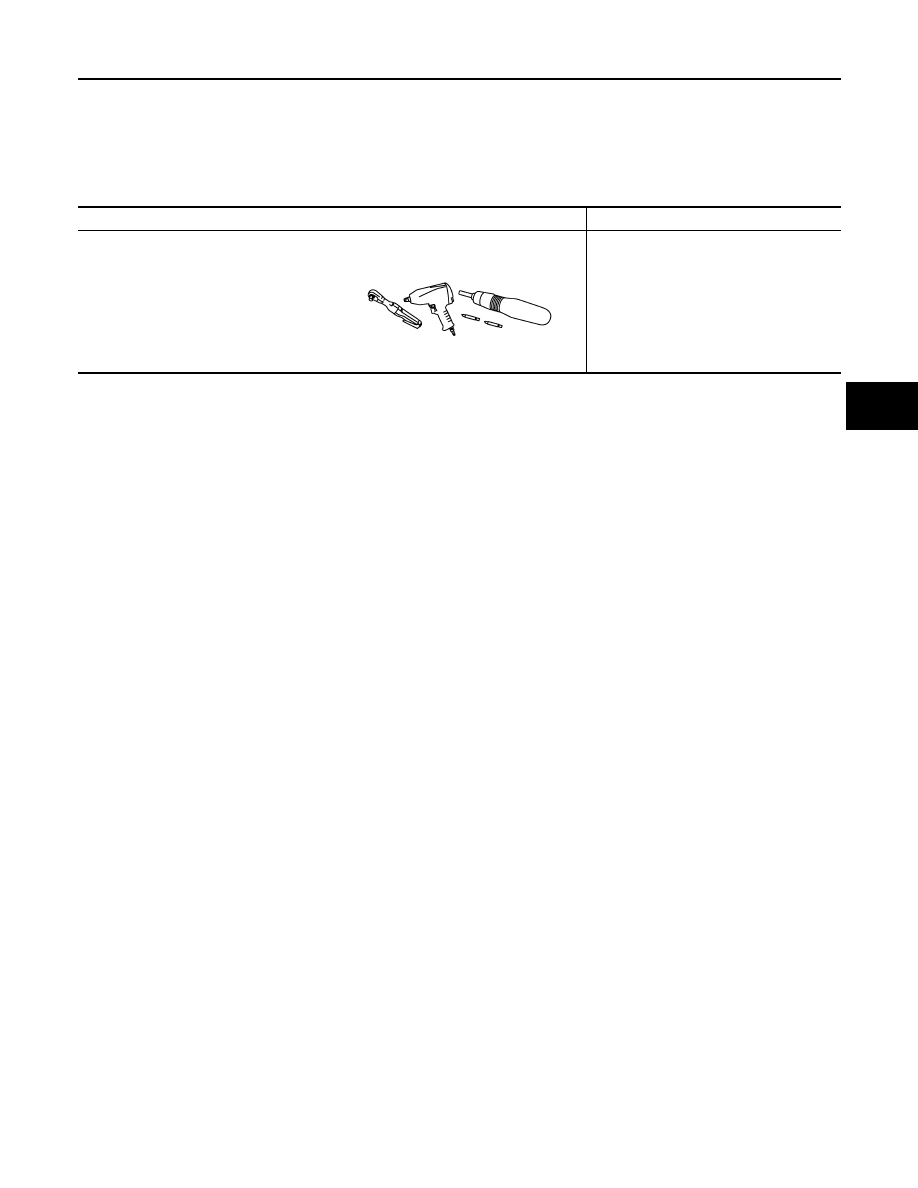

Commercial Service Tool

INFOID:0000000009364867

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E
