Nissan Versa Note. Manual - part 597

PB-8

< REMOVAL AND INSTALLATION >

PARKING BRAKE REAR CABLE

PARKING BRAKE REAR CABLE

Removal and Installation

INFOID:0000000009606341

REMOVAL

1. Remove the center console assembly. Refer to

IP-18, "Removal and Installation"

.

2. Loosen the adjusting nut. Refer to

PB-6, "Exploded View"

.

NOTE:

It is not necessary to remove the parking brake front cable.

3. Separate the parking brake rear cables (RH/LH) from the parking brake front cable. Refer to

PB-6,

"Exploded View"

.

4. Remove the rear wheels and tires using power tool. Refer to

WT-45, "Exploded View"

.

5. Remove rear wheel sensors. Refer to

BRC-108, "REAR SENSOR ROTOR : Removal and Installation"

.

6. Remove the rear drum brake components. Refer to

BR-40, "Removal and Installation"

.

CAUTION:

Do not separate the brake tube from the wheel cylinders.

7. Remove the center muffler. Refer to

EX-5, "Exploded View"

.

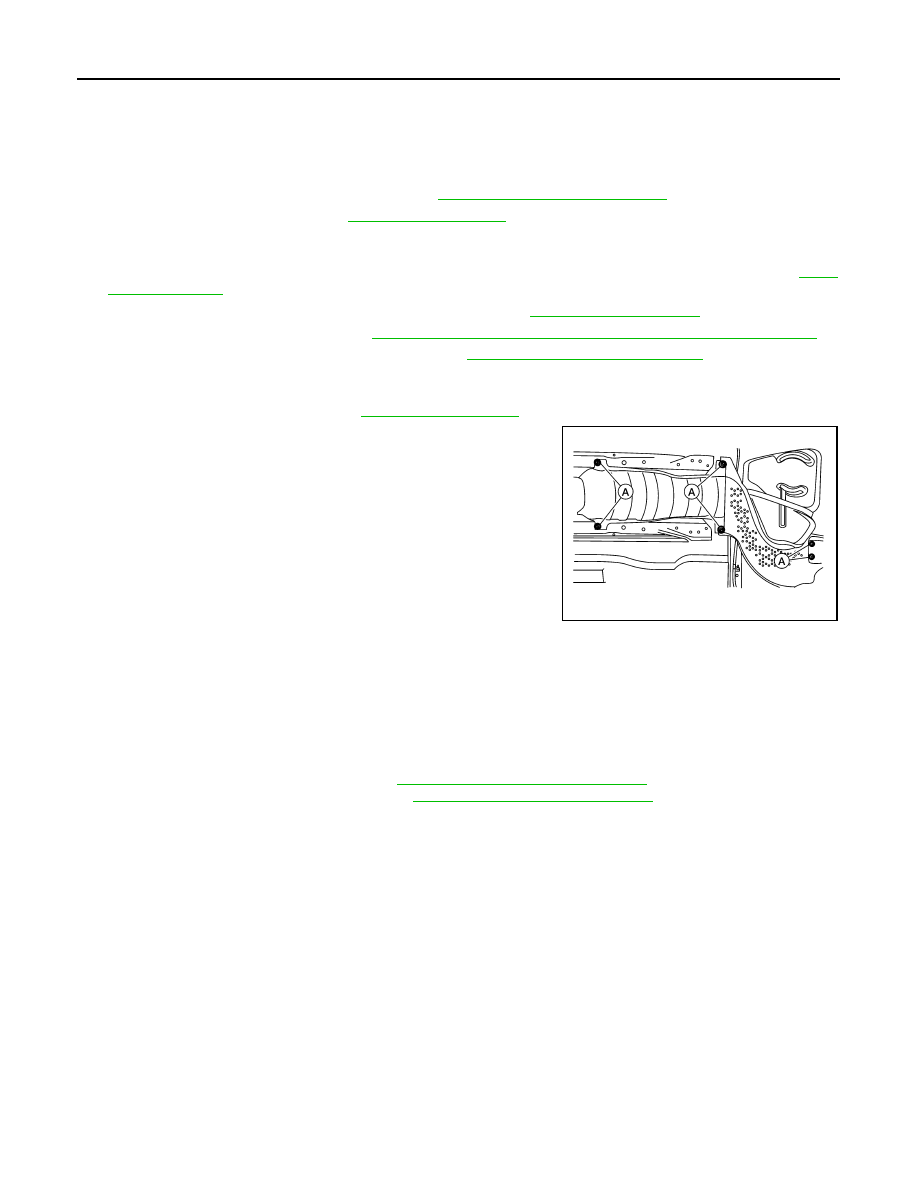

8. Remove nuts (A) and remove center floor insulators.

9. Remove the bolts and remove the parking brake rear cables (RH/LH).

CAUTION:

Do not excessively bend the parking brake cables.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse the adjusting nut if the nut is removed.

• Inspect and adjust the rear brakes. Refer to

BR-42, "Inspection and Adjustment"

.

• Inspect and adjust the parking brake. Refer to

PB-4, "Inspection and Adjustment"

.

ALBIA1147ZZ

PARKING BRAKE SWITCH

PB-9

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

PARKING BRAKE SWITCH

Removal and Installation

INFOID:0000000009606342

REMOVAL

1. Remove the center console assembly. Refer to

PB-6, "Exploded View"

.

2. Disconnect the harness connector from the parking brake switch. Refer to

PB-6, "Exploded View"

.

3. Remove the screw and remove the parking brake switch. Refer to

PB-6, "Exploded View"

.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the parking brake switch if it has been dropped or sustained an impact.

Adjust the parking brake cable if necessary. Refer to

PB-4, "Inspection and Adjustment"

.

PB-10

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Parking Brake Control

INFOID:0000000009364871

Item

Standard

Number of notches [under force of 196 N (20.0 kg-f, 44.1 lb-f)]

11

− 12 notches

Number of notches when brake warning light illuminates

1 notch maximum

PCS
