Nissan Versa Note. Manual - part 573





MA-28

< PERIODIC MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

29. When the flow of CVT fluid slows to a drip, tighten the drain plug to the specified torque.

TM-240,

"Removal and Installation"

.

CAUTION:

Never reuse drain plug gasket.

30. Lift down the vehicle.
31. Select “Work Support” in “TRANSMISSION” using CONSULT.
32. Select “CONFORM CVTF DETERIORTN”.
33. Select “Erase”.
34. Stop the engine.

CVT FLUID : Adjustment

INFOID:0000000009681965

CAUTION:

• Use only Genuine NISSAN CVT Fluid NS-3. Using transmission fluid other than Genuine NISSAN

CVT Fluid NS-3 will damage the CVT, which is not covered by the (NISSAN new vehicle limited) war-

ranty.

• During adjustment of the CVT fluid level, check CONSULT so that the oil temperature may be main-

tained from 35 to 45

°C (95 to 113°F).

• Use caution when looking into the drain hole as there is a risk of dripping fluid entering the eye.
1. Check that the selector lever is in the “P” position, then completely engage the parking brake.
2. Start the engine.
3. Adjust the CVT fluid temperature to be approximately 40

°C (104°F).

NOTE:

The CVT fluid is largely affected by temperature. Therefore be sure to use CONSULT and check the

“FLUID TEMP” under “TRANSMISSION” in “Data Monitor” while adjusting.

4. While depressing the brake pedal, shift the selector lever to the entire position from “P” to “L”, and shift it

to the “P” position.

NOTE:

Hold the lever at each position for 5 seconds.

5. Lift up the vehicle.
6. Check that there is no CVT fluid leakage.
7. Remove the drain plug. Refer to

TM-240, "Removal and Installation"

.

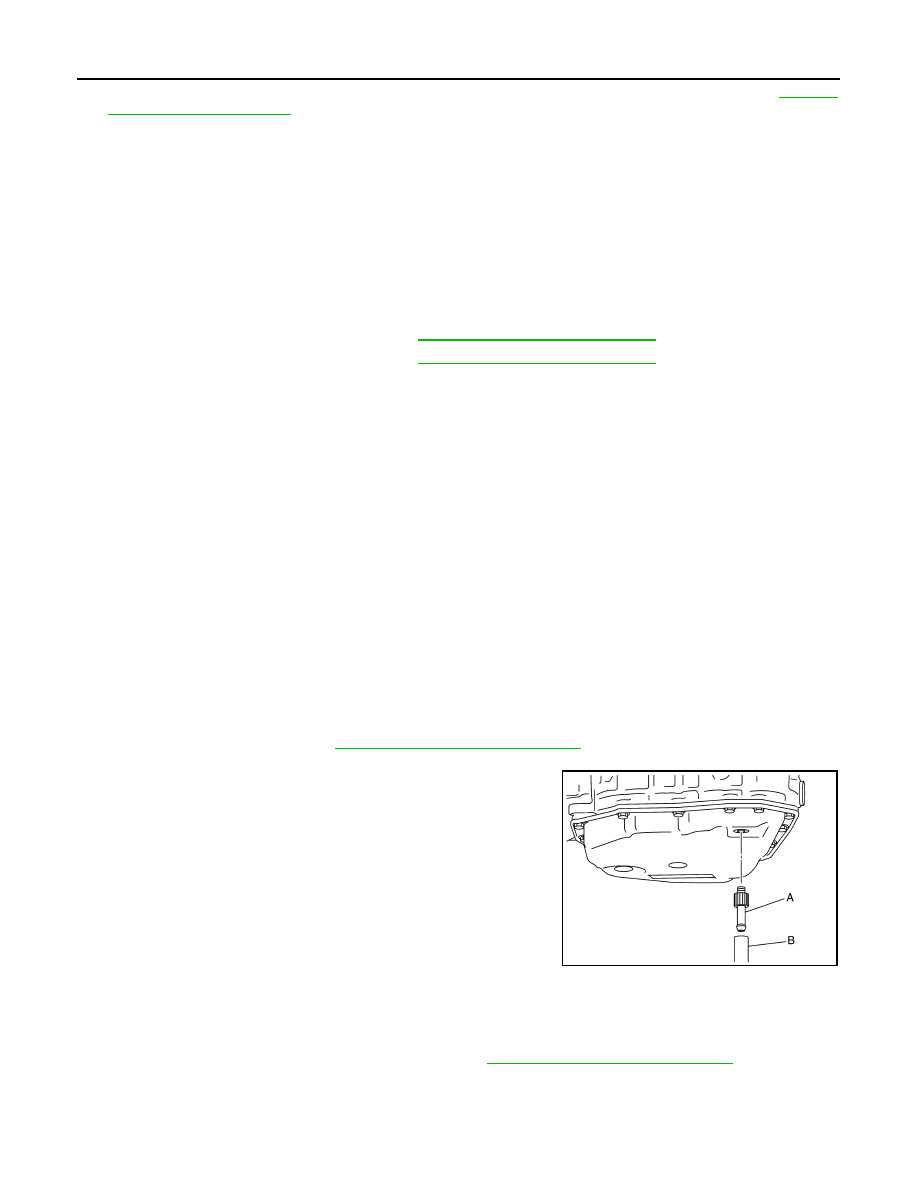

8. Install the charging pipe set (KV311039S0) (A) into the drain

plug hole.

CAUTION:

Tighten the charging pipe by hand.

9. Install the ATF changer hose (B) to the charging pipe.

CAUTION:

Press the ATF changer hose all the way onto the charging

pipe until it stops.

10. Fill approximately 0.5 liter (1/2 lmp qt) of the CVT fluid.
11. Remove the ATF changer hose from the charging pipe, and

check that the CVT fluid drains out from the charging pipe. If it

does not drain out, perform charging again.

CAUTION:

Perform this work with the vehicle idling.

12. When the flow of CVT fluid slows to a drip, remove the charging pipe from the oil pan.
13. Tighten the drain plug to the specified torque. Refer to

TM-240, "Removal and Installation"

.

CAUTION:

Never reuse drain plug gasket.

14. Lift down the vehicle.
15. Stop the engine.

CVT fluid

: Refer to

TM-256, "General Specification"

.

Fluid capacity

: Refer to

TM-256, "General Specification"

.

JSDIA1876ZZ

CHASSIS AND BODY MAINTENANCE

MA-29

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

CLUTCH FLUID
CLUTCH FLUID : Inspection

INFOID:0000000009417527

FLUID LEAKAGE

• Check clutch line for cracks, deterioration or other damage. Replace any damaged parts.

• Check for fluid leakage by fully depressing clutch pedal while engine is running.

CAUTION:

If leaks occur around connections, reinstall the lines or replace damaged parts, if necessary.

FLUID LEVEL

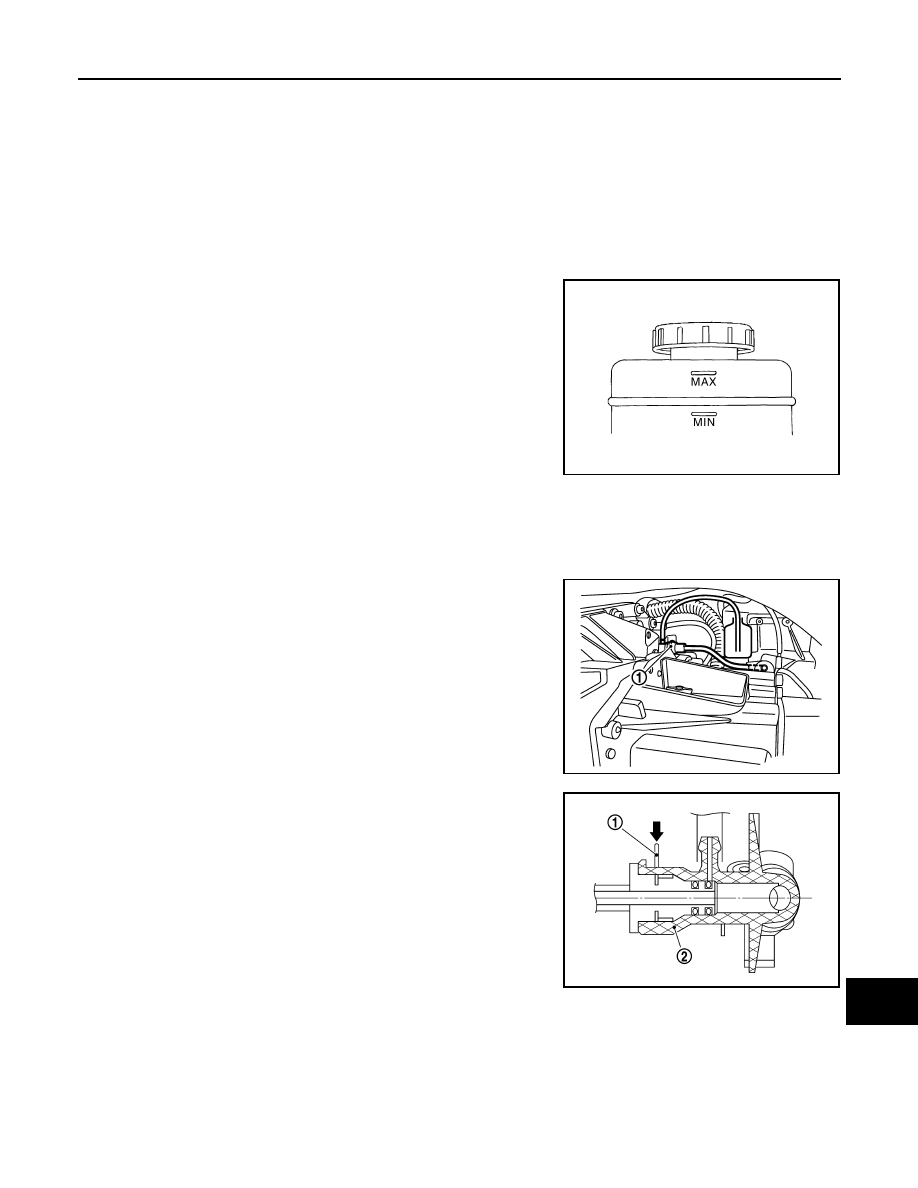

• Check that the fluid level in the reservoir tank is within the specified

range, between the MAX and MIN lines as shown.

• Visually check for any clutch fluid leaks around the reservoir tank.

• Check the clutch system for any leaks if the fluid level is extremely

low (lower than MIN).

CLUTCH FLUID : Draining

INFOID:0000000009417528

CAUTION:

Do not spill clutch fluid onto painted surfaces. If fluid spills, wipe up immediately and wash the

affected area with water.
1. Connect a transparent vinyl hose to air bleeder of bleeding con-

nector (1).

2. Press the lock pin (1) into the bleeding connector (2), and main-

tain the position.

JPFIA0007ZZ

JPDIB0144ZZ

PCIB1495E

MA-30

< PERIODIC MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

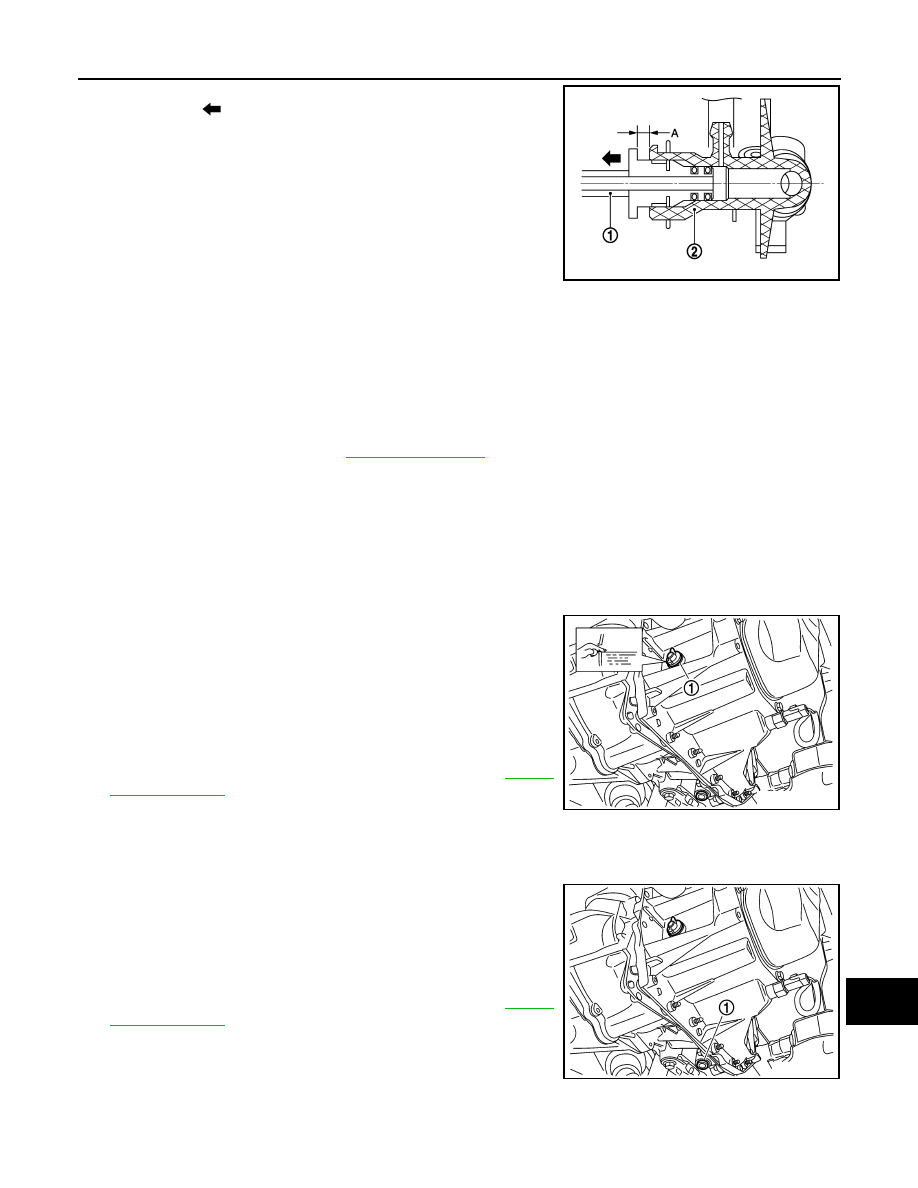

3. Slide clutch tube (1) for the specified distance (A) in the direction

of the arrow (

) as shown.

CAUTION:

Do not allow the clutch tube to disconnect from the bleed-

ing connector.

4. Depress clutch pedal to gradually discharge clutch fluid.

CAUTION:

Clutch tube is under hydraulic pressure; do not allow the clutch tube to disconnect from the

bleeding connector.

CLUTCH FLUID : Refilling

INFOID:0000000009417529

CAUTION:

Do not spill clutch fluid onto painted surfaces. If fluid spills, wipe up immediately and wash the

affected area with water.
1. Check that there is no foreign material in reservoir tank and then fill with new clutch fluid.

CAUTION:

Do not reuse drained clutch fluid.

2. Connect a transparent vinyl hose to air bleeder of bleeding con-

nector (1).

3. Press the lock pin (1) into the bleeding connector (2), and main-

tain the position.

(2)

: Bleeding connector

Dimension (A)

: 5 mm (0.20 in)

JPDIB0147ZZ

JPDIB0144ZZ

PCIB1495E

CHASSIS AND BODY MAINTENANCE

MA-31

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

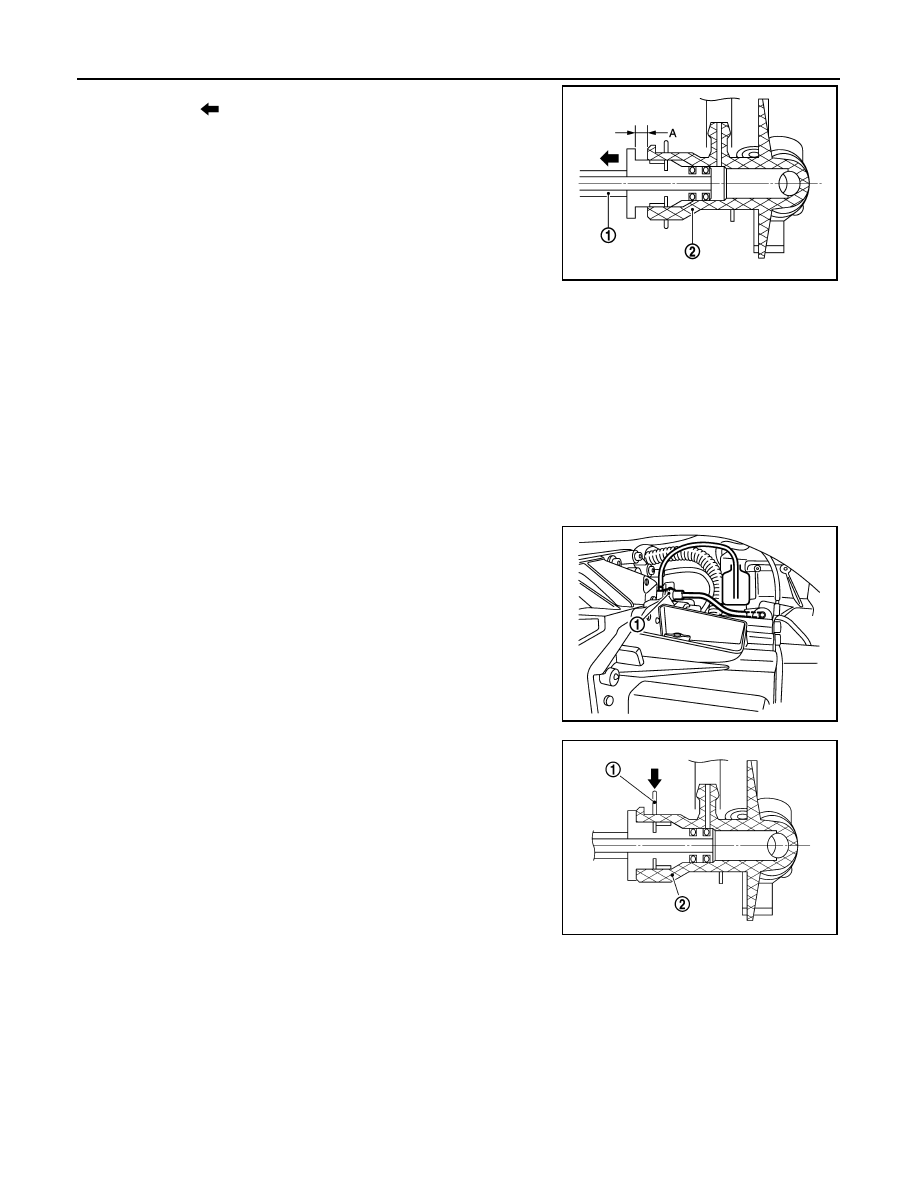

4. Slide clutch tube (1) for the specified distance (A) in the direction

of the arrow (

) as shown.

5. Slowly depress clutch pedal to the full stroke position and then release the pedal.

CAUTION:

Clutch tube is under hydraulic pressure; do not allow the clutch tube to disconnect from the

bleeding connector.

6. Repeat step 5 at intervals of 2 or 3 seconds until new clutch fluid is discharged.

CAUTION:

Monitor clutch fluid level in reservoir tank so as not to empty the tank.

7. Return clutch tube and lock pin in their original positions while clutch pedal is depressed.
8. Perform the air bleeding. Refer to

CL-8, "Air Bleeding"

.

GEAR OIL
GEAR OIL : Inspection

INFOID:0000000009681959

GEAR OIL LEAKS

Make sure that gear oil is not leaking from transaxle or around it.

GEAR OIL LEVEL

1. Remove filler plug (1) and gasket from transaxle case.
2. Check the gear oil level from filler plug hole as shown.

CAUTION:

Do not start engine while checking gear oil level.

3. Install a new gasket on filler plug and then install filler plug to

transaxle case.

CAUTION:

Do not reuse gasket.

4. Tighten filler plug to the specified torque. Refer to

TM-26,

"Exploded View"

.

GEAR OIL : Draining

INFOID:0000000009681960

1. Start engine and let it run to warm up transaxle.
2. Stop engine. Remove drain plug (1) and gasket, using suitable

tool and then drain gear oil.

3. Install a new gasket on drain plug (1) and install drain plug to

clutch housing, using suitable tool.

CAUTION:

Do not reuse gasket.

4. Tighten drain plug (1) to the specified torque. Refer to

TM-26,

"Exploded View"

.

(2)

: Bleeding connector

Dimension (A)

: 5 mm (0.20 in)

JPDIB0147ZZ

SCIA7119E

PCIB1504E
