EXL-108

< REMOVAL AND INSTALLATION >

LICENSE PLATE LAMP

LICENSE PLATE LAMP

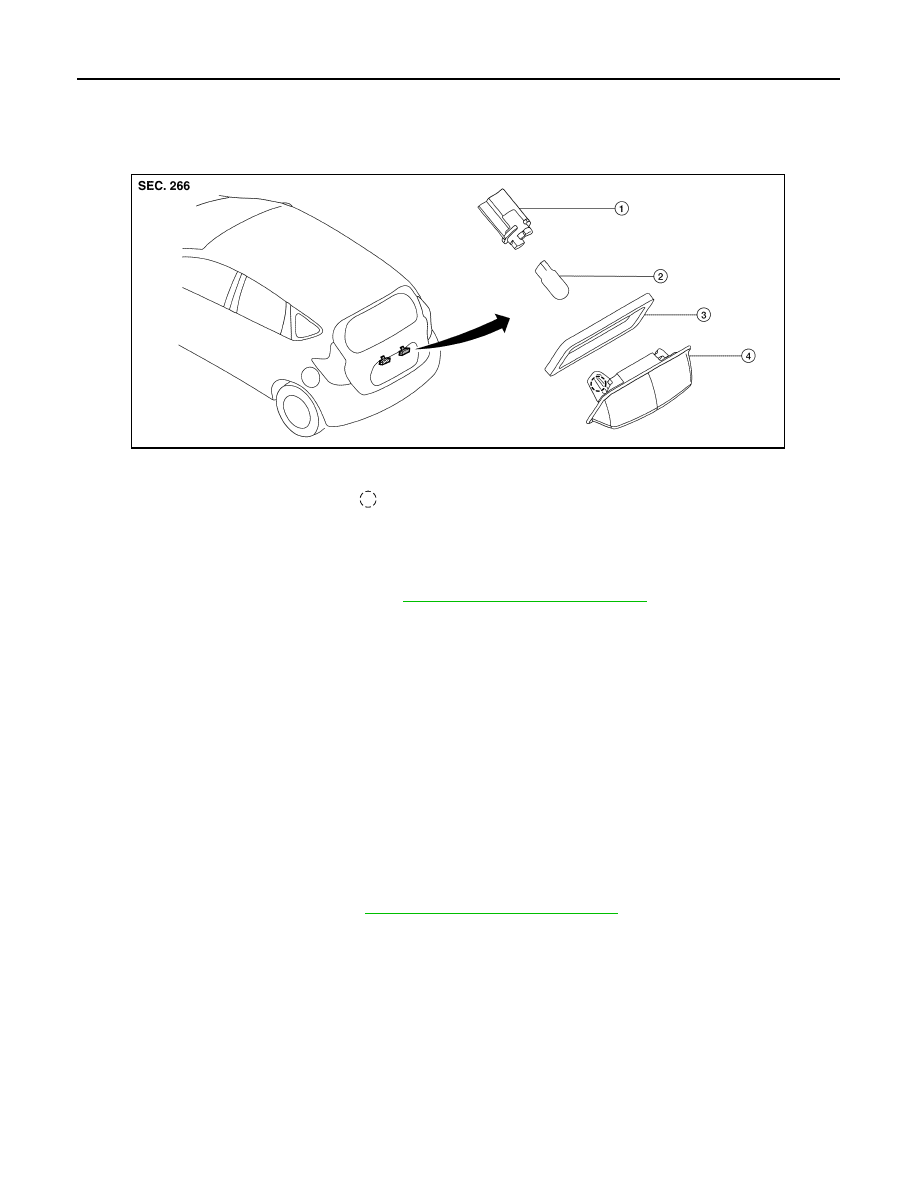

Exploded View

INFOID:0000000008969415

Removal and Installation

INFOID:0000000008969416

REMOVAL

1. Remove back door outer finisher. Refer to

EXT-46, "Removal and Installation"

.

2. Disconnect harness connector from license plate lamp.
3. Release license plate lamp pawl and remove license plate lamp.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000008969417

WARNING:

Do not touch bulb with your hand while it is on or right after being turned off. Burning may result.

CAUTION:

• Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

REMOVAL

1. Remove license plate lamp. Refer to

EXL-108, "Removal and Installation"

.

2. Rotate license plate lamp bulb socket counterclockwise and remove.
3. Remove license plate lamp bulb from bulb socket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install the bulb socket securely for watertightness.

1.

License plate lamp bulb socket

2.

License plate lamp bulb

3.

Seal

4.

License plate lamp

Pawl

AWLIA2173ZZ

FRONT COMBINATION LAMP

EXL-109

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

FRONT COMBINATION LAMP

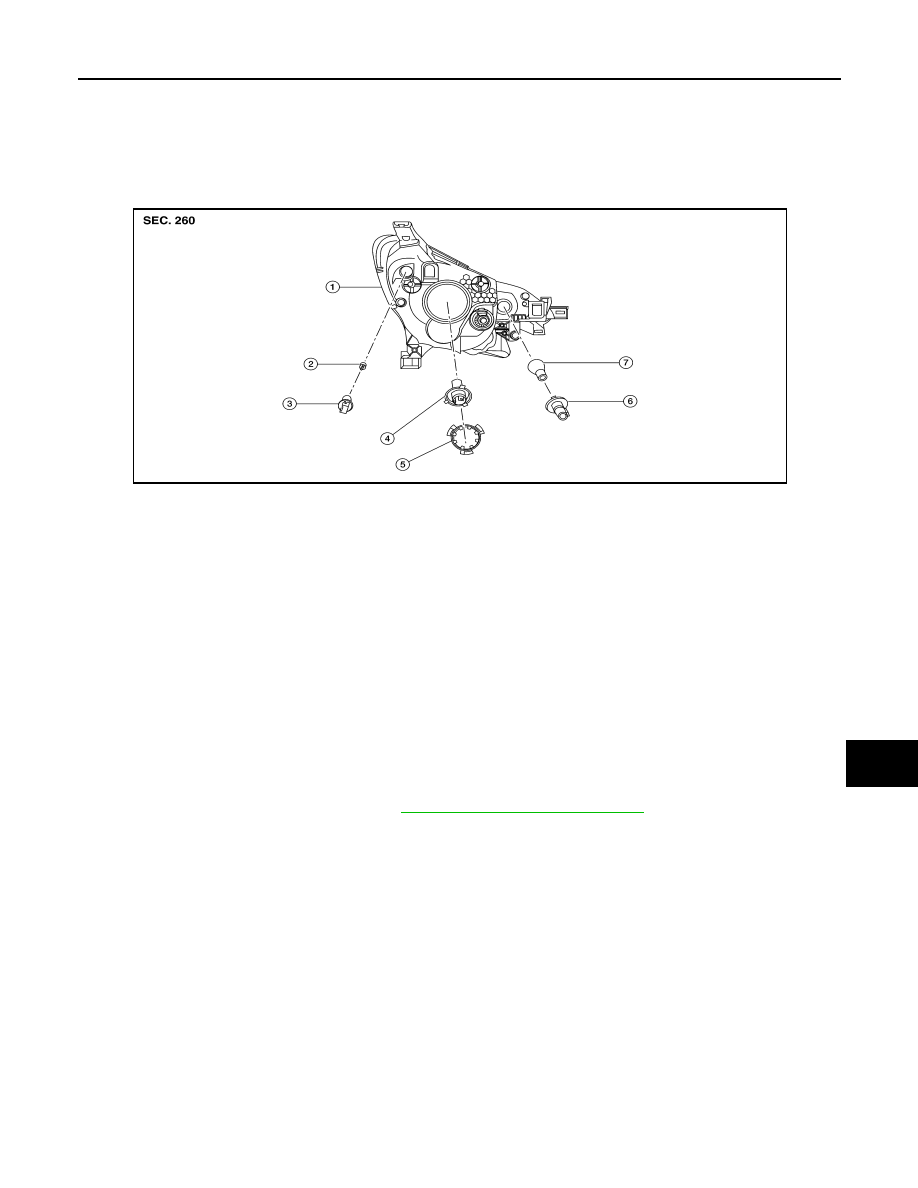

Exploded View

INFOID:0000000009670467

Disassembly and Assembly

INFOID:0000000009670468

WARNING:

Do not touch bulb while it is lit or right after being turned off. Burning may result.

CAUTION:

• Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent

damage to bulb.

• Do not leave the bulb out of the lamp reflector for a long time because dust, moisture, smoke, etc.

may affect the performance of the lamp.

DISASSEMBLY

1. Remove front combination lamp. Refer to

EXL-99, "Removal and Installation"

.

2. Rotate lock ring counterclockwise and remove.
3. Remove headlamp bulb.
4. Rotate side marker bulb socket counterclockwise and remove.
5. Remove the side marker lamp bulb from the side marker bulb socket.
6. Rotate turn signal/parking lamp bulb socket counterclockwise and remove.
7. Remove turn signal/parking lamp bulb from turn signal/parking lamp bulb socket.

ASSEMBLY

Assembly is in the reverse order of disassembly.

CAUTION:

• After installing the headlamp bulb, be sure to install lock ring securely to ensure watertightness.

• After installing, be sure to install the bulb sockets securely to ensure watertightness.

1.

Front combination lamp

2.

Side marker lamp bulb

3.

Side marker lamp socket

4.

Headlamp bulb

5.

Lock ring

6.

Front turn signal/Parking lamp
bulb socket

7.

Front turn signal/Parking lamp
bulb

AWLIA2165ZZ

EXL-110

< UNIT DISASSEMBLY AND ASSEMBLY >

REAR COMBINATION LAMP

REAR COMBINATION LAMP

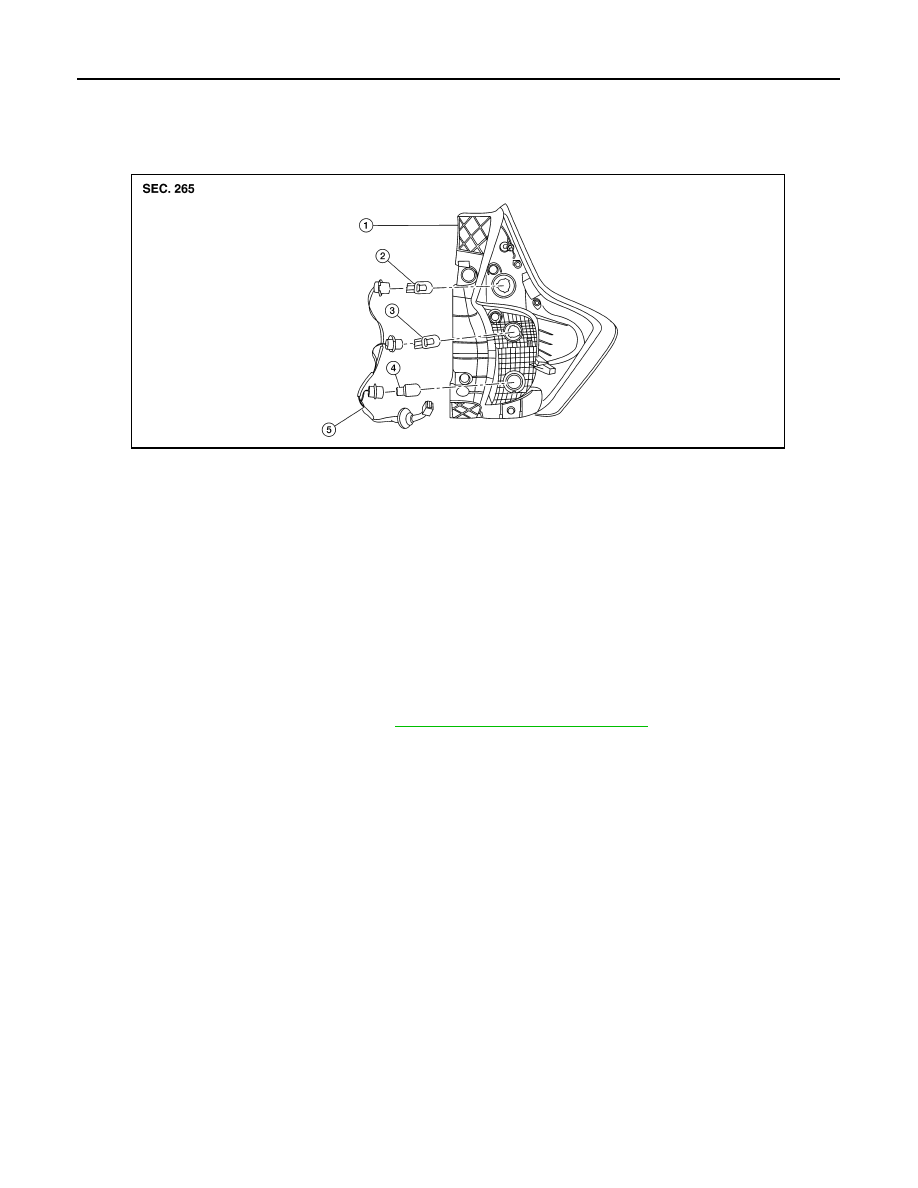

Exploded View

INFOID:0000000009670471

Disassembly and Assembly

INFOID:0000000009670472

WARNING:

Do not touch bulb while it is lit or right after being turned off. Burning may result.

CAUTION:

• Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent

damage to bulb.

• Do not leave the bulb out of the lamp reflector for a long time because dust, moisture, smoke, etc.

may affect the performance of the lamp.

DISASSEMBLY

1. Remove rear combination lamp. Refer to

EXL-105, "Removal and Installation"

.

2. Rotate rear turn signal lamp bulb socket counterclockwise and remove.
3. Remove rear turn signal lamp bulb from bulb socket.
4. Rotate back-up lamp bulb socket counterclockwise and remove.
5. Remove back-up lamp bulb from bulb socket.
6. Rotate stop/tail lamp bulb socket counterclockwise and remove.
7. Remove stop/tail lamp bulb from bulb socket.

ASSEMBLY

Assembly is in the reverse order of disassembly.

CAUTION:

After installing, be sure to install the bulb sockets securely to ensure watertightness.

1.

Rear combination lamp

2.

Stop/tail lamp bulb

3.

Back-up lamp bulb

4.

Rear turn signal lamp bulb

5.

Harness connector

AWLIA2166ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

EXL-111

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb specification

INFOID:0000000008969418

*: Always check with the Parts Department for the latest parts info.

Item

Wattage (W)*

Front combination

Headlamp (HI/LO)

65/55

Front Turn signal/Parking lamp

27/8

Side marker lamp

5

Fog lamp (if equipped)

55

Rear combination

Stop/Tail lamp

21/5

Rear turn signal lamp

21

Back-up lamp

21

License plate lamp

5

High-mounted stop lamp

Normal glass

LED

Privacy glass

LED
