Nissan Versa Note. Manual - part 432





EXT-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

EXT

A

B

EXT

N

O

P

CONTENTS

EXTERIOR

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Procedure without Cowl Top Cover .......................

3

Precaution for Work  ..................................................

3

PREPARATION ............................................

5

PREPARATION ...................................................

5

Special Service Tools ..............................................

5

Commercial Service Tools .......................................

5

CLIP LIST  ............................................................

6

Descriptions for Clips  ................................................

6

SYSTEM DESCRIPTION  .............................

10

COMPONENT PARTS  .......................................

10

ACTIVE GRILLE SHUTTER SYSTEM  ......................

10

ACTIVE GRILLE SHUTTER SYSTEM :
Component Parts Location ....................................

10

ACTIVE GRILLE SHUTTER SYSTEM : Active
grille shutter .............................................................

10

SYSTEM .............................................................

11

ACTIVE GRILLE SHUTTER SYSTEM  ......................

11

ACTIVE GRILLE SHUTTER SYSTEM : System
Diagram ...................................................................

11

ACTIVE GRILLE SHUTTER SYSTEM : System
Description ..............................................................

11

WIRING DIAGRAM ......................................

13

ACTIVE GRILLE SHUTTER ...............................

13

Wiring Diagram  .......................................................

13

SYMPTOM DIAGNOSIS  ..............................

17

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ..............................................................

17

Work Flow ................................................................

17

Generic Squeak and Rattle Troubleshooting ...........

18

Diagnostic Worksheet ..............................................

21

REMOVAL AND INSTALLATION ...............

23

FRONT BUMPER ..............................................

23

Exploded View .........................................................

23

Removal and Installation  .........................................

24

REAR BUMPER  ................................................

26

Exploded View .........................................................

26

Removal and Installation  .........................................

26

FRONT GRILLE  ................................................

29

Exploded View .........................................................

29

Removal and Installation  .........................................

29

ACTIVE GRILLE SHUTTER  .............................

30

Exploded View .........................................................

30

Removal and Installation  .........................................

31

FRONT SPOILER ..............................................

32

Exploded View .........................................................

32

Removal and Installation  .........................................

32

COWL TOP  .......................................................

34

Exploded View .........................................................

34

Removal and Installation  .........................................

35

FENDER PROTECTOR  ....................................

36

Exploded View .........................................................

36

Removal and Installation  .........................................

36

UNDER COVER  ................................................

37

FRONT UNDER COVER ............................................

37

FRONT UNDER COVER : Exploded View ..............

37

FRONT UNDER COVER : Removal and Installa-
tion ...........................................................................

37

Exploded View .........................................................

38

PRECAUTIONS

EXT-3

< PRECAUTION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009446815

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

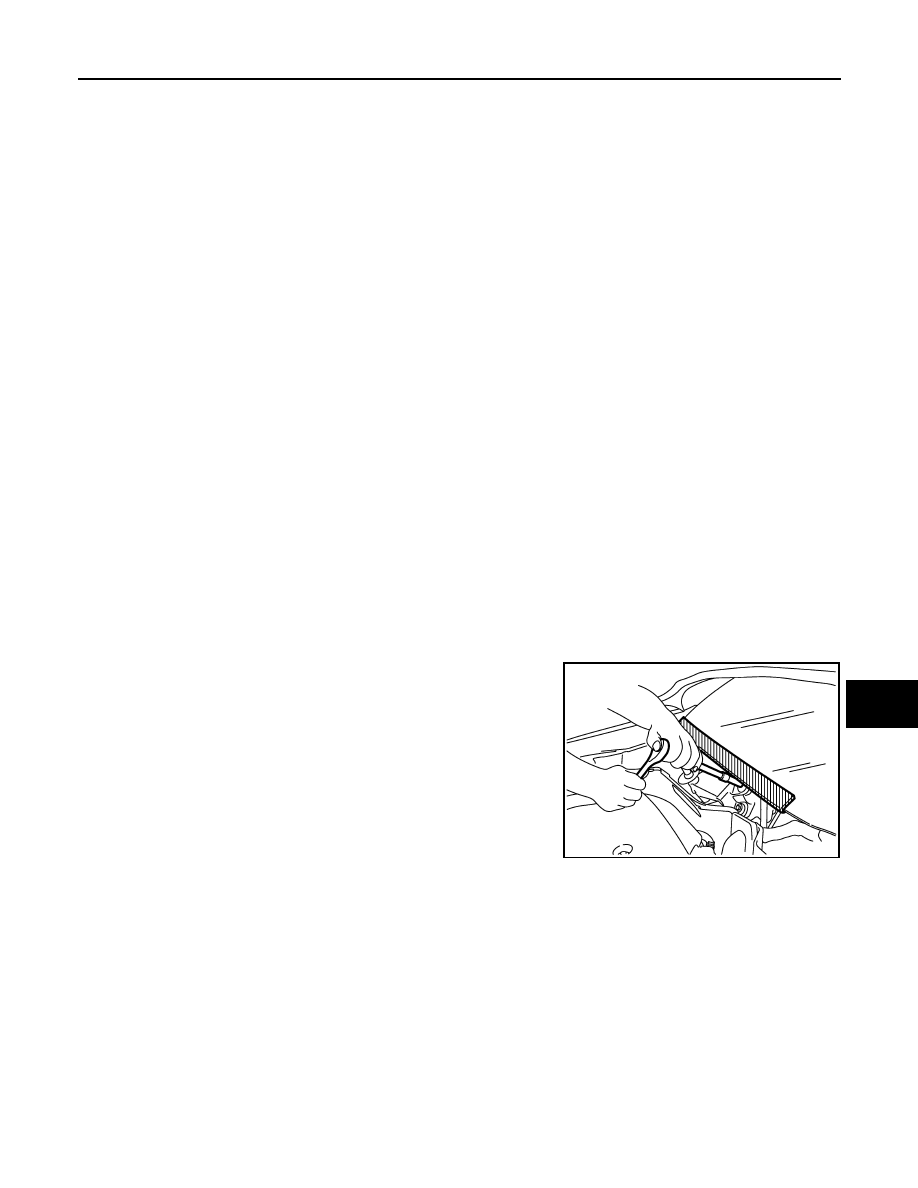

Procedure without Cowl Top Cover

INFOID:0000000009444381

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc. to prevent damage to

the windshield.

Precaution for Work

INFOID:0000000009444380

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

- Water soluble dirt:

• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

• Then rub with a soft, dry cloth.

- Oily  dirt:

PIIB3706J

EXT-4

< PRECAUTION >

PRECAUTIONS

• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

• Then rub with a soft, dry cloth.

- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

- For genuine leather seats, use a genuine leather seat cleaner.
