Nissan Versa Note. Manual - part 430





EXL-104

< REMOVAL AND INSTALLATION >

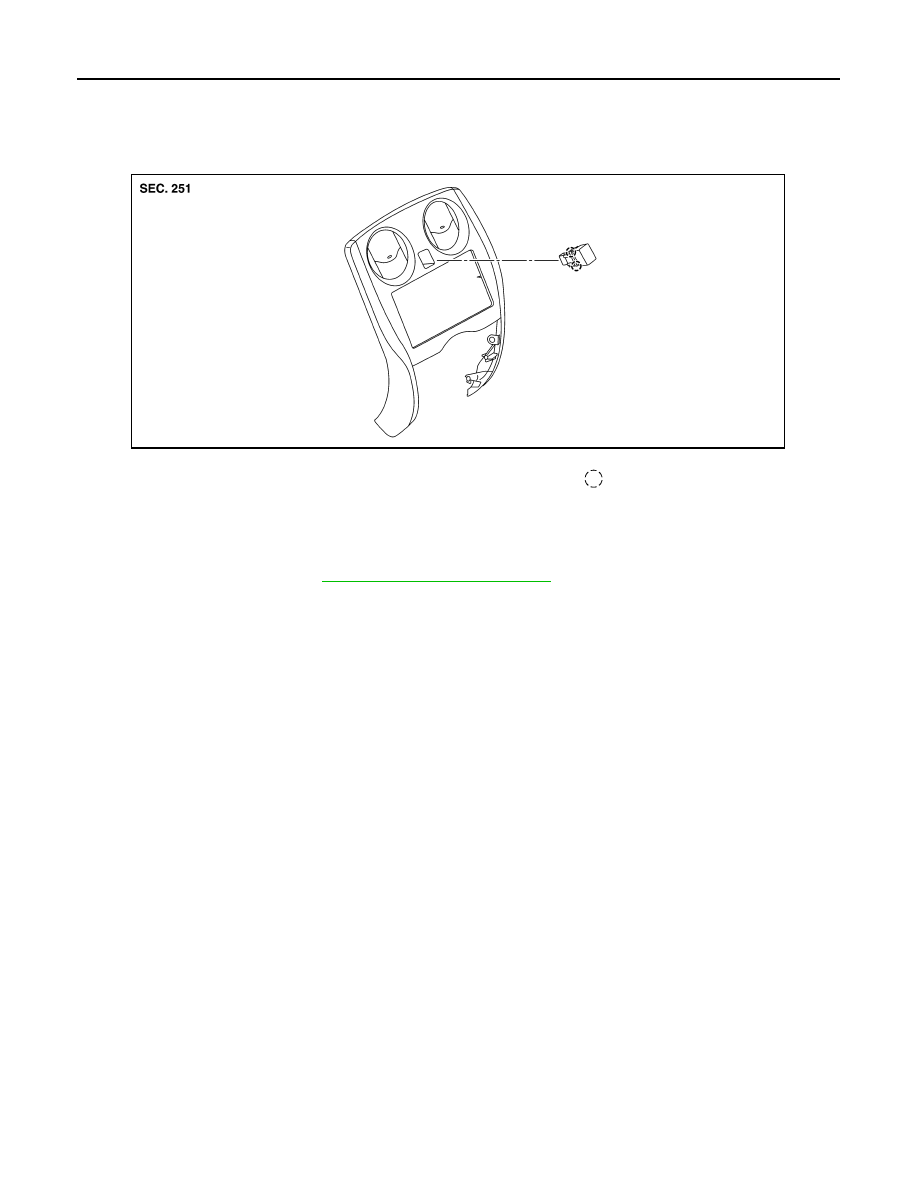

HAZARD SWITCH

HAZARD SWITCH

Exploded View

INFOID:0000000008969404

Removal and Installation

INFOID:0000000009445881

REMOVAL

1. Remove cluster lid C. Refer to

IP-22, "Removal and Installation"

.

2. Release pawls and remove hazard switch.

INSTALLATION

Installation is in the reverse order of removal.

1. Cluster lid C

2. Hazard switch

Pawl

AWLIA2163ZZ

REAR COMBINATION LAMP

EXL-105

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

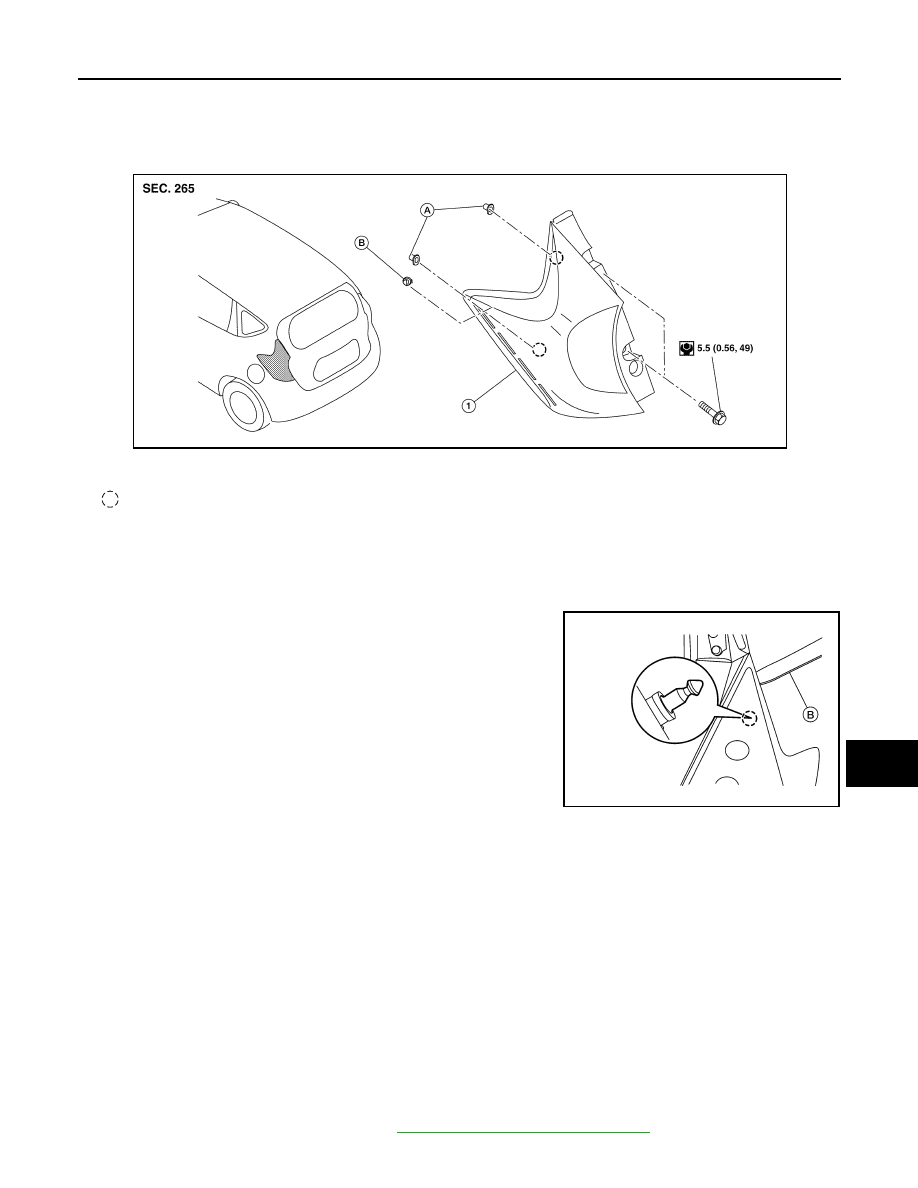

REAR COMBINATION LAMP

Exploded View

INFOID:0000000008969409

Removal and Installation

INFOID:0000000008969410

REMOVAL

1. Remove rear combination lamp bolts.
2. Release the locating pin (A) of the rear combination lamp using

a suitable tool (B) as shown.

3. Disconnect the harness connector from the rear combination lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000008969411

WARNING:

Do not touch bulb with bare hand while it is lit or right after being turned off. Burning may result.

CAUTION:

• Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

STOP/TAIL LAMP BULB

Removal

1. Remove rear combination lamp. Refer to

EXL-105, "Removal and Installation"

.

1.

Rear combination lamp

A.

Grommet

B.

Clip

Locating pin

AWLIA2167ZZ

AWLIA2169ZZ

EXL-106

< REMOVAL AND INSTALLATION >

REAR COMBINATION LAMP

2. Rotate stop/tail lamp bulb socket counterclockwise and remove.
3. Remove stop/tail lamp bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install bulb socket securely for watertightness.

REAR TURN SIGNAL LAMP BULB

Removal

1. Remove rear combination lamp. Refer to

EXL-105, "Removal and Installation"

.

2. Rotate rear turn signal lamp bulb socket counterclockwise and remove.
3. Remove rear turn signal lamp bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install bulb socket securely for watertightness.

BACK-UP LAMP BULB

Removal

1. Remove rear combination lamp. Refer to

EXL-105, "Removal and Installation"

.

2. Rotate back-up lamp bulb socket counterclockwise and remove.
3. Remove back-up lamp bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install bulb socket securely for watertightness.

HIGH-MOUNTED STOP LAMP

EXL-107

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

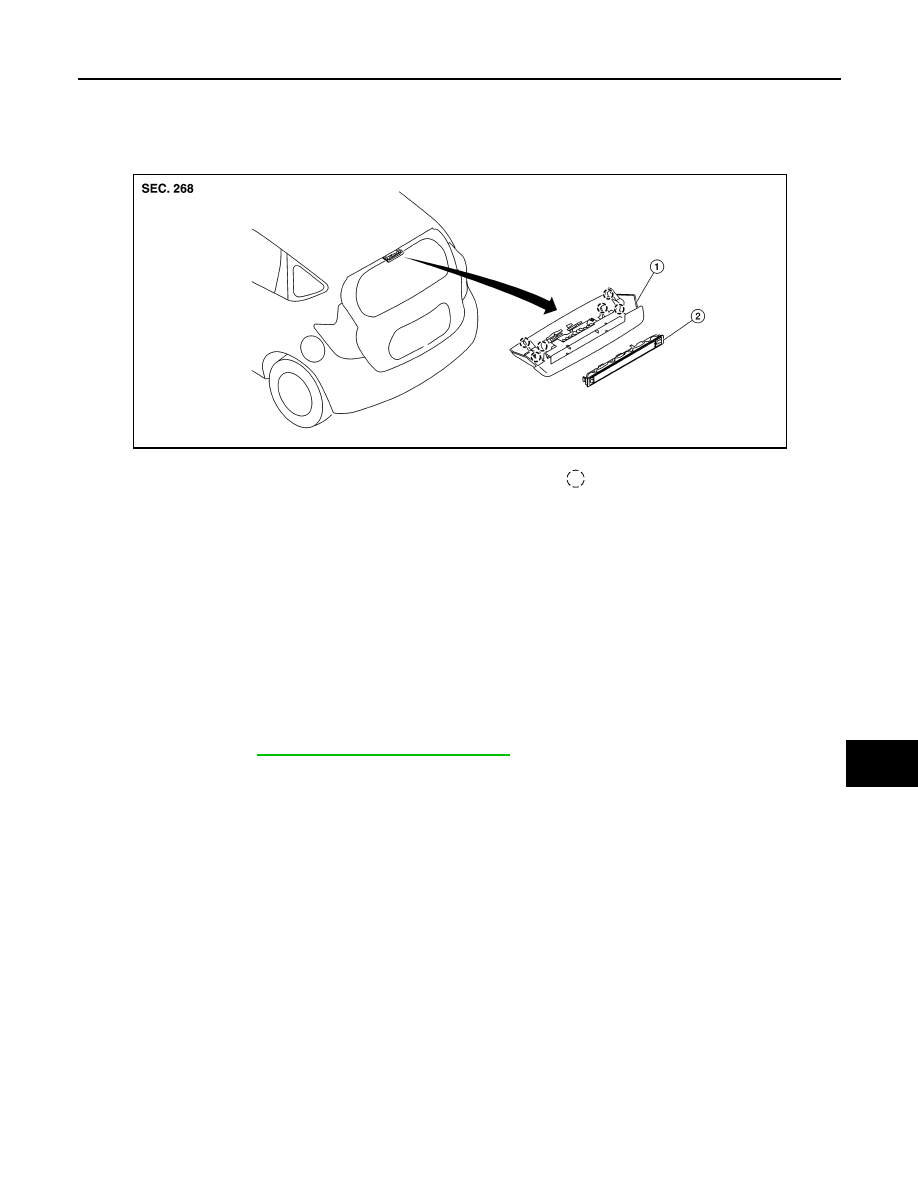

HIGH-MOUNTED STOP LAMP

Exploded View

INFOID:0000000008969412

Removal and Installation

INFOID:0000000008969413

REMOVAL

1. Release high-mounted stop lamp pawls using a suitable tool.
2. Disconnect the harness connector from high-mounted stop lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000008969414

HIGH-MOUNTED STOP LAMP BULB

The high-mounted stop lamp bulb is a LED and is integrated into the high-mounted stop lamp and is serviced

as an assembly. Refer to

EXL-107, "Removal and Installation"

.

1.

High-mounted stop lamp

2.

High-mounted stop lamp LED

Pawl

AWLIA2164ZZ
