Nissan Versa Note. Manual - part 429





EXL-100

< REMOVAL AND INSTALLATION >

FRONT COMBINATION LAMP

Removal

1. Remove plastic cover.
2. Remove bulb from the front combination lamp.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install the bulb socket securely for watertightness.

SIDE MARKER LAMP BULB

Removal

1. Rotate bulb socket counterclockwise and remove.
2. Remove the bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install the bulb socket securely for watertightness.

FRONT TURN SIGNAL/PARKING LAMP BULB

Removal

1. Rotate bulb socket counterclockwise and remove.
2. Remove the bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install the bulb socket securely for watertightness.

FRONT FOG LAMP

EXL-101

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FRONT FOG LAMP

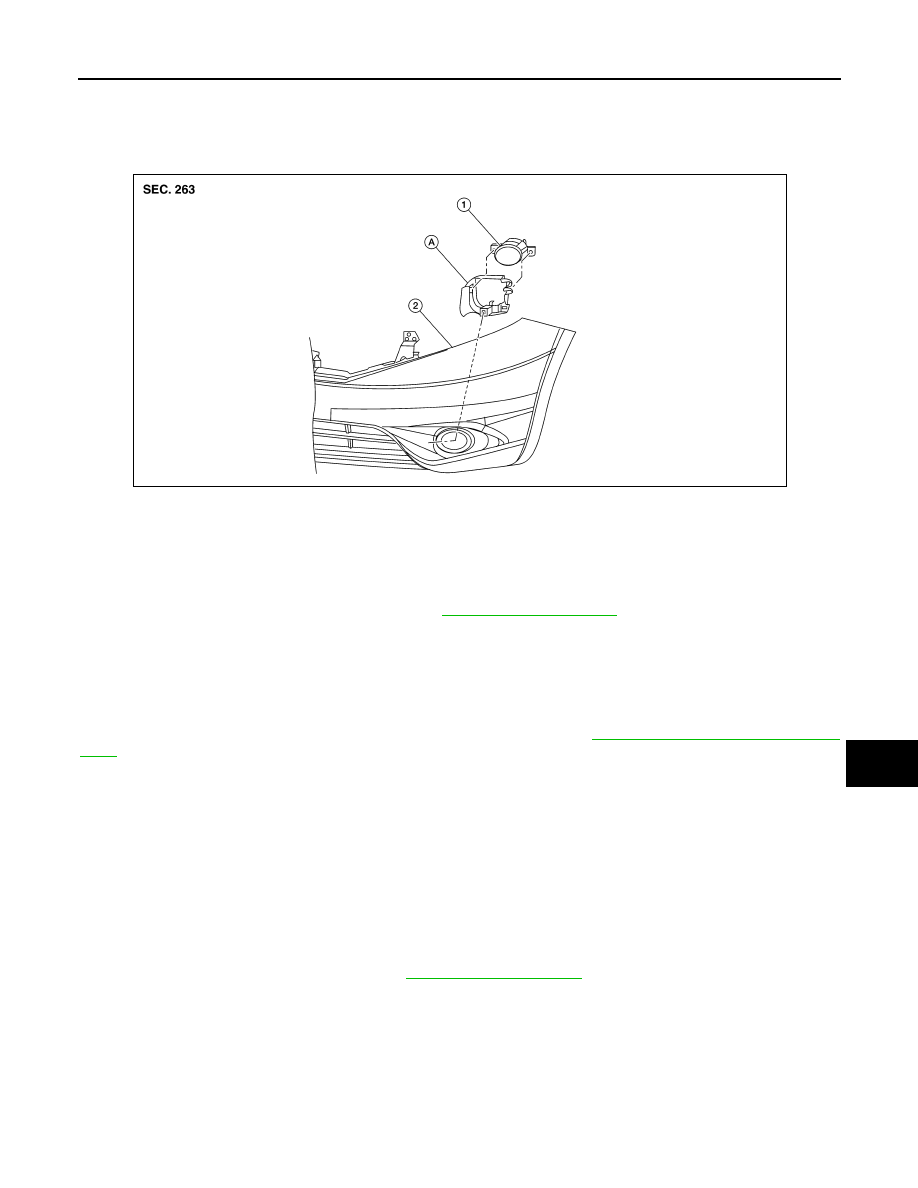

Exploded View

INFOID:0000000009445891

Removal and Installation

INFOID:0000000009445892

REMOVAL

1. Partially remove front fender protector. Refer to

EXT-36, "Exploded View"

.

2. Disconnect the harness connector from front fog lamp.
3. Remove screws and front fog lamp.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

After installation, perform fog lamp aiming adjustment procedure. Refer to

EXL-97, "Aiming Adjustment Proce-

dure"

.

Bulb Replacement

INFOID:0000000009445893

WARNING:

Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.

CAUTION:

• Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

REMOVAL

1. Partially remove fender protector. Refer to

EXT-36, "Exploded View"

.

1.

Front fog lamp

2.

Front bumper fascia

A.

Front fog lamp bracket

AWLIA2178ZZ

EXL-102

< REMOVAL AND INSTALLATION >

FRONT FOG LAMP

2. Disconnect harness connector (1) from front fog lamp bulb.
3. Rotate the bulb (2) counterclockwise and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install the bulb socket securely for watertightness.

SKIB8304J

COMBINATION SWITCH

EXL-103

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

COMBINATION SWITCH

Removal and Installation

INFOID:0000000009606281

CAUTION:

• Before servicing, turn the ignition switch OFF, disconnect both battery terminals and wait at least

three minutes.

• Do not use air or electric tools when removing or installing the combination switch.

REMOVAL

1. Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to

PG-67,

"Removal and Installation (Battery)"

.

2. Remove the steering column covers. Refer to

IP-17, "Removal and Installation"

.

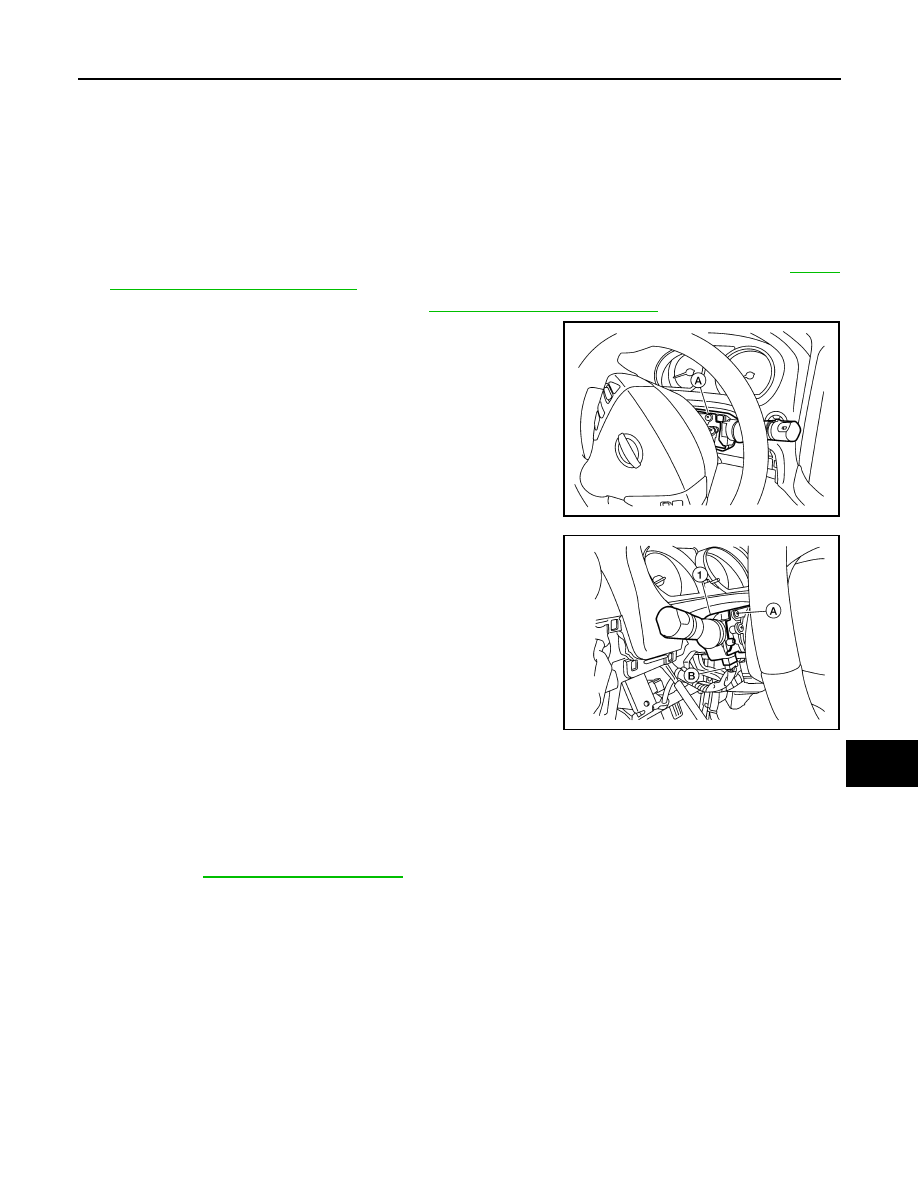

3. Rotate steering wheel clockwise to access first combination

switch screw (A) and remove.

4. Rotate steering wheel counter-clockwise to access second com-

bination switch screw (A) and remove.

5. Disconnect the harness connector (B) from the combination

switch (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After the work is completed, make sure no system malfunction is detected by air bag warning lamp.

• In case a malfunction is detected by the air bag warning lamp, reset with the self-diagnosis function

and delete the memory with CONSULT.

• If a malfunction is still detected after the above operation, perform self-diagnosis to repair malfunc-

tions. Refer to

BCS-57, "Work Procedure"

.

ALMIA0648ZZ

ALMIA0649ZZ
