Nissan Versa Note. Manual - part 372





EM-4

< PRECAUTION >

[HR16DE]

PRECAUTIONS

• Dowel pins are used for several parts alignment. When replacing and reassembling parts with dowel pins,

check that dowel pins are installed in the original position.

• Cover openings of engine system with a tape or equivalent, if necessary, to seal out foreign materials.

• Mark and arrange disassembly parts in an organized way for easy troubleshooting and reassembly.

• When loosening nuts and bolts, start with the one furthest outside, then the one diagonally opposite, and so

on. If the order of loosening is specified, do exactly as specified. Power tools may be used in the step.

Inspection, Repair and Replacement

INFOID:0000000009444703

Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and

replace if necessary.

Assembly and Installation

INFOID:0000000009444704

• Use torque wrench to tighten bolts or nuts to specification.

• Tighten nuts and bolts in order exactly as specified in the procedure. If a tightening order or procedure is not

specified, tighten nuts and bolts equally in several different steps. Start with the nuts or bolts in the center

and then tighten diagonally starting with the inside and moving to the outside in a spiral pattern.

• Replace with new gasket, packing, oil seal or O-ring.

• Thoroughly wash, clean, and air-blow each part. Carefully check engine oil or engine coolant passages for

restrictions and blockages.

• Avoid damaging sliding or mating surfaces. Before assembling, completely remove foreign materials such

as cloth lint or dust, and oil the sliding surfaces.

• After refilling engine coolant, bleed the air from the cooling system.

• After repairing, start the engine and increase engine speed to check for engine coolant leaks, fuel leaks,

engine oil leaks, and exhaust gas leaks.

Parts Requiring Angle Tightening

INFOID:0000000009444705

• For the final tightening of the following engine parts use Tool:

- Camshaft sprocket (INT) bolt

- Cylinder head bolts

- Main bearing cap bolts

- Connecting rod cap bolts

- Crankshaft pulley bolt (Note an angle wrench is required as bolt flange is provided with notches for angle

tightening)

• Do not use a torque value for final tightening.

• The torque value for these parts are for a preliminary step.

• Ensure thread and seat surfaces are clean and coated with engine oil.

Precaution for Liquid Gasket

INFOID:0000000009444706

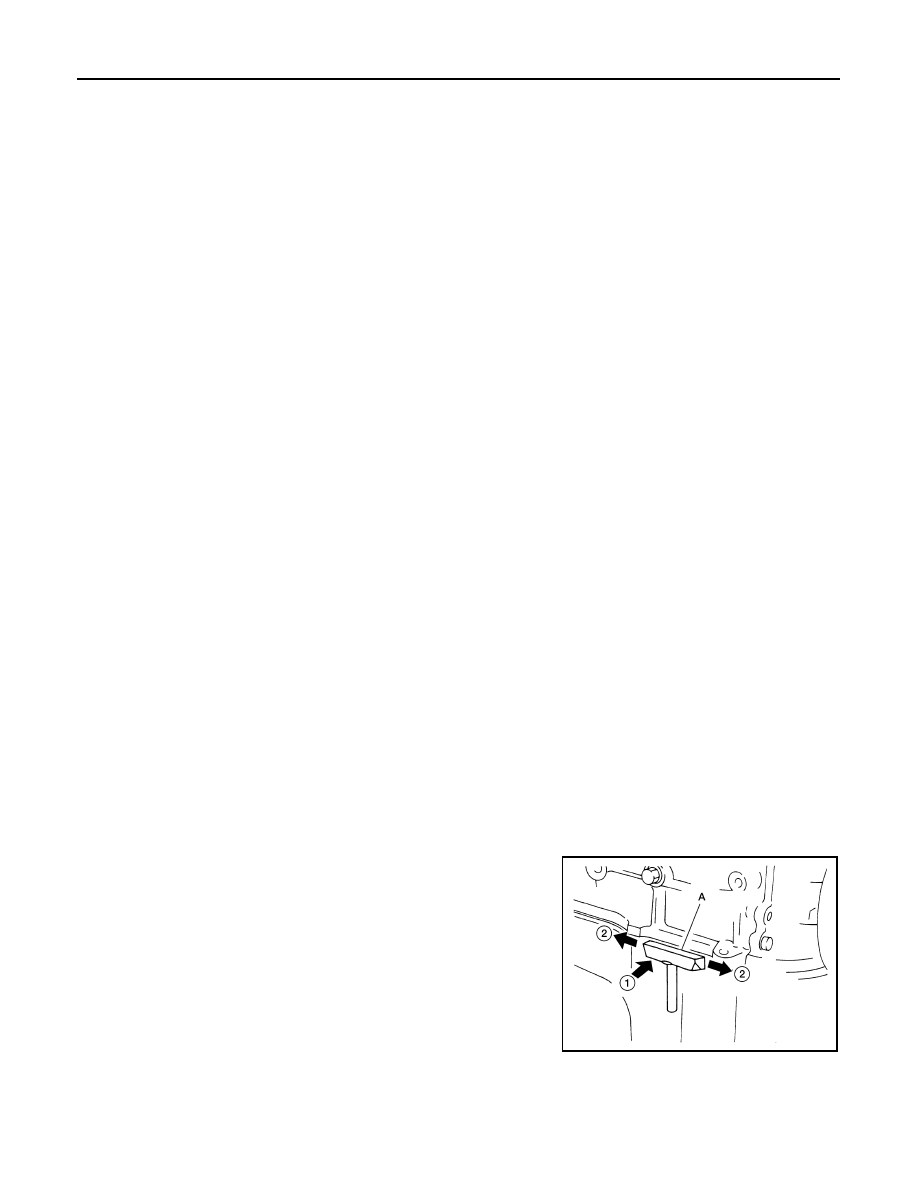

REMOVAL OF LIQUID GASKET SEALING

• After removing the bolts and nuts, separate the mating surface and

remove the liquid gasket using Tool (A).

CAUTION:

Be careful not to damage the mating surfaces.

• In areas where the cutter is difficult to use, use a plastic hammer to

lightly tap (1) the cutter where the liquid gasket is applied. Use a

plastic hammer to slide (2) the cutter by tapping on the side.

CAUTION:

Do not damage the mating surfaces.

LIQUID GASKET APPLICATION PROCEDURE

Tool number : KV10112100 (BT-8653-A)

Tool Number

: KV10111100 (J-37228)

AWBIA1249GB

PRECAUTIONS

EM-5

< PRECAUTION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

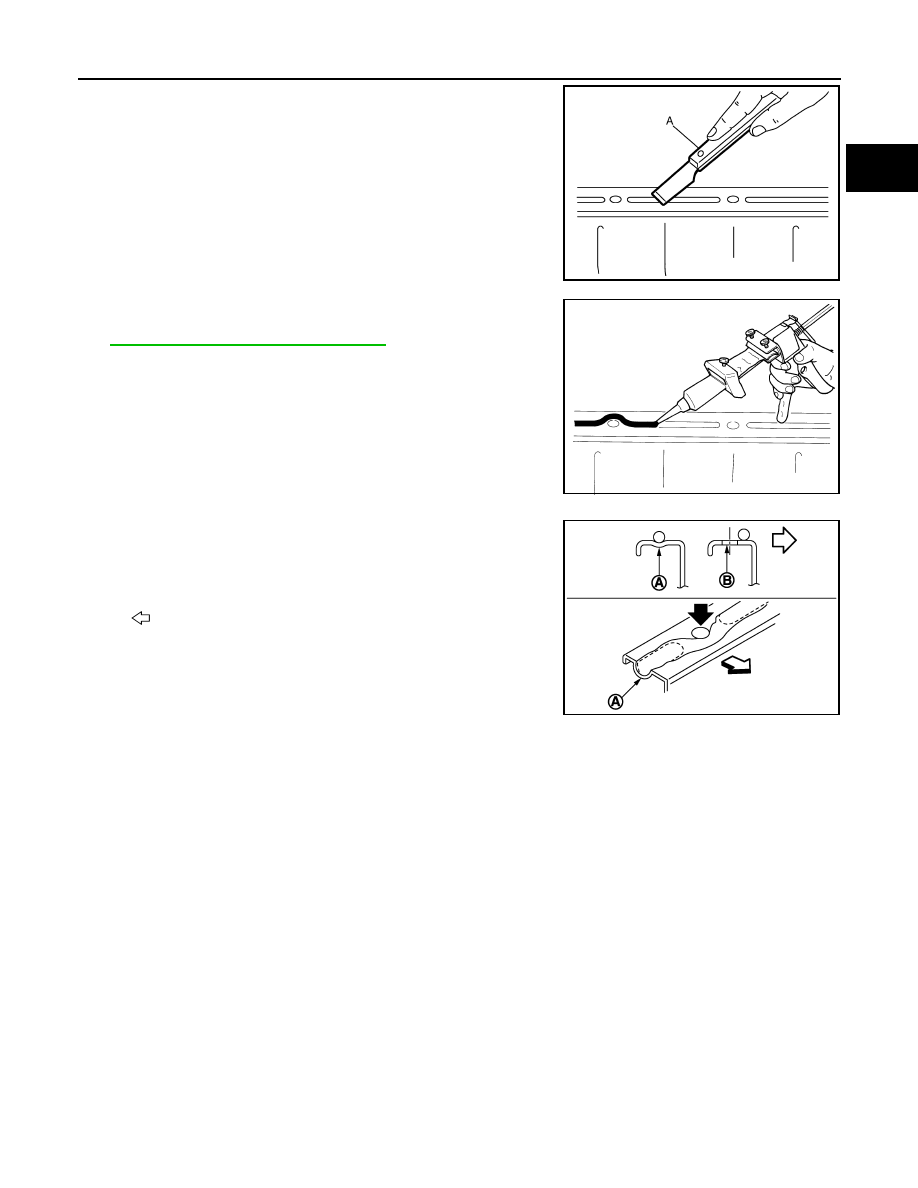

1. Using suitable tool (A), remove old liquid gasket adhering to the

liquid gasket application surface and the mating surface.

• Remove liquid gasket completely from the groove of the liquid

gasket application surface, mounting bolts, and bolt holes.

2. Wipe the liquid gasket application surface and the mating sur-

face with white gasoline (lighting and heating use) to remove

adhering moisture, grease and foreign materials.

3. Attach liquid gasket tube to the suitable tool.

Use Genuine Silicone RTV Sealant, or equivalent. Refer to

EM-4, "Precaution for Liquid Gasket"

4. Apply liquid gasket without gaps to the specified location accord-

ing to the specified dimensions.

• If there is a groove for liquid gasket application, apply liquid

gasket to the groove.

• As for bolt holes (B), normally apply liquid gasket inside the

holes. Occasionally, it should be applied outside the holes.

Check to read the text of this manual.

• Within five minutes of liquid gasket application, install the mat-

ing component.

• If liquid gasket protrudes, wipe it off immediately.

• Do not retighten mounting bolts or nuts after the installation.

• After 30 minutes or more have passed from the installation, fill

engine oil and engine coolant.

CAUTION:

If there are specific instructions in the procedures contained in this manual concerning liquid gas-

ket application, observe them.

JPBIA0053ZZ

EMA0622D

(A)

: Groove

: Inside

JPBIA0010ZZ

EM-6

< PREPARATION >

[HR16DE]

PREPARATION

PREPARATION

PREPARATION

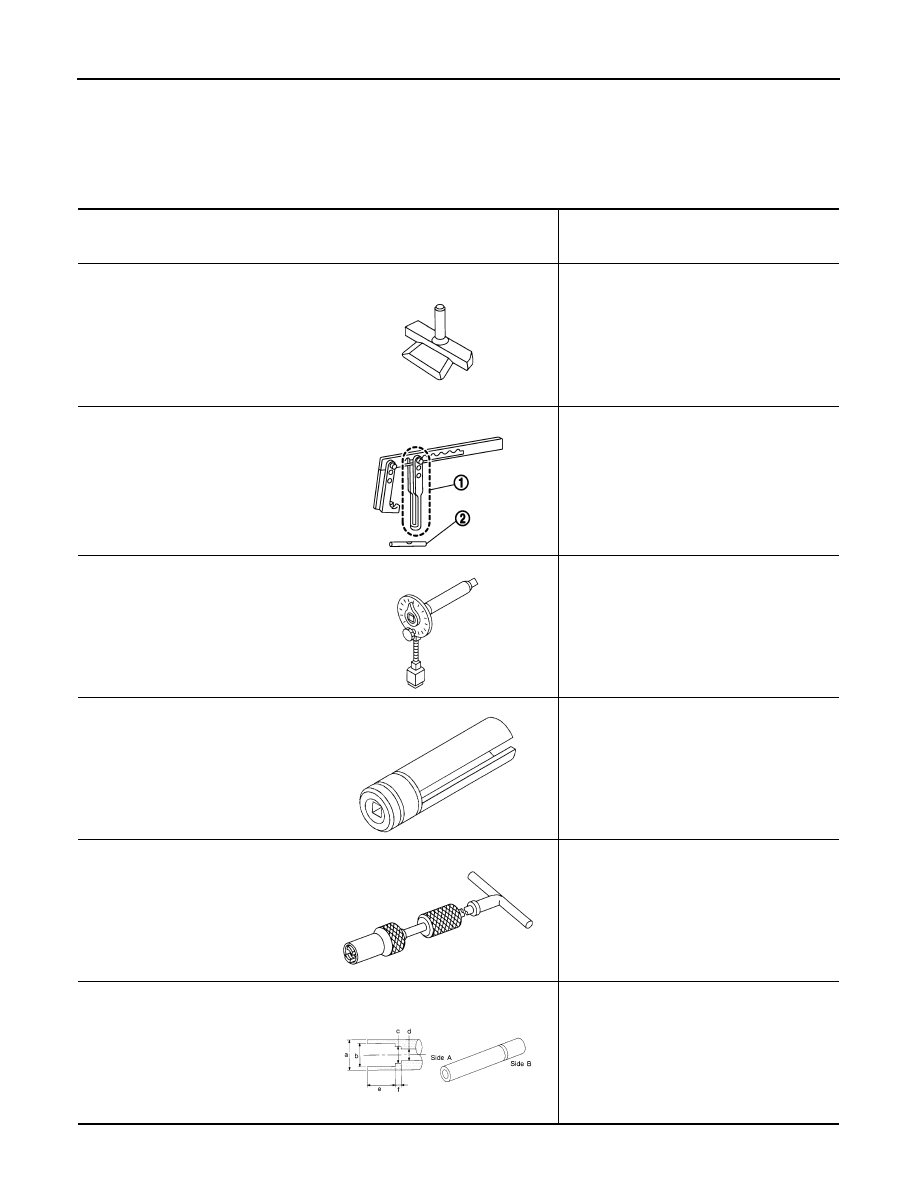

Special Service Tools

INFOID:0000000009444707

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV10111100
(J-37228)
Seal cutter

Removing oil pan (lower and upper) etc.

KV10116200
(J-26336-B)
Valve spring compressor
1. KV10115900
(J-26336-20)
Attachment
2. KV10109220
(   —   )
Adapter

Disassembling and assembling valve mecha-
nism
Part (1) is a component of KV10116200, but
Part (2) is not so.

KV10112100
(BT-8653-A)
Angle wrench

Tightening bolts for main bearing cap, cylinder
head, etc.

KV10117100
(   —   )
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor 1
For 22 mm (0.87 in) width hexagon nut

KV10107902
(J-38959)
Valve oil seal puller

Removing valve oil seal

KV10115600
(J-38958)
Valve oil seal drift

Installing valve oil seal
Use side A.
a: 20 (0.79) dia. d: 8 (0.31) dia.
b: 13 (0.51) dia. e: 10.7 (0.421)
c: 10.3 (0.406) dia.    f: 5 (0.20)
                                                   Unit: mm (in)

S-NT046

PBIC1650E

S-NT014

NT379

NT011

S-NT603

PREPARATION

EM-7

< PREPARATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

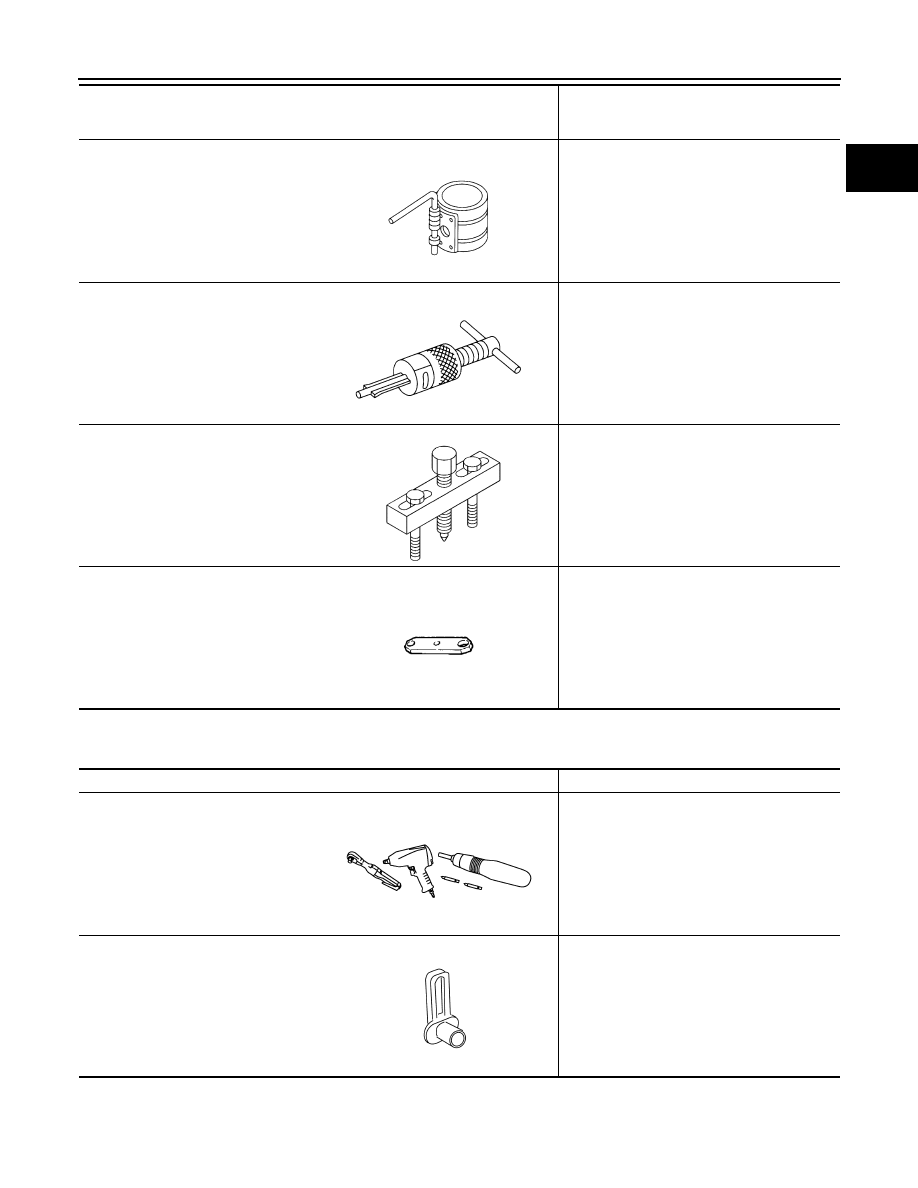

Commercial Service Tools

INFOID:0000000009444708

EM03470000
(J-8037)
Piston ring compressor

Installing piston assembly into cylinder bore

ST16610001
(J-23907)
Pulley puller

Removing pilot converter

KV11103000
(   —   )
Pulley puller

Removing crankshaft pulley

KV11105210
(J-44716)
Stopper plate

Holding drive plate and flywheel static

Tool number
(Kent-Moore No.)
Tool name

Description

S-NT044

S-NT045

NT676

ZZA0009D

Tool name

Description

Power tool

Loosening nuts, screws and bolts

Quick connector release

Removing fuel tube quick connectors in en-
gine room

PIIB1407E

PBIC0198E
