Nissan Versa Note. Manual - part 371





EC-466

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HR16DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Idle Speed

INFOID:0000000009020953

*: Under the following conditions
• A/C switch: OFF
• Electric load: OFF (Lights, heater fan & rear window defogger)
• Steering wheel: Kept in straight-ahead position

Ignition Timing

INFOID:0000000009020954

*: Under the following conditions
• A/C switch: OFF
• Electric load: OFF (Lights, heater fan & rear window defogger)
• Steering wheel: Kept in straight-ahead position

Calculated Load Value

INFOID:0000000009020955

Mass Air Flow Sensor

INFOID:0000000009020956

*: Engine is warmed up to normal operating temperature and running under no load.

Transmission

Condition

Specification

CVT

No load* (in P or N position)

650

± 50 rpm

M/T

No load* (in Neutral position)

650

± 50 rpm

Transmission

Condition

Specification

CVT

No load* (in P or N position)

± 5°BTDC

M/T

No load* (in Neutral position)

10

± 5°BTDC

Condition

Specification (Using CONSULT or GST)

At idle

10 – 35%

At 2,500 rpm

10 – 35%

Supply voltage

Battery voltage (11 – 14 V)

Output voltage at idle

0.8 – 1.3 V*

Mass air flow (Using CONSULT or GST)

0.8 – 4.0 g/s at idle*

2.0 – 10.0 g/s at 2,500 rpm*

EM-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

EM

A

EM

N

O

P

CONTENTS

ENGINE MECHANICAL

HR16DE

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precaution for Procedure without Cowl Top Cover ......

3

Draining Engine Coolant  ...........................................

3

Disconnecting Fuel Piping .........................................

3

Removal and Disassembly ........................................

3

Inspection, Repair and Replacement  ........................

4

Assembly and Installation .........................................

4

Parts Requiring Angle Tightening  .............................

4

Precaution for Liquid Gasket .....................................

4

PREPARATION ............................................

6

PREPARATION ...................................................

6

Special Service Tools ................................................

6

Commercial Service Tools  ........................................

7

BASIC INSPECTION  ...................................

10

CAMSHAFT VALVE CLEARANCE  ...................

10

Inspection and Adjustment ......................................

10

COMPRESSION PRESSURE  ............................

13

Inspection ................................................................

13

SYMPTOM DIAGNOSIS  ..............................

14

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  ............................

14

NVH troubleshooting Chart  .....................................

14

PERIODIC MAINTENANCE .........................

16

DRIVE BELT .......................................................

16

Exploded View  ........................................................

16

Removal and Installation .........................................

16

Inspection ................................................................

17

Adjustment ...............................................................

17

AIR CLEANER FILTER .....................................

19

Exploded View .........................................................

19

Removal and Installation  .........................................

19

SPARK PLUG  ...................................................

21

Exploded View .........................................................

21

Removal and Installation  .........................................

21

REMOVAL AND INSTALLATION ...............

24

DRIVE BELT IDLER PULLEY  ..........................

24

Exploded View .........................................................

24

Removal and Installation  .........................................

24

AIR CLEANER AND AIR DUCT  .......................

26

Exploded View .........................................................

26

Removal and Installation  .........................................

26

INTAKE MANIFOLD  .........................................

28

Exploded View .........................................................

28

Removal and Installation  .........................................

28

EXHAUST MANIFOLD ......................................

31

Exploded View .........................................................

31

Removal and Installation  .........................................

31

OIL PAN AND OIL STRAINER  .........................

34

Exploded View .........................................................

34

Removal and Installation (Lower Oil Pan)  ...............

34

Removal and Installation (Upper Oil Pan)  ...............

37

FUEL INJECTOR AND FUEL TUBE  ................

40

Exploded View .........................................................

40

Removal and Installation  .........................................

40

IGNITION COIL  .................................................

47

Exploded View .........................................................

47

Removal and Installation  .........................................

47

ROCKER COVER  .............................................

48

EM-2

Exploded View ........................................................

48

Removal and Installation  ........................................

48

TIMING CHAIN  ..................................................

51

Exploded View ........................................................

51

Removal and Installation  ........................................

51

CAMSHAFT .......................................................

60

Exploded View ........................................................

60

Removal and Installation  ........................................

60

Inspection ...............................................................

68

OIL SEAL ...........................................................

73

VALVE OIL SEAL  .....................................................

73

VALVE OIL SEAL : Removal and Installation .........

73

FRONT OIL SEAL .....................................................

74

FRONT OIL SEAL : Removal and Installation  ........

74

REAR OIL SEAL  .......................................................

74

REAR OIL SEAL : Removal and Installation  ..........

74

CYLINDER HEAD ..............................................

76

Exploded View ........................................................

76

Removal and Installation  ........................................

76

Exploded View ........................................................

77

Disassembly and Assembly ....................................

78

Inspection ...............................................................

79

UNIT REMOVAL AND INSTALLATION  .....

85

ENGINE ASSEMBLY .........................................

85

Exploded View ........................................................

85

Removal and Installation  ........................................

86

UNIT DISASSEMBLY AND ASSEMBLY ...

90

ENGINE UNIT  ....................................................

90

Setting .....................................................................

90

Disassembly ............................................................

91

Assembly ................................................................

91

CYLINDER BLOCK  ...........................................

92

Exploded View  ........................................................

92

Disassembly and Assembly  ....................................

93

Inspection ..............................................................

101

HOW TO SELECT PISTON AND BEARING  ...

110

Description ............................................................

110

Connecting Rod Bearing .......................................

110

Main Bearing ........................................................

112

SERVICE DATA AND SPECIFICATIONS
(SDS) .........................................................

115

SERVICE DATA AND SPECIFICATIONS
(SDS) ................................................................

115

General Specification ............................................

115

Drive Belt  ..............................................................

115

Spark Plug  ............................................................

116

Exhaust Manifold  ..................................................

116

Camshaft ...............................................................

116

Cylinder head ........................................................

118

Cylinder Block  .......................................................

120

Main Bearing .........................................................

123

Connecting Rod Bearing .......................................

124

PRECAUTIONS

EM-3

< PRECAUTION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009444698

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

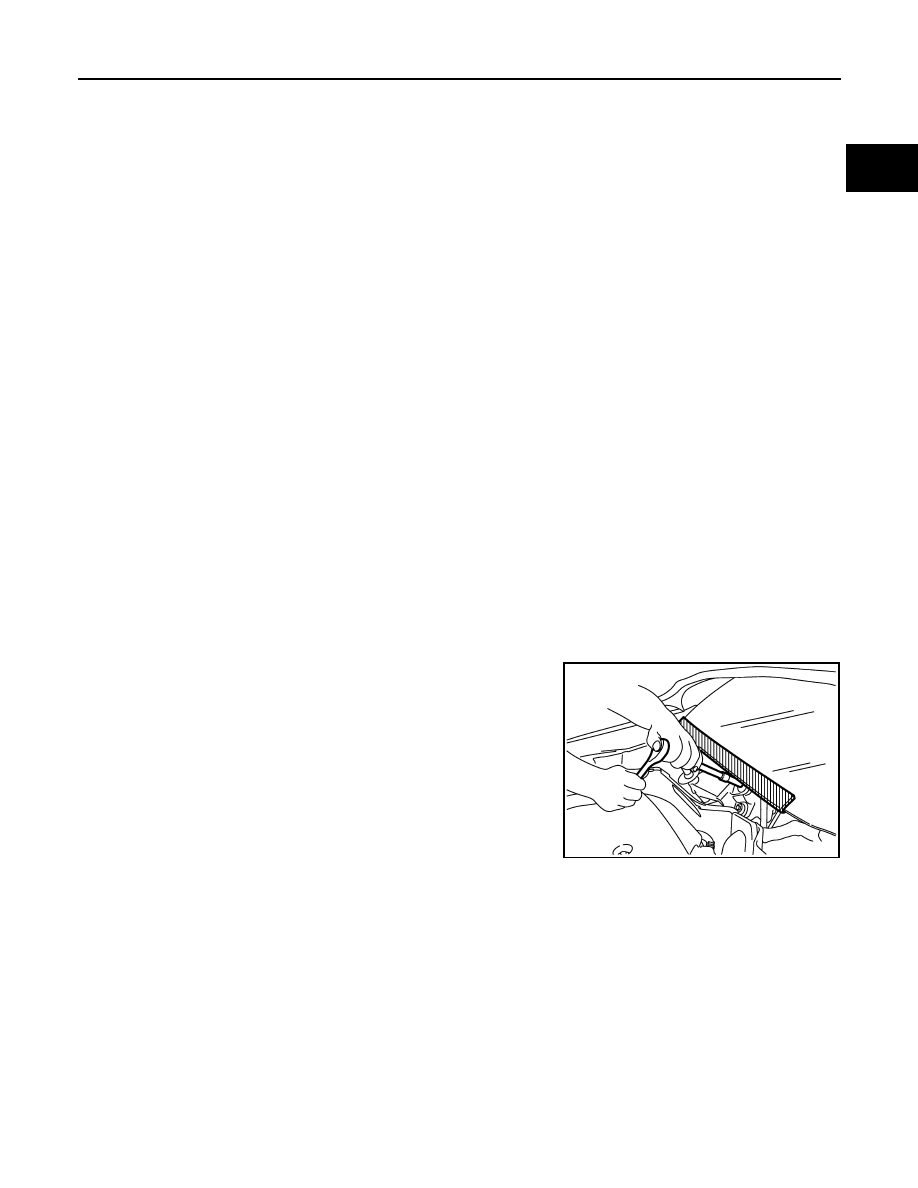

Precaution for Procedure without Cowl Top Cover

INFOID:0000000009444699

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc.

Draining Engine Coolant

INFOID:0000000009444700

Drain engine coolant and engine oil when the engine is cooled.

Disconnecting Fuel Piping

INFOID:0000000009444701

• Before starting work, check no fire or spark producing items are in the work area.

• Release fuel pressure before disconnecting and disassembly.

• After disconnecting pipes, plug openings to stop fuel leakage.

Removal and Disassembly

INFOID:0000000009444702

• When instructed to use SST, use specified tools. Always be careful to work safely, avoid forceful or unin-

structed operations.

• Use care to avoid damage to mating or sliding surfaces.

PIIB3706J















Content   ..  369  370  371  372   ..
