FRONT DOOR LOCK

DLK-165

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

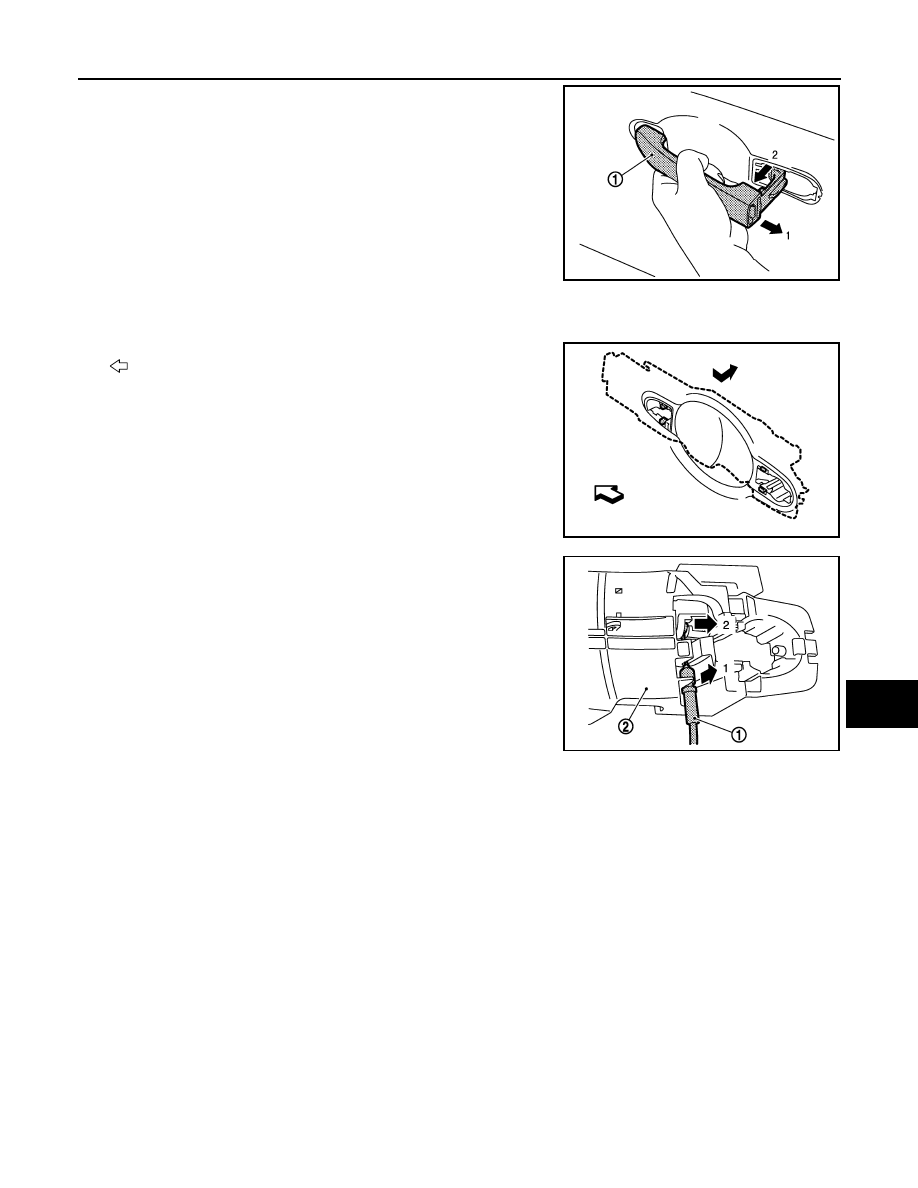

7. While pulling outside handle (1), slide toward rear of vehicle.

8. Disconnect the harness connectors from the outside handle and remove.
9. Remove front gasket and rear gasket.
10. Slide outside handle bracket toward rear of vehicle to remove.

: Front

11. Disconnect outside handle cable (1) from outside handle bracket

(2) as shown.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Check that door lock cables are properly engaged with outside handle bracket.

• After installation, check door open/close, and lock/unlock operation.

JMKIA0524ZZ

JMKIA5890ZZ

JMKIA5891ZZ

DLK-166

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR LOCK

REAR DOOR LOCK

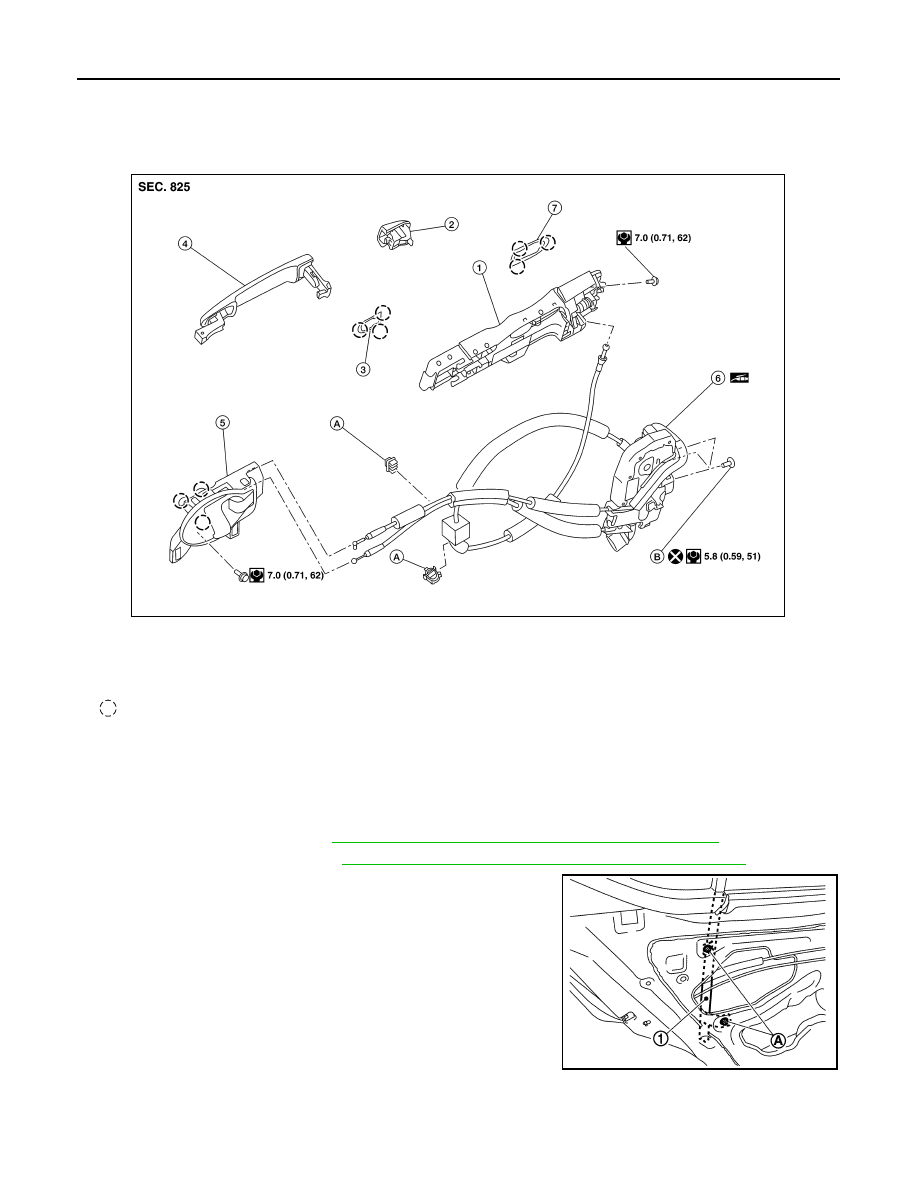

Exploded View

INFOID:0000000008969450

DOOR LOCK
DOOR LOCK : Removal and Installation

INFOID:0000000009486682

REMOVAL

1. Remove inside handle. Refer to

DLK-167, "INSIDE HANDLE : Removal and Installation"

.

2. Remove outside handle. Refer to

DLK-168, "OUTSIDE HANDLE : Removal and Installation"

.

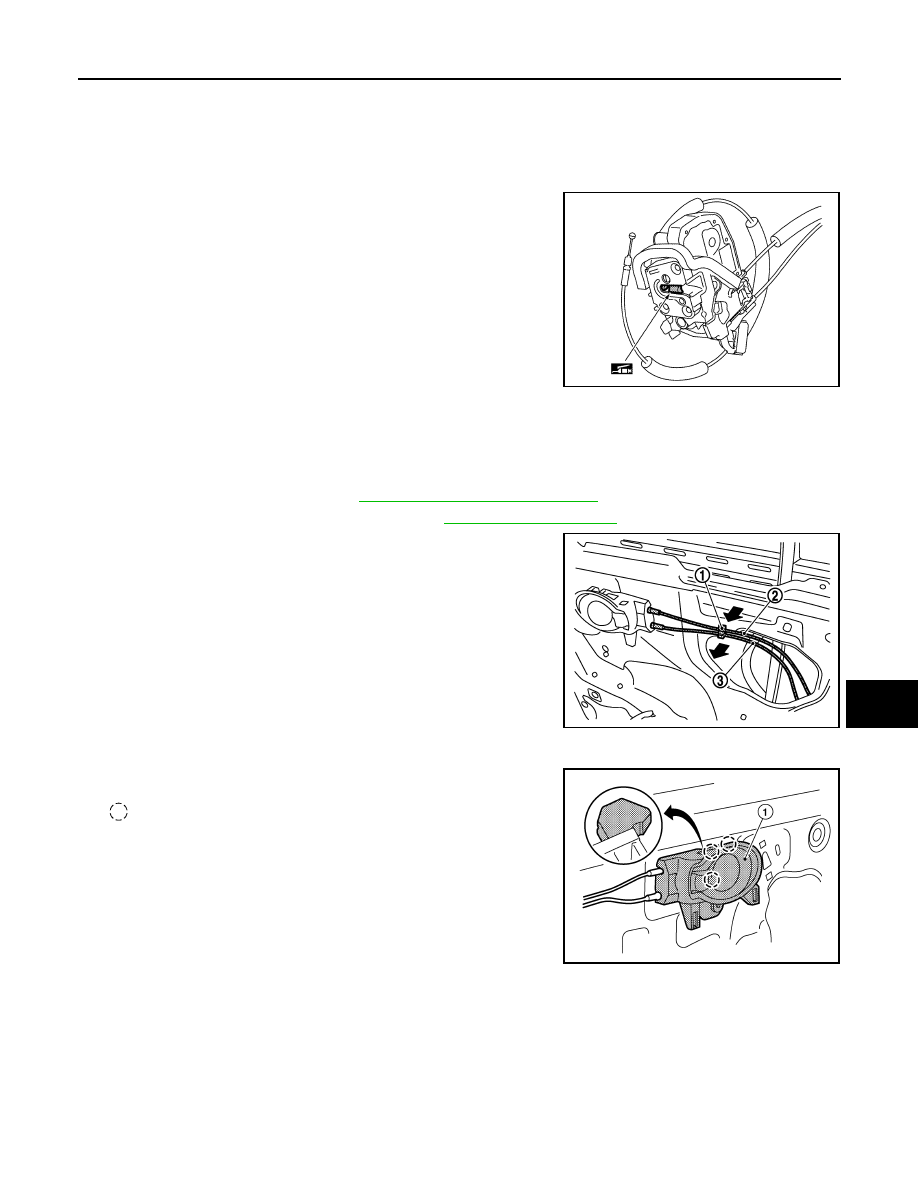

3. Remove bolts (A) from rear door glass rear run (1).

4. Disconnect the harness connector from door lock actuator.
5. Remove bolts and door lock.

1.

Outside handle bracket

2.

Outside handle escutcheon

3.

Front gasket

4.

Outside handle

5.

Inside handle

6.

Door lock

7.

Door lock

A.

Clip

B.

Bolt

Pawl

AWKIA2575ZZ

JMKIA8086ZZ

REAR DOOR LOCK

DLK-167

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse door lock assembly bolts.

• After installation, check door open/close, lock/unlock operation.

• Check door lock cable is properly engaged with inside handle and outside handle bracket.

• Check door lock assembly for poor lubrication. If necessary,

apply a suitable multi-purpose grease.

INSIDE HANDLE
INSIDE HANDLE : Removal and Installation

INFOID:0000000009486683

REMOVAL

1. Remove rear door finisher. Refer to

INT-18, "Removal and Installation"

.

2. Remove upper portion of vapor barrier. Refer to

GW-25, "Exploded View"

.

3. Release lock knob (2) and inside handle cable (3) from clip (1)

using a suitable tool.

4. Remove inside handle bolt.
5. Release inside handle (1) from door panel using a suitable tool

and remove.

: Pawl

JMKIA8087ZZ

JMKIA5704ZZ

AWKIA2500ZZ

DLK-168

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR LOCK

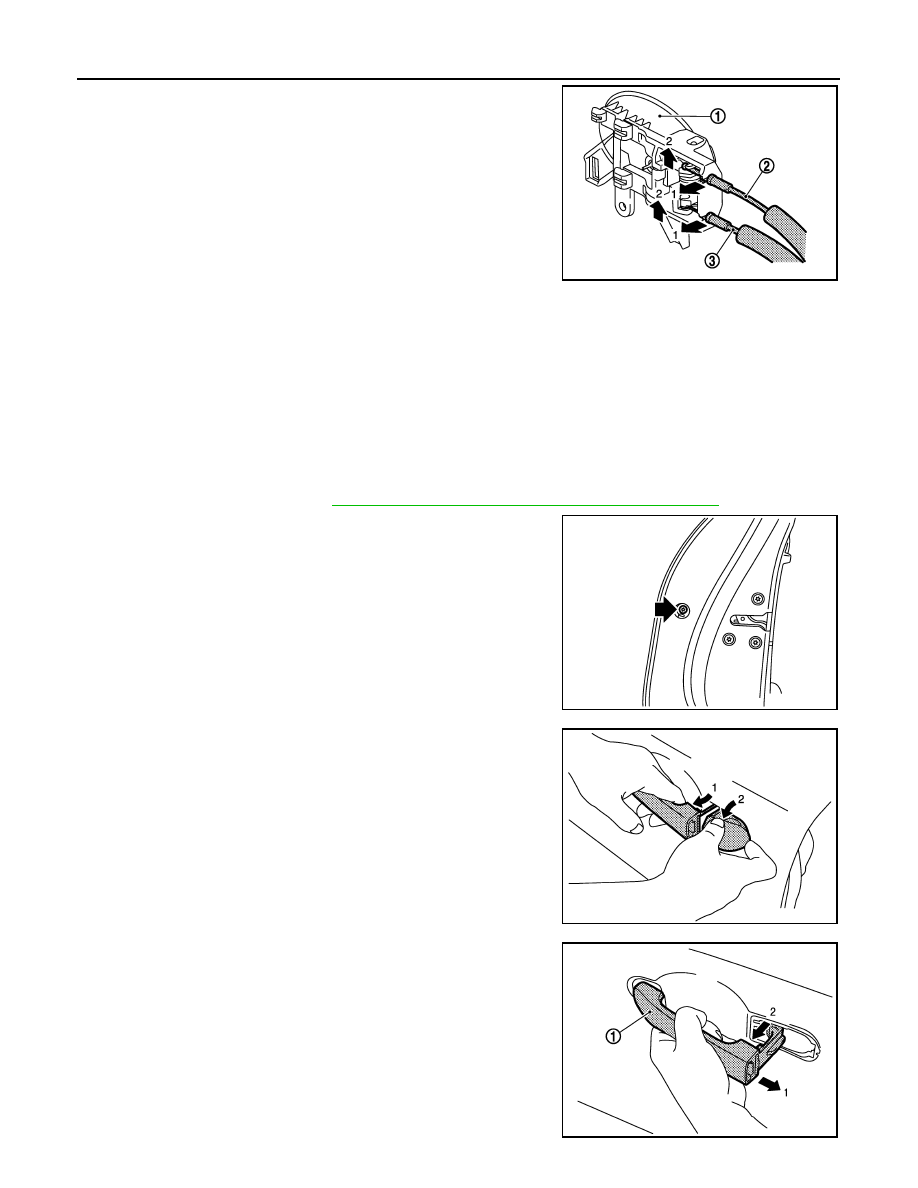

6. Release inside handle cable (3) and lock cable (2) from inside

handle (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Check that door lock cables are properly engaged to inside handle.

• After installation, check door open/close, lock/unlock operation.

OUTSIDE HANDLE
OUTSIDE HANDLE : Removal and Installation

INFOID:0000000009486684

REMOVAL

1. Remove inside handle. Refer to

DLK-167, "INSIDE HANDLE : Removal and Installation"

2. Remove door grommet and bolt from grommet hole.

3. While pulling outside handle, remove outside handle escutch-

eon.

4. While pulling outside handle (1), slide towards rear of vehicle to

remove.

JMKIA5885ZZ

JMKIA1467ZZ

JMKIA5342ZZ

JMKIA0524ZZ
