BACK DOOR HINGE
BACK DOOR HINGE : Removal and Installation

INFOID:0000000009549281

REMOVAL

1. Remove back door assembly. Refer to

DLK-153, "BACK DOOR ASSEMBLY : Removal and Installation"

.

2. Partially remove back door weatherstrip. Refer to

DLK-158, "BACK DOOR WEATHER-STRIP : Removal

and Installation"

.

3. Remove back door hinge nuts and bolts (body side) and then remove back door hinge.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the surface between hinge and body side.

• After installation, perform the back door assembly adjustment procedure. Refer to

DLK-155, "BACK

DOOR ASSEMBLY : Adjustment"

.

BACK DOOR STAY
BACK DOOR STAY : Removal and Installation

INFOID:0000000009549283

REMOVAL

1. Support the back door with a suitable tool too prevent it from falling.

WARNING:

Body injury may occur if no supporting rod is holding the back door open when removing the

back door stay.

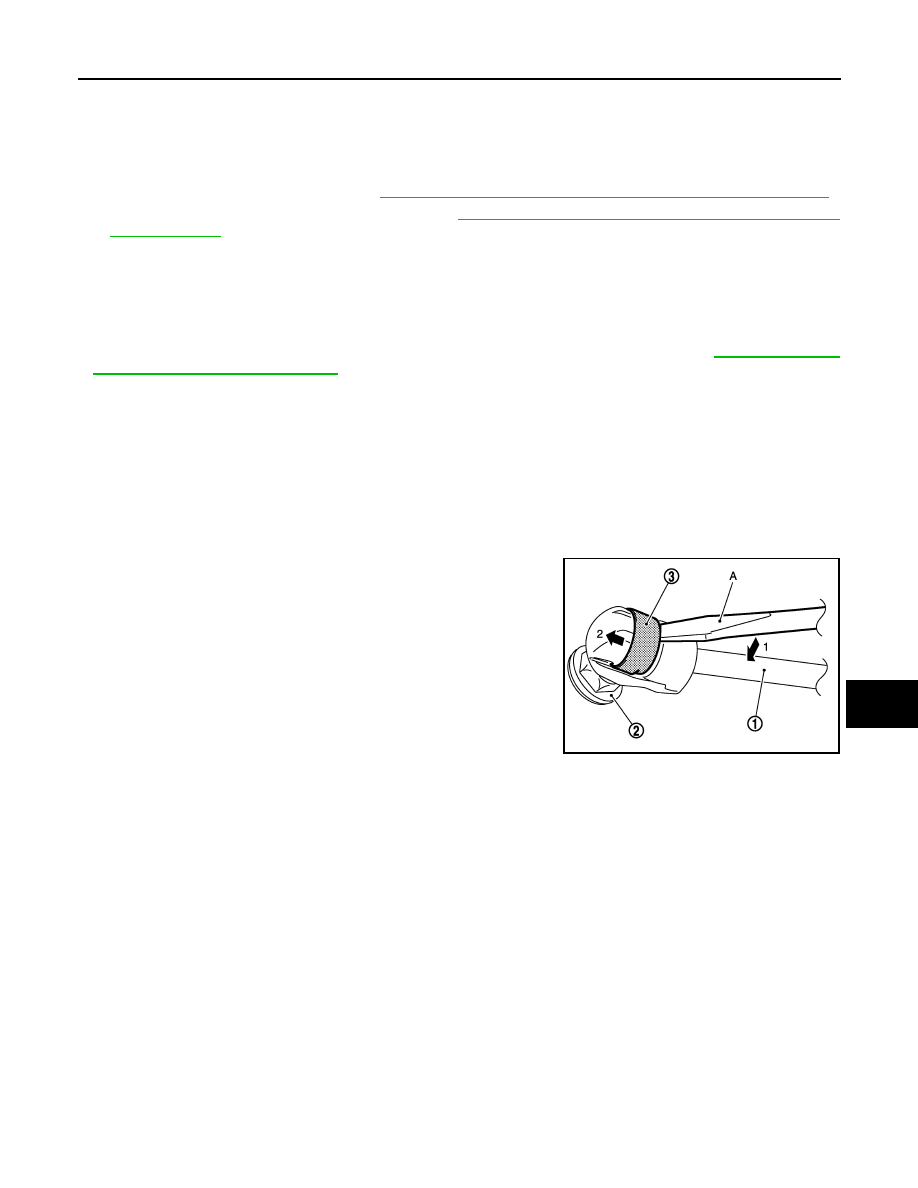

2. Remove the metal clip (3) located on the connection between

the back door stay (1) and the stud ball (2) (back door side) by

using a flat blade screwdriver (A).

3. Remove the back door stay (back door side).

4. In the same way, remove the back door stay from the body side.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Check the back door open/close operation after installation.

BACK DOOR STAY : Disposal

INFOID:0000000009549287

BACK DOOR STAY DISPOSAL

WARNING:

When performing disposal procedure, wear protective gloves and glasses.

JMKIA2255ZZ

DLK-158

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR

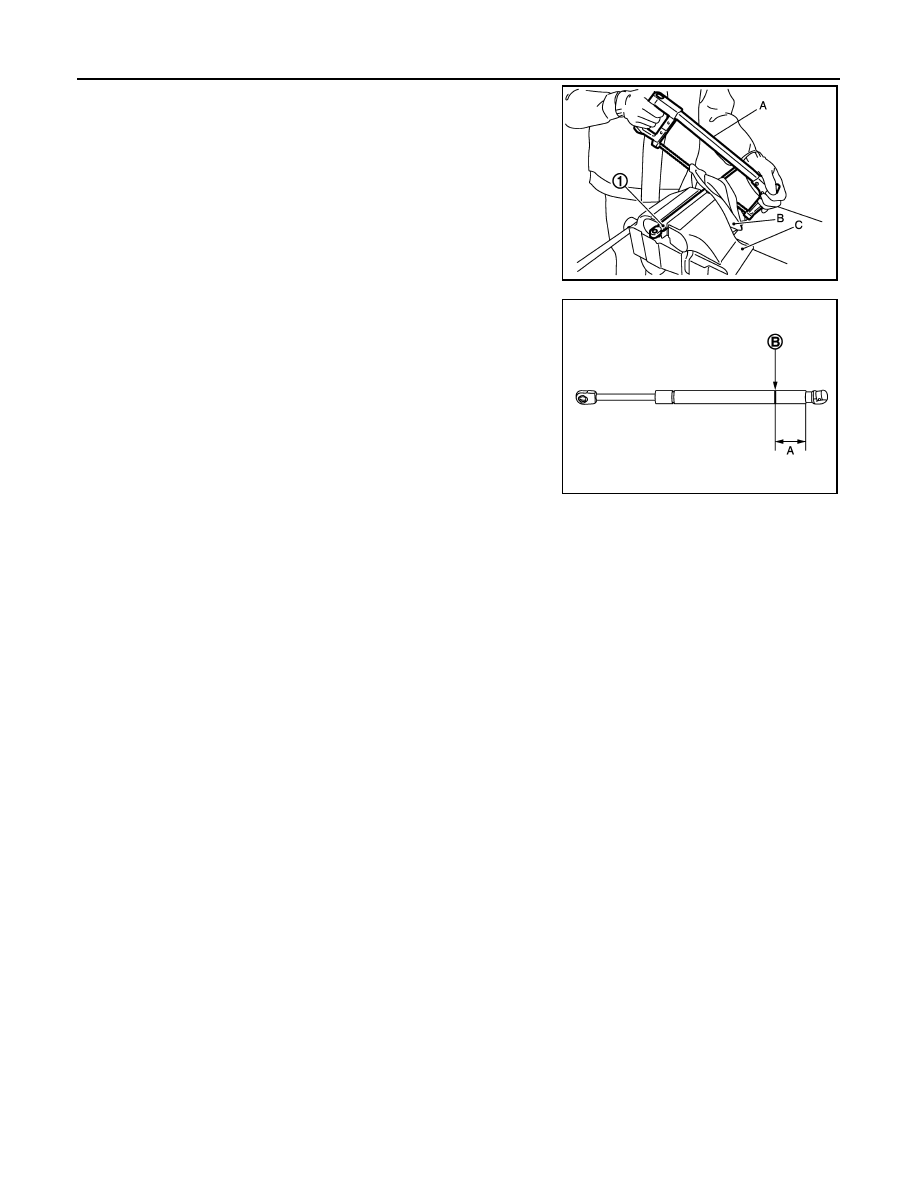

1. Secure back door stay (1) using a vice (C).

CAUTION:

When cutting back door stay, always cover suitable tool (A)

using a shop cloth (B) to avoid scattering metal fragments

or oil.

2. Slowly cut a hole in back door stay and drain the gas using a

hacksaw at position (B) as shown.

A: 20 mm (0.79 in)

BACK DOOR WEATHER-STRIP
BACK DOOR WEATHER-STRIP : Removal and Installation

INFOID:0000000009549284

REMOVAL

1. Support back door using a suitable tool.
2. Carefully remove back door weather-strip from opening door joint.

INSTALLATION

1. Beginning with upper section, align weather-strip mark with vehicle center position mark and install

weather strip to the vehicle.

2. For the lower section, align weather-strip seam with center of back door striker.
NOTE:

Pull weather-strip gently to make sure that there are no loose sections.

JMKIA3336ZZ

JMKIA5421ZZ

HOOD LOCK

DLK-159

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HOOD LOCK

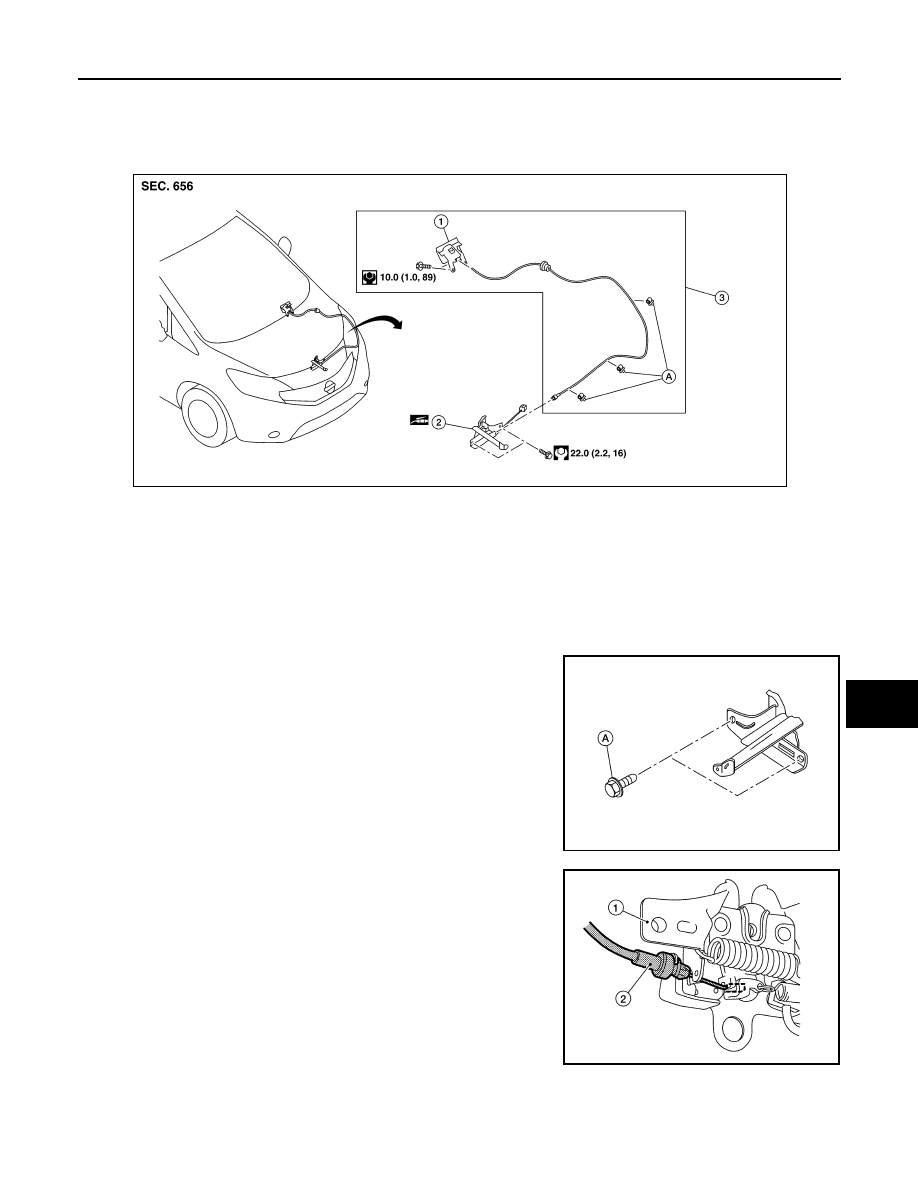

Exploded View

INFOID:0000000008969448

HOOD LOCK
HOOD LOCK : Removal and Installation

INFOID:0000000009486675

REMOVAL

1. Remove hood lock bolts (A).

2. Disconnect hood lock release cable (2) from hood lock (1) and

remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

1.

Hood lock/fuel filler lid release handle

2.

Hood lock assembly

3.

Hood lock release cable assembly

A.

Clip

AWKIA2572ZZ

ALKIA3190ZZ

AWKIA2497ZZ

DLK-160

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

HOOD LOCK

• After installation, perform hood assembly adjustment procedure. Refer to

DLK-136, "HOOD ASSEM-

BLY : Adjustment"

.

• After adjustment, perform hood lock control inspection. Refer to

DLK-160, "HOOD LOCK : Inspec-

tion"

.

HOOD LOCK : Inspection

INFOID:0000000009486678

HOOD LOCK INSPECTION

NOTE:

If hood lock cable is bent or deformed, replace it. Refer to

DLK-159, "HOOD LOCK : Removal and Installa-

tion"

.

1. Check that secondary latch is properly engage with secondary striker with hoods own weight.
2. While operating hood lock release lever, carefully check that the front end of hood assembly is raised by

approximately 20.0 mm (0.79 in). Also check that hood lock release lever returns to original position.

3. Check that hood lock release lever operates at 49 N (5.0 kg-m, 11.0 ft-lb) or below.
4. Install so that static closing force of hood is 315-490 N (32.1-50.0 kg-m, 70.8-110.2 ft-lb).
5. Check hood lock assembly lubrication condition. If necessary, apply a suitable multi-purpose grease.

HOOD LOCK RELEASE CABLE
HOOD LOCK RELEASE CABLE : Removal and Installation

INFOID:0000000009486676

REMOVAL

1. Disconnect hood lock release cable from hood lock. Refer to

DLK-159, "Exploded View"

.

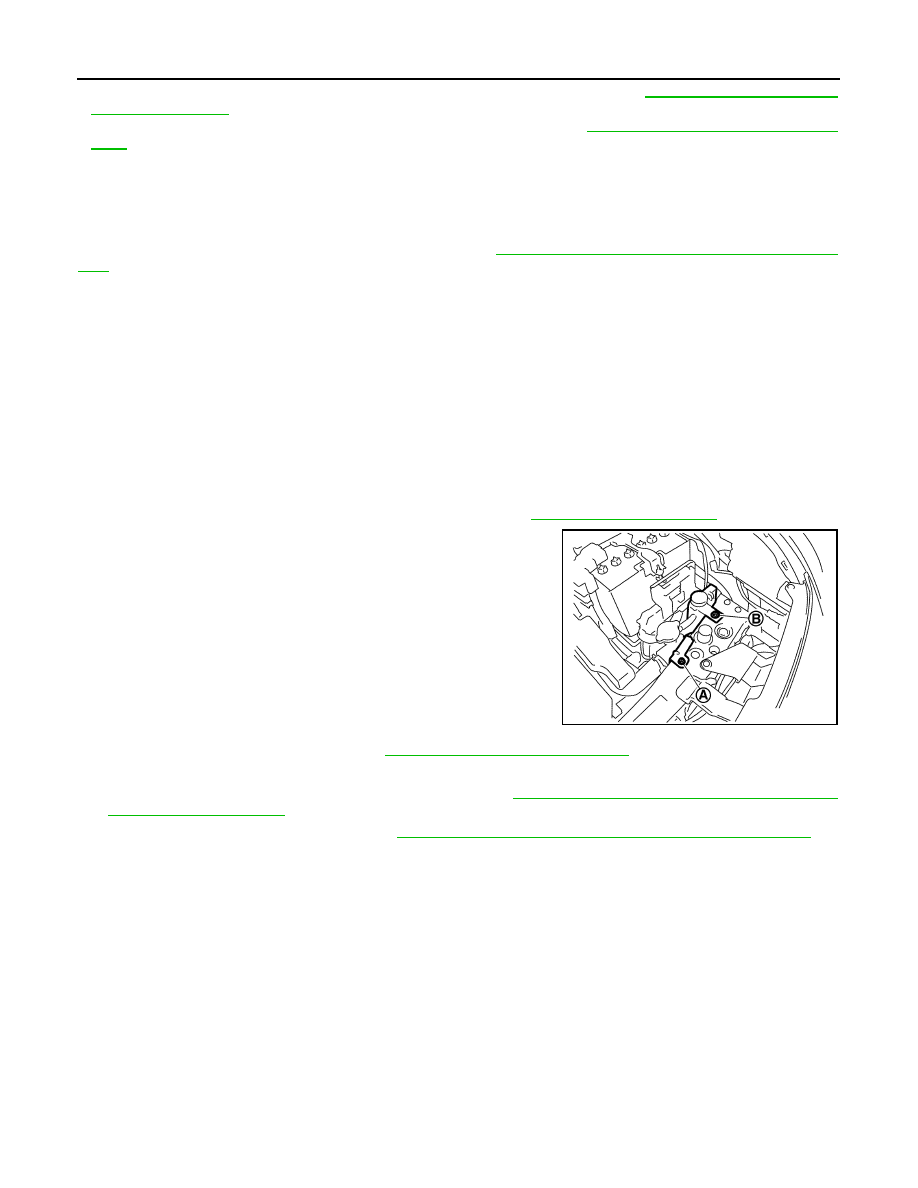

2. Remove radiator cap adapter bracket bolt (A) and radiator reser-

voir tank bolt (B).

3. Remove fender protector (LH). Refer to

EXT-36, "Removal and Installation"

.

4. Release hood lock control cable clips using a suitable tool.
5. Remove hood lock/fuel filler door release handle. Refer to

DLK-161, "HOOD LOCK RELEASE HANDLE :

Removal and Installation"

.

6. Remove dash side finisher (LH). Refer to

INT-24, "DASH SIDE FINISHER : Removal and Installation"

.

7. Remove grommet on the lower dash and pull the hood lock release cable into the passenger compart-

ment.

CAUTION:

While pulling, be careful not to damage (peel) the outside of the hood lock release cable.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Be careful not to bend cable too much, keep the radius 100 mm (3.94 in) or more.

• Check that hood lock release cable is properly engaged with hood lock.

JMKIA8027ZZ
