Nissan Versa Note. Manual - part 219





HOOD LOCK

DLK-161

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

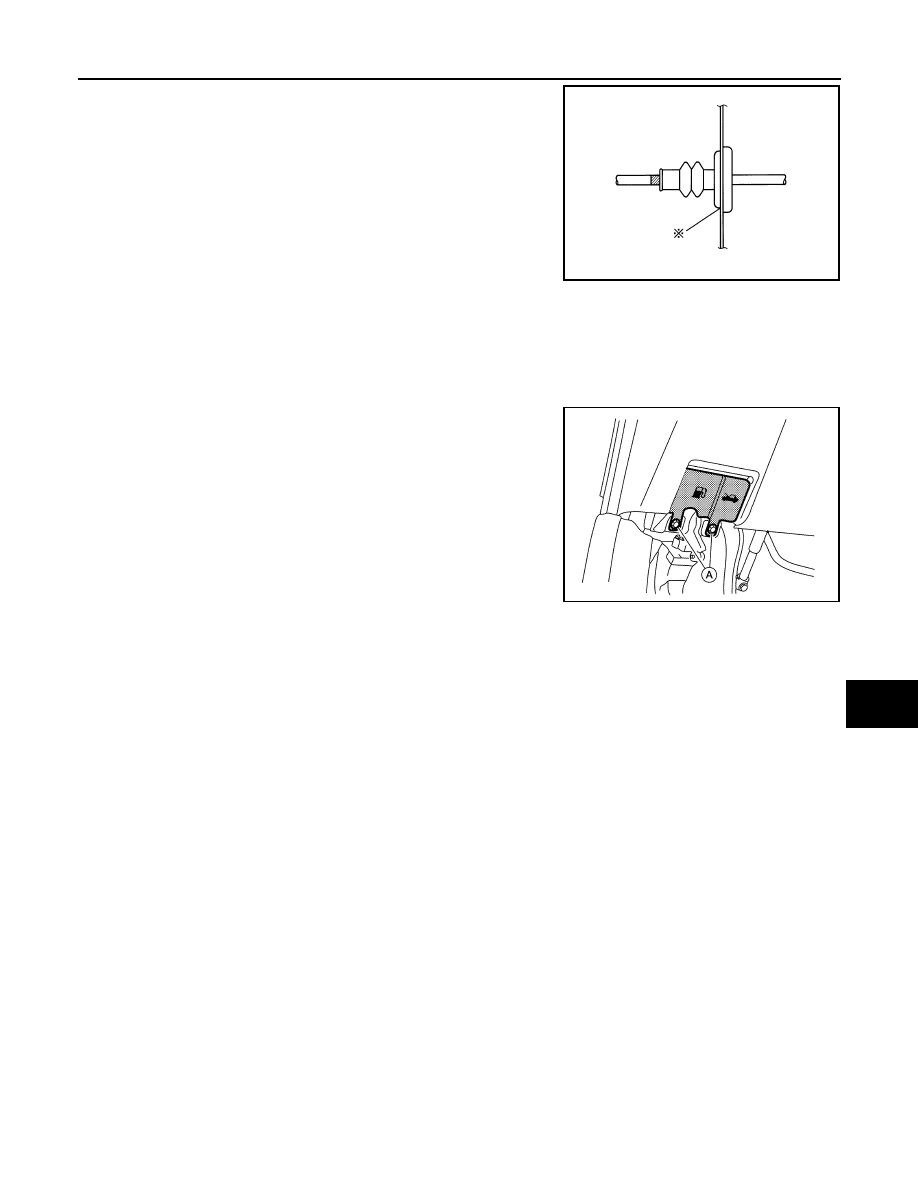

• Check that cable is not offset from the positioning grommet,

and apply the sealant to the grommet (at * mark).

HOOD LOCK RELEASE HANDLE
HOOD LOCK RELEASE HANDLE : Removal and Installation

INFOID:0000000009549385

REMOVAL

1. Remove hood lock/fuel filler door release handle bolts (A).

2. Disconnect hood lock release cable from hood lock/fuel filler door release handle and remove.

INSTALLATION

Installation is in the reverse order of removal.

PIIB5801E

AWKIA2498ZZ

DLK-162

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

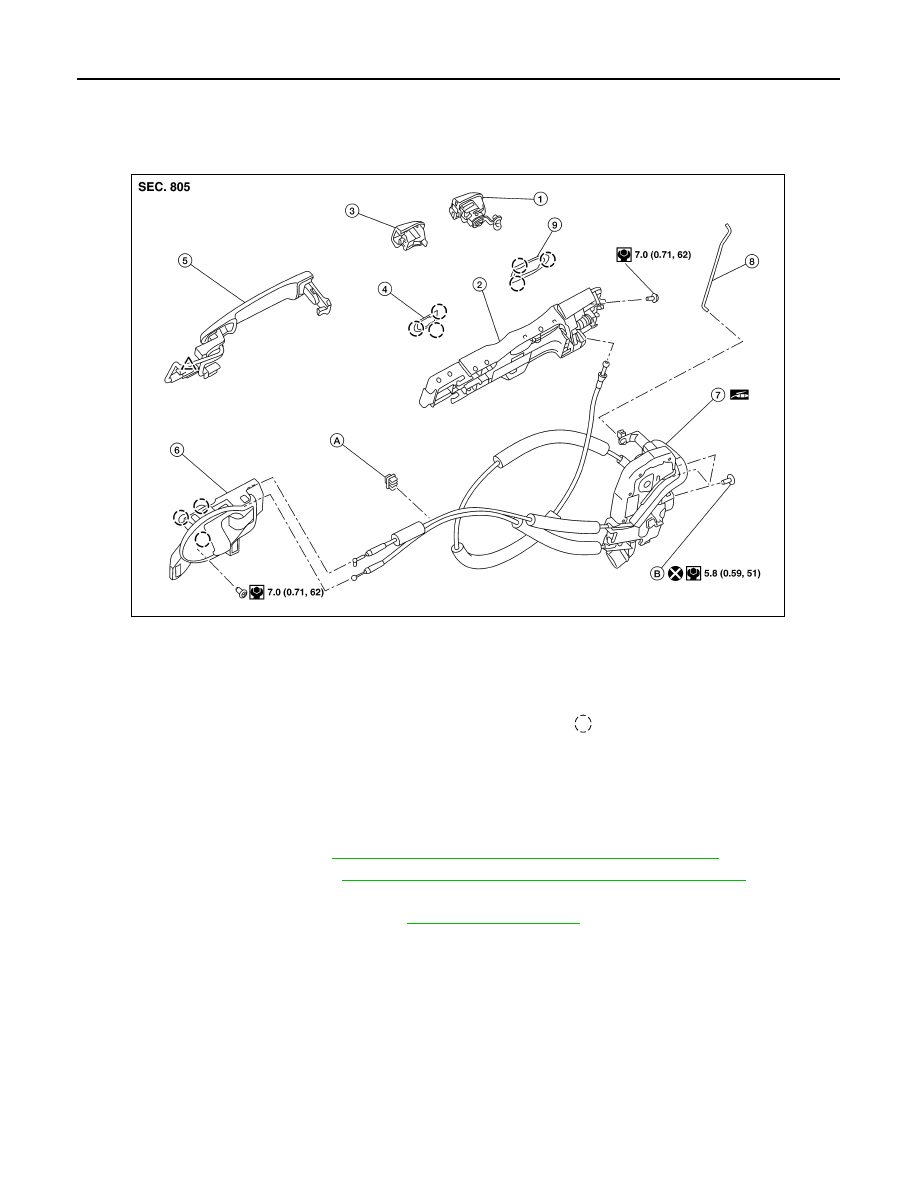

FRONT DOOR LOCK

FRONT DOOR LOCK

Exploded View

INFOID:0000000008969449

DOOR LOCK
DOOR LOCK : Removal and Installation

INFOID:0000000009486679

REMOVAL

1. Remove inside handle. Refer to

DLK-163, "INSIDE HANDLE : Removal and Installation"

.

2. Remove outside handle. Refer to

DLK-164, "OUTSIDE HANDLE : Removal and Installation"

.

3. Disconnect the harness connector from the door lock actuator.
4. Remove front door glass rear run. Refer to

GW-21, "Exploded View"

.

5. Remove bolts and door lock.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse door lock bolts.

• After installation, check door open/close, lock/unlock operation.

• Check door lock cables are properly engaged to inside handle and outside handle bracket.

• When installing key cylinder on front door, be sure to rotate key cylinder rod holder until a click is

felt.

1.

Key cylinder (driver side)

2.

Outside handle bracket

3.

Outside handle escutcheon
(passenger side)

4.

Front gasket

5.

Outside handle

6.

Inside handle

7.

Door lock

8.

Key cylinder rod (driver side)

9.

Rear gasket

A.

Clip

B.

Bolt

Pawl

AWKIA2573ZZ

FRONT DOOR LOCK

DLK-163

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

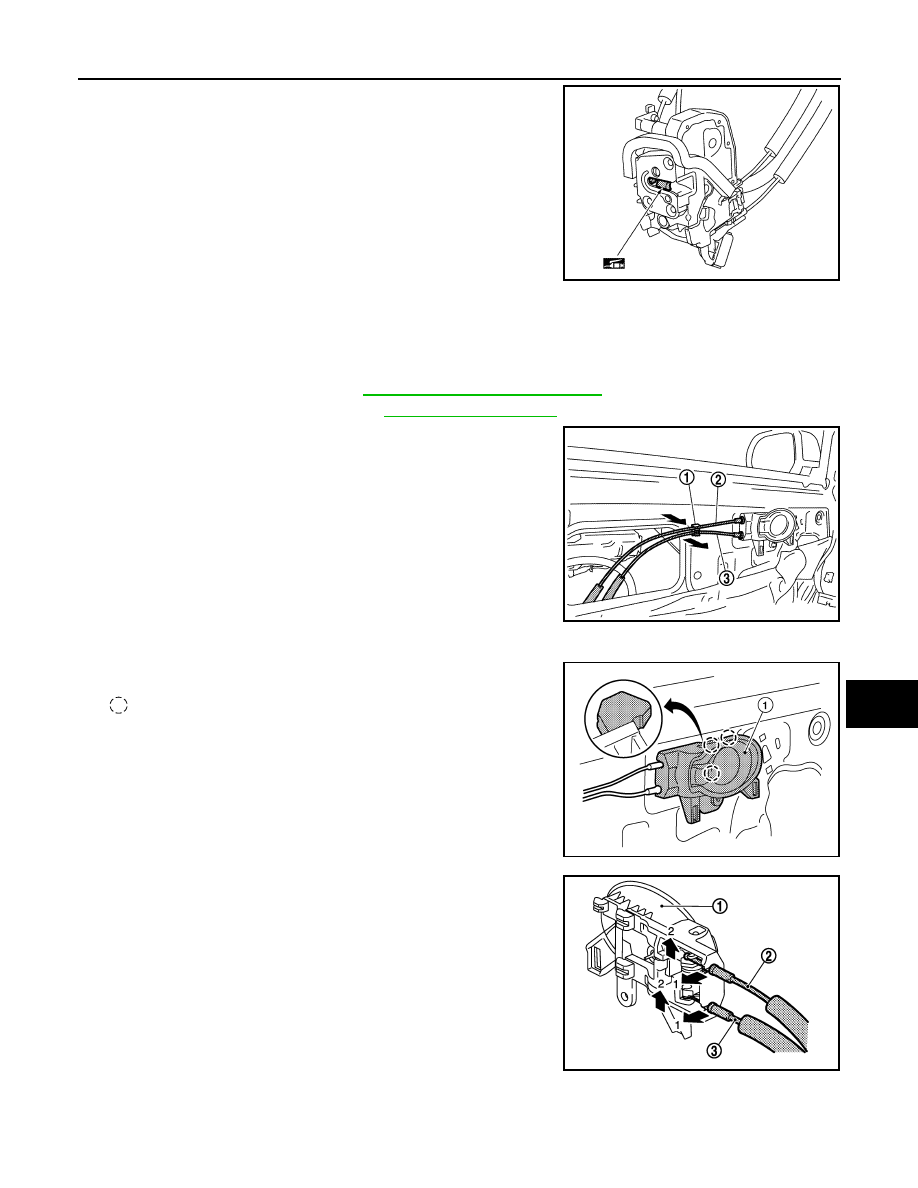

• Check door lock for poor lubrication. Apply a suitable multi-

purpose grease to door lock if necessary.

INSIDE HANDLE
INSIDE HANDLE : Removal and Installation

INFOID:0000000009486680

REMOVAL

1. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Partially remove vapor barrier. Refer to

GW-21, "Exploded View"

.

3. Release lock knob (2) and inside handle cable (3) from clip (1)

using a suitable tool.

4. Remove inside handle bolt.
5. Release inside handle (1) from door panel using a suitable tool

and remove.

: Pawl

6. Release inside handle cable (3) and lock cable (2) from inside

handle (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

JMKIA8077ZZ

JMKIA8078ZZ

AWKIA2500ZZ

JMKIA5885ZZ

DLK-164

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

FRONT DOOR LOCK

• Check that door lock cables are properly engaged to inside handle.

• After installation, check door open/close, lock/unlock operation.

OUTSIDE HANDLE
OUTSIDE HANDLE : Removal and Installation

INFOID:0000000009486681

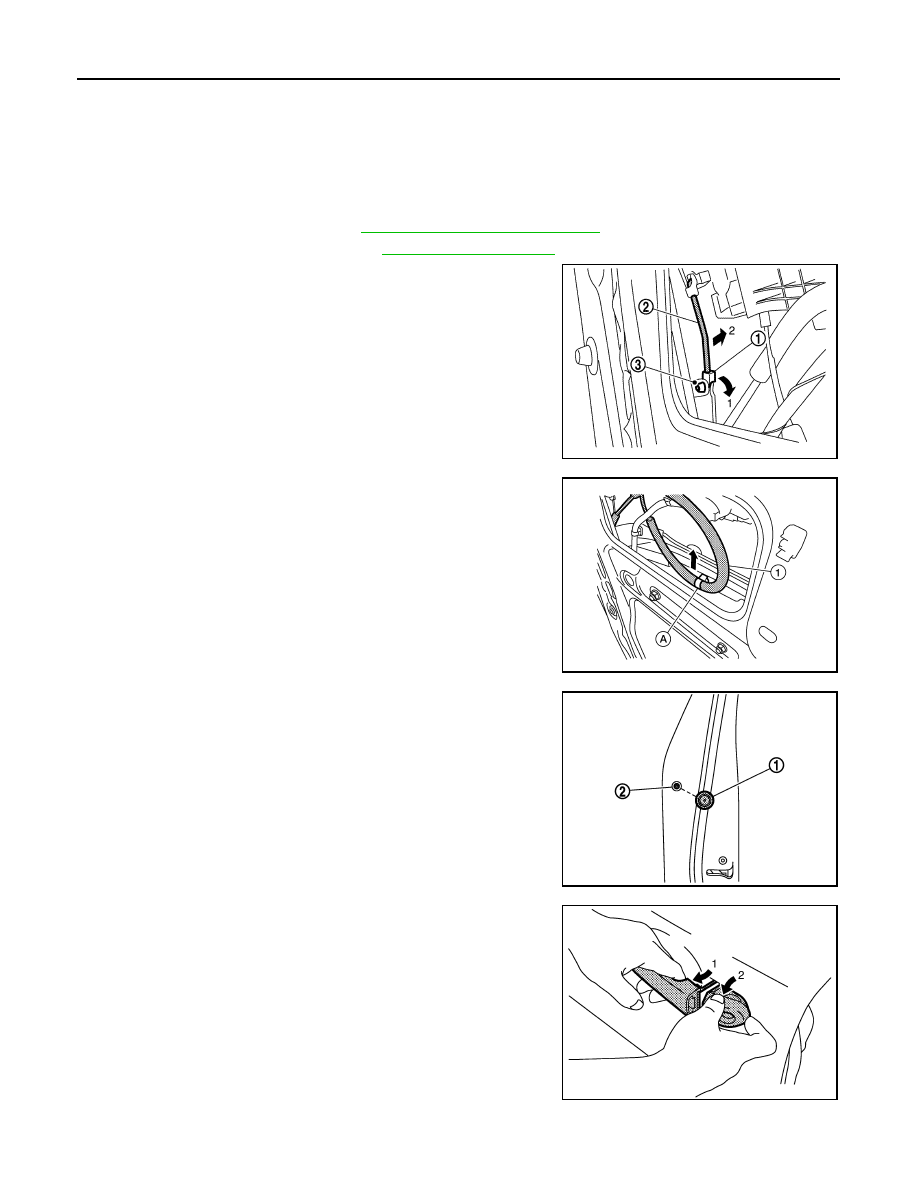

REMOVAL

1. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Partially remove vapor barrier. Refer to

GW-21, "Exploded View"

.

3. Open rod holder (1) by pulling downward and separate key rod

(3) from door lock assembly (2) (driver side only).

4. Release outside handle cable (1) from cable clip (A).

5. Remove door grommet (1) and bolt from grommet hole (2).

6. While pulling outside handle, remove outside handle escutch-

eon.

JMKIA8080ZZ

AWKIA2574ZZ

JMKIA5888ZZ

JMKIA0560ZZ
