5. Remove front gasket and rear gasket.
6. Slide outside handle bracket toward rear of vehicle to remove.

: Front

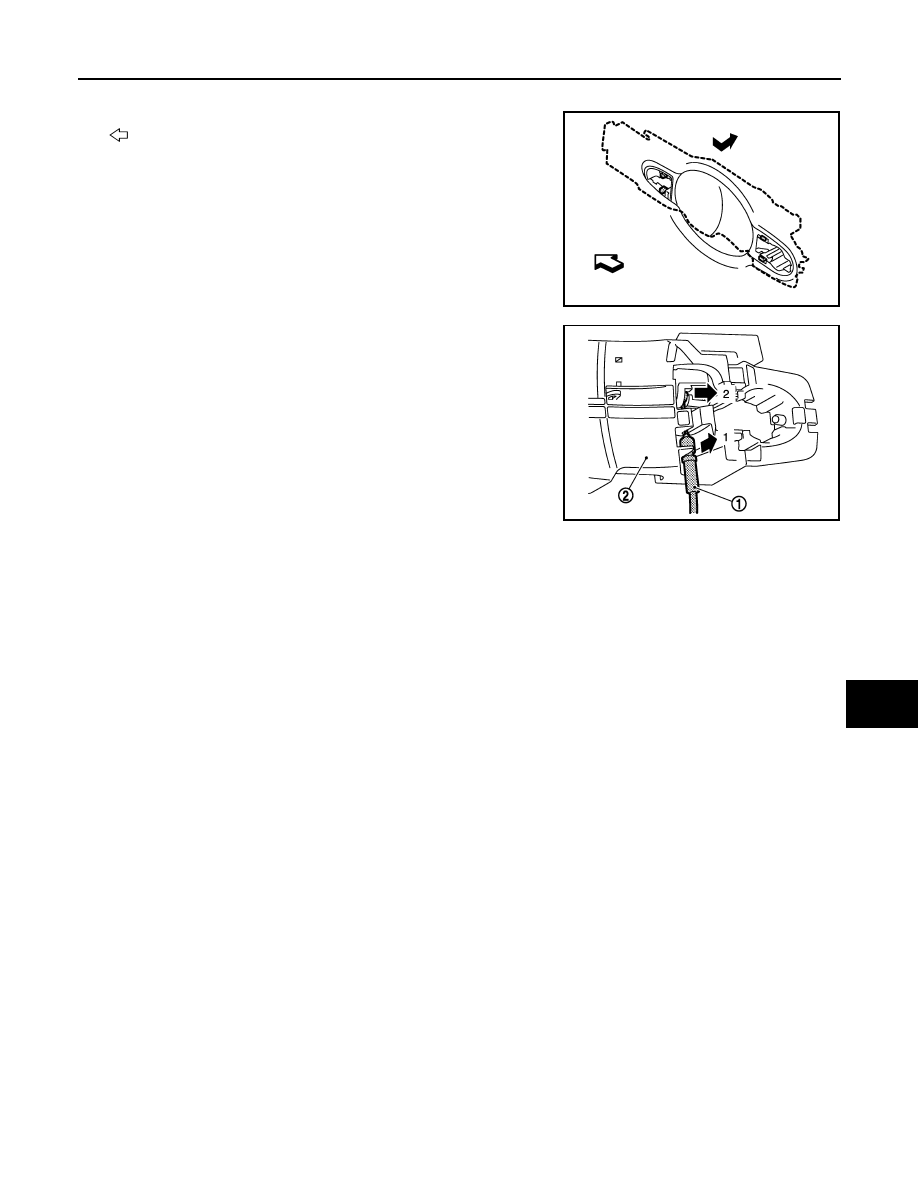

7. Disconnect outside handle cable (1) from outside handle bracket

(2) as shown.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, check door open/close, lock/unlock operation.

• Check door lock cable is properly engaged with outside handle bracket.

JMKIA5890ZZ

JMKIA5891ZZ

DLK-170

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR LOCK

BACK DOOR LOCK

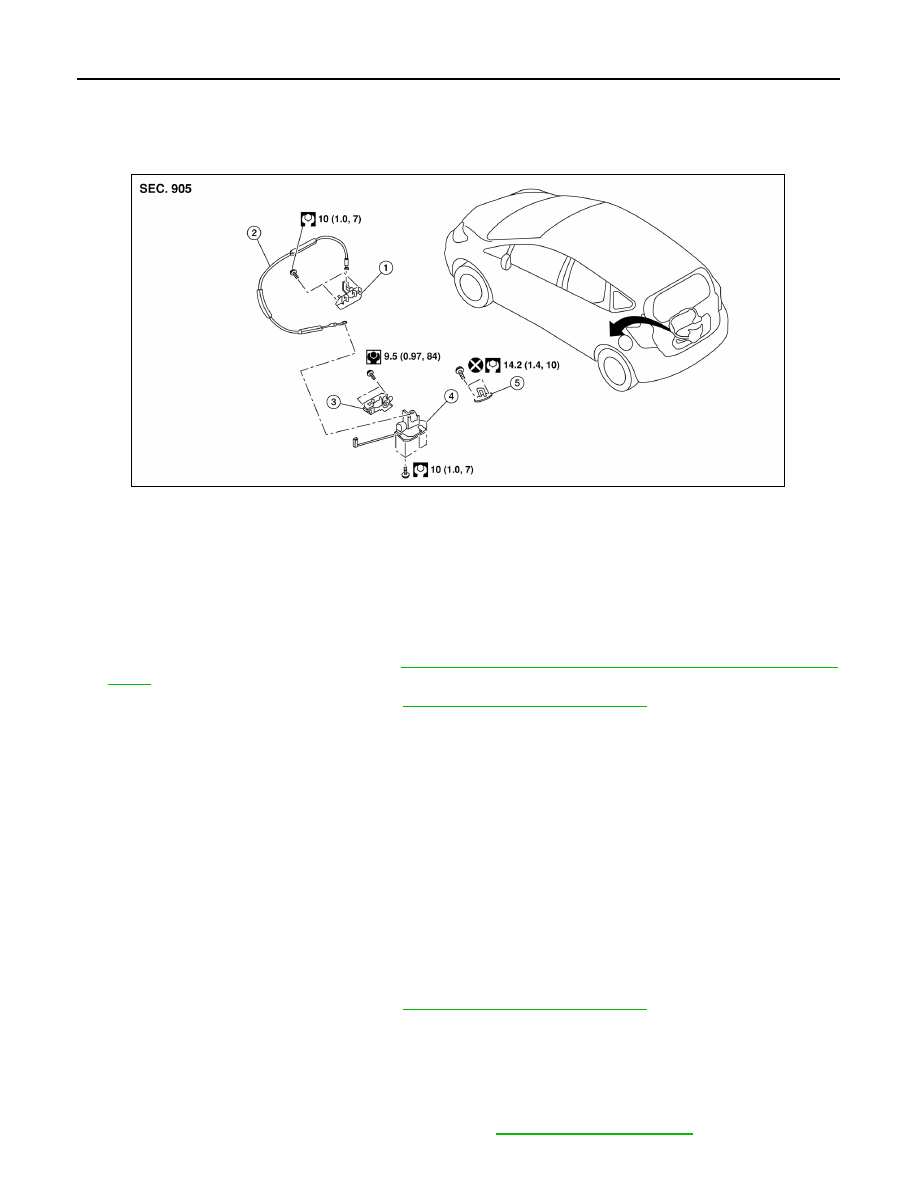

Exploded View

INFOID:0000000008969451

BACK DOOR LOCK
BACK DOOR LOCK : Removal and Installation

INFOID:0000000009561117

REMOVAL

1. Remove back door inner finisher. Refer to

INT-36, "BACK DOOR INNER FINISHER : Removal and Instal-

lation"

.

2. Remove back door outer finisher. Refer to

EXT-46, "Removal and Installation"

.

3. Disconnect lock rod from key cylinder (if equipped).
4. Disconnect the harness connectors from the back door lock.
5. Disconnect door lock cable from handle.
6. Remove back door lock bolts and back door lock.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten back door bolts to specification.

• After installation, check back door open/close and lock/unlock operation.

OUTSIDE HANDLE
OUTSIDE HANDLE : Removal and Installation

INFOID:0000000009561118

REMOVAL

1. Remove back door outer finisher. Refer to

EXT-46, "Removal and Installation"

.

2. Release the back door lock cable from the outside handle.
3. Remove outside handle bolts and outside handle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten outside handle bolts to specification. Refer to

DLK-170, "Exploded View"

.

1.

Outside handle

2.

Back door lock cable

3.

Back door lock actuator

4.

Back door lock

5.

Door striker

AWKIA2578ZZ

BACK DOOR LOCK

DLK-171

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• After installation, check back door open/close and lock/unlock operation.

EMERGENCY LEVER
EMERGENCY LEVER : Removal and Installation

INFOID:0000000009561119

UNLOCK PROCEDURE

NOTE:

If back door lock cannot be unlocked due to a malfunction or battery discharge, perform the following proce-

dure to unlock back door assembly.

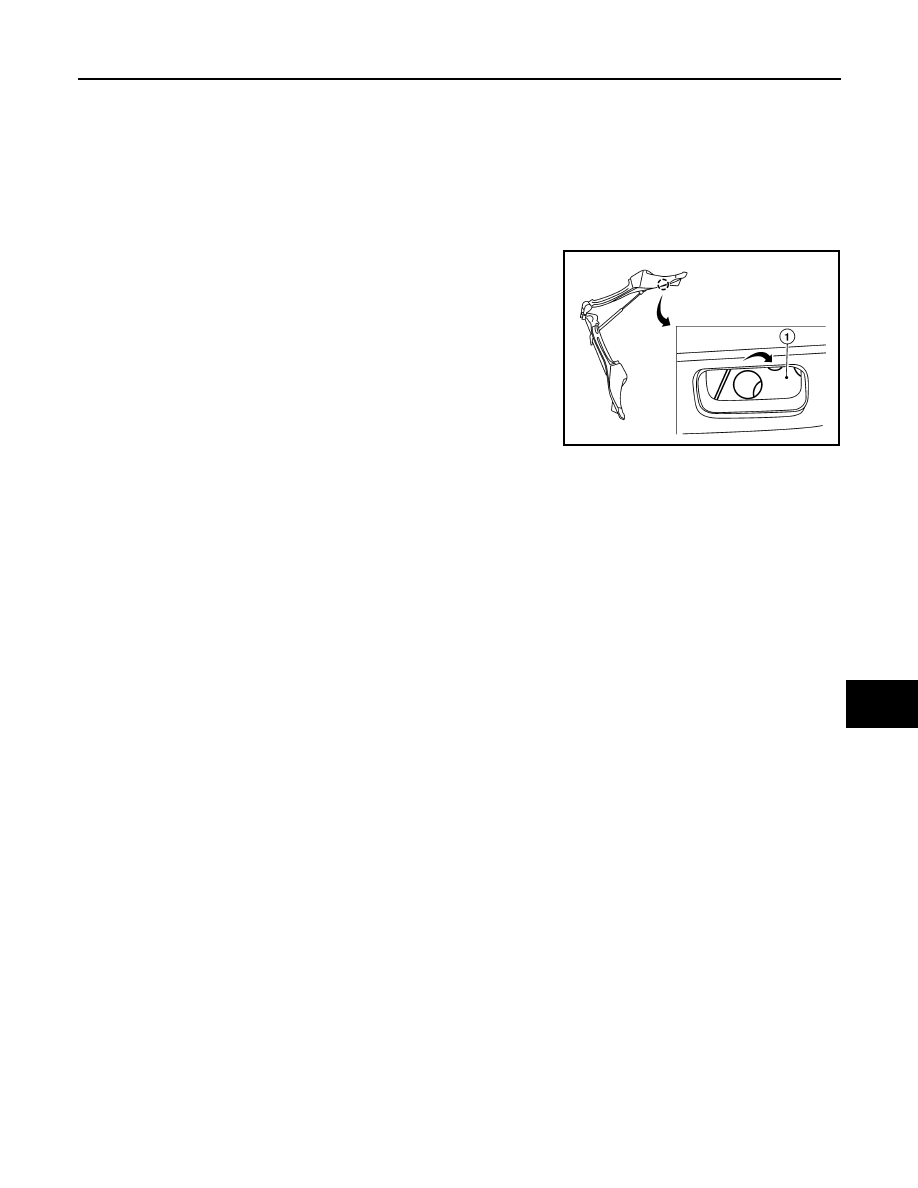

From inside the vehicle, using a suitable tool, rotate the emergency

lever (1) in a clockwise direction to unlock the back door assembly.

AWKIA2577ZZ

DLK-172

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

FUEL FILLER LID OPENER

FUEL FILLER LID OPENER

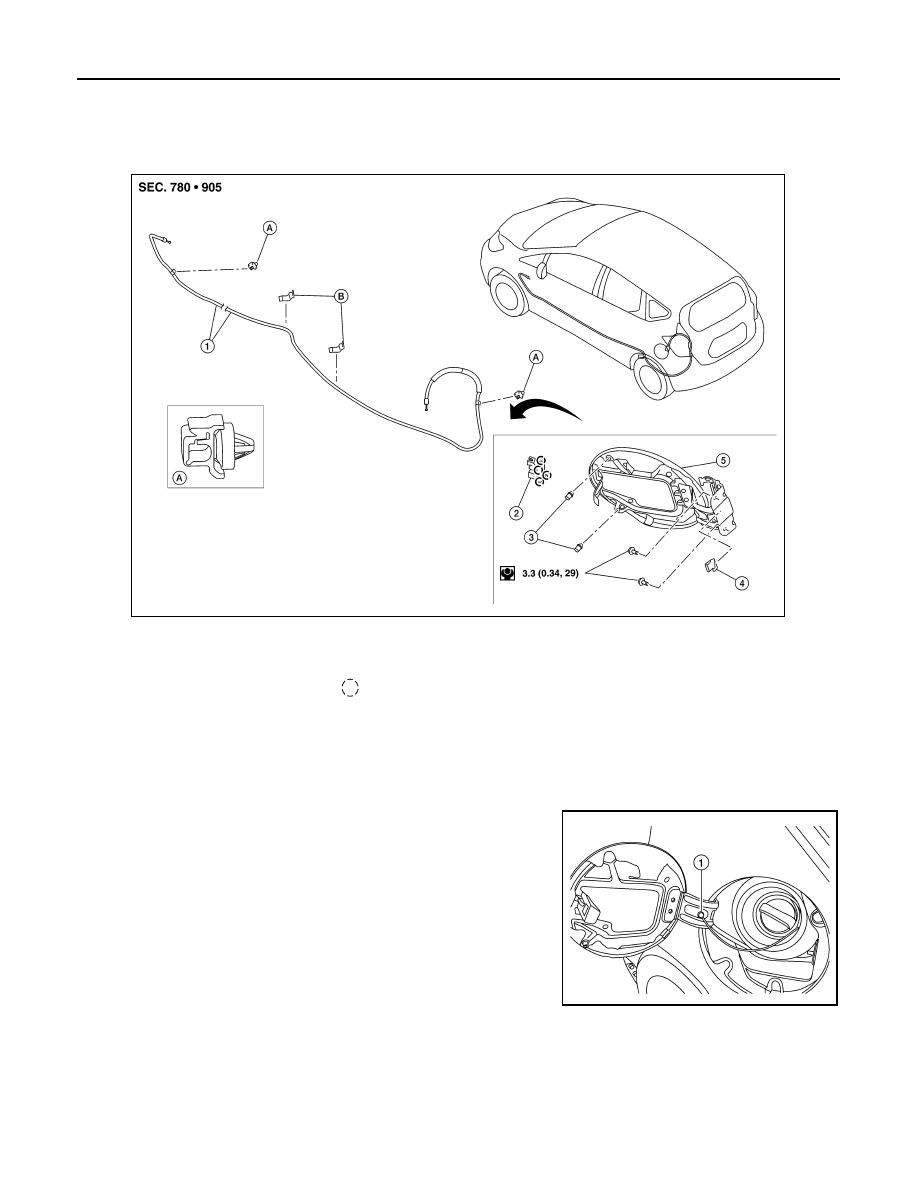

Exploded View

INFOID:0000000008969452

FUEL FILLER LID
FUEL FILLER LID : Removal and Installation

INFOID:0000000009486685

REMOVAL

1. Remove fuel cap pin (1).

1.

Fuel filler lid lock release cable

2.

Fuel filler lid lock

3.

Fuel filler lid bumper

4.

Fuel filler lid spring

5.

Fuel filler lid

A.

Clip

B.

Cable protector

Pawl

AWKIA2582ZZ
