AROUND VIEW MONITOR CONTROL UNIT

AROUND VIEW MONITOR CONTROL UNIT

Removal and Installation

INFOID:0000000009460077

REMOVAL

1. Remove the front passenger seat. Refer to

SE-22, "PASSENGER SIDE : Removal and Installation"

.

2. Remove the floor trim. Refer to

INT-27, "Removal and Installation"

.

3. Disconnect the harness connector from the around view monitor control unit.

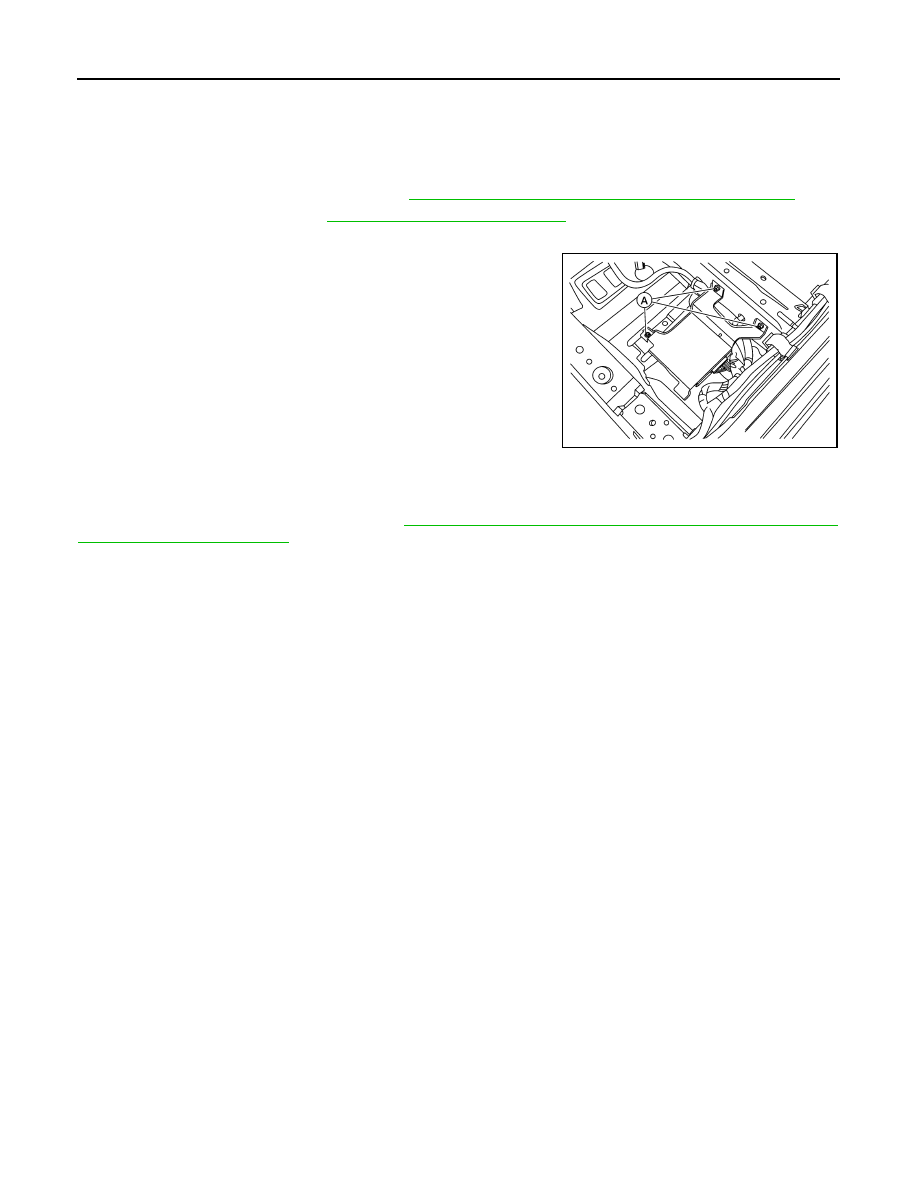

4. Remove the screws (A) from the around view monitor control

unit bracket and remove.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Perform camera image calibration. Refer to

AV-181, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Work Procedure"

.

AWNIA3074ZZ

AV

FRONT CAMERA

AV-249

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT CAMERA

Removal and Installation

INFOID:0000000009460078

REMOVAL

1. Remove the front grille. Refer to

EXT-29, "Removal and Installation"

.

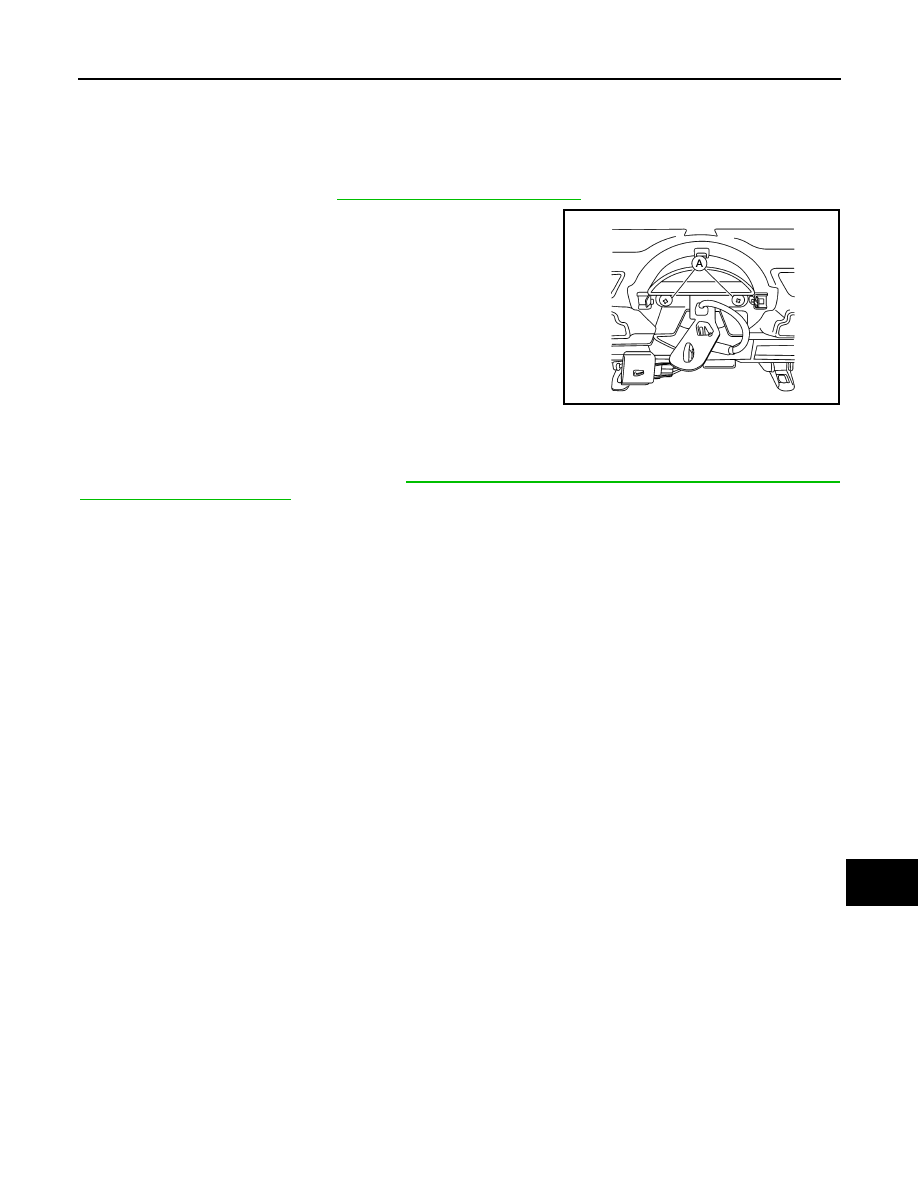

2. Remove the front camera screws (A) and remove.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Perform camera image calibration. Refer to

AV-181, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Work Procedure"

.

AWNIA3075ZZ

AV-250

< REMOVAL AND INSTALLATION >

[NAVIGATION]

REAR VIEW CAMERA

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000009541293

REMOVAL

1. Remove the back door outer finisher. Refer to

EXT-46, "Removal and Installation"

.

2. Disconnect the harness connector from rear view camera.

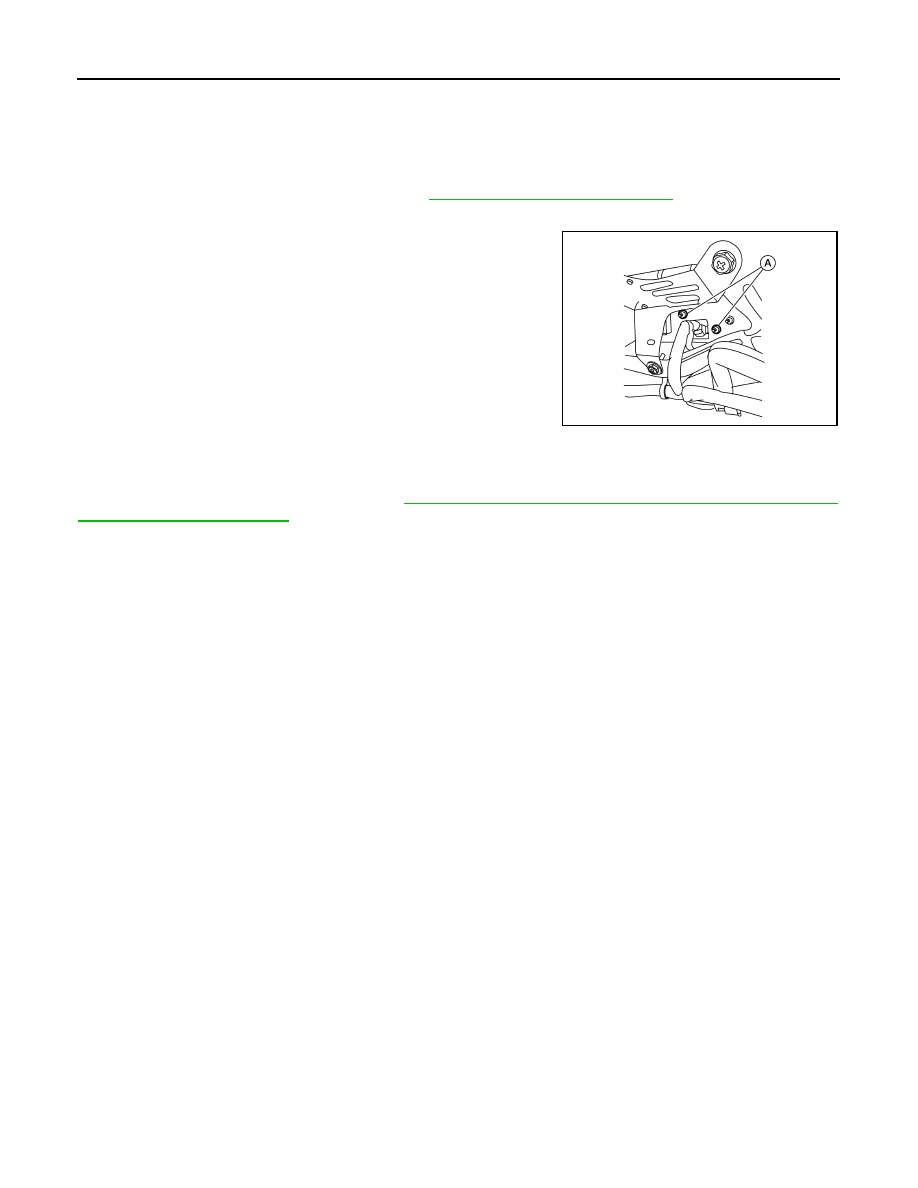

3. Remove the nuts (A) from the rear view camera and remove.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Perform camera image calibration. Refer to

AV-181, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Work Procedure"

.

AWNIA3070ZZ

AV

SIDE CAMERA

AV-251

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SIDE CAMERA

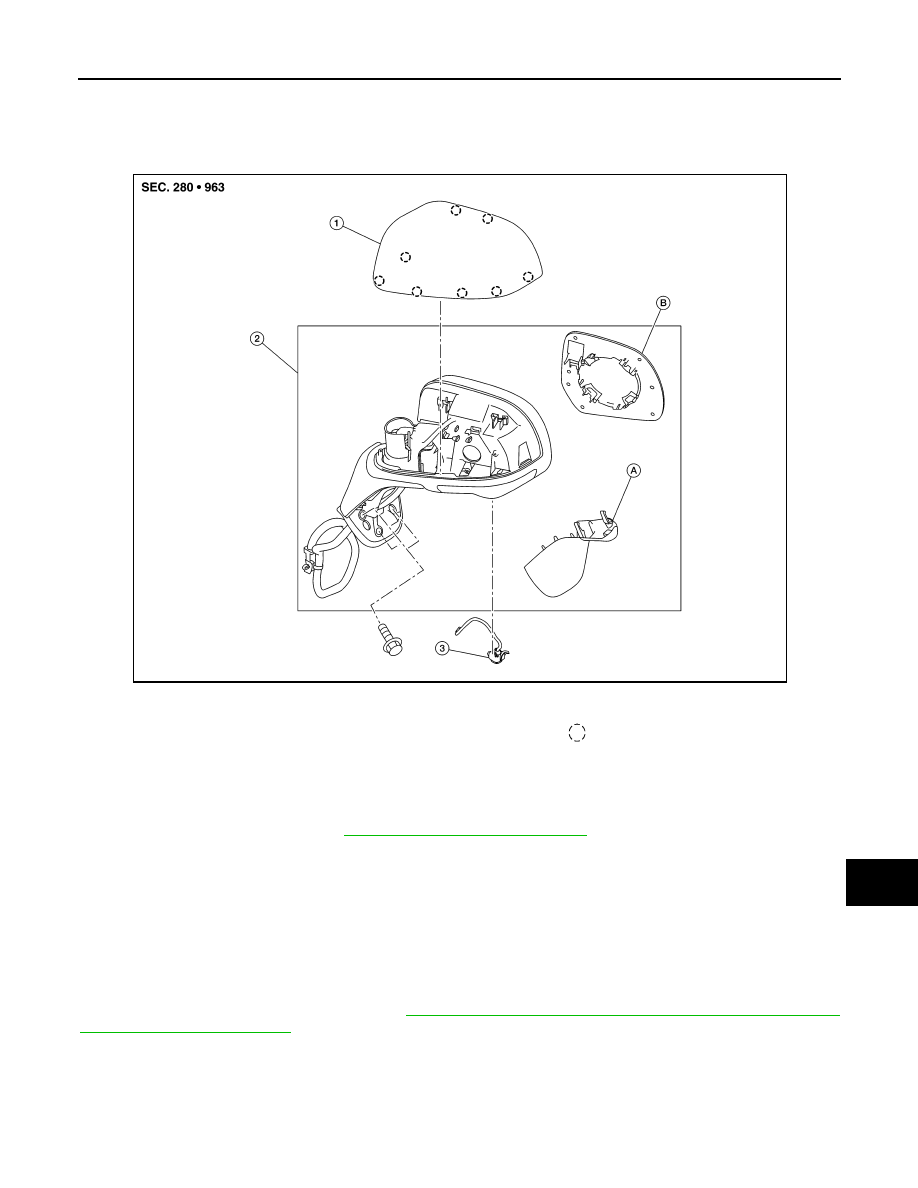

Exploded View

INFOID:0000000009681835

Removal and Installation

INFOID:0000000009654080

REMOVAL

1. Remove the door mirror. Refer to

MIR-15, "Removal and Installation"

.

2. Remove the door mirror glass.
3. Remove the door mirror actuator.
4. Disconnect the harness connector from the side camera.
5. Remove the side camera screws and remove.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Perform camera image calibration. Refer to

AV-181, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Work Procedure"

.

1.

Door mirror rear finisher

2.

Door mirror

3.

Side camera

A.

Door mirror base finisher

B.

Door mirror glass

Pawl

AWLIA2160ZZ
