Nissan Versa Note. Manual - part 63

AV-244

< REMOVAL AND INSTALLATION >

[NAVIGATION]

USB INTERFACE

USB INTERFACE

Removal and Installation

INFOID:0000000009541290

REMOVAL

1. Remove the center console assembly. Refer to

IP-18, "Removal and Installation"

.

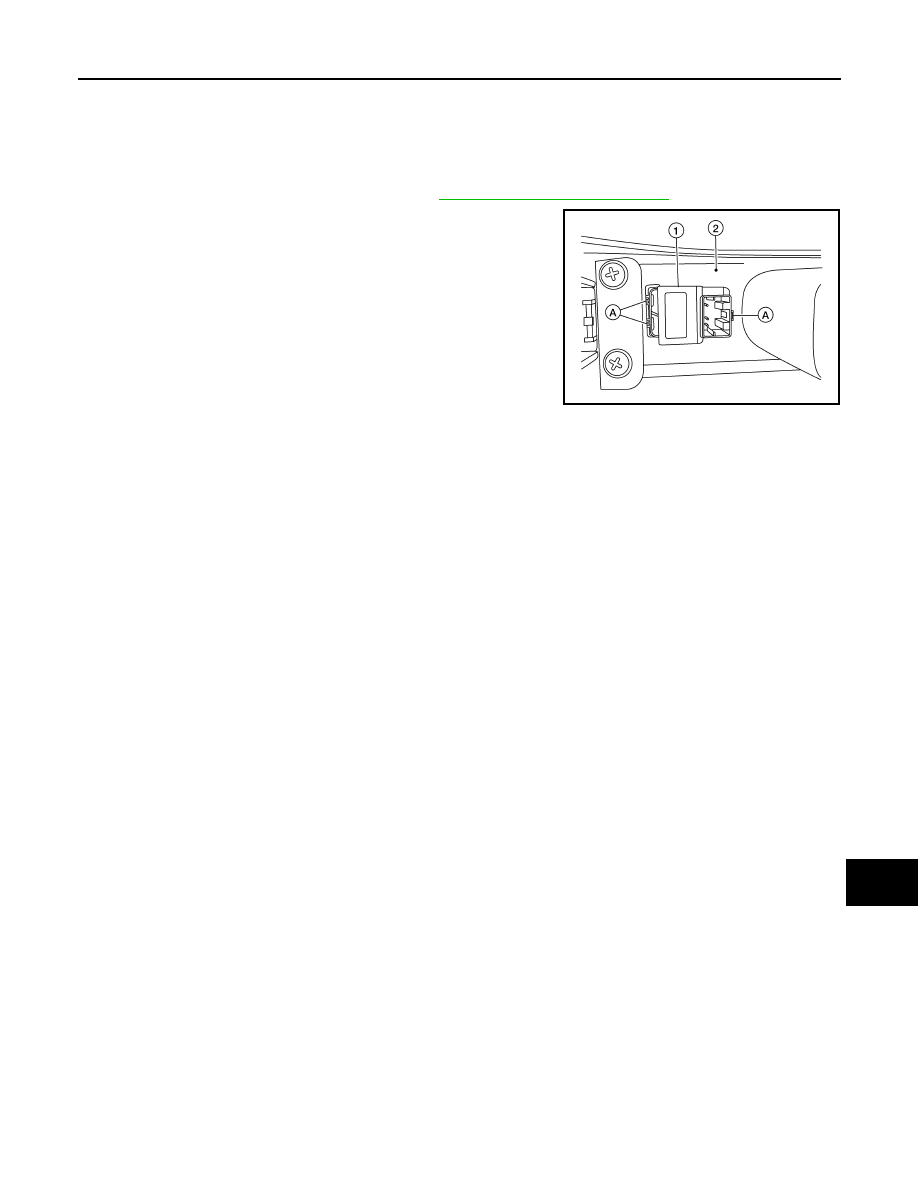

2. Release the pawls (A) from the back of the center console

assembly (2) using a suitable tool and remove the USB interface

(1).

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3069ZZ

AV

AUXILIARY INPUT JACK

AV-245

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUXILIARY INPUT JACK

Removal and Installation

INFOID:0000000009647056

REMOVAL

1. Remove the center console assembly. Refer to

IP-18, "Removal and Installation"

.

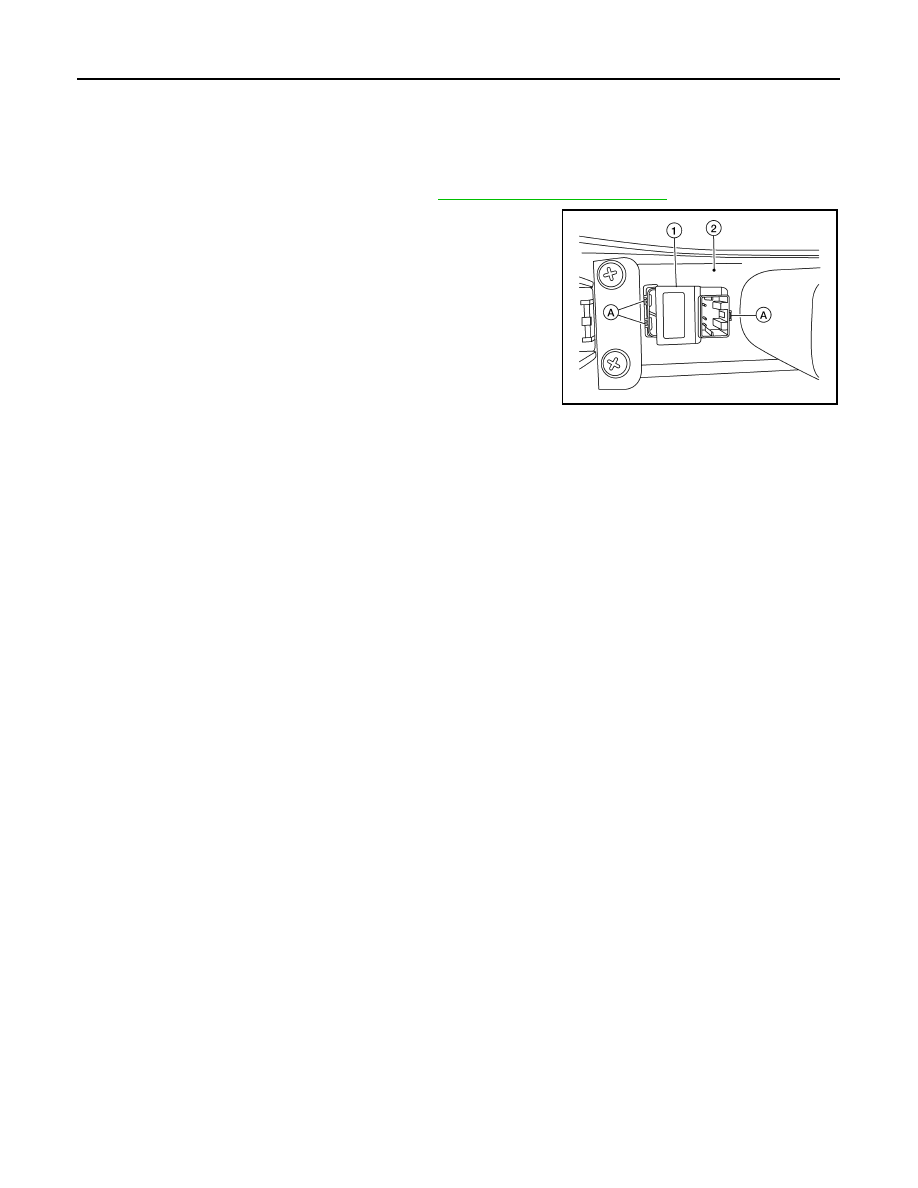

2. Release the pawls (A) from the back of the center console

assembly (2) using a suitable tool and remove the auxiliary input

jack (1).

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3069ZZ

AV-246

< REMOVAL AND INSTALLATION >

[NAVIGATION]

STEERING SWITCH

STEERING SWITCH

Removal and Installation

INFOID:0000000009541291

REMOVAL

1. Remove the steering wheel. Refer to

ST-8, "Removal and Installation"

.

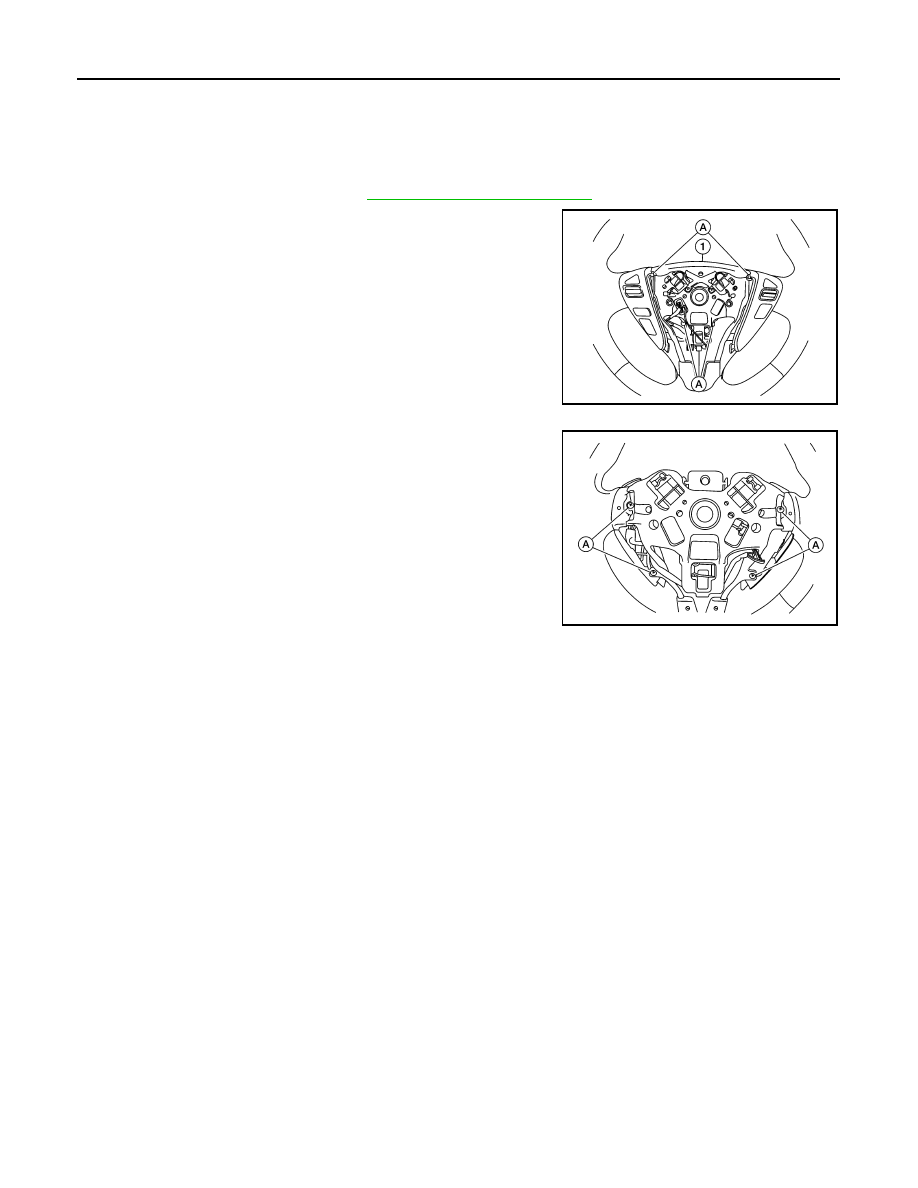

2. Remove the steering wheel rear finisher (1) by releasing pawls

(A).

3. Remove the steering wheel audio control switch screws (A) from

the back of the steering wheel.

4. Remove the steering wheel audio control switches from the steering wheel.

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3063ZZ

AWNIA3064ZZ

AV

MICROPHONE

AV-247

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Removal and Installation

INFOID:0000000009541292

REMOVAL

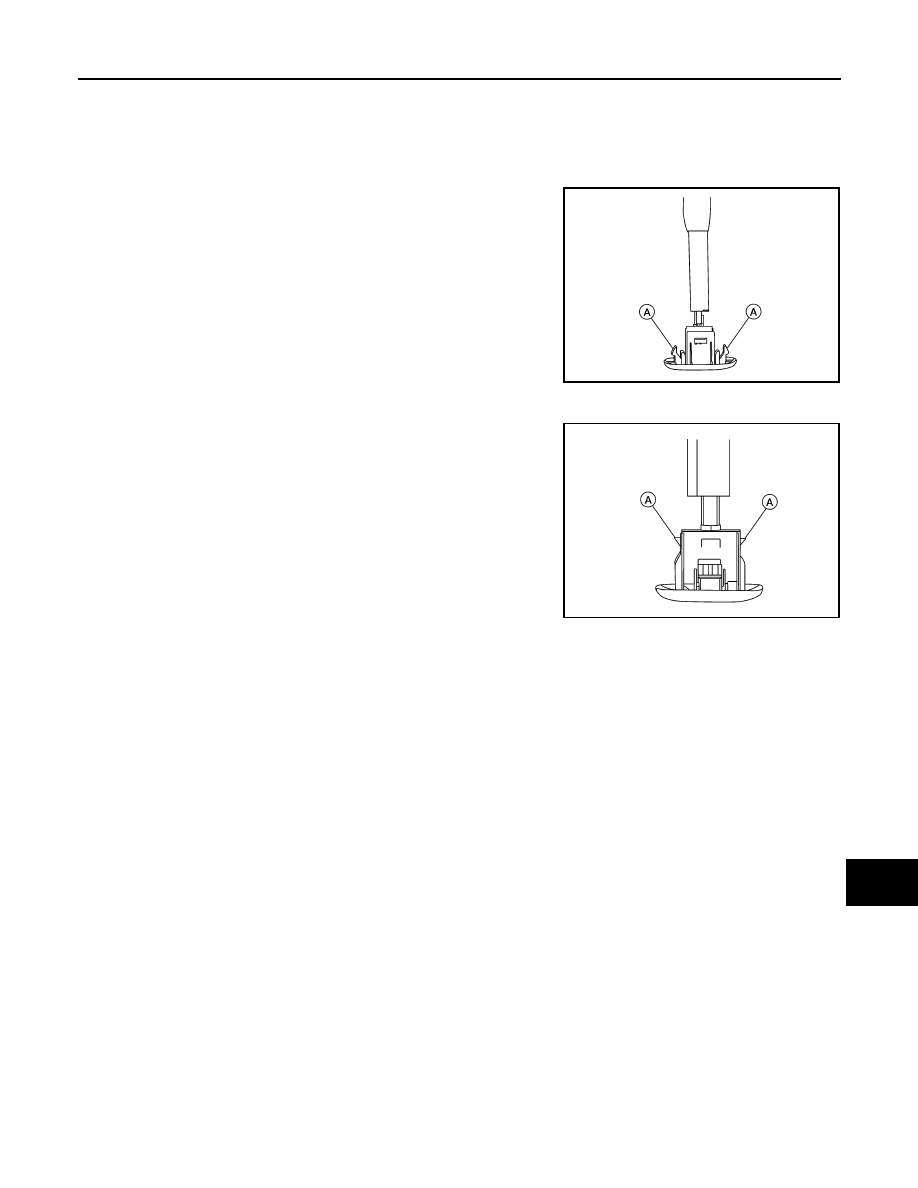

1. Remove the microphone finisher from the headlining by releas-

ing pawls (A) using a suitable tool.

2. Disconnect the harness connector from microphone and remove.
3. Separate the microphone from the finisher by releasing pawls

(A) using a suitable tool.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Make sure to align the rib on the finisher with the slot in the microphone.

Make sure to install the microphone with the arrows pointing toward the RH side of the vehicle.

AWNIA3153ZZ

AWNIA3154ZZ
