Nissan Versa Note. Manual - part 62





AV-240

< REMOVAL AND INSTALLATION >

[NAVIGATION]

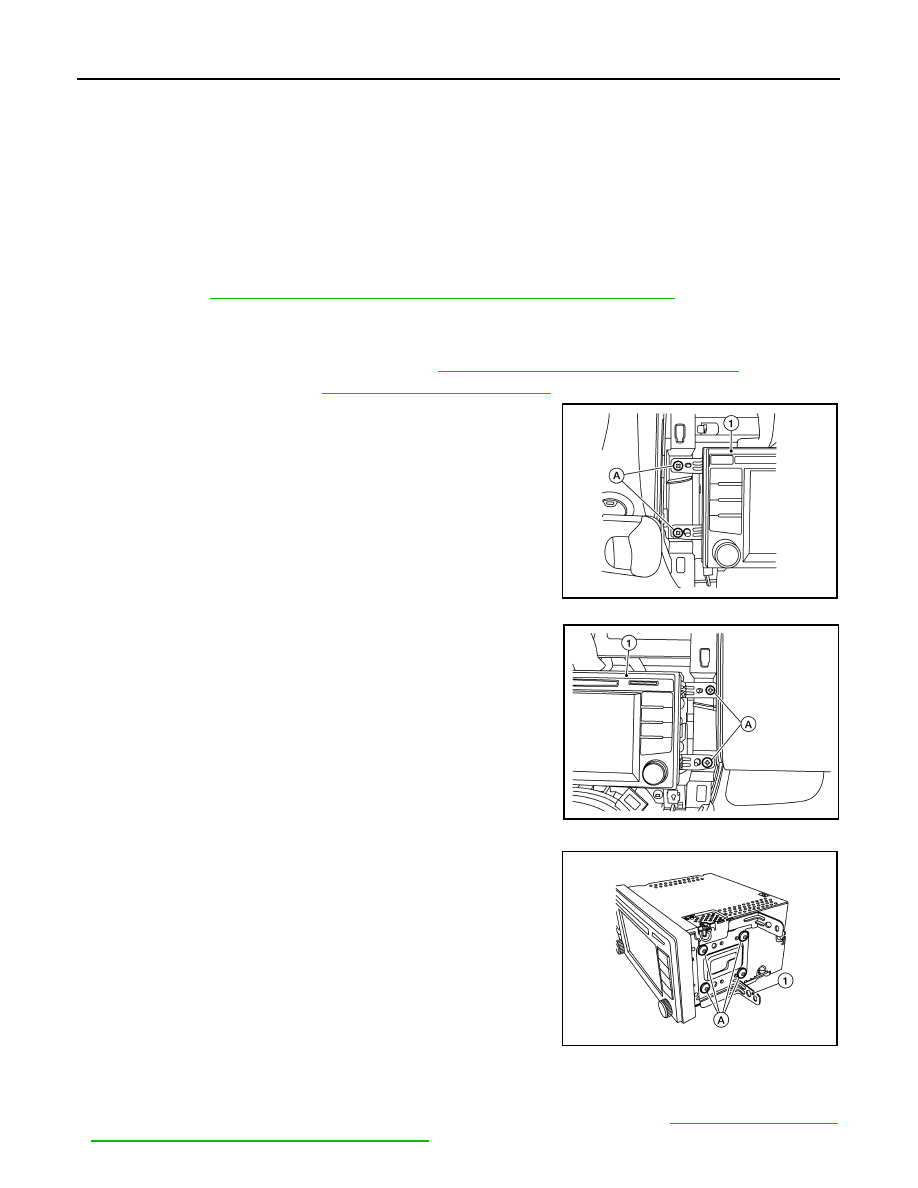

AV CONTROL UNIT

REMOVAL AND INSTALLATION

AV CONTROL UNIT

Removal and Installation

INFOID:0000000009460041

REMOVAL

CAUTION:

• Remove battery terminal and AV control unit after a lapse of 30 seconds or more after turning the

ignition switch OFF.

• Before replacing AV control unit, perform "READ CONFIGURATION" to save current vehicle specifi-

cation. Refer to

AV-178, "CONFIGURATION (AV CONTROL UNIT) : Description"

.

NOTE:

After the ignition switch is turned OFF, the AV control unit continues operating for approximately 30 seconds.

Therefore, data corruption may occur if battery voltage is cut off within 30 seconds.
1. Remove the battery negative terminal. Refer to

PG-67, "Removal and Installation (Battery)"

.

2. Remove cluster lid C. Refer to

IP-22, "Removal and Installation"

.

3. Remove the AV control unit screws (A) and partially remove the

AV control unit (1).

4. Disconnect the harness connectors from the AV control unit and remove.
5. Remove the AV control unit bracket screws (A) and the AV con-

trol unit bracket (1) from each side of the AV control unit (if nec-

essary).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When replacing AV control unit, perform "WRITE CONFIGURATION". Refer to

AV-178, "CONFIGURA-

TION (AV CONTROL UNIT) : Work Procedure"

.

AWNIA3071ZZ

AWNIA3072ZZ

AWNIA3073ZZ

AV

AV CONTROL UNIT

AV-241

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• Perform camera image calibration. Refer to

AV-181, "CALIBRATING CAMERA IMAGE (AROUND

VIEW MONITOR) : Work Procedure"

.

AV-242

< REMOVAL AND INSTALLATION >

[NAVIGATION]

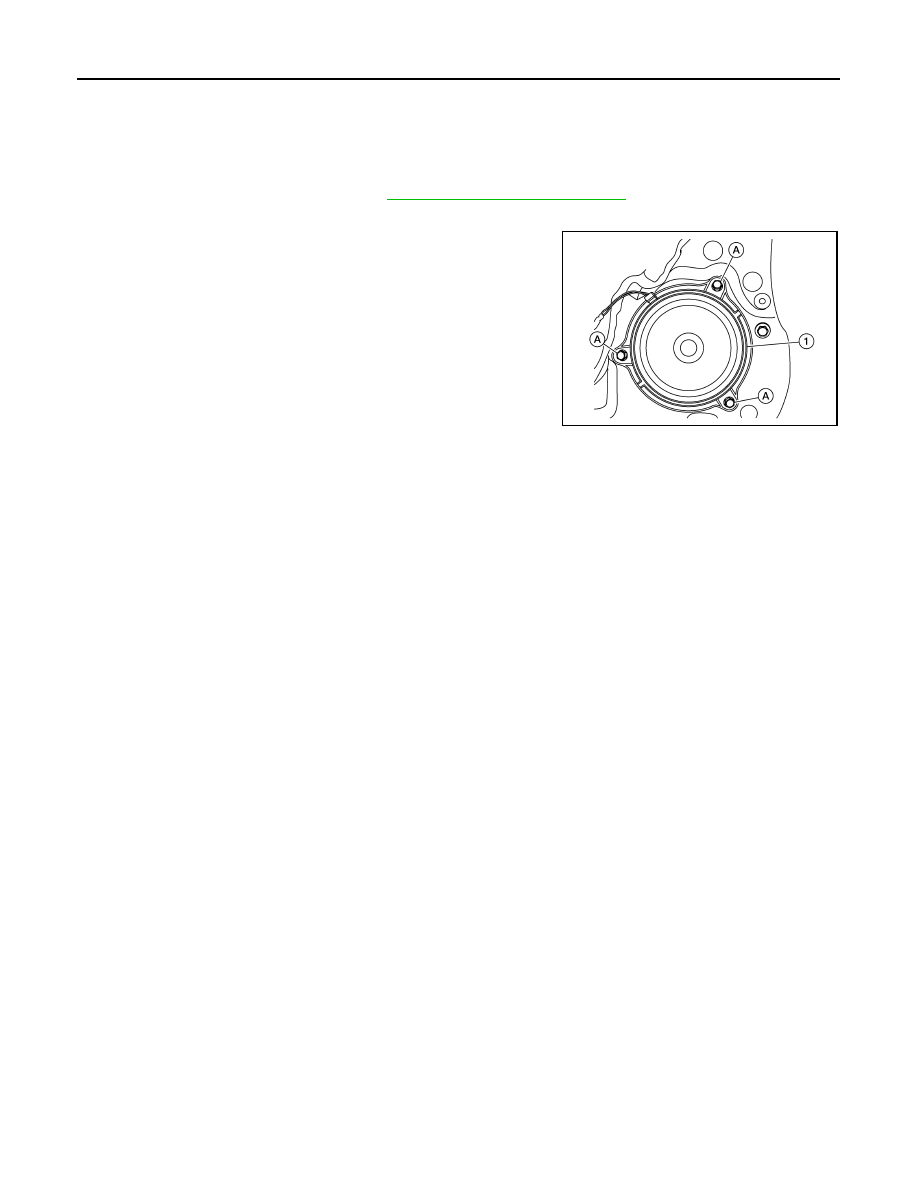

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000009541288

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Disconnect the harness connector from front door speaker.
3. Remove the front door speaker screws (A).
4. Remove the front door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3062ZZ

AV

REAR DOOR SPEAKER

AV-243

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

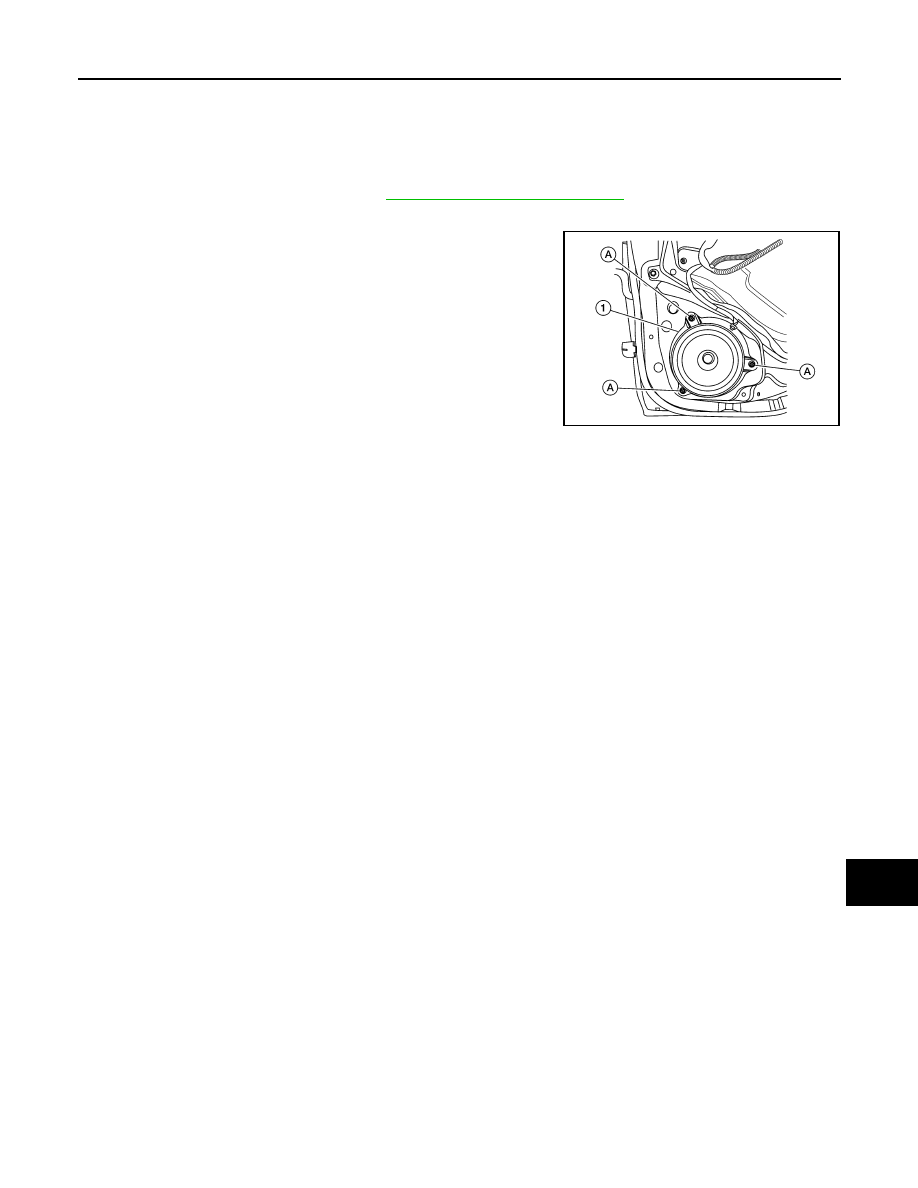

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000009541289

REMOVAL

1. Remove the rear door finisher. Refer to

INT-18, "Removal and Installation"

.

2. Disconnect the harness connector from the rear door speaker.
3. Remove the rear door speaker screws (A).
4. Remove the rear door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3089ZZ
