AV-252

< REMOVAL AND INSTALLATION >

[NAVIGATION]

GPS ANTENNA

GPS ANTENNA

Removal and Installation

INFOID:0000000009460051

REMOVAL

1. Remove the combination meter. Refer to

MWI-54, "Removal and Installation"

.

2. Remove the AV control unit in order to disconnect the GPS antenna harness connector. Refer to

AV-240,

"Removal and Installation"

.

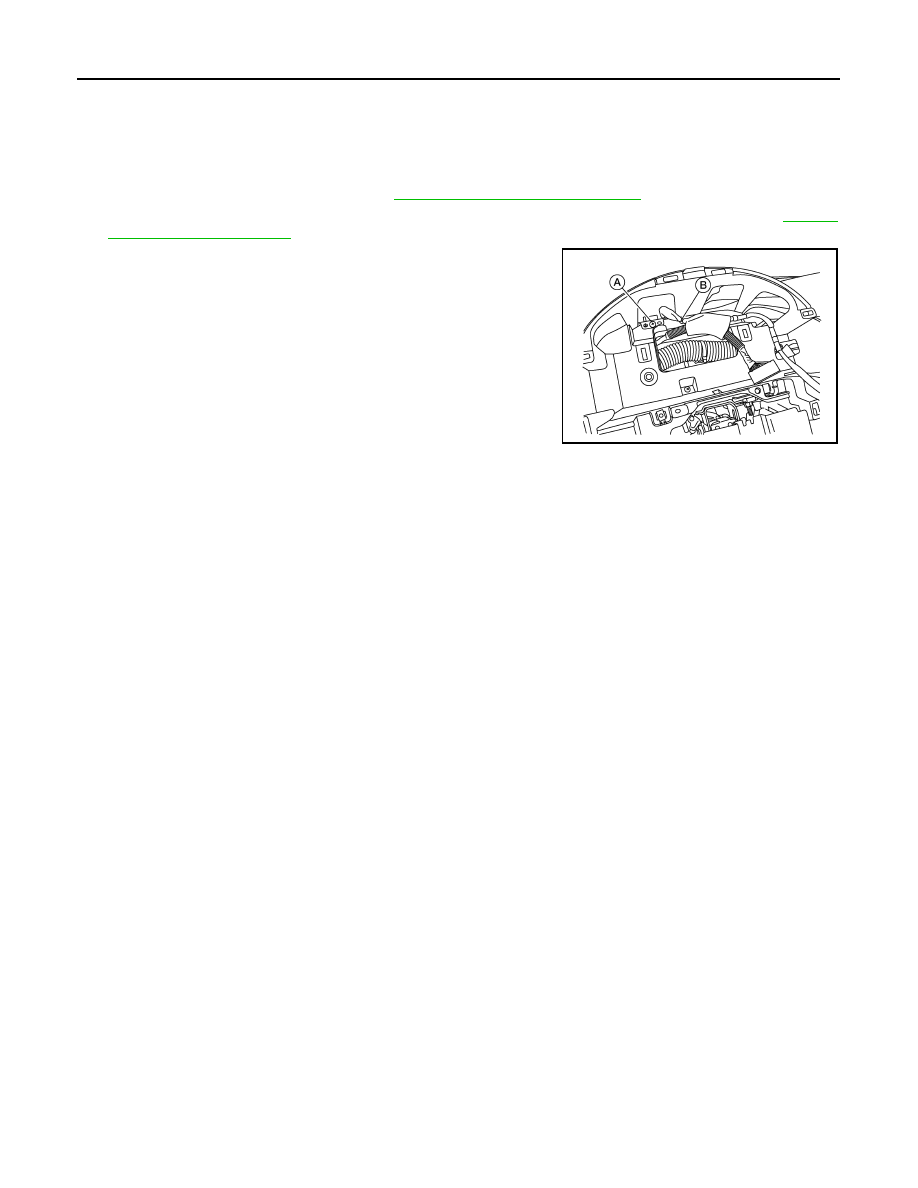

3. Remove the GPS antenna screw (A) from the GPS antenna.
4. Disconnect the harness clip (B) and remove the GPS antenna.

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3076ZZ

AV

SATELLITE RADIO ANTENNA

AV-253

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000009460046

The satellite radio antenna is part of the rod antenna. Refer to

AV-254, "Removal and Installation"

.

AV-254

< REMOVAL AND INSTALLATION >

[NAVIGATION]

ROD ANTENNA

ROD ANTENNA

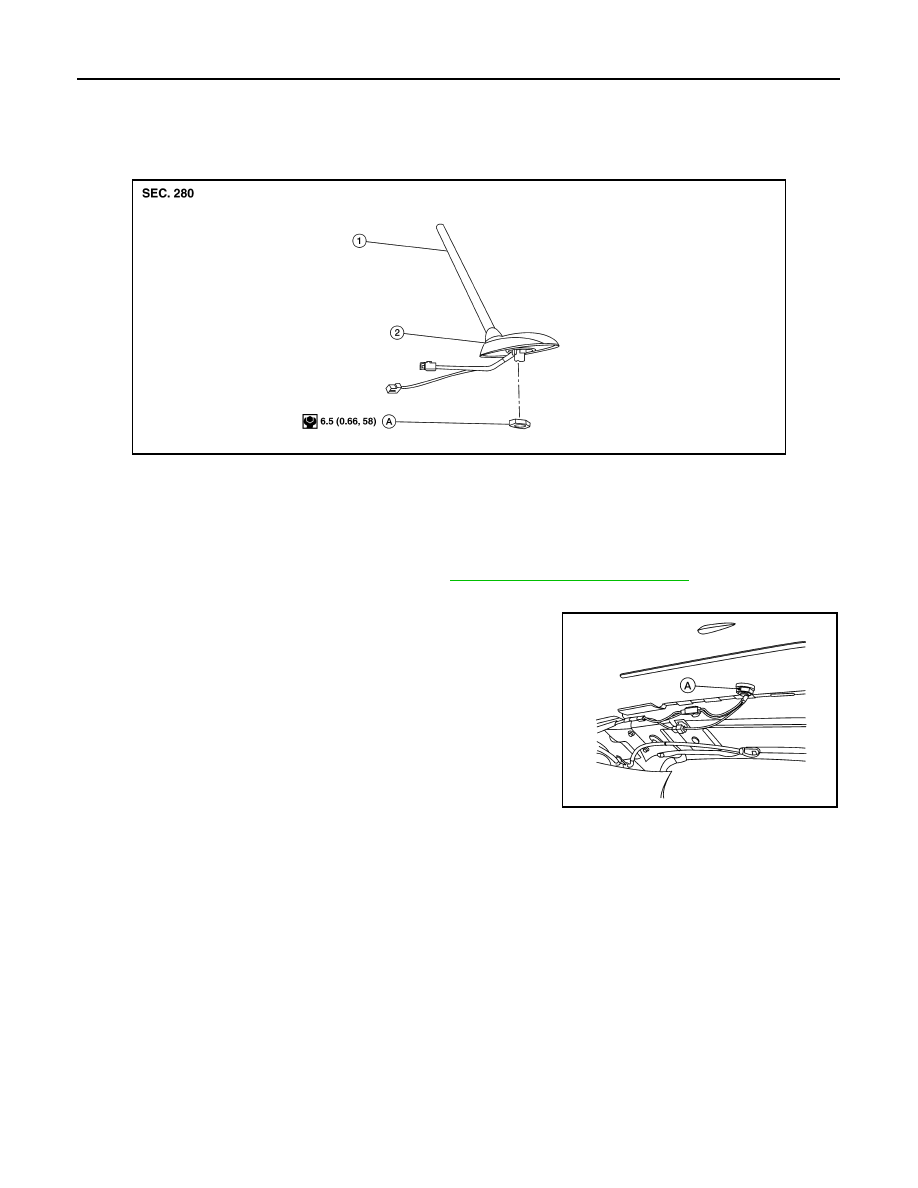

Exploded View

INFOID:0000000009541294

Removal and Installation

INFOID:0000000009541295

REMOVAL

1. Lower the rear portion of the headlining. Refer to

INT-31, "Removal and Installation"

.

2. Disconnect the harness connectors from the antenna (satellite radio model shown).
3. Remove the antenna nut (A) and remove the antenna.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

If the antenna nut is tightened less than the specified torque this will lower the sensitivity of the

antenna. If the antenna nut is tightened more than the specified torque this will deform the roof panel.

AWNIA3124ZZ

1. Antenna rod

2. Antenna base

A. Antenna nut

AWNIA3115ZZ

AV

ANTENNA FEEDER

AV-255

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

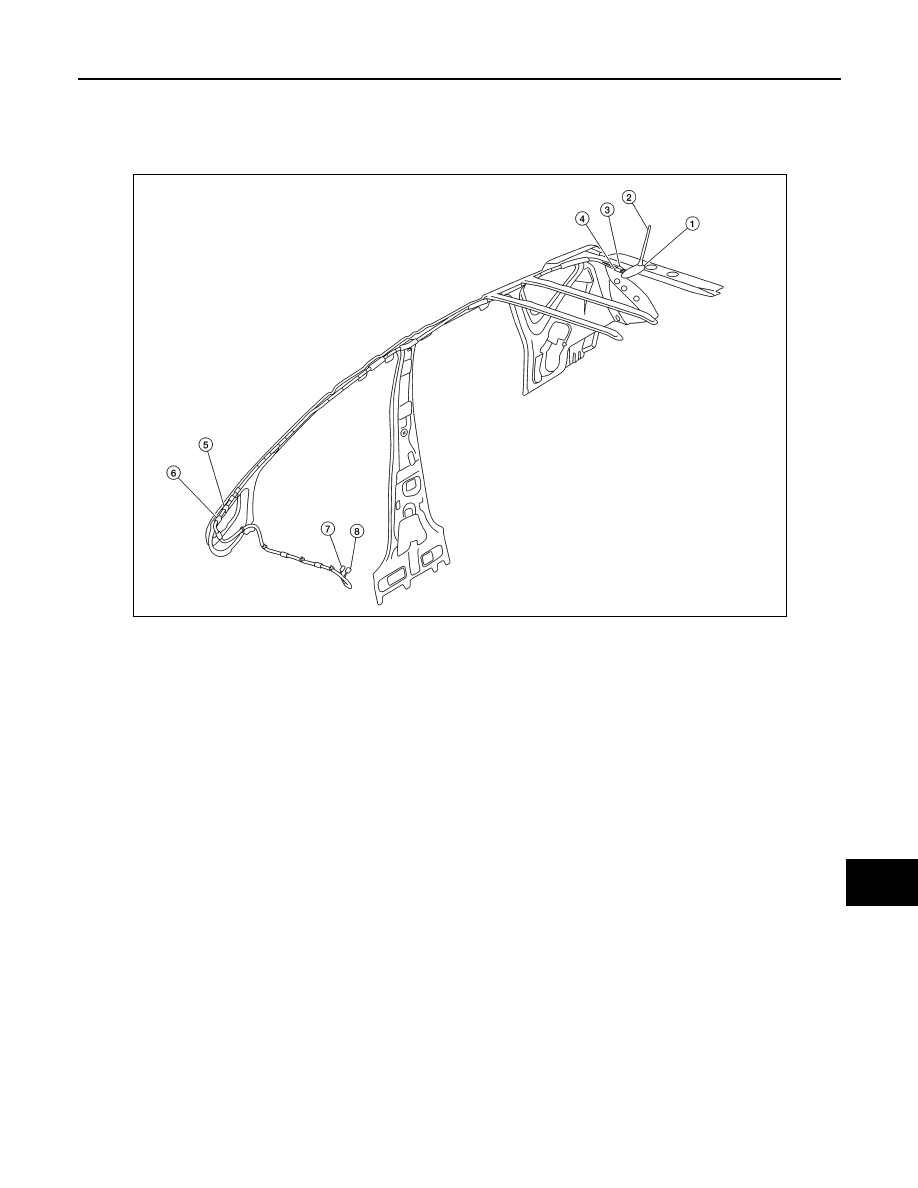

ANTENNA FEEDER

Feeder Layout

INFOID:0000000009541296

1.

Antenna base (antenna amp. and
satellite antenna)

2.

Rod Antenna

3.

M351

4.

M352

5.

M110, M353

6.

M67, M350

7.

M109

8.

M73

ALNIA1520ZZ
