PARKING BRAKE SYSTEM

PRECAUTION ...............................................

PRECAUTIONS ...................................................

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

PREPARATION ............................................

PREPARATION ...................................................

Commercial Service Tool ..........................................

PERIODIC MAINTENANCE ..........................

PARKING BRAKE SYSTEM ...............................

Inspection and Adjustment ........................................

PARKING BRAKE SHOE ...................................

Inspection and Adjustment ........................................

REMOVAL AND INSTALLATION ................

PARKING BRAKE CONTROL ............................

Exploded View ..........................................................

Removal and Installation ..........................................

PARKING BRAKE FRONT CABLE ...................

Removal and Installation ..........................................

PARKING BRAKE REAR CABLE ....................

Removal and Installation .........................................

PARKING BRAKE SWITCH .............................

Removal and Installation .........................................

PARKING BRAKE SHOE .................................

Exploded View .........................................................

Removal and Installation .........................................

Inspection ................................................................

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

Parking Drum Brake ................................................

Parking Brake Control .............................................

PB-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011280101

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

PREPARATION

PB-3

< PREPARATION >

PREPARATION

Commercial Service Tool

INFOID:0000000011280102

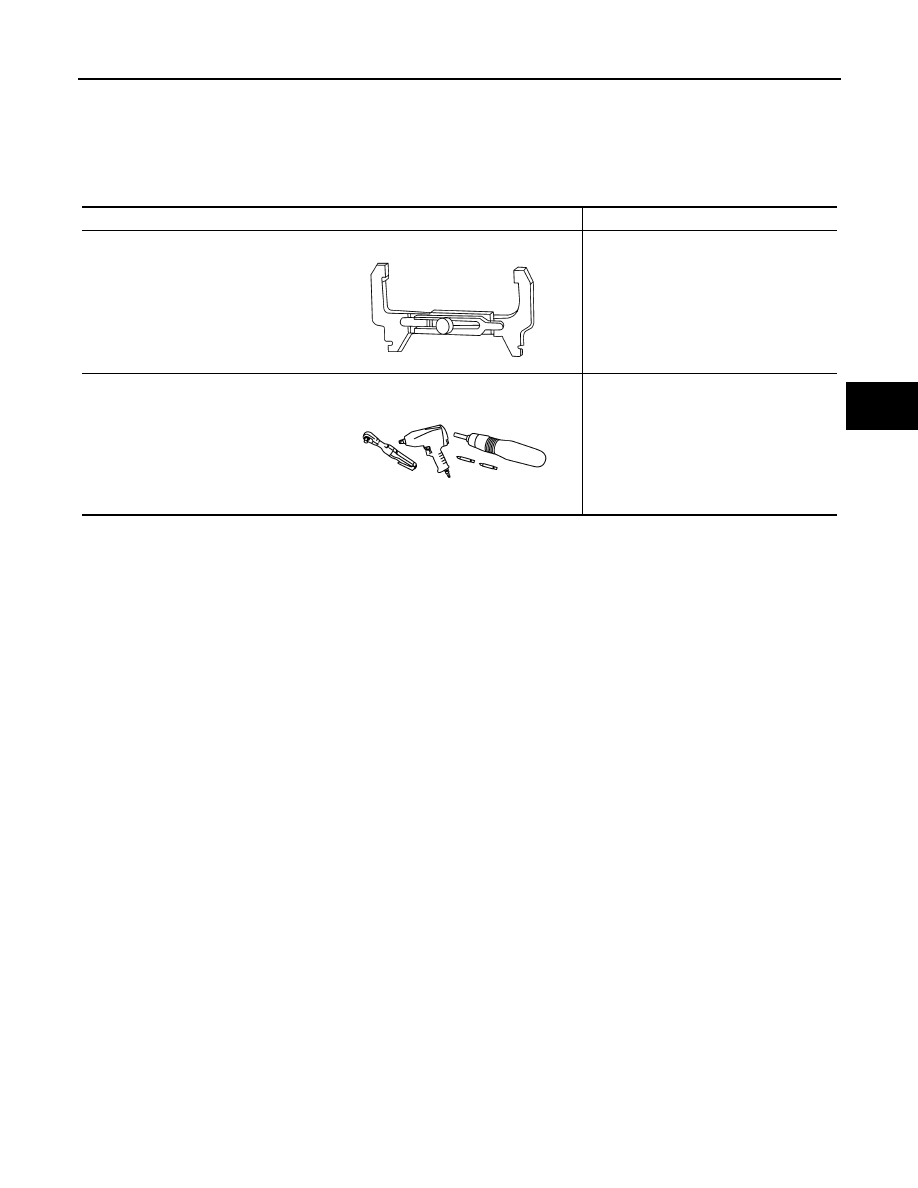

Tool name

Description

Brake drum clearance gauge

Measuring rear rotor drum inner diameter

Power tool

Loosening nuts, screws and bolts

WFIA0167E

PIIB1407E

PB-4

< PERIODIC MAINTENANCE >

PARKING BRAKE SYSTEM

PERIODIC MAINTENANCE

PARKING BRAKE SYSTEM

Inspection and Adjustment

INFOID:0000000011280103

INSPECTION

Pedal Stroke

• Operate the parking brake pedal with a force of 196 N (20.0 kg-f, 44.1 lb-f). Check that the pedal stroke is

within the specified number of notches. (Check it by listening to the clicks of the ratchet.)

• When brake warning lamp turns ON, check that the pedal stroke is within the specified number of notches.

(Check it by listening to the clicks of the ratchet.)

Inspect Components

• Check each component for installation condition such as looseness.

• Check the parking brake components for bends, wear, cracks and or damage. Replace if damage is noted.

• Check the parking brake switch, and replace it if necessary. Refer to

PB-7, "Exploded View"

ADJUSTMENT

1. Secure the disc brake rotor using wheel nuts.
2. Remove the instrument lower panel (LH). Refer to

IP-23, "Removal and Installation"

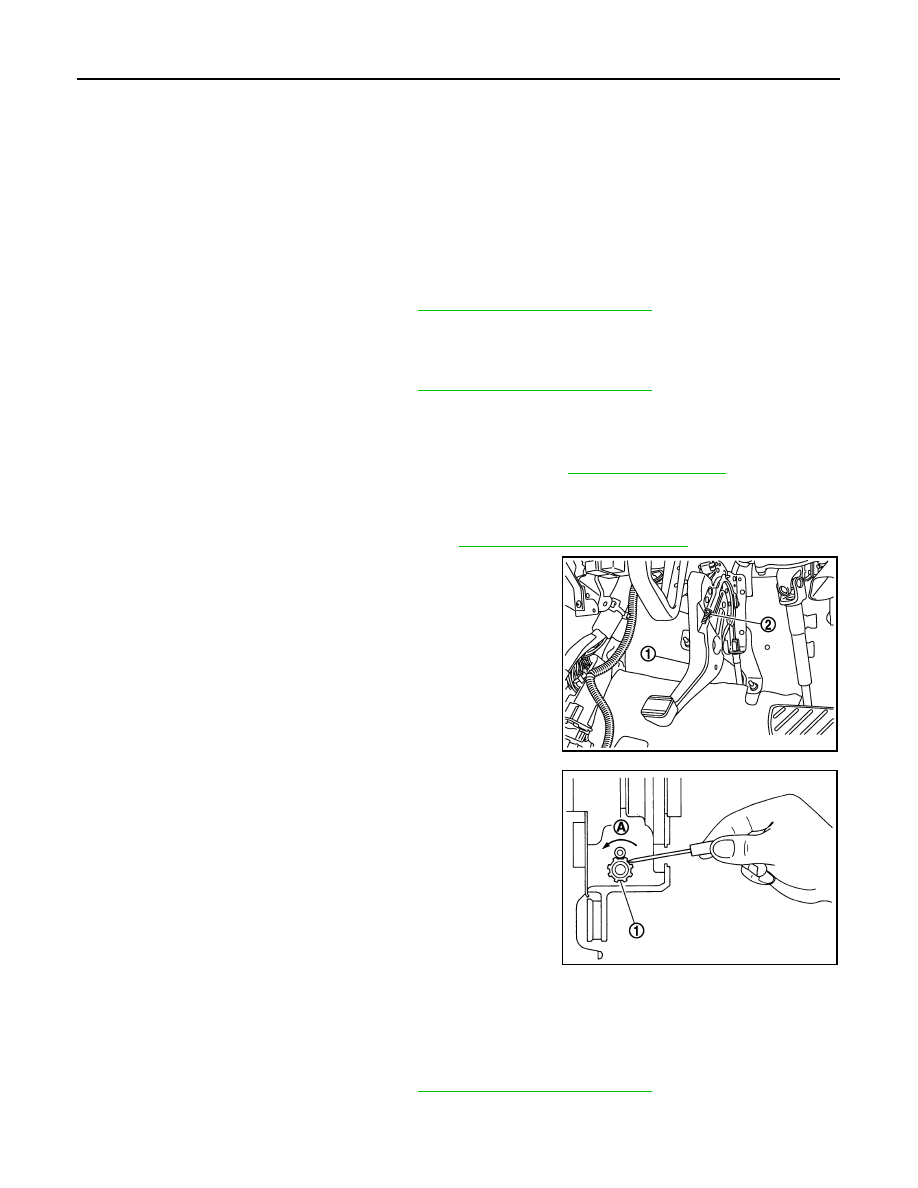

3. Release the parking brake pedal (1) by turning the adjusting nut

(2) using a suitable tool and loosening the cable.

4. Remove the adjusting hole plug from the disc brake rotor. Turn

the adjuster (1) in the direction (A) as shown using a suitable

tool until the disc rotor is locked.

5. Turn back the adjuster 7 notches from the locked position.
6. Rotate the disc brake rotor to check that there is no drag. Install

the adjusting hole plug.

7. Adjust the cable with the following procedure.
a. Operate the parking brake pedal with a force of 490 N (50.0 kg-f,

110.2 lb-f) for more than 30 minutes.

b. Adjust the parking brake pedal stroke by turning the adjusting

nut using a suitable tool.

CAUTION:

Do not reuse the adjusting nut if the nut is removed.

Operate the parking brake pedal with a force of 196 N (20.0 kg-f, 44.1 lb-f). Check that the pedal stroke is

within the specified number of notches. (Check it by listening to the clicks of the ratchet.)

d. Rotate the disc brake rotor with the parking brake pedal released and check that there is no drag.

CAUTION:

Number of notches

: Refer to

PB-15, "Parking Brake Control"

Number of notches

: Refer to

PB-15, "Parking Brake Control"

JPFIB0039ZZ

Number of notches

: Refer to

PB-15, "Parking Brake Control"

JPFIB0014ZZ
