Nissan Rogue. Manual - part 934

MWI

THE AMBIENT TEMPERATURE DISPLAY IS INCORRECT

MWI-83

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

THE AMBIENT TEMPERATURE DISPLAY IS INCORRECT

Description

INFOID:0000000011279847

• The displayed outside air temperature is higher than the actual temperature.

• The displayed outside air temperature is lower than the actual temperature.

• Outside air temperature is not indicated.

Diagnosis Procedure

INFOID:0000000011279848

1.

CHECK AMBIENT SENSOR SIGNAL CIRCUIT

Check the ambient sensor signal circuit. Refer to

MWI-67, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connector.

2.

CHECK AMBIENT SENSOR

Check the ambient sensor. Refer to

MWI-67, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-84, "Removal and Installation"

.

NO

>> Replace ambient sensor. Refer to

HAC-104, "Removal and Installation"

.

MWI-84

< REMOVAL AND INSTALLATION >

COMBINATION METER

REMOVAL AND INSTALLATION

COMBINATION METER

Removal and Installation

INFOID:0000000011279849

REMOVAL

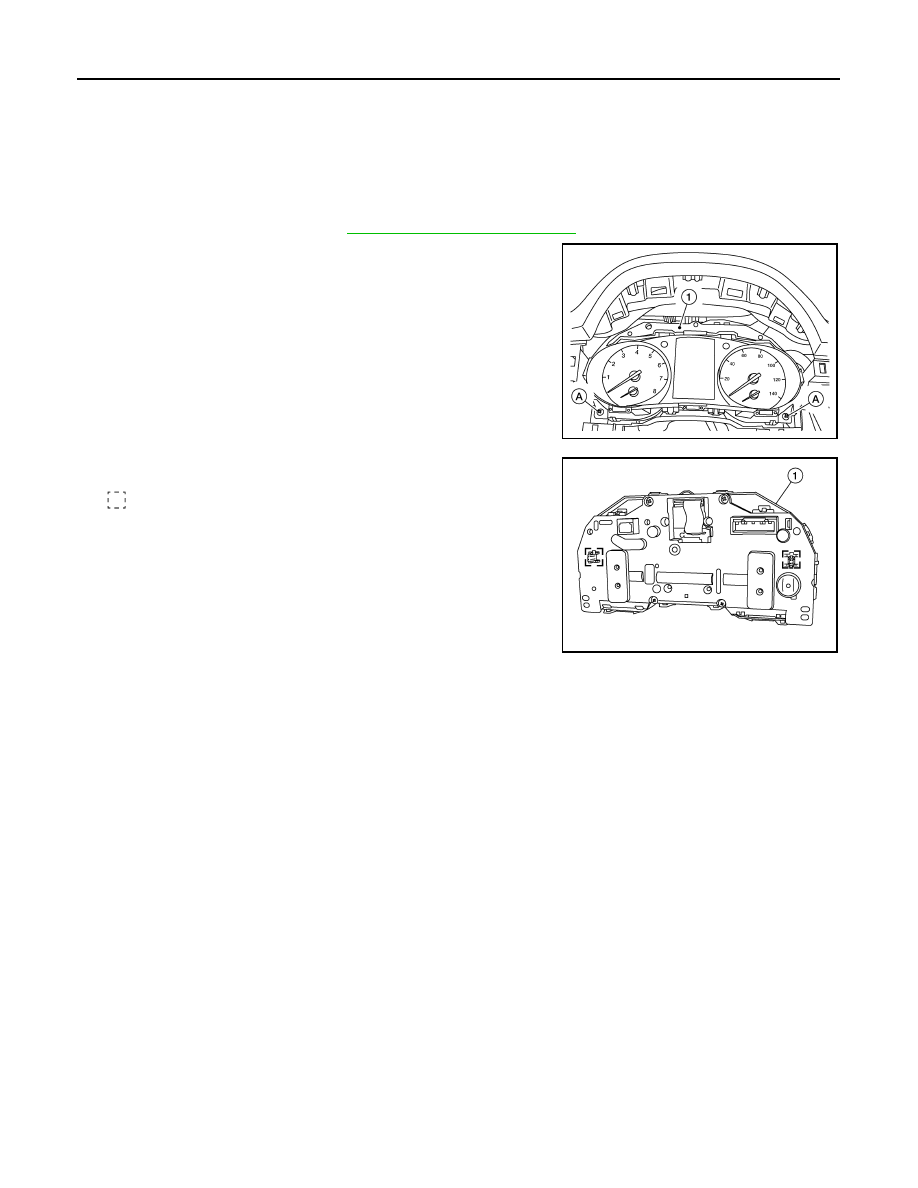

1. Remove the cluster lid A. Refer to

IP-21, "Removal and Installation"

.

2. Remove screws (A), from the combination meter (1).

3. Release the clips and remove the combination meter (1) from

the instrument panel.

: Clips

4. Disconnect the harness connectors from the combination meter

and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1607ZZ

ALNIA1608ZZ

MWI

METER CONTROL SWITCH

MWI-85

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

METER CONTROL SWITCH

Removal and Installation

INFOID:0000000011279850

REMOVAL

1. Remove the instrument finisher A. Refer to

IP-15, "INSTRUMENT FINISHER A : Removal and Installa-

tion"

.

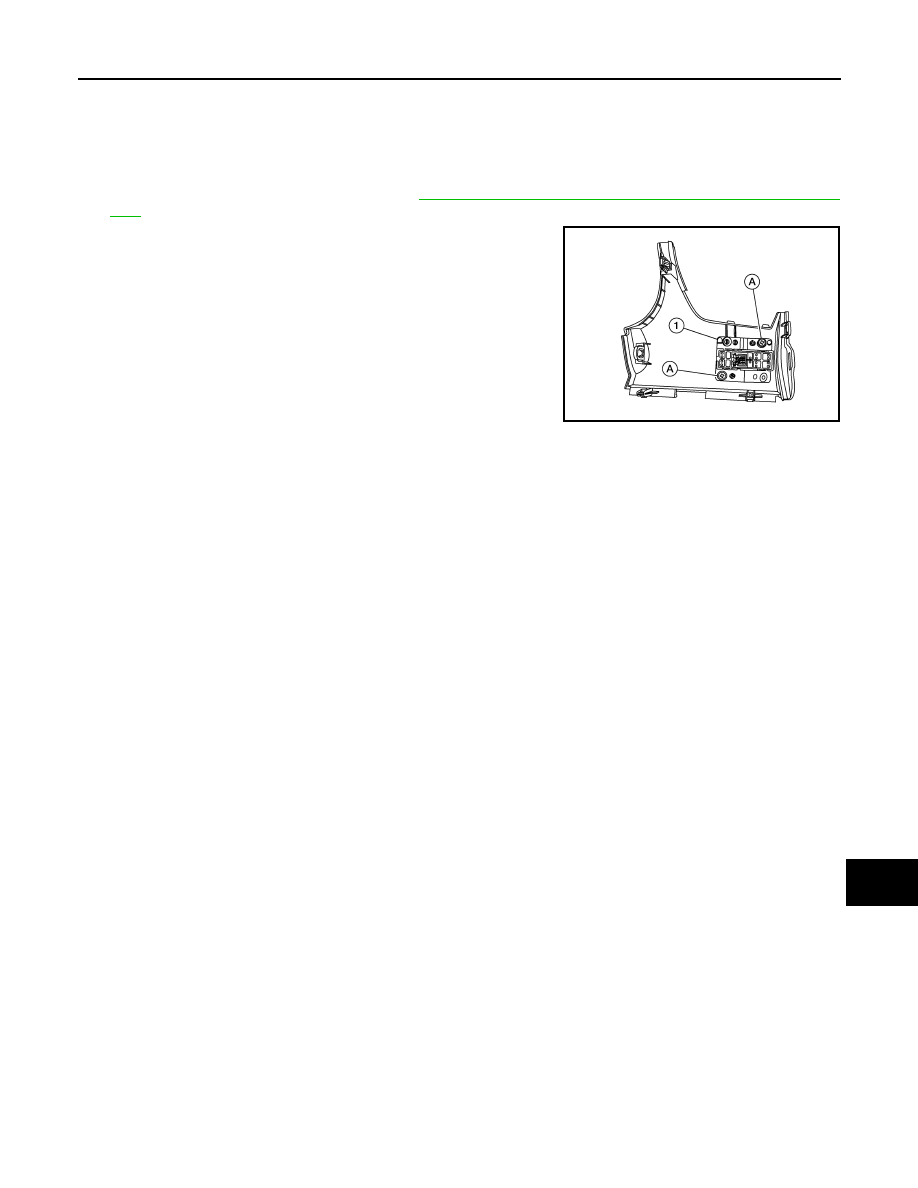

2. Remove the screws (A) and the meter control switch (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1585ZZ

MWI-86

< UNIT DISASSEMBLY AND ASSEMBLY >

COMBINATION METER

UNIT DISASSEMBLY AND ASSEMBLY

COMBINATION METER

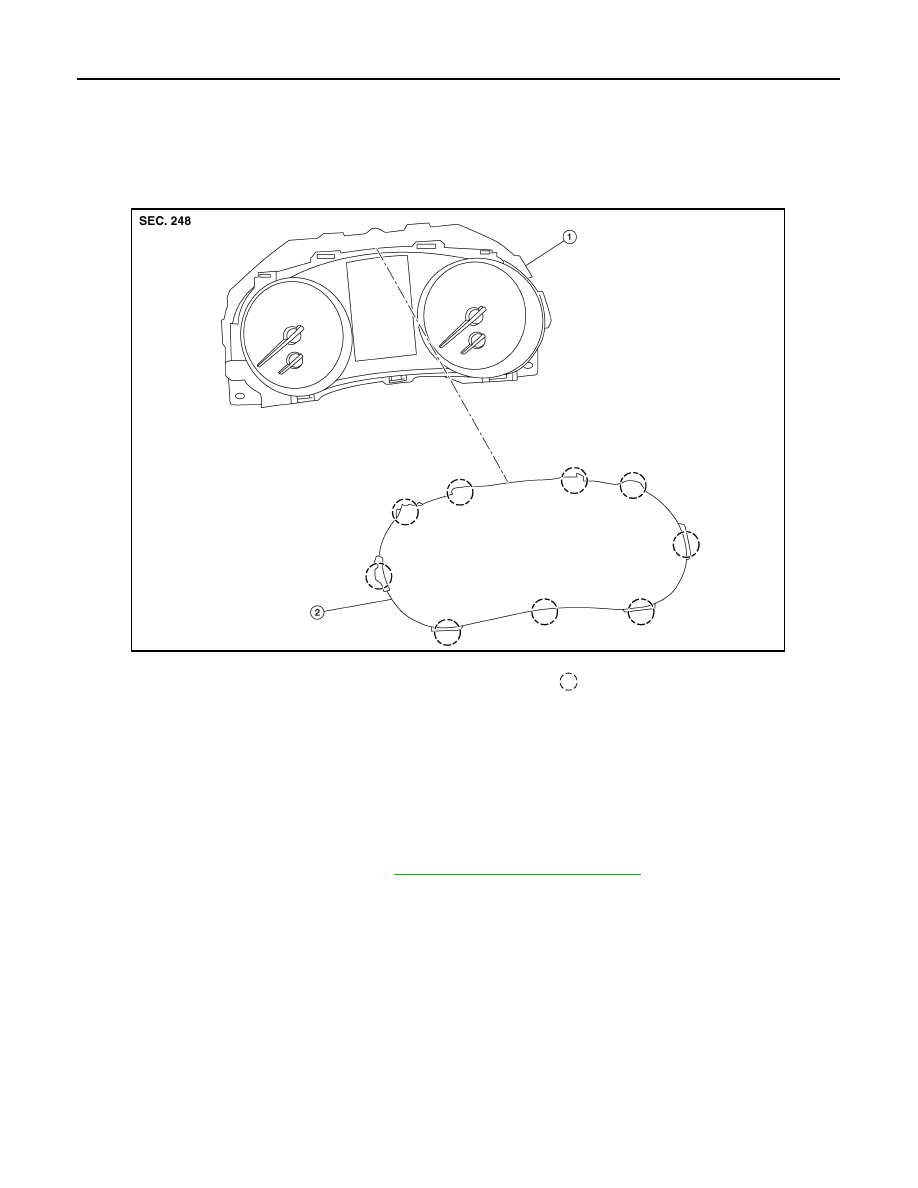

Exploded View

INFOID:0000000011279851

Disassembly and Assembly

INFOID:0000000011279852

CAUTION:

• Do not touch the display, pointer, inside of combination meter or the printed area of the dial during

disassembly or assembly.

• Keep away from magnetic sources.

• Do not damage the combination meter lens.

DISASSEMBLY

1. Remove the combination meter. Refer to

MWI-84, "Removal and Installation"

.

2. Release pawls and remove the combination meter lens.

ASSEMBLY

Assembly is in the reverse order of disassembly.

1. Combination meter

2.

Combination meter lens

Pawl

ALNIA1609ZZ
