PARKING BRAKE SYSTEM

PB-5

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

If any drag is found, verify the parking brake components are installed and adjusted correctly.

PB-6

< PERIODIC MAINTENANCE >

PARKING BRAKE SHOE

PARKING BRAKE SHOE

Inspection and Adjustment

INFOID:0000000011280104

1. Adjust parking brake pedal stroke. Refer to

PB-4, "Inspection and Adjustment"

.

2. Perform parking brake break-in (drag on) operation by driving vehicle under the following conditions:

• Drive  forward

• Vehicle speed: Approx. 40 km/h (25 MPH) set (constant and forward)

• Parking brake operating force: Approx. 160 +30.0 N (16.3 +3.1 kg-f, 36.0 +6.7 lb-f)

• Time: Approx. 10 +5.0 seconds.

CAUTION:

To prevent lining from getting too hot, allow a cool off period of approximately 5 minutes after

every break-in operation.

3. After the break-in procedure, check parking pedal stroke of parking brake.

CAUTION:

If it is out of the specification, adjust again. Refer to

PB-4, "Inspection and Adjustment"

.

ADJUSTMENT AFTER INSTALLATION

1. Adjust the parking brake pedal stroke. Refer to

PB-4, "Inspection and Adjustment"

.

2. Rotate the disc brake rotor with the parking brake pedal released and check that there is no drag.

CAUTION:

If any drag is found, verify the parking brake components are installed and adjusted correctly.

PARKING BRAKE CONTROL

PB-7

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

REMOVAL AND INSTALLATION

PARKING BRAKE CONTROL

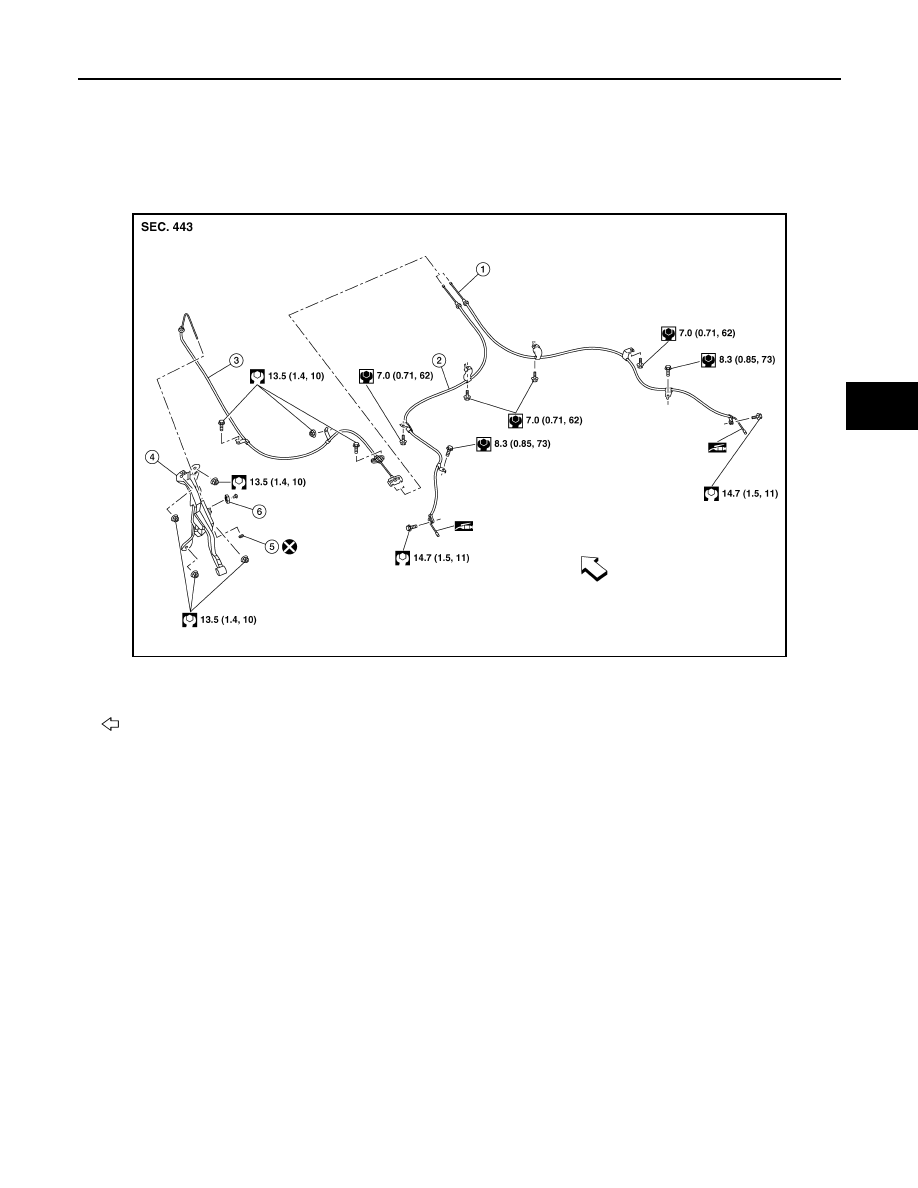

Exploded View

INFOID:0000000011280105

USA Production

AWFIA1070ZZ

1.

Parking brake rear cable (RH)

2.

Parking brake rear cable (LH)

3.

Parking brake front cable

4.

Parking brake control

5.

Adjusting nut

6.

Parking brake switch

Front

PB-8

< REMOVAL AND INSTALLATION >

PARKING BRAKE CONTROL

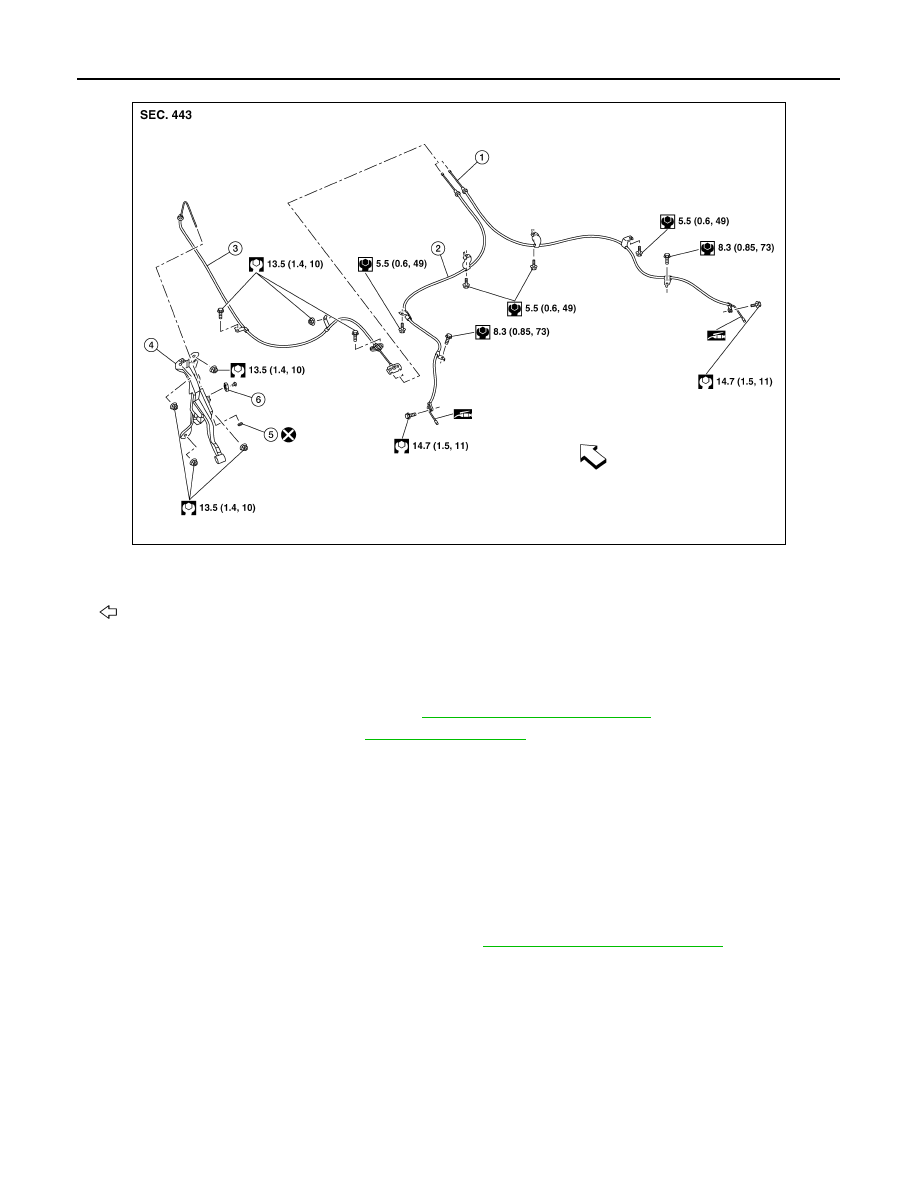

Korea Production

Removal and Installation

INFOID:0000000011280106

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-23, "Removal and Installation"

.

2. Remove the knee protector. Refer to

IP-14, "Exploded View"

.

3. Disconnect the harness connector from the parking brake switch.
4. Remove the parking brake switch.
5. Remove the parking brake control nuts and remove the parking brake control.
6. Remove adjusting nut from parking brake control.
7. Disconnect the parking brake front cable from the parking brake control.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse the adjusting nut.

• Adjust the parking brake with new adjusting nut.Refer to

PB-4, "Inspection and Adjustment"

.

AWFIA1130ZZ

1.

Parking brake rear cable (RH)

2.

Parking brake rear cable (LH)

3.

Parking brake front cable

4.

Parking brake control

5.

Adjusting nut

6.

Parking brake switch

Front
