IP-22

< REMOVAL AND INSTALLATION >

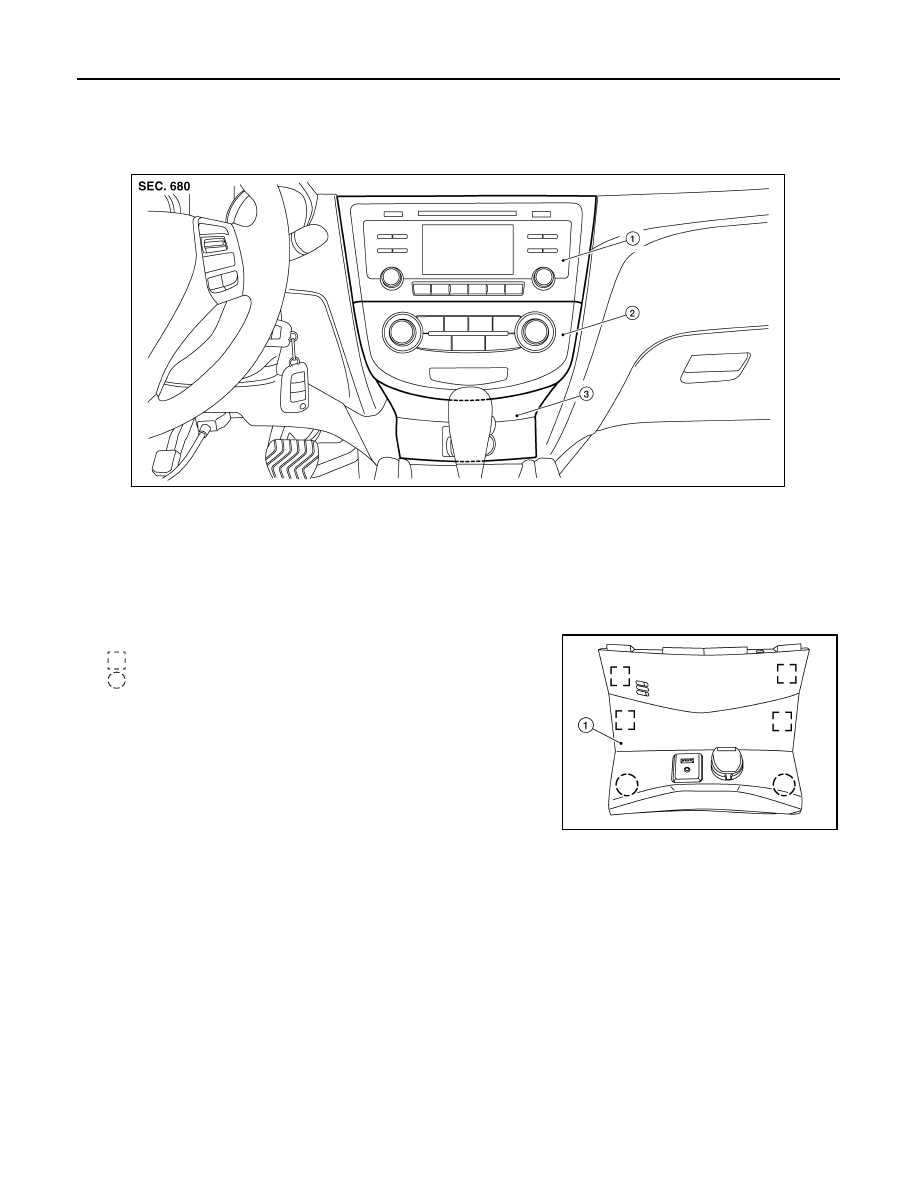

CLUSTER LID C

CLUSTER LID C

Exploded View

INFOID:0000000011280361

Removal and Installation

INFOID:0000000011280362

REMOVAL

1. Release cluster lid C (1) clips and pawls using a suitable tool.

: Metal clip
: Pawl

2. Disconnect the in-vehicle sensor hose from the cluster lid C (if equipped).
3. Disconnect the harness connectors from cluster lid C and remove.

INSTALLATION

Installation is in the reverse order of removal.

1.

Audio unit (DISPLAY AUDIO) / AV con-
trol unit (NAVIGATION WITHOUT
BOSE) (NAVIGATION WITH BOSE)

2.

A/C switch assembly (AUTOMATIC
AIR CONDITIONING) / front air control
(MANUAL AIR CONDITIONING)

3.

Cluster lid C

ALJIA1388ZZ

AWJIA1307ZZ

INSTRUMENT LOWER PANEL LH

IP-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

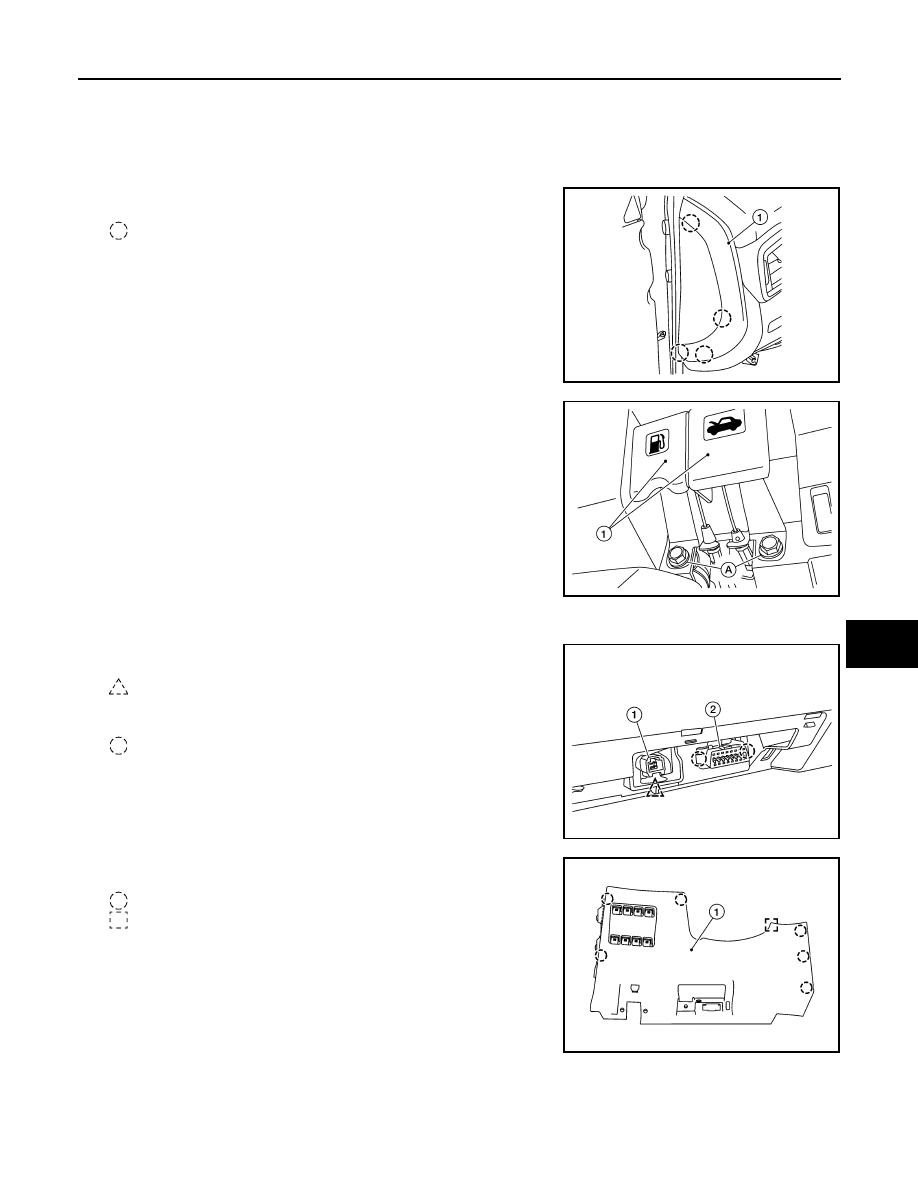

INSTRUMENT LOWER PANEL LH

Removal and Installation

INFOID:0000000011280363

REMOVAL

1. Release instrument side finisher (LH) (1) pawls using a suitable

tool and remove.

: Pawl

2. Remove bolts (A) and fuel filler lid/hood lock release handle (1)

from instrument lower panel LH.

3. Remove data link cover from the instrument lower panel LH.
4. Release the clip using a suitable tool and remove accessory

connector (1) from instrument lower panel LH.

: Clip

5. Release the pawls using a suitable tool and remove data link

connector (2) from instrument lower panel LH.

: Pawl

6. Release the clips and pawls using a suitable tool, disconnect the

harness connector and remove instrument lower panel LH (1).

: Pawl
: Metal clip

INSTALLATION

Installation is in the reverse order of removal.

ALJIA1394ZZ

AWJIA1308ZZ

ALJIA1392ZZ

ALJIA1396ZZ

IP-24

< REMOVAL AND INSTALLATION >

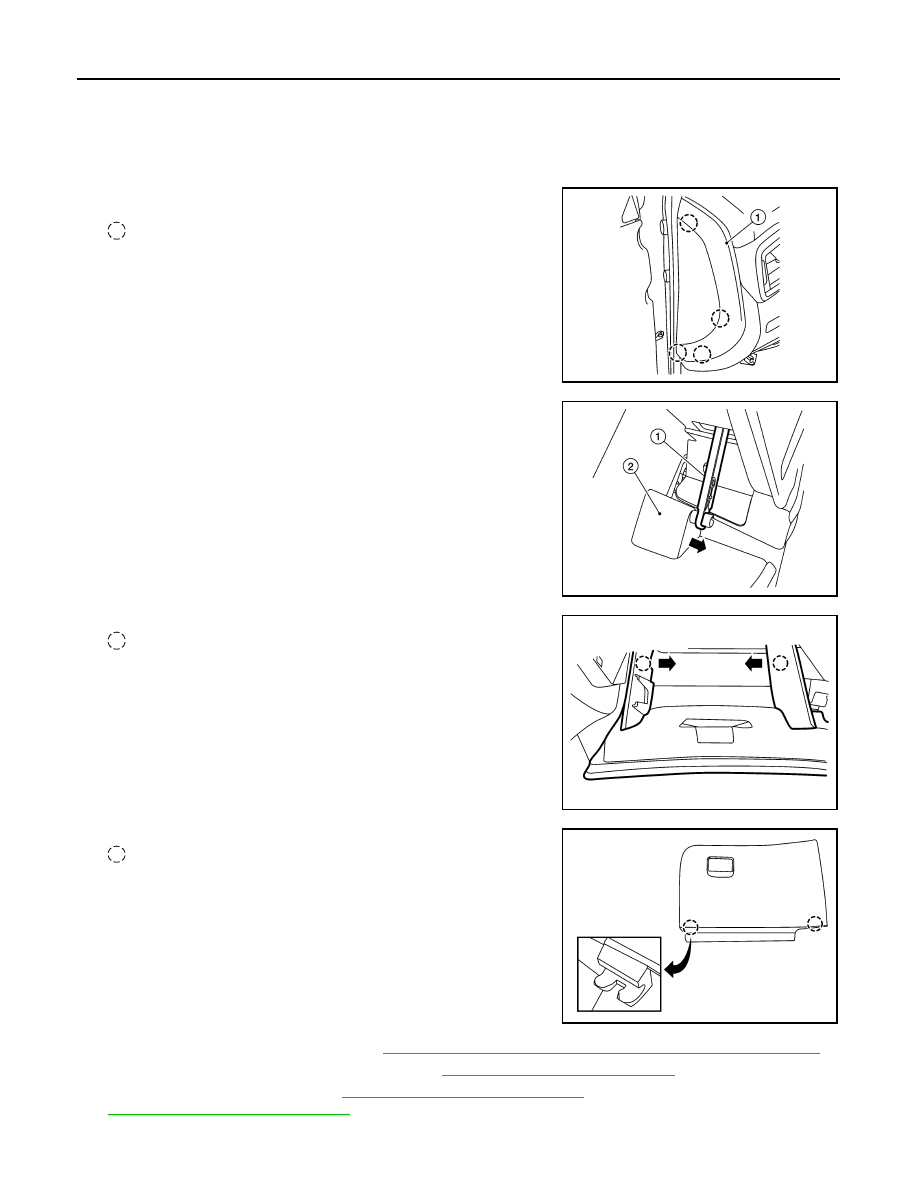

GLOVE BOX ASSEMBLY AND HOUSING

GLOVE BOX ASSEMBLY AND HOUSING

Removal and Installation

INFOID:0000000011280364

REMOVAL

1. Release instrument side finisher (RH) (1) pawls using a suitable

tool and remove.

: Pawl

NOTE:

LH side shown; RH similar.

2. Release the glove box damper (1) from the glove box assembly

(2) as shown.

3. Release the glove box assembly pawls as shown.

: Pawl

4. Release the pawls and remove the glove box assembly.

: Pawl

5. Remove instrument finisher E. Refer to

IP-16, "INSTRUMENT FINISHER E : Removal and Installation"

.

6. Remove audio unit (DISPLAY AUDIO). Refer to

AV-67, "Removal and Installation"

.

7. Remove AV control unit. Refer to

AV-200, "Removal and Installation"

 (NAVIGATION WITHOUT BOSE) or

AV-369, "Removal and Installation"

 (NAVIGATION WITH BOSE).

ALJIA1394ZZ

ALJIA1406ZZ

ALJIA1407ZZ

ALJIA1405ZZ

GLOVE BOX ASSEMBLY AND HOUSING

IP-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

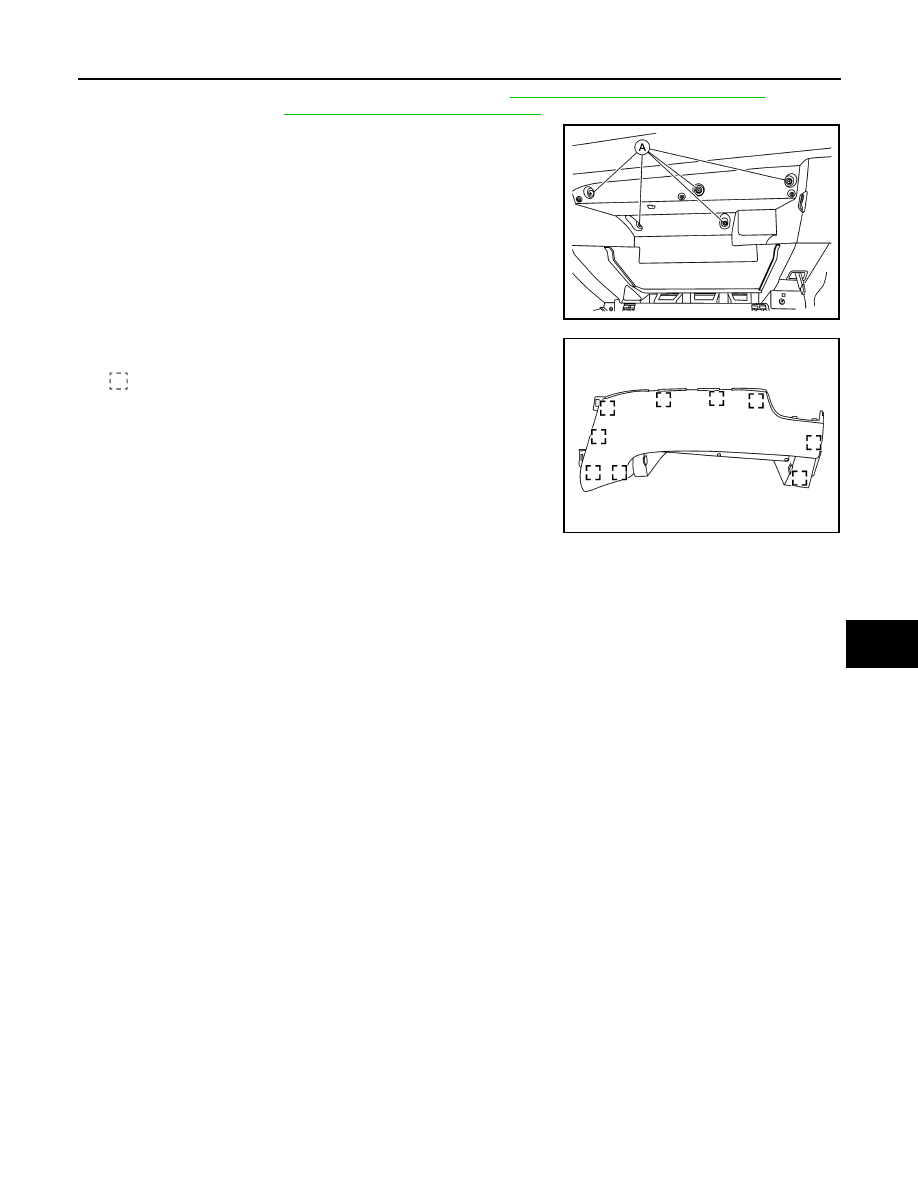

8. Remove front air control or A/C switch assembly. Refer to

HAC-182, "Removal and Installation"

 (MANUAL

AIR CONDITIONING) or

HAC-102, "Removal and Installation"

 (AUTOMATIC AIR CONDITIONING).

9. Remove the glove box housing screws (A).

10. Release the clips using a suitable tool, disconnect the harness

connector and remove glove box housing.

: Metal clip

INSTALLATION

Installation is in the reverse order of removal.
