IP-14

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

REMOVAL AND INSTALLATION

INSTRUMENT PANEL ASSEMBLY

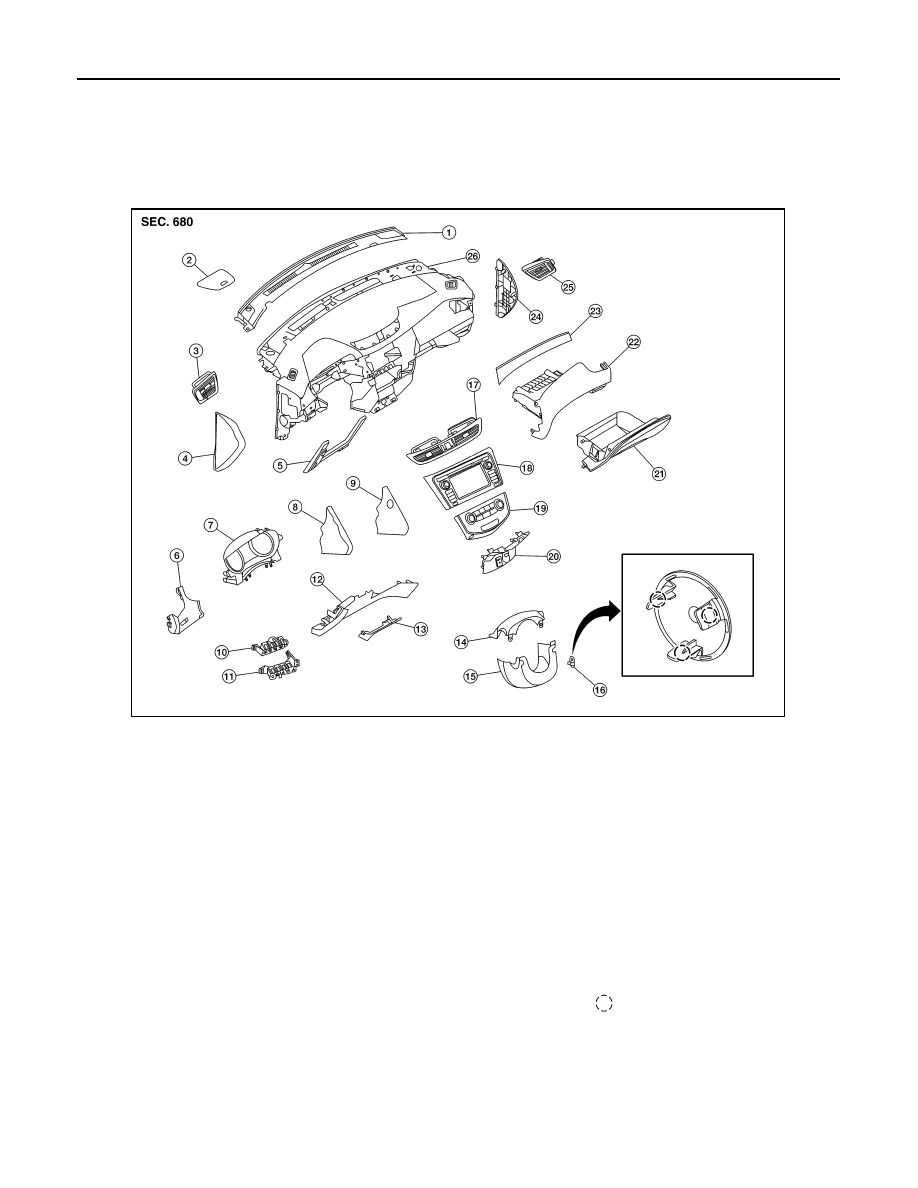

Exploded View

INFOID:0000000011280352

INSTRUMENT PANEL ASSEMBLY
INSTRUMENT PANEL ASSEMBLY : Removal and Installation

INFOID:0000000011280353

CAUTION:

• Be careful not to scratch instrument panel pad and other parts.

1.

Defroster grille

2.

Center speaker grille (if equipped)

3.

Side ventilator grille (LH)

4.

Instrument side finisher (LH)

5.

Knee protector

6.

Instrument finisher A

7.

Cluster lid A

8.

Instrument finisher B (without push-
button ignition)

9.

Instrument finisher B (with push-
button ignition)

10. Upper switch carrier

11. Lower switch carrier

12. Instrument lower panel LH

13. Data link cover

14. Steering column upper cover

15. Steering column lower cover

16. Steering lock escutcheon

17. Center ventilator grille

18. Audio unit (DISPLAY AUDIO) /

AV control unit (NAVIGATION
WITHOUT BOSE) (NAVIGA-
TION WITH BOSE)

19. A/C switch assembly (AUTOMATIC

AIR CONDITONING) / front air con-
trol (MANUAL AIR CONDITIONING)

20. Cluster lid C

21. Glove box assembly

22. Glove box housing

23. Instrument finisher E

24. Instrument side finisher (RH)

25. Side ventilator grille (RH)

26. Instrument panel

Pawl

AWJIA1320ZZ

INSTRUMENT PANEL ASSEMBLY

IP-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

• Whenever a suitable tool is used, always wrap a cloth around the end of the tool to protect compo-

nents from damage.

• Before servicing, turn ignition switch OFF, disconnect both battery terminals then wait at least three

minutes.

REMOVAL

1. Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to

PG-78,

"Removal and Installation (Battery)"

.

2. Remove dash side finishers (LH/RH). Refer to

INT-24, "DASH SIDE FINISHER : Removal and Installa-

tion"

.

3. Remove front pillar finishers (LH/RH). Refer to

INT-20, "FRONT PILLAR FINISHER : Removal and Instal-

lation"

.

4. Remove combination switch. Refer to

EXL-124, "Removal and Installation"

.

5. Remove center console assembly. Refer to

IP-19, "Removal and Installation"

.

6. Remove combination meter. Refer to

MWI-84, "Removal and Installation"

.

7. Remove audio unit (DISPLAY AUDIO). Refer to

AV-67, "Removal and Installation"

.

8. Remove AV control unit. Refer to

AV-200, "Removal and Installation"

 (NAVIGATION WITHOUT BOSE) or

AV-369, "Removal and Installation"

 (NAVIGATION WITH BOSE).

9. Remove instrument finisher A. Refer to

IP-15, "INSTRUMENT FINISHER A : Removal and Installation"

.

10. Remove instrument finisher B. Refer to

IP-16, "INSTRUMENT FINISHER B : Removal and Installation"

.

11. Remove instrument finisher E. Refer to

IP-16, "INSTRUMENT FINISHER E : Removal and Installation"

.

12. Remove glove box assembly and housing. Refer to

IP-24, "Removal and Installation"

.

13. Remove instrument panel assembly screws and front passenger air bag module screws.

CAUTION:

• Do not reuse the front passenger air bag module bolts.

14. Disconnect the harness connectors from the instrument panel assembly and remove.

INSTALLATION

Installation is in the reverse order of removal.

• If replacing the instrument panel, transfer all the necessary parts to the new instrument panel.

• Tighten front passenger air bag screws to specification. Refer to

SR-17, "Exploded View"

.

CAUTION:

• Do not reuse the front passenger air bag module bolts.

• Do not damage the front passenger air bag module harnesses during installation.

• After installation is complete, check that no system malfunction is detected causing the air bag

warning lamp to illuminate.

• If a malfunction is indicated by the air bag warning lamp after repair or replacement of the malfunc-

tioning parts, perform the SRS final check. Refer to

SRC-16, "Trouble Diagnosis with CONSULT"

INSTRUMENT FINISHER A
INSTRUMENT FINISHER A : Removal and Installation

INFOID:0000000011280354

REMOVAL

1. Remove side ventilator grille (LH). Refer to

VTL-13, "SIDE VENTILATOR GRILLE : Removal and Installa-

tion"

.

2. Remove instrument lower panel LH. Refer to

IP-23, "Removal and Installation"

.

IP-16

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

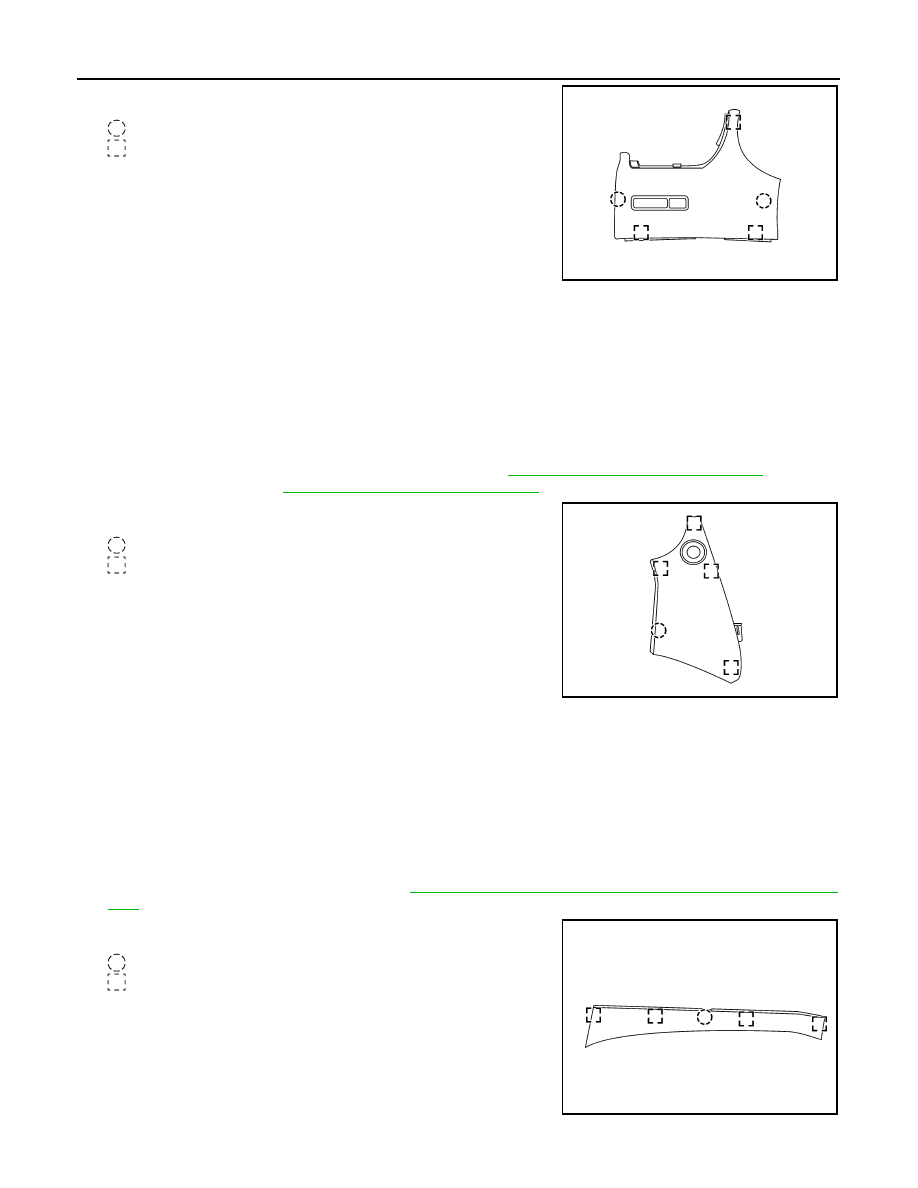

3. Release the instrument finisher A clips and pawls using a suit-

able tool.

: Pawl
: Metal clip

4. Disconnect the harness connector from instrument finisher A and remove.

INSTALLATION

Installation is in the reverse order of removal.

INSTRUMENT FINISHER B
INSTRUMENT FINISHER B : Removal and Installation

INFOID:0000000011280355

REMOVAL

1. Remove front air control or A/C switch assembly. Refer to

HAC-182, "Removal and Installation"

 (MANUAL

AIR CONDITIONING) or

HAC-102, "Removal and Installation"

 (AUTOMATIC AIR CONDITIONING).

2. Release the instrument finisher B clips and pawls using a suit-

able tool.

: Pawl
: Metal clip

3. Disconnect the harness connector (if equipped) and remove instrument finisher B.

INSTALLATION

Installation is in the reverse order of removal.

INSTRUMENT FINISHER E
INSTRUMENT FINISHER E : Removal and Installation

INFOID:0000000011280356

REMOVAL

1. Remove side ventilator grille (RH). Refer to

VTL-13, "SIDE VENTILATOR GRILLE : Removal and Installa-

tion"

.

2. Release the clips and pawls using a suitable tool and remove

instrument finisher E.

 Pawl
: Metal clip

INSTALLATION

AWJIA1309ZZ

ALJIA1400ZZ

ALJIA1399ZZ

INSTRUMENT PANEL ASSEMBLY

IP-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Installation is in the reverse order of removal.
