STEERING COLUMN COVERS

STEERING COLUMN COVERS

Removal and Installation

INFOID:0000000011280357

REMOVAL

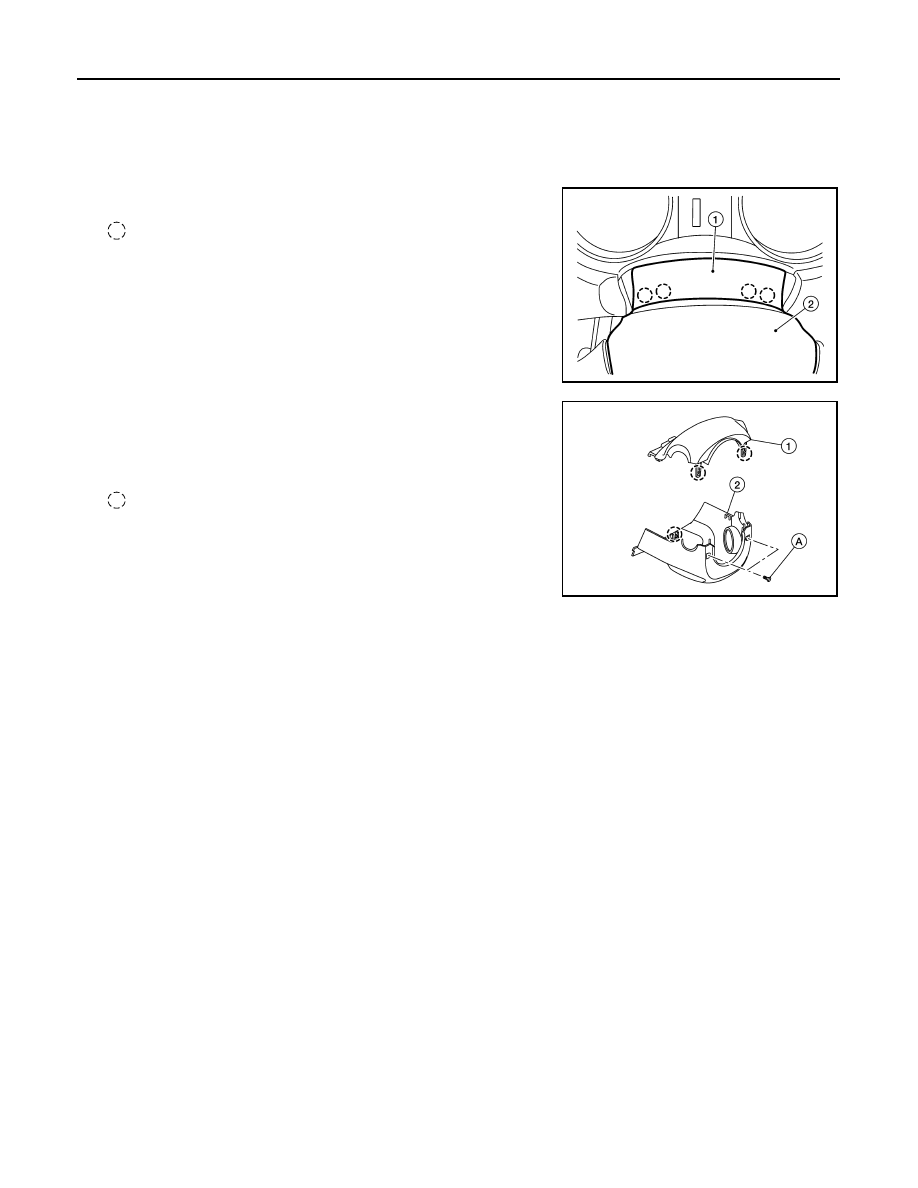

1. Release gap hider (1) pawls from the steering column upper

cover (2).

: Pawl

2. Remove steering column cover screws (A)

NOTE:

Rotate steering wheel to access steering column cover screws.

3. Release steering column upper cover (1) pawls using a suitable

tool and remove.

: Pawl

4. Release steering column lower cover (2) pawl using a suitable

tool and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALJIA1383ZZ

ALJIA1382ZZ

CENTER CONSOLE ASSEMBLY

IP-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CENTER CONSOLE ASSEMBLY

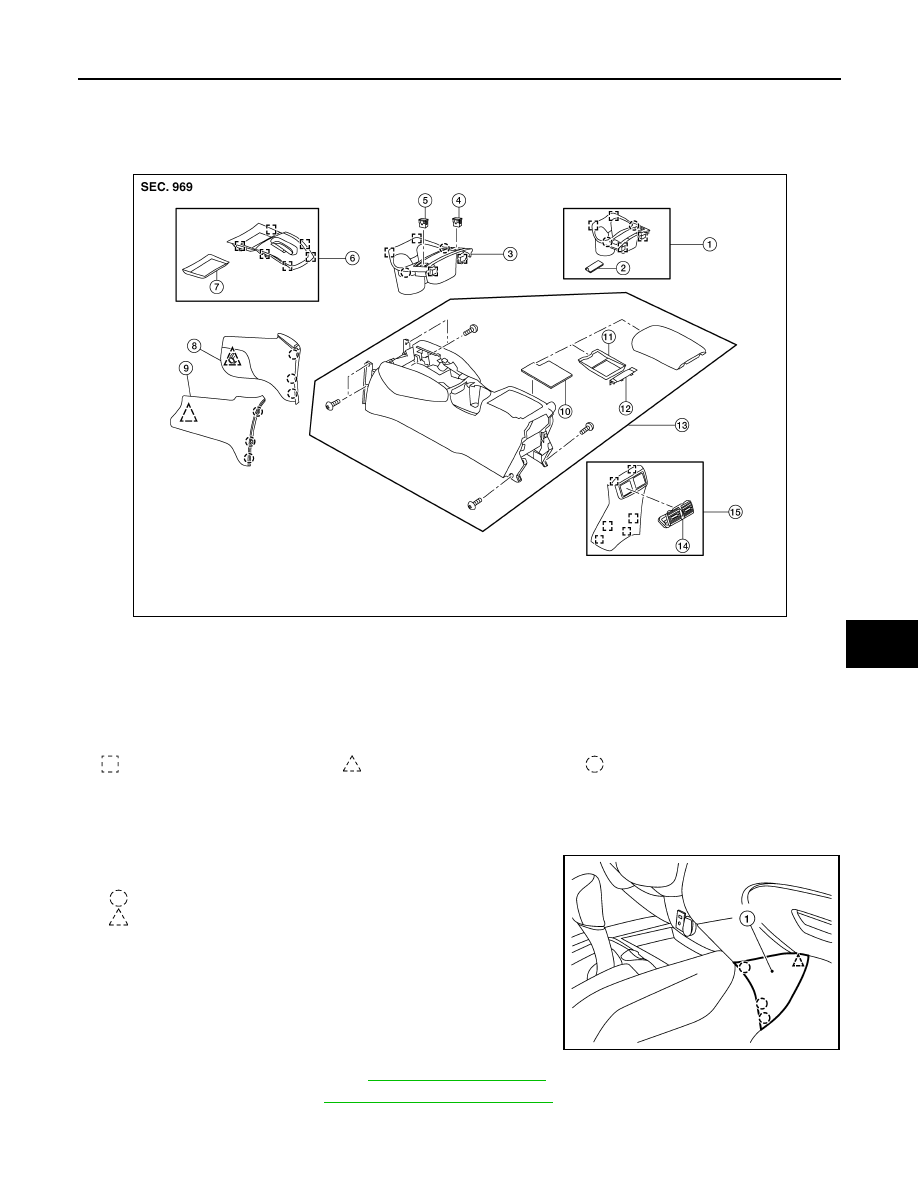

Exploded View

INFOID:0000000011280358

Removal and Installation

INFOID:0000000011280359

REMOVAL

1. Release clips and pawls using a suitable tool and remove center

console side finisher (1) (LH/RH).

: Pawl
: Clip

NOTE:

RH side shown; LH similar.

2. Remove shift selector knob. Refer to

TM-193, "Exploded View"

.

3. Remove cluster lid C. Refer to

IP-22, "Removal and Installation"

.

1.

Center console cup holder (without
heated seats)

2.

Coin tray insert

3.

Center console cup holder (with
heated seats)

4.

Front heated seat switch (RH)

5.

Front heated seat switch (LH)

6.

Shift selector finisher

7.

Shift selector finisher mat

8.

Center console side finisher (RH)

9.

Center console side finisher (LH)

10. Center console tray

11. Center console bin mat

12. Center console rear brace finisher

13. Center console assembly

14. Rear center ventilator grille

15. Center console rear finisher

Metal clip

Clip

Pawl

AWJIA1306ZZ

ALJIA1395ZZ

IP-20

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

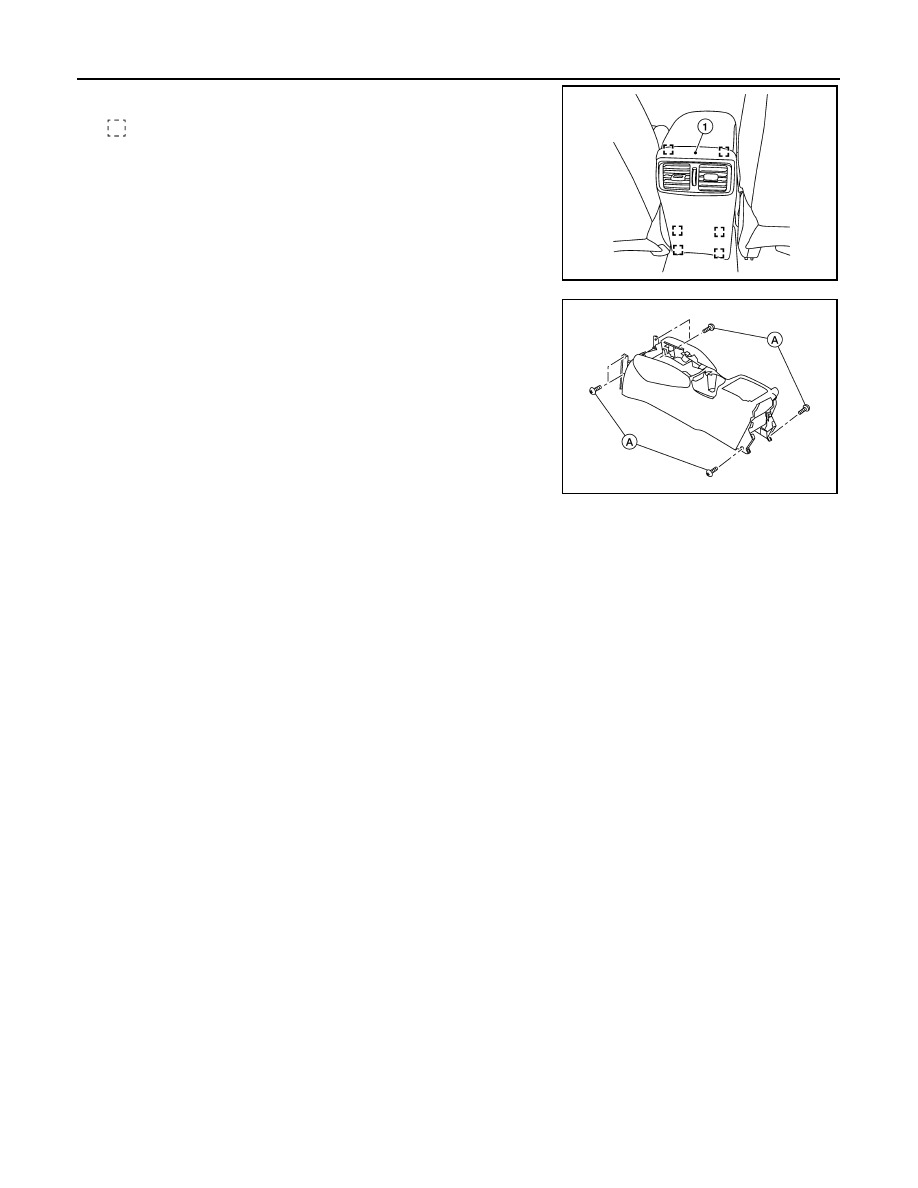

4. Release clips using a suitable tool and remove center console

rear finisher (1).

: Metal clip

5. Remove center console screws (A).

6. Disconnect the harness connectors and remove center console.

INSTALLATION

Installation is in the reverse order of removal.

ALJIA1393ZZ

ALJIA1468ZZ

CLUSTER LID A

IP-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CLUSTER LID A

Removal and Installation

INFOID:0000000011280360

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-23, "Removal and Installation"

.

2. Remove instrument finisher A. Refer to

IP-15, "INSTRUMENT FINISHER A : Removal and Installation"

.

3. Remove instrument finisher B. Refer to

IP-16, "INSTRUMENT FINISHER B : Removal and Installation"

.

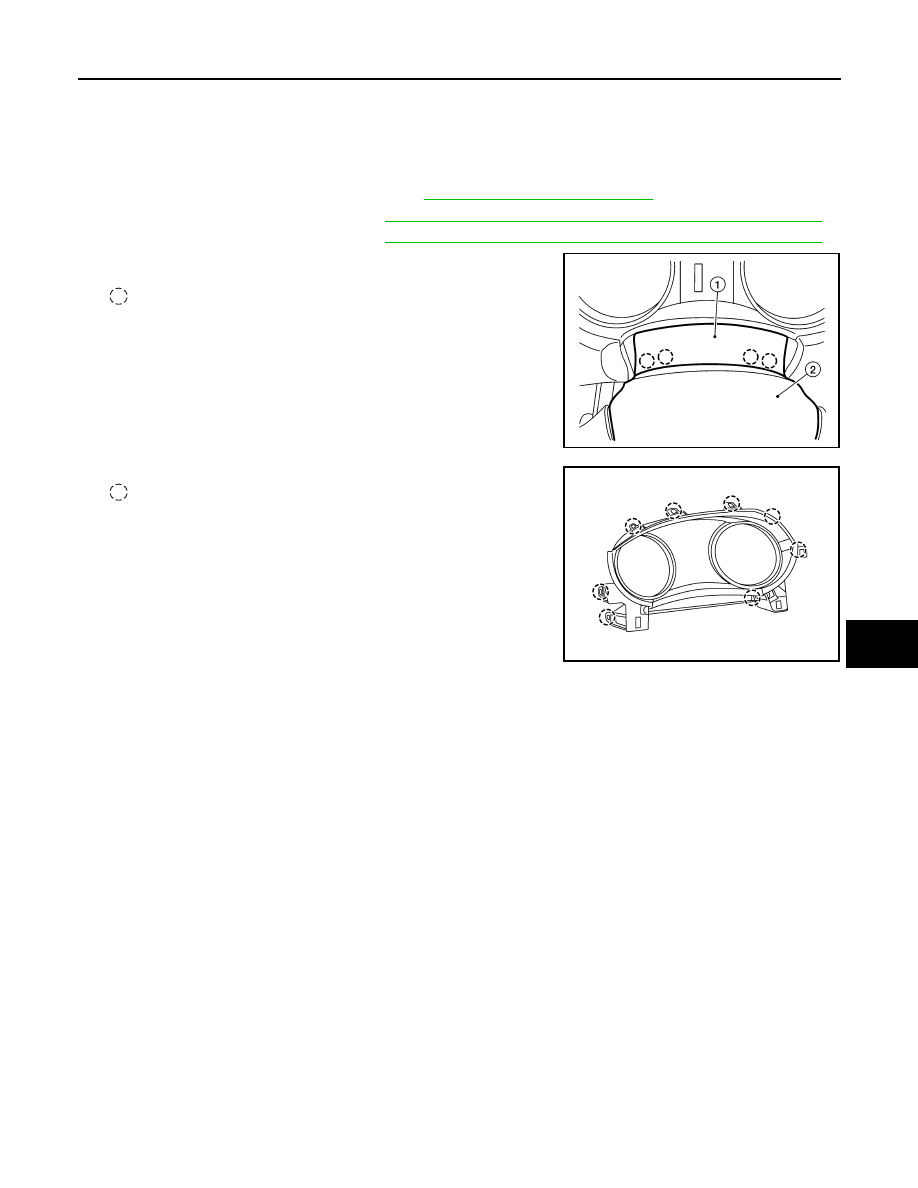

4. Release gap hider (1) pawls from the steering column upper

cover (2).

: Pawl

5. Release pawls using a suitable tool and remove cluster lid A.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

ALJIA1383ZZ

ALJIA1469ZZ
