IP-26

< UNIT DISASSEMBLY AND ASSEMBLY >

CENTER CONSOLE ASSEMBLY

UNIT DISASSEMBLY AND ASSEMBLY

CENTER CONSOLE ASSEMBLY

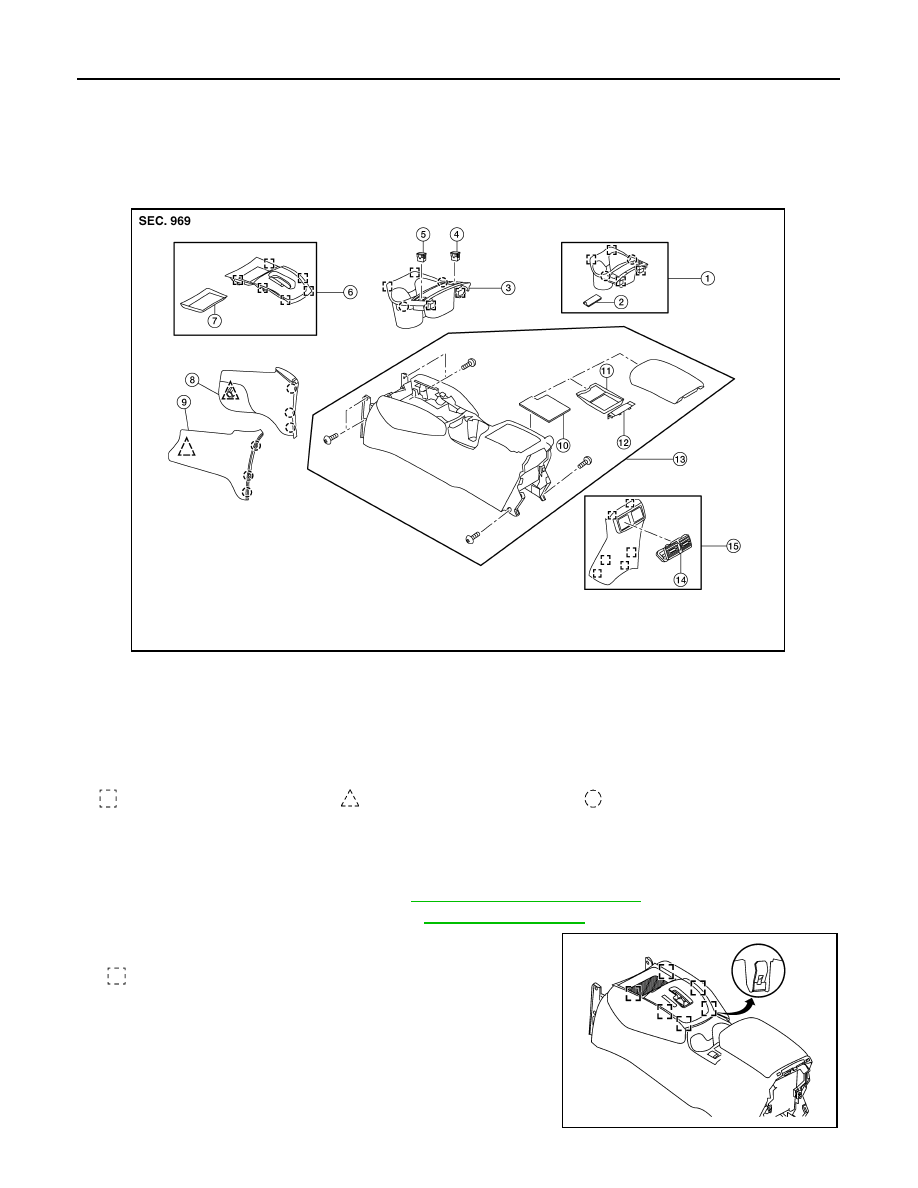

Exploded View

INFOID:0000000011280365

Disassembly and Assembly

INFOID:0000000011280366

DISASSEMBLY

1. Remove center console assembly. Refer to

IP-19, "Removal and Installation"

.

2. Remove the center console bin mat. Refer to

IP-26, "Exploded View"

.

3. Release clips using a suitable tool and remove shift selector fin-

isher.

: Metal clip

1.

Center console cup holder (without
heated seats)

2.

Coin tray insert

3.

Center console cup holder (with
heated seats)

4.

Front heated seat switch (RH)

5.

Front heated seat switch (LH)

6.

Shift selector finisher

7.

Shift selector finisher mat

8.

Center console side finisher (RH)

9.

Center console side finisher (LH)

10. Center console bin mat

11. Center console tray

12. Center console rear brace finisher

13. Center console assembly

14. Rear center ventilator grille

15. Center console rear finisher

Metal clip

Clip

Pawl

AWJIA1306ZZ

ALJIA1470ZZ

CENTER CONSOLE ASSEMBLY

IP-27

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

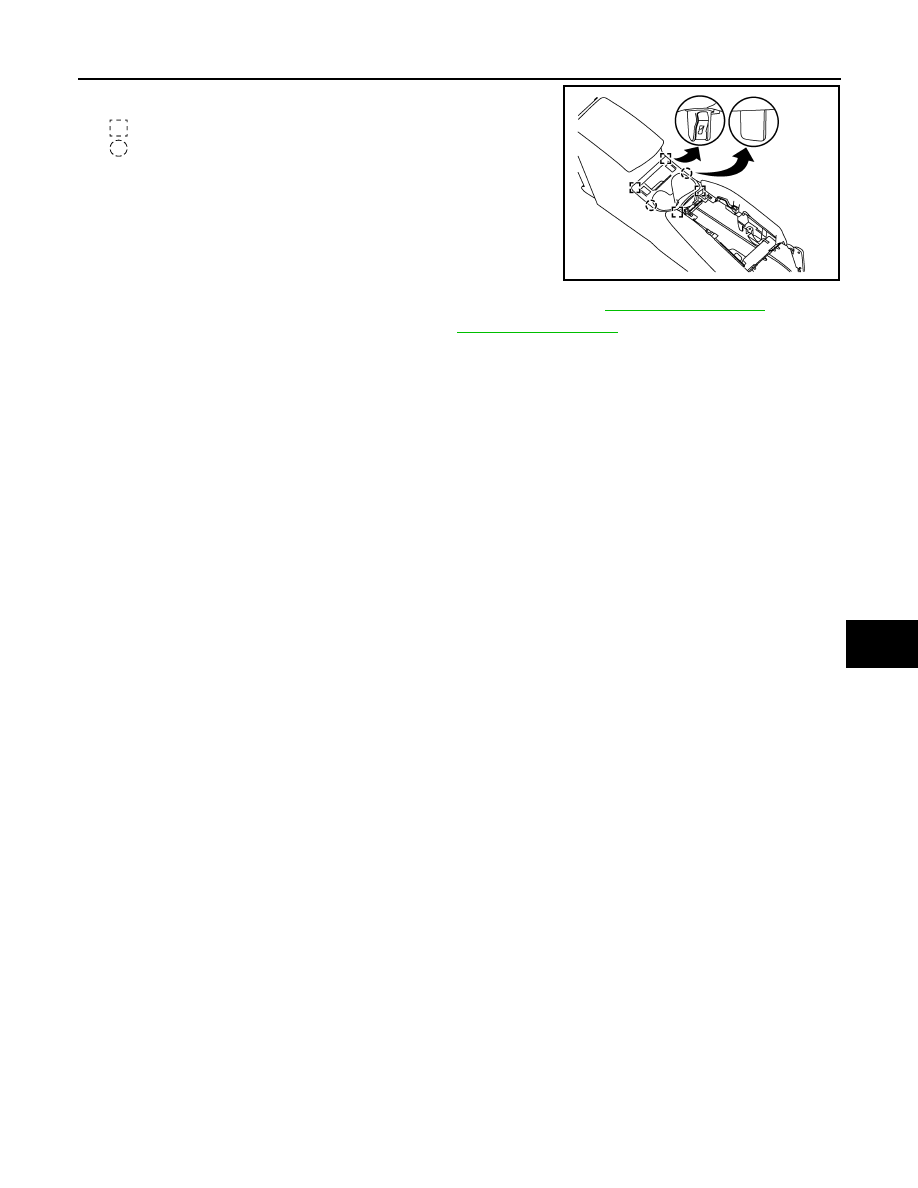

4. Release clips and pawls using a suitable tool and remove center

console cup holder.

: Metal clip
: Pawl

5. Release pawls and remove center console rear brace finisher. Refer to

IP-26, "Exploded View"

.

6. Remove screws and center console tray. Refer to

IP-26, "Exploded View"

.

ASSEMBLY

Assembly is in the reverse order of disassembly.
