LUGGAGE TRIM

INT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

LUGGAGE TRIM

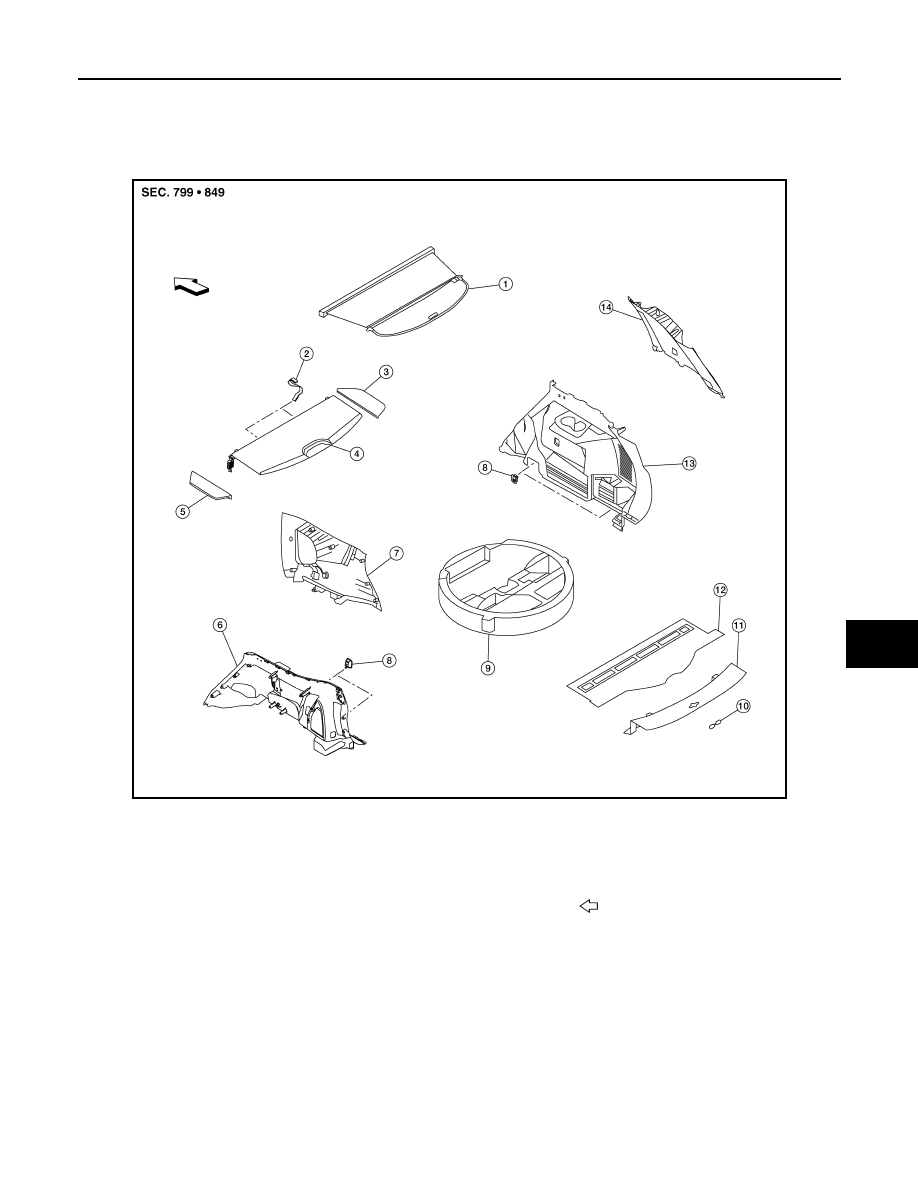

Exploded View

INFOID:0000000011277489

WITH THIRD ROW SEAT

AWBIA1998ZZ

1.

Tonneau cover (if equipped)

2.

Strap (LH/RH)

3.

Luggage floor finisher (RH)

4.

Luggage floor center finisher

5.

Luggage floor finisher (LH)

6.

Luggage side lower finisher (LH)

7.

Luggage side upper finisher (LH) 8.

Hooks (LH/RH)

9.

Luggage storage box

10. Luggage rear plate finisher

11. Luggage rear plate

12. Luggage floor trim

13. Luggage side lower finisher (RH) 14. Luggage side upper finisher (RH)

Front

INT-34

< REMOVAL AND INSTALLATION >

LUGGAGE TRIM

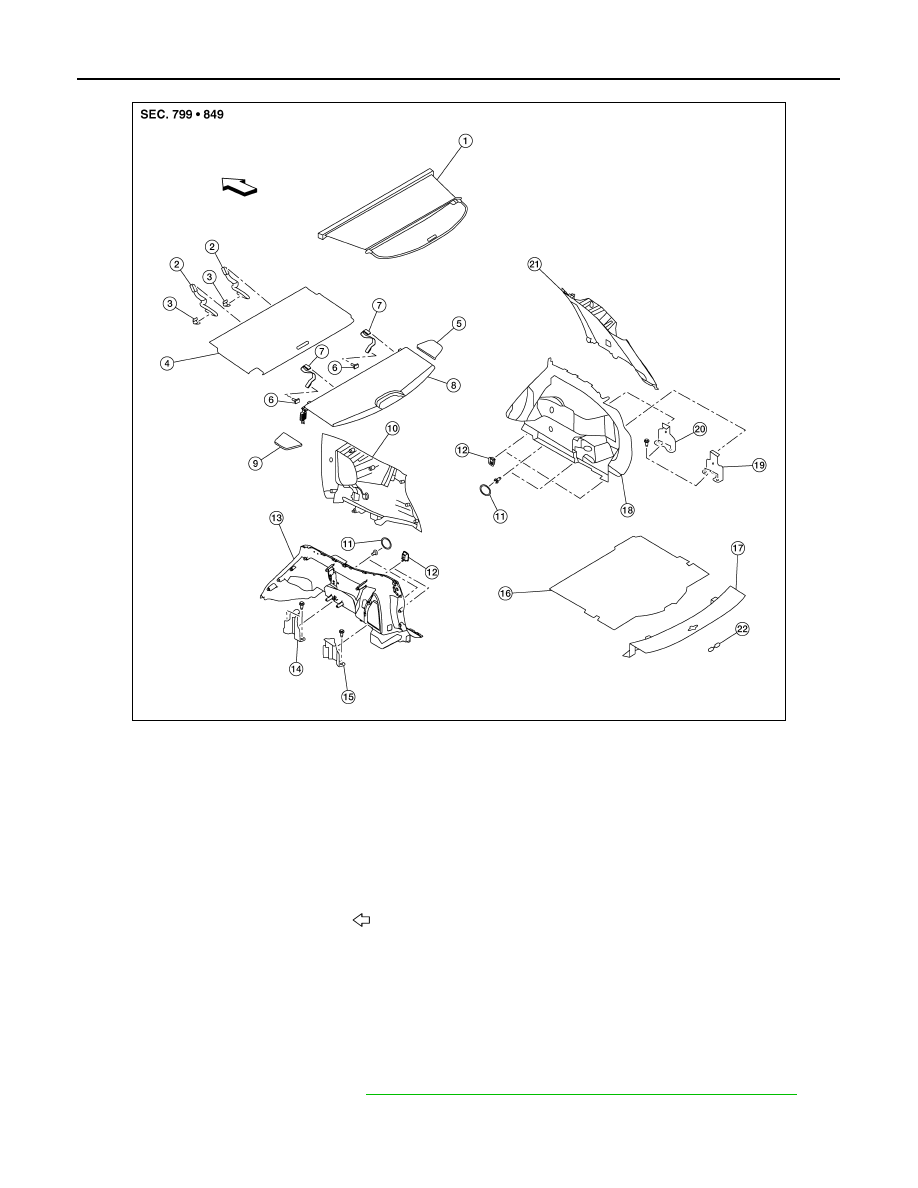

WITHOUT THIRD ROW SEAT

LUGGAGE SIDE LOWER FINISHER
LUGGAGE SIDE LOWER FINISHER : Removal and Installation - With Third Row Seat

INFOID:0000000011277490

REMOVAL

1. Release straps and remove luggage floor finisher front and rear.
2. Remove luggage rear plate. Refer to

INT-37, "LUGGAGE REAR PLATE : Removal and Installation"

.

3. Partially remove back door weatherstrip.

AWBIA1999ZZ

1.

Tonneau cover (if equipped)

2.

Front strap (LH/RH)

3.

Front strap hook (LH/RH)

4.

Front luggage floor finisher

5.

Luggage floor finisher (RH)

6.

Rear strap hook (LH/RH)

7.

Rear strap (LH/RH)

8.

Rear luggage floor finisher

9.

Luggage floor finisher (LH)

10. Luggage side upper finisher (LH) 11. Bolt covers (LH/RH)

12. Hooks (LH/RH)

13. Luggage side lower finisher (LH) 14. Luggage side lower finisher front

bracket (LH)

15. Luggage side lower finisher rear

bracket (LH)

16. Luggage floor trim

17. Luggage rear plate

18. Luggage side lower finisher (RH)

19. Rear luggage side lower finisher

bracket (RH)

20. Front luggage side lower finisher

bracket (RH)

21. Luggage side upper finisher

(RH)

22. Luggage rear plate finisher

Front

LUGGAGE TRIM

INT-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

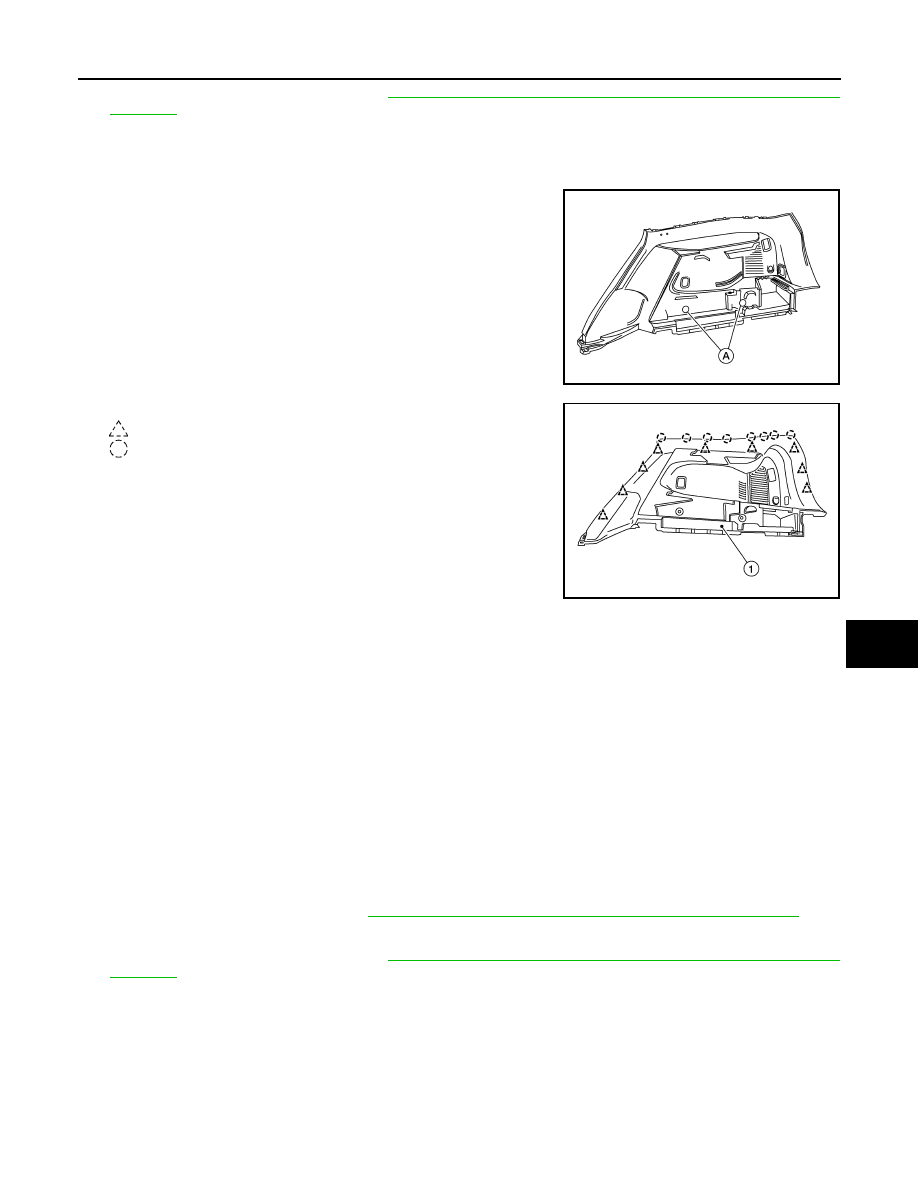

4. Remove the rear kicking plate. Refer to

INT-24, "KICKING PLATE : Removal and Installation - Rear Kick-

ing Plate"

.

5. Partially remove the rear door welt.
6. Fold third row seatback flat.
7. Remove the luggage side lower finisher hook bolts and hooks.
8. Remove the luggage side lower finisher bolt covers (A) then

remove bolts.

9. Release luggage side lower finisher (1) clips and pawls.

: Clip
: Pawl

10. Disconnect the harness connector from power socket (RH only) and luggage room lamp (RH only) and

remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation. Replace with new

ones if necessary.

• When installing luggage side lower finisher, check that clips and pawls are securely placed in body

panel holes.

LUGGAGE SIDE LOWER FINISHER : Removal and Installation - Without Third Row
Seat

INFOID:0000000011277491

REMOVAL

1. Release straps and remove luggage floor finisher front and rear.
2. Remove luggage rear plate. Refer to

INT-37, "LUGGAGE REAR PLATE : Removal and Installation"

.

3. Partially remove back door weatherstrip.
4. Remove the rear kicking plate. Refer to

INT-24, "KICKING PLATE : Removal and Installation - Rear Kick-

ing Plate"

.

5. Partially remove rear door welt.
6. Remove the luggage side lower finisher hook bolts and hooks.

ALJIA1366ZZ

ALJIA1350ZZ

INT-36

< REMOVAL AND INSTALLATION >

LUGGAGE TRIM

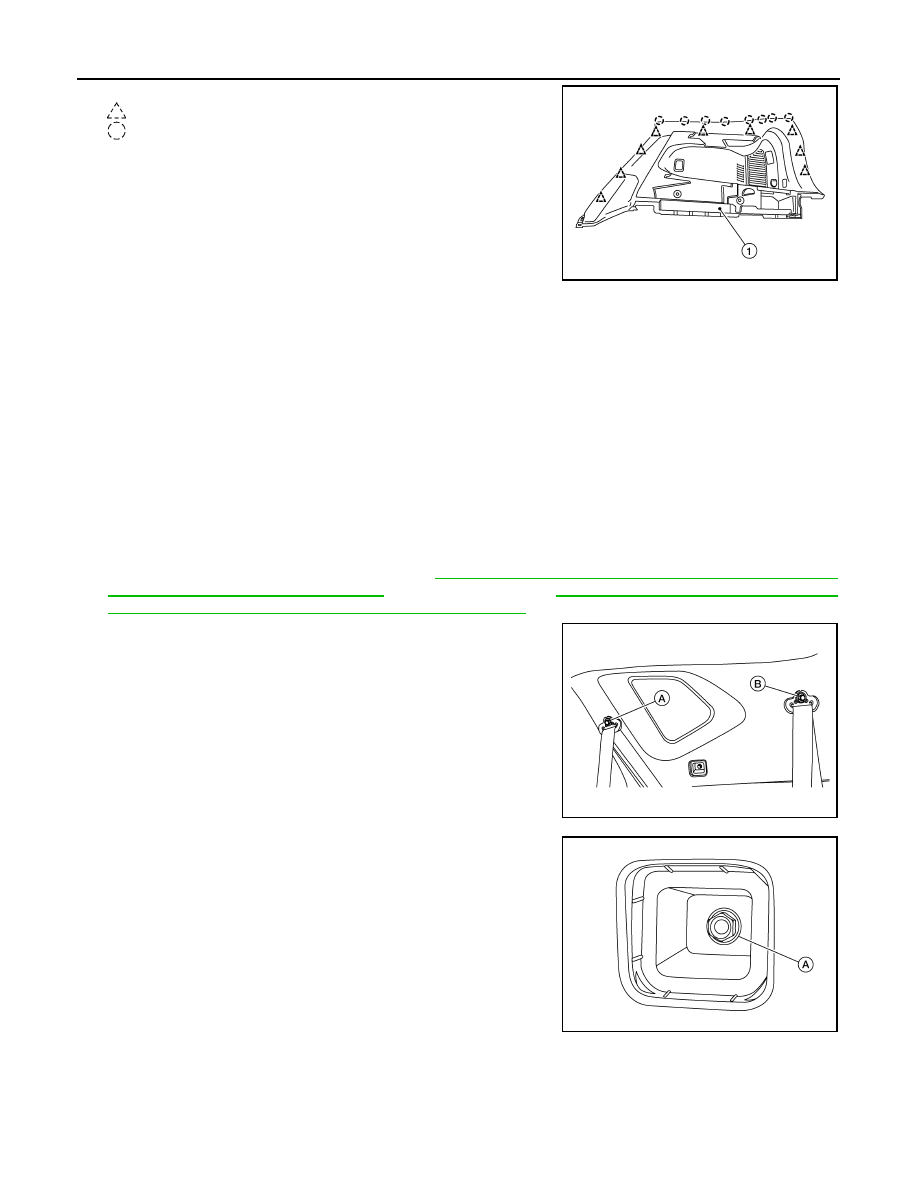

7. Release luggage side lower finisher (1) clips and pawls.

: Clip
: Pawl

8. Disconnect the harness connector from power socket (RH only) and luggage room lamp (RH only) and

remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation. Replace with new

ones if necessary.

• When installing luggage side lower finisher, check that clips and pawls are securely placed in body

panel holes.

LUGGAGE SIDE UPPER FINISHER
LUGGAGE SIDE UPPER FINISHER : Removal and Installation

INFOID:0000000011277492

REMOVAL

1. Remove luggage side lower finisher. Refer to

INT-34, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation - With Third Row Seat"

 (with third row seat) or

INT-35, "LUGGAGE SIDE LOWER FIN-

ISHER : Removal and Installation - Without Third Row Seat"

 (without third row seat).

2. Remove rear  and third row seatbelt d-ring anchor bolt covers,

then remove rear and third row seatbelt d-ring anchor bolts (A

and B).

3. Remove luggage side upper finisher bolt (A).

ALJIA1350ZZ

ALJIA1367ZZ

ALJIA1354ZZ
