HEADLINING

INT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

HEADLINING

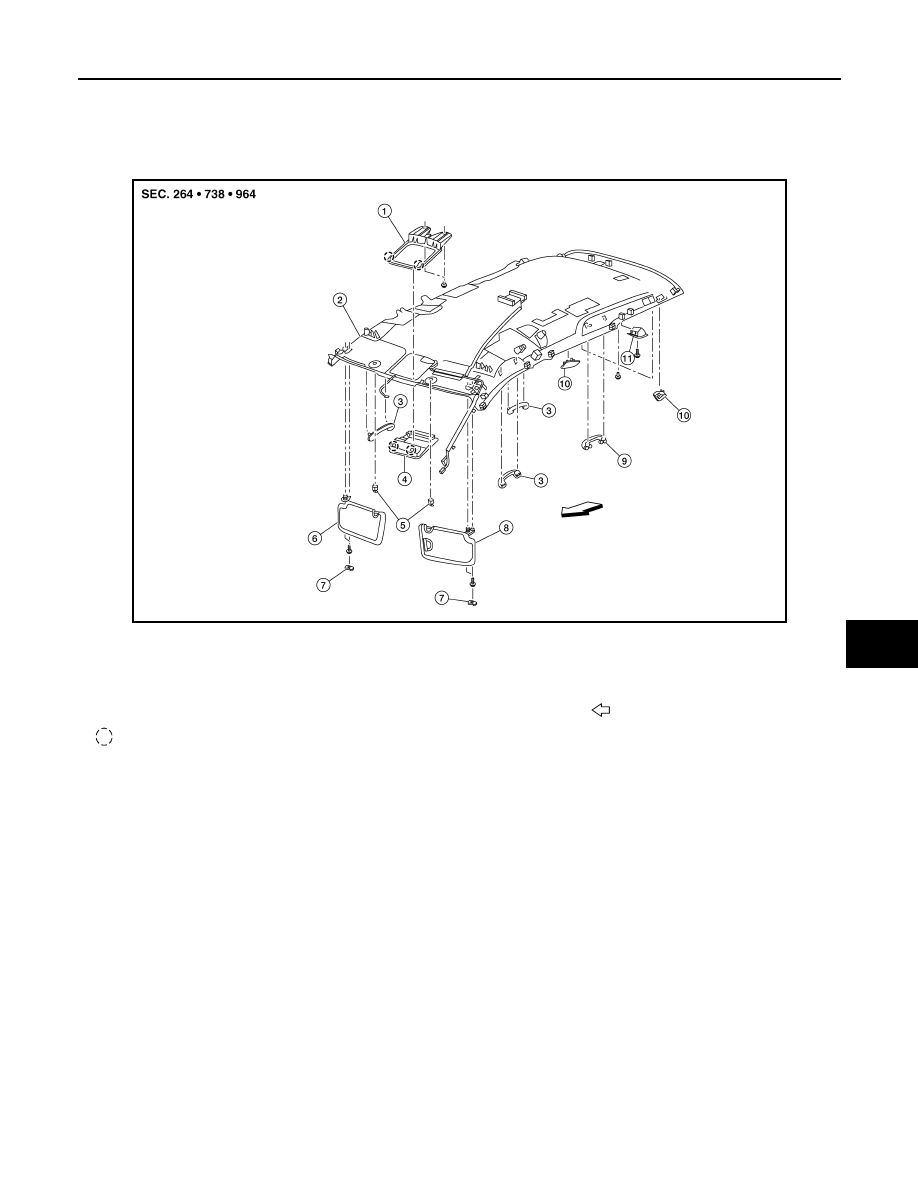

Exploded View

INFOID:0000000011277487

WITHOUT MOONROOF

AWJIA1326ZZ

1.

Map lamp assembly bracket

2.

Headlining

3.

Assist grip (without coat hanger)

4.

Map lamp assembly

5.

Sun visor holder (LH/RH)

6.

Sun visor (RH)

7.

Sun visor cover

8.

Sun visor (LH)

9.

Assist grip (with coat hanger)

10. Headlining cover

11. Top tether strap child restraint finisher

Front

Pawl

INT-30

< REMOVAL AND INSTALLATION >

HEADLINING

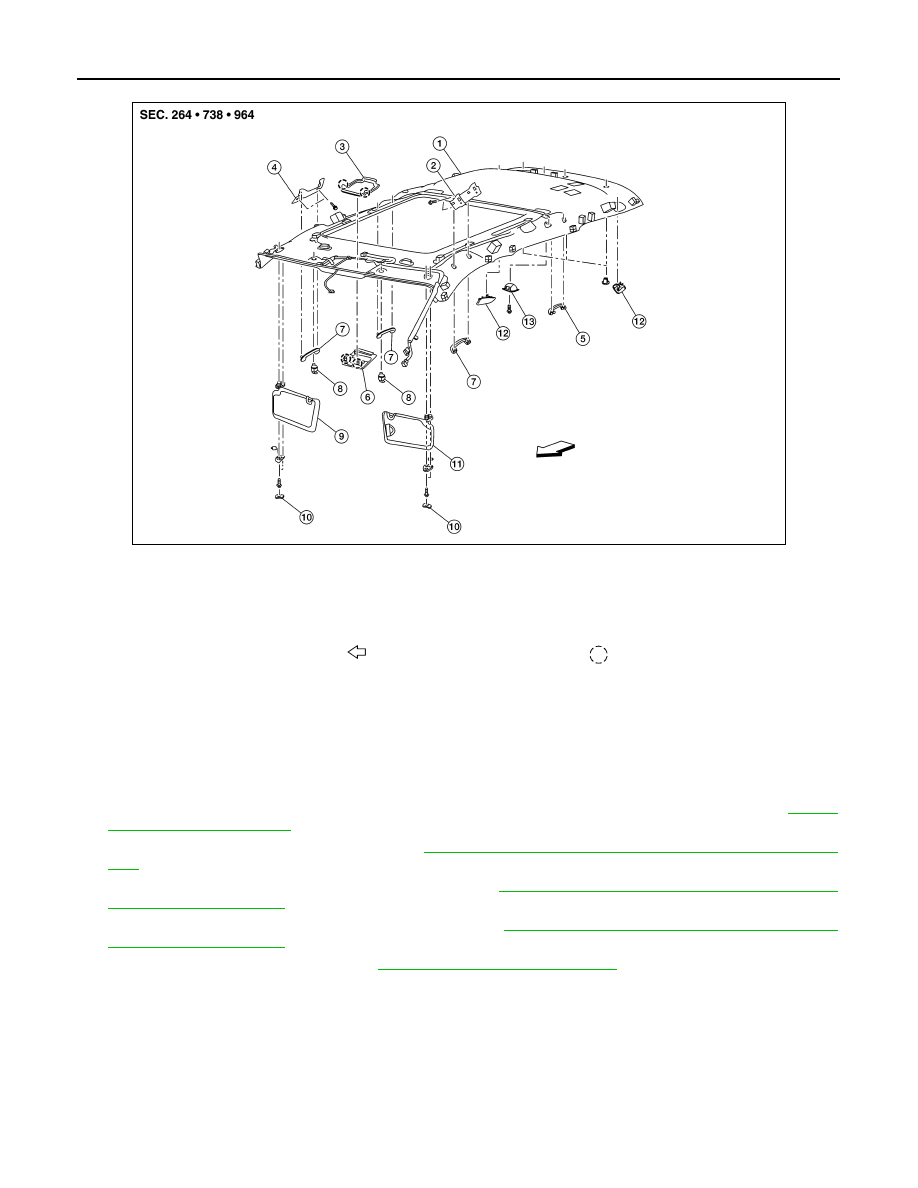

WITH MOONROOF

Removal and Installation

INFOID:0000000011277488

REMOVAL

WARNING:

Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at

least three minutes.
1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-80,

"Removal and Installation"

.

2. Remove front pillar finisher (LH/RH). Refer to

INT-20, "FRONT PILLAR FINISHER : Removal and Installa-

tion"

.

3. Remove center pillar upper finisher (LH/RH). Refer to

INT-21, "CENTER PILLAR UPPER FINISHER :

Removal and Installation"

.

4. Remove luggage side upper finisher (LH/RH). Refer to

INT-36, "LUGGAGE SIDE UPPER FINISHER :

Removal and Installation"

.

5. Remove map lamp assembly. Refer to

INL-55, "Removal and Installation"

.

6. Disconnect personal lamp and microphone harness connectors.

AWJIA1547ZZ

1.

Headlining

2.

Front assist grip bracket (LH)

3.

Map lamp assembly bracket

4.

Front assist grip bracket (RH)

5.

Assist grip (with coat hanger)

6.

Map lamp assembly

7.

Assist grip (without coat hanger)

8.

Sun visor holder (LH/RH)

9.

Sun visor (RH)

10. Sun visor cover (LH/RH)

11. Sun visor (LH)

12. Headlining cover

13. Top tether strap child restraint finisher

Front

Pawl

HEADLINING

INT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

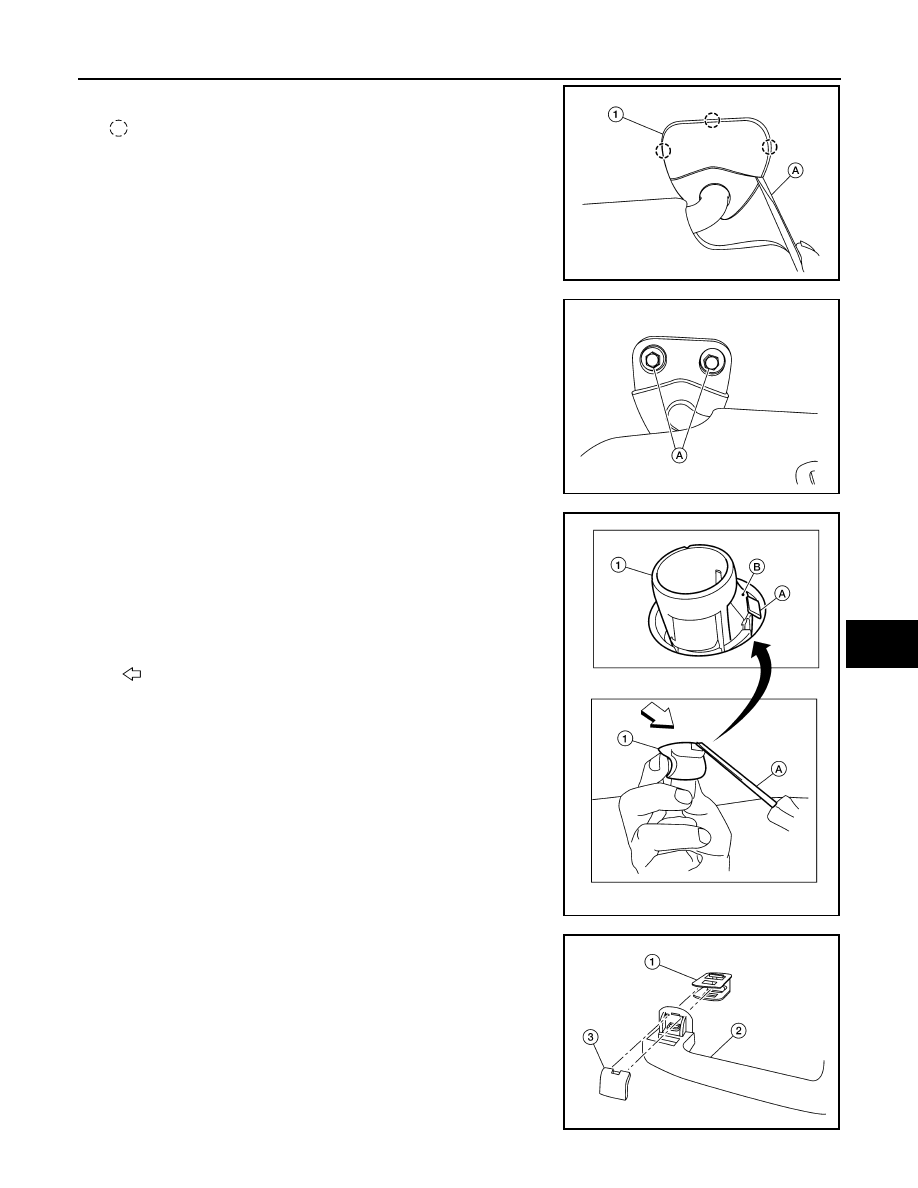

7. Remove sun visor cover (LH/RH) (1) by inserting a suitable tool

(A) as shown.

: Pawl

CAUTION:

Do not damage headlining or sun visor cover surface.

8. Remove sun visor bolts (A) (LH/RH), then disconnect harness

connectors and remove .

9. Insert a suitable tool (A) at approximately a 30 degree angle into

the sun visor holder notch on the front of the sun visor holder

(1). Press in to release the locking tab (B). While holding in lock-

ing tab (B), turn the sun visor holder (1) 90 degrees to release it

from the headliner.

• If the sun visor holder (1) does not fully rotate, make sure that

the suitable tool (A) is pressing in on the locking tab (B) and is

not positioned under locking tab (B). Reinsert the suitable tool

(A) as necessary to release the locking tab (B).

•

: Front

CAUTION:

Do not force the sun visor holder when removing as the

locking tab may be damaged if the suitable tool is not posi-

tioned correctly.

10. Remove front assist grip (LH/RH) and rear assist grip (LH/RH).
a. Remove assist grip cap (3).
b. Release clip (1) and remove assist grip (2).

AWBIA1997ZZ

ALJIA1362ZZ

ALJIA0537ZZ

AWBIA1994ZZ

INT-32

< REMOVAL AND INSTALLATION >

HEADLINING

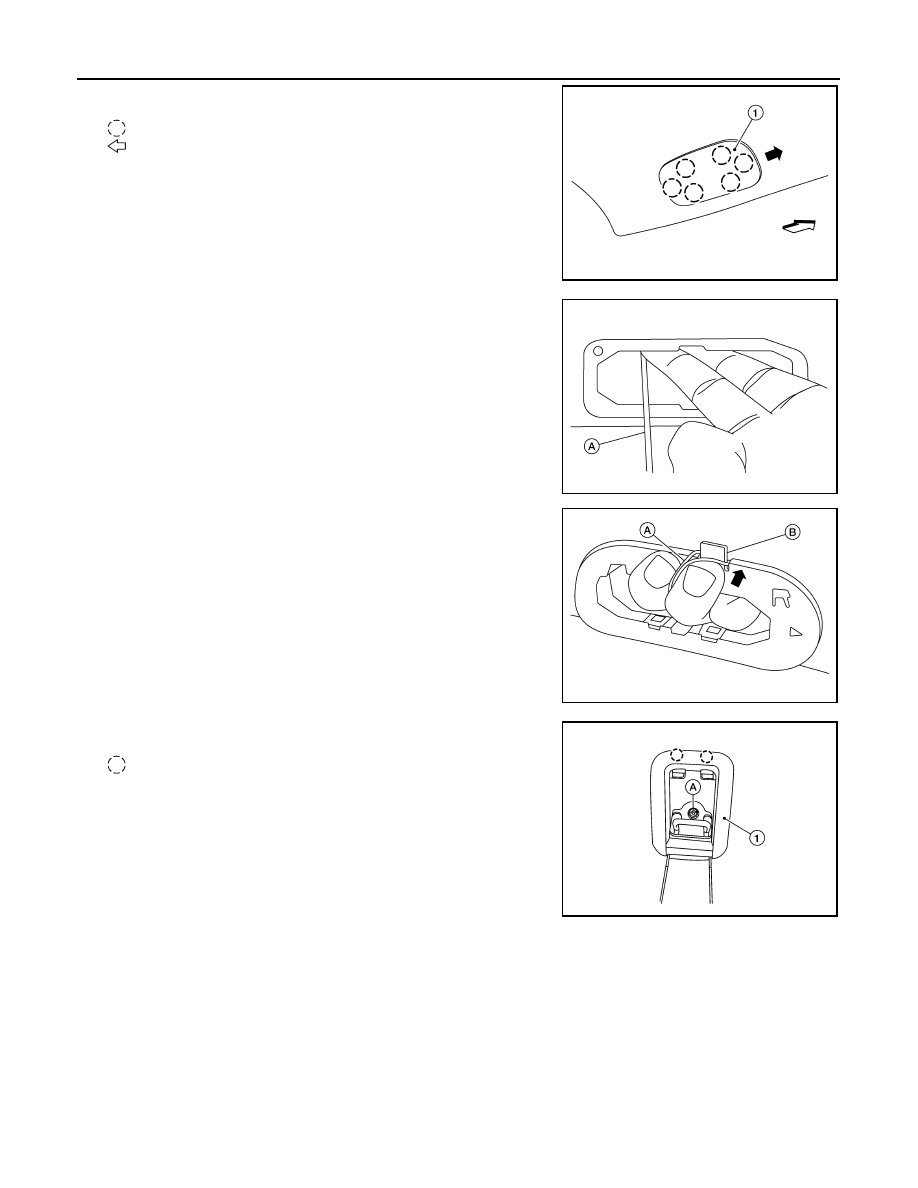

11. Insert suitable tool from front, release pawls then pull headlining

cover (LH/RH) (1) forward and outward to remove.

: Pawl

  Front

12. Insert two fingers through hole on headlining.

13. Release tether (A) from hook (B) and remove.

14. Remove screw (A) then release pawls using a suitable tool and

remove child tether finisher (1).

: Pawl

15. Release headlining clips at rear and remove headlining through the back door.

CAUTION:

• When removing headlining, two workers are required.

• Do not bend headlining when removing.

• Be careful not to scratch or damage any part of the body while removing the headlining.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Install sun-visor holder (LH/RH) and headlining clips at rear for positioning.

• Do not to bend the headlining when installing.

ALJIA1380ZZ

(A)

:Tether

ALJIA1476ZZ

ALJIA1477ZZ

AWJIA1287ZZ
