BODY SIDE TRIM

INT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

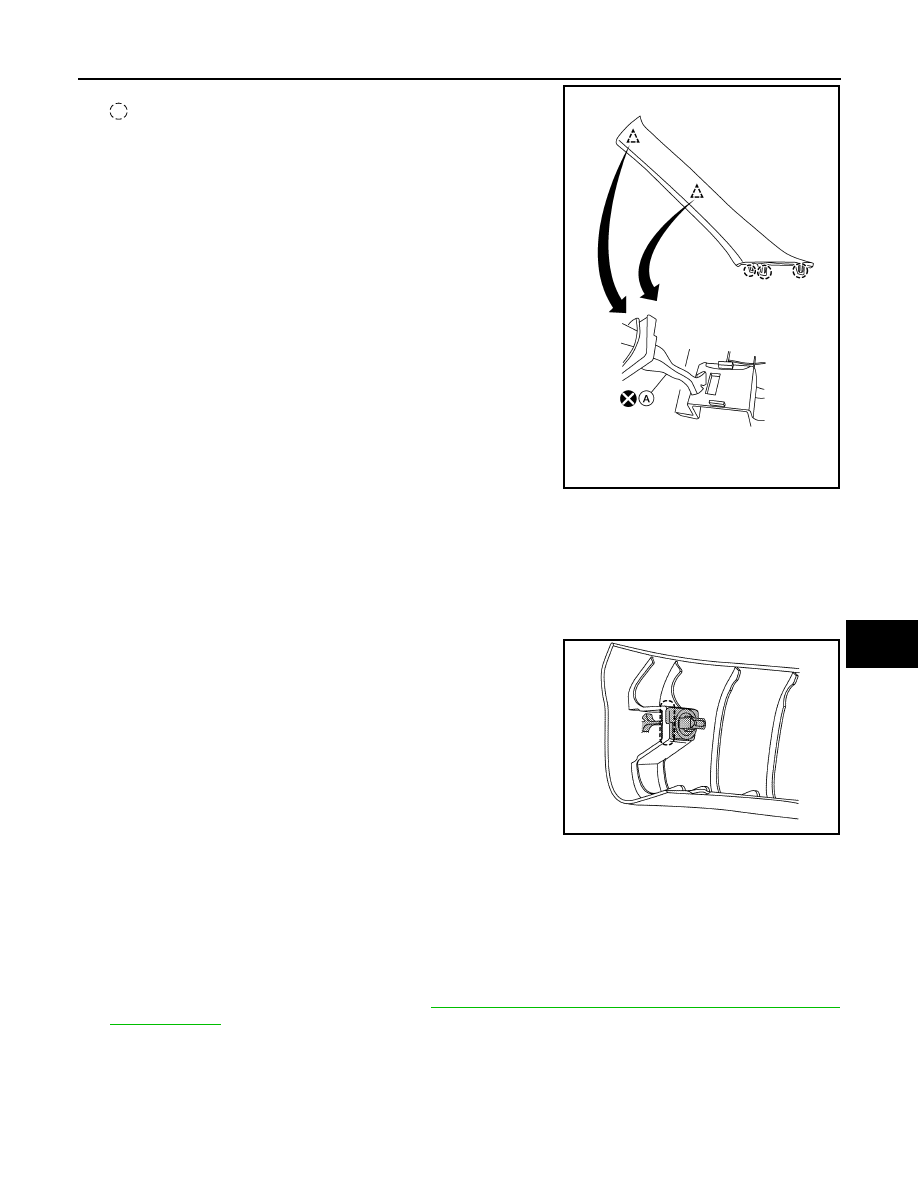

2. Release the front pillar finisher pawls using a suitable tool.

: Pawl

3. Cut and discard front pillar finisher tether clip (A).

CAUTION:

Do not reuse tether clip. Replace with new part after

removal.

4. Remove the remaining piece of tether clips (A) using a suitable

tool and remove front pillar finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse tether clip. Replace with new part for installation.

• Make sure that the location of the airbag and tether clip do not block body panel holes before install-

ing front pillar finisher.

• Make sure to install tether clip to front pillar finisher by inserting clip end and rotating 90 degrees in

either direction, before installing front pillar finisher.

• When installing tether clip to front pillar finisher, be sure to

install by aligning to the cutout.

• Front pillar finisher is re-usable.

• New tether clip should be used from service parts, ordered

separately.

• When installing front pillar finisher, check that tether clip and pawls are securely placed into correct

body panel holes.

CENTER PILLAR UPPER FINISHER
CENTER PILLAR UPPER FINISHER : Removal and Installation

INFOID:0000000011277478

REMOVAL

1. Remove center pillar lower finisher. Refer to

INT-22, "CENTER PILLAR LOWER FINISHER : Removal

and Installation"

.

ALJIA1342ZZ

JMJIA7045ZZ

INT-22

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

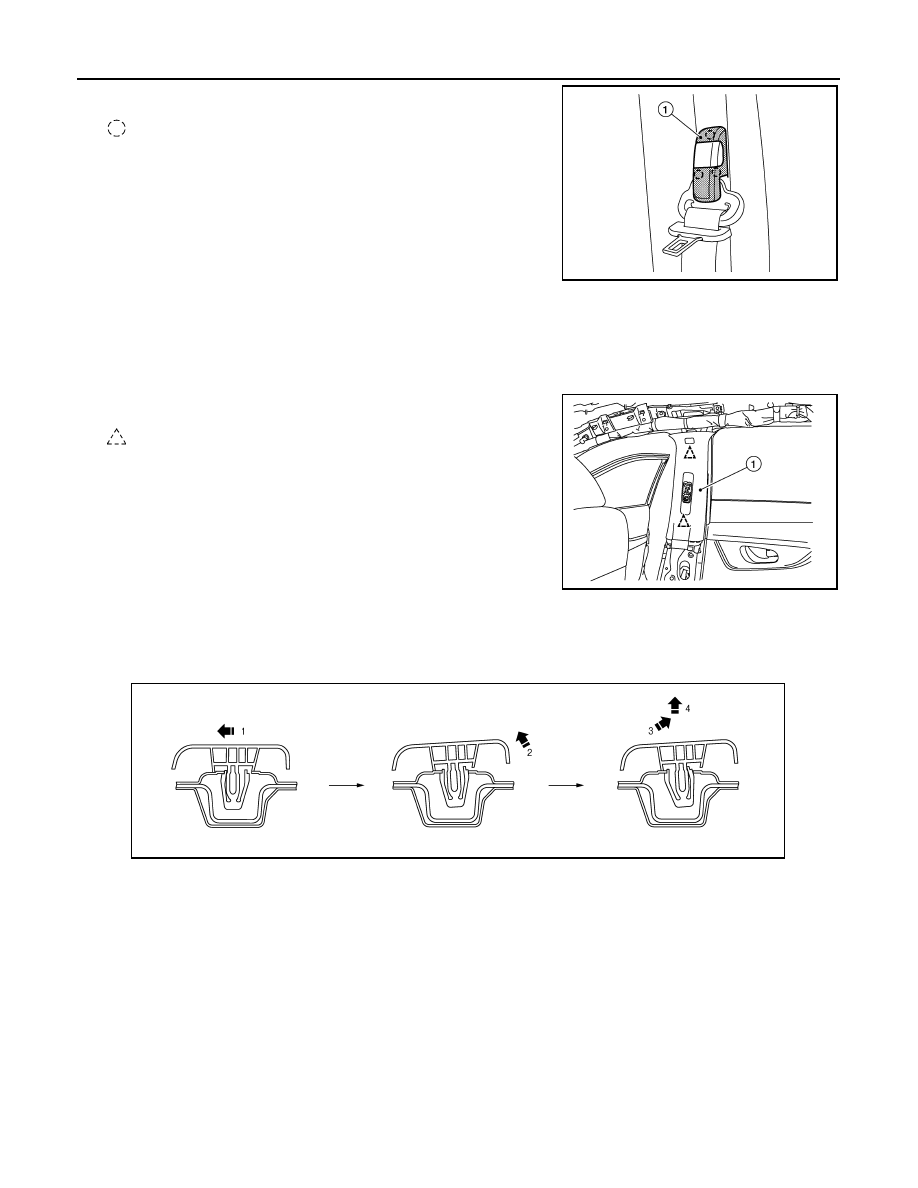

2. Release pawls, using a suitable tool and remove the seat belt

height adjuster finisher (1).

: Pawl

3. Remove front D-ring anchor bolt.

CAUTION:

Before removing D-ring anchor bolt note the positions of washers and spacers for correct installa-

tion.

4. Release center pillar upper finisher clips using a suitable tool as shown.
5. Release center pillar upper finisher (1) clips using a suitable tool

and remove.

: Clip

CAUTION:

• Do not reuse center pillar upper finisher.

• Do not bend the sheet metal when removing the center pillar upper finisher from the sheet metal.

• When releasing molded in clip, follow the steps as shown to prevent finisher or clip damage.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse center pillar upper finisher. Replace with new part for installation.

• Visually check sheet metal around clip and pawl locations to confirm no deformation from removal

of center pillar upper finisher. Repair sheet metal if necessary.

• When installing center pillar upper finisher, check that the clips are securely placed in body panel

holes.

CENTER PILLAR LOWER FINISHER
CENTER PILLAR LOWER FINISHER : Removal and Installation

INFOID:0000000011277479

REMOVAL

1. Move front seat to the full forward position.

AWHIA0539ZZ

ALJIA1346ZZ

PIIB2600J

BODY SIDE TRIM

INT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

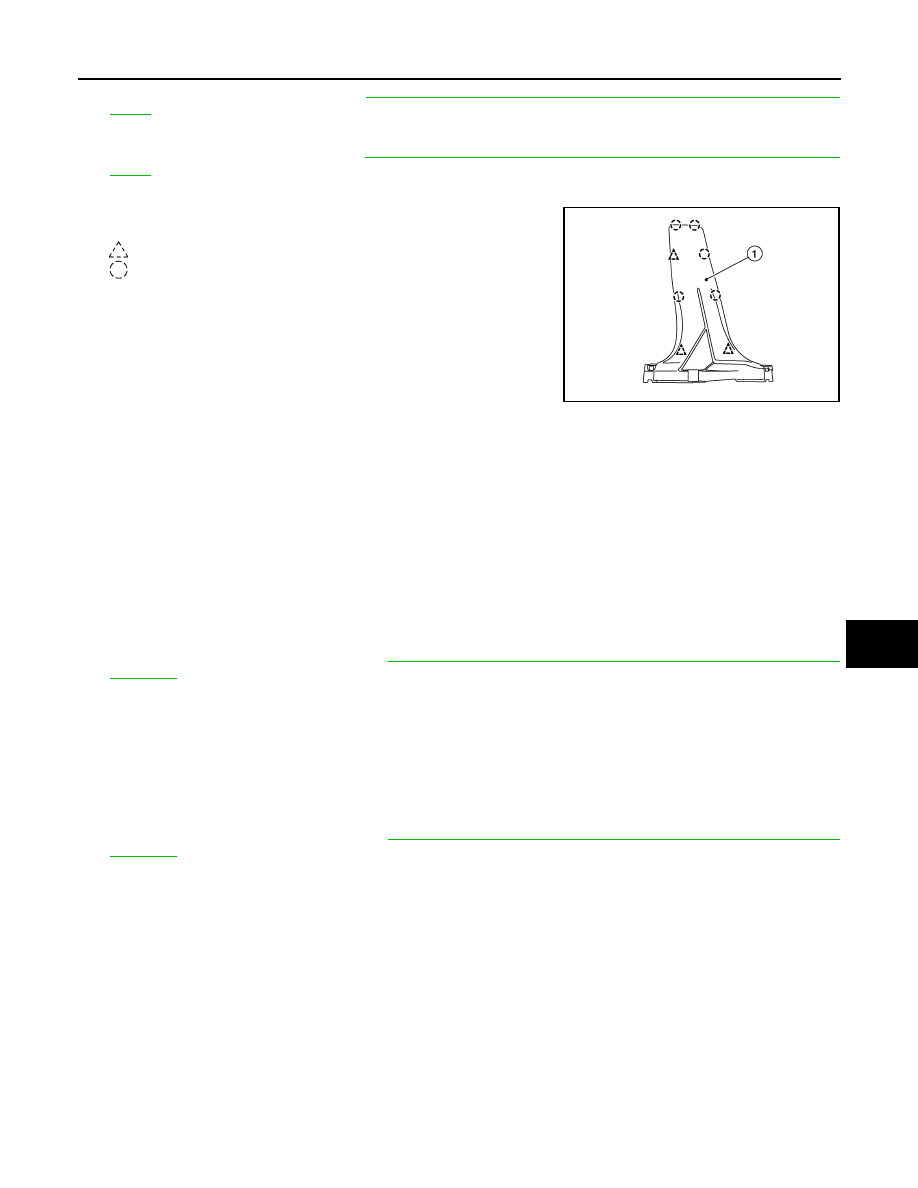

2. Remove front kicking plate. Refer to

INT-23, "KICKING PLATE : Removal and Installation - Front Kicking

Plate"

.

3. Partially remove the front door welt.
4. Remove rear kicking plate. Refer to

INT-24, "KICKING PLATE : Removal and Installation - Rear Kicking

Plate"

.

5. Partially remove the rear door welt.
6. Release center pillar lower finisher clips and pawls using a suit-

able tool, then remove the center pillar lower finisher (1).

: Clip
: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation. Replace with new ones if

necessary.

• When installing center pillar lower finisher, check that clips and pawls are securely placed in body

panel holes.

BODY SIDE WELT
BODY SIDE WELT : Removal and Installation - Front Door Welt

INFOID:0000000011277480

REMOVAL

1. Remove the front kicking plate. Refer to

INT-23, "KICKING PLATE : Removal and Installation - Front Kick-

ing Plate"

.

2. Remove the front body side welt.

INSTALLATION

Installation is in the reverse order of removal.

BODY SIDE WELT : Removal and Installation - Rear Door Welt

INFOID:0000000011277481

REMOVAL

1. Remove the rear kicking plate. Refer to

INT-24, "KICKING PLATE : Removal and Installation - Rear Kick-

ing Plate"

.

2. Remove the rear body side welt.

INSTALLATION

Installation is in the reverse order of removal.

KICKING PLATE
KICKING PLATE : Removal and Installation - Front Kicking Plate

INFOID:0000000011277482

REMOVAL

AWJIA1282ZZ

INT-24

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

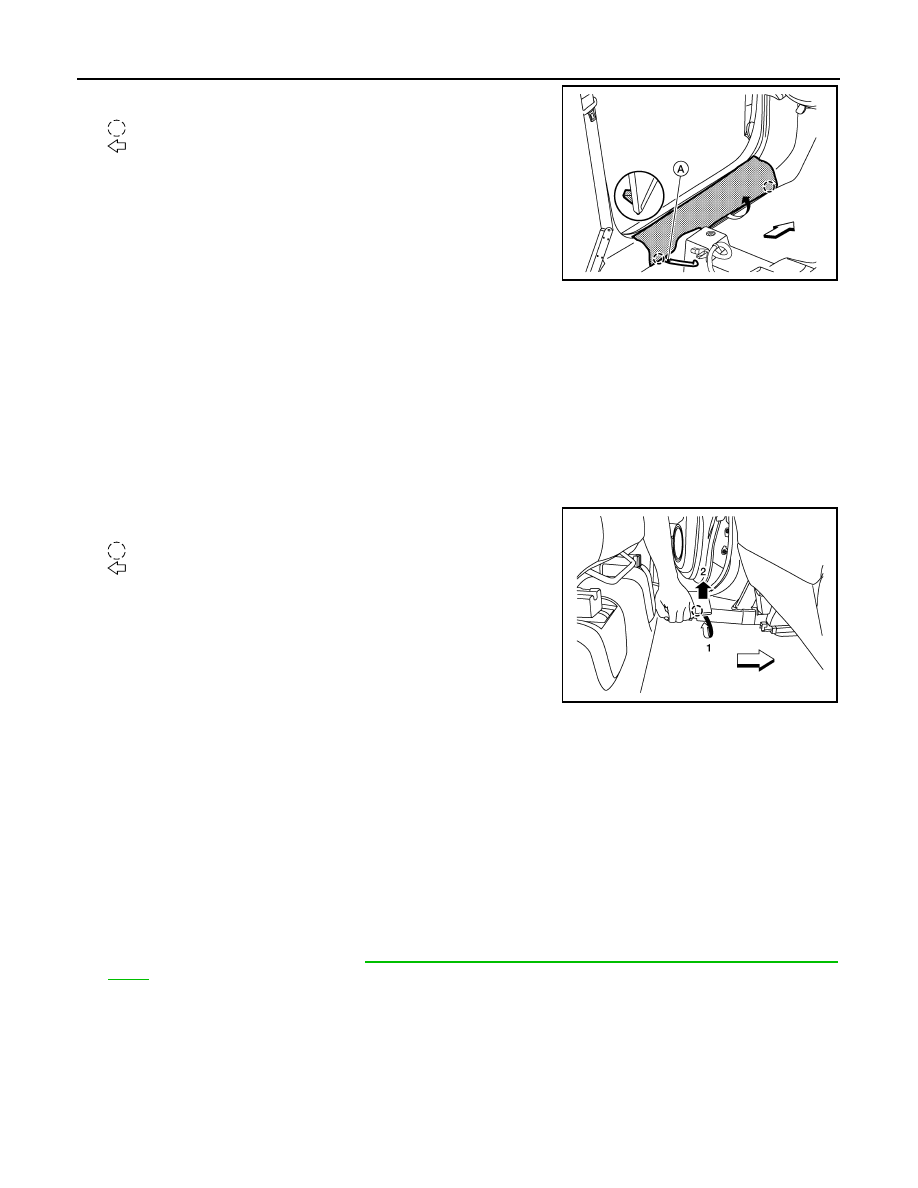

1. Release the front and rear pawls by rotating the front kicking

plate.

: Pawl

: Front

2. Lift front edge of front kicking plate and release the remaining

pawls using suitable tool (A) and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation. Replace with new

ones if necessary.

• When installing front kicking plate, check that the floor trim does not cover harness protector slots.

• When installing front kicking plate, check that the clips and pawls are securely placed in body panel

holes.

KICKING PLATE : Removal and Installation - Rear Kicking Plate

INFOID:0000000011277483

REMOVAL

1. Release front inside pawl of rear kicking plate as shown, then lift

front end of rear kicking plate to release pawls and remove.

: Pawl

: Front

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation. Replace with new

ones if necessary.

• When installing rear kicking plate, check that the clips and pawls are securely placed in body panel

holes.

DASH SIDE FINISHER
DASH SIDE FINISHER : Removal and Installation

INFOID:0000000011277484

REMOVAL

1. Remove front kicking plate. Refer to

INT-23, "KICKING PLATE : Removal and Installation - Front Kicking

Plate"

.

2. Partially remove the front door welt.
