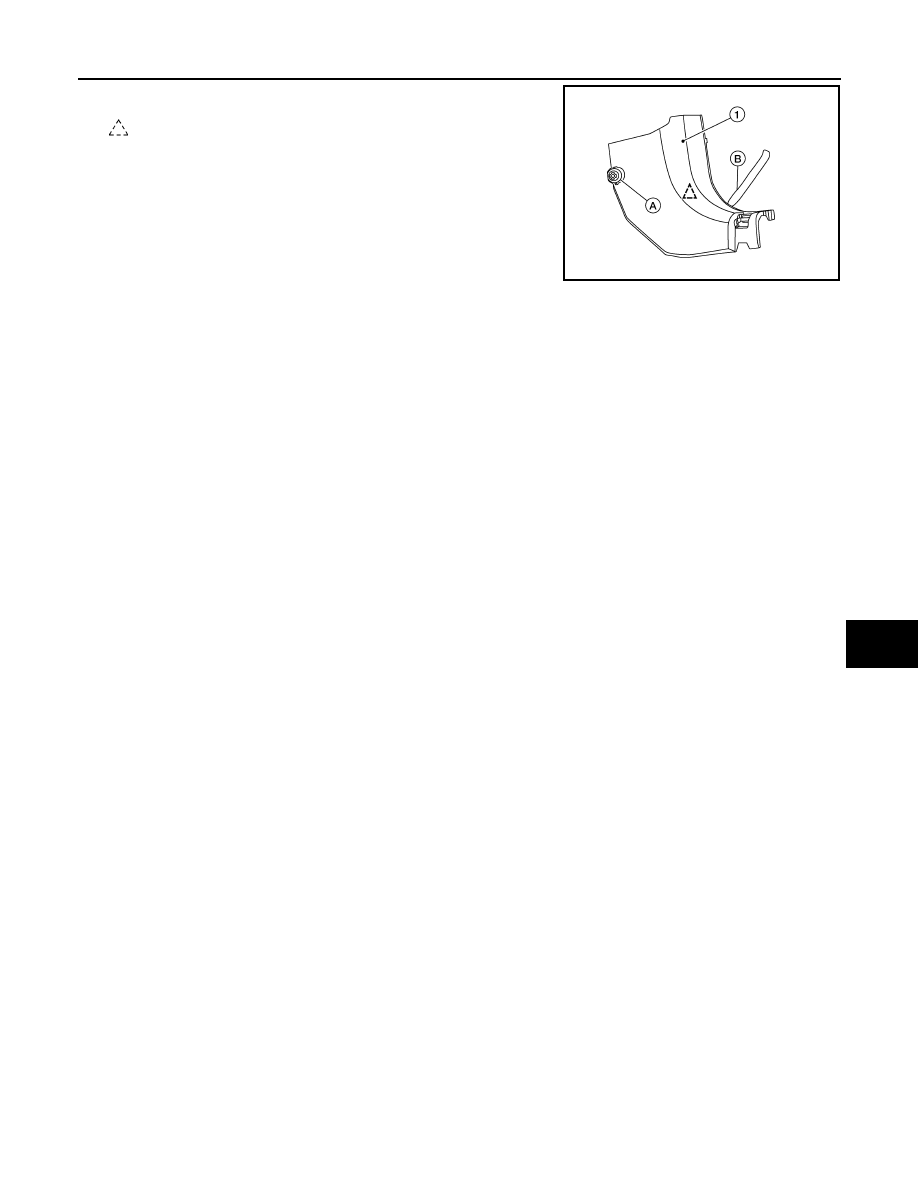

3. Remove nut (A) then insert suitable tool (B) to release clip, then

remove dash side finisher.

: Clip

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation. Replace with new ones if

necessary.

• When installing dash side finisher, make sure insulation does not cover stud bolt.

• When installing dash side finisher, check that the clips are securely placed in body panel holes.

AWJIA1325ZZ

INT-26

< REMOVAL AND INSTALLATION >

FLOOR TRIM

FLOOR TRIM

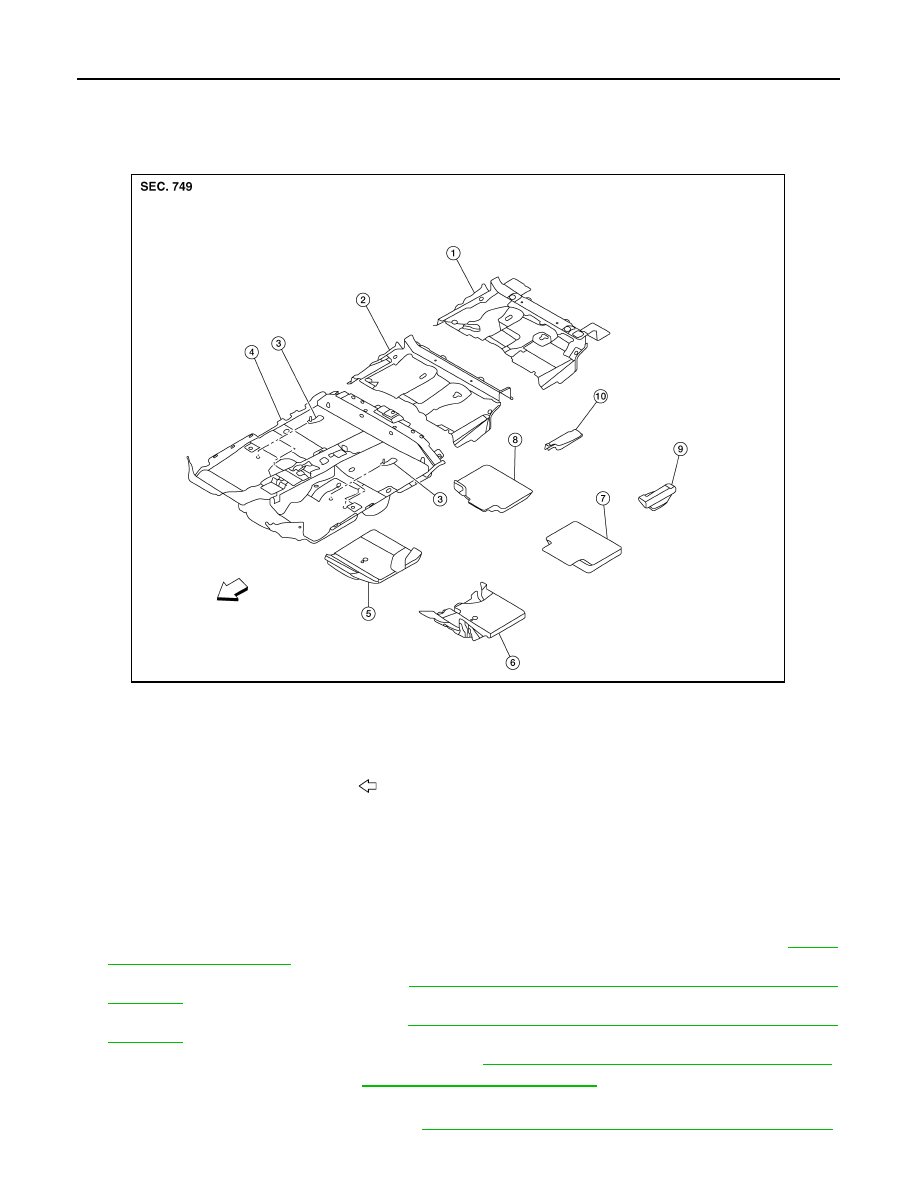

Exploded View

INFOID:0000000011277485

Removal and Installation

INFOID:0000000011277486

CAUTION:

Before servicing, turn the ignition switch off, disconnect both battery cables and wait at least three

minutes.

REMOVAL - Front Floor Trim

1. Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to

PG-80,

"Removal and Installation"

.

2. Remove front door welts (LH/RH). Refer to

INT-23, "BODY SIDE WELT : Removal and Installation - Front

Door Welt"

.

3. Remove rear door welts (LH/RH). Refer to

INT-23, "BODY SIDE WELT : Removal and Installation - Rear

Door Welt"

.

4. Remove driver and passenger seat (LH/RH). Refer to

SE-32, "DRIVER SIDE : Removal and Installation"

.

5. Remove second row seats. Refer to

SE-39, "Removal and Installation"

.

6. Disconnect harness connectors from seatbelt pretensioners.
7. Remove dash side finisher (LH/RH). Refer to

INT-24, "DASH SIDE FINISHER : Removal and Installation"

.

1.

Rear floor trim (with third row
seat)

2.

Rear floor trim (without third
row seat)

3.

Floor trim hook

4.

Front floor trim

5.

Front floor spacer (RH)

6.

Front floor spacer (LH)

7.

Rear floor spacer (LH)

8.

Rear floor spacer (RH)

9.

Third row floor spacer (LH)

10. Third row floor spacer (RH)

Front

ALJIA1345ZZ

FLOOR TRIM

INT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

8. Remove shift selector. Refer to

TM-193, "Removal and Installation"

.

9. Remove center pillar upper finisher (LH/RH). Refer to

INT-21, "CENTER PILLAR UPPER FINISHER :

Removal and Installation"

.

10. Remove the front floor connecting ducts (LH/RH). Refer to

VTL-10, "FRONT FLOOR DUCT : Removal

and Installation - Front Floor Connecting Duct"

.

11. Disconnect front parking brake cable from rear parking brake cable and remove bolts from parking brake

cable hold down. Refer to

PB-7, "Exploded View"

.

12. Disconnect heating and cooling unit assembly drain hose from floor.

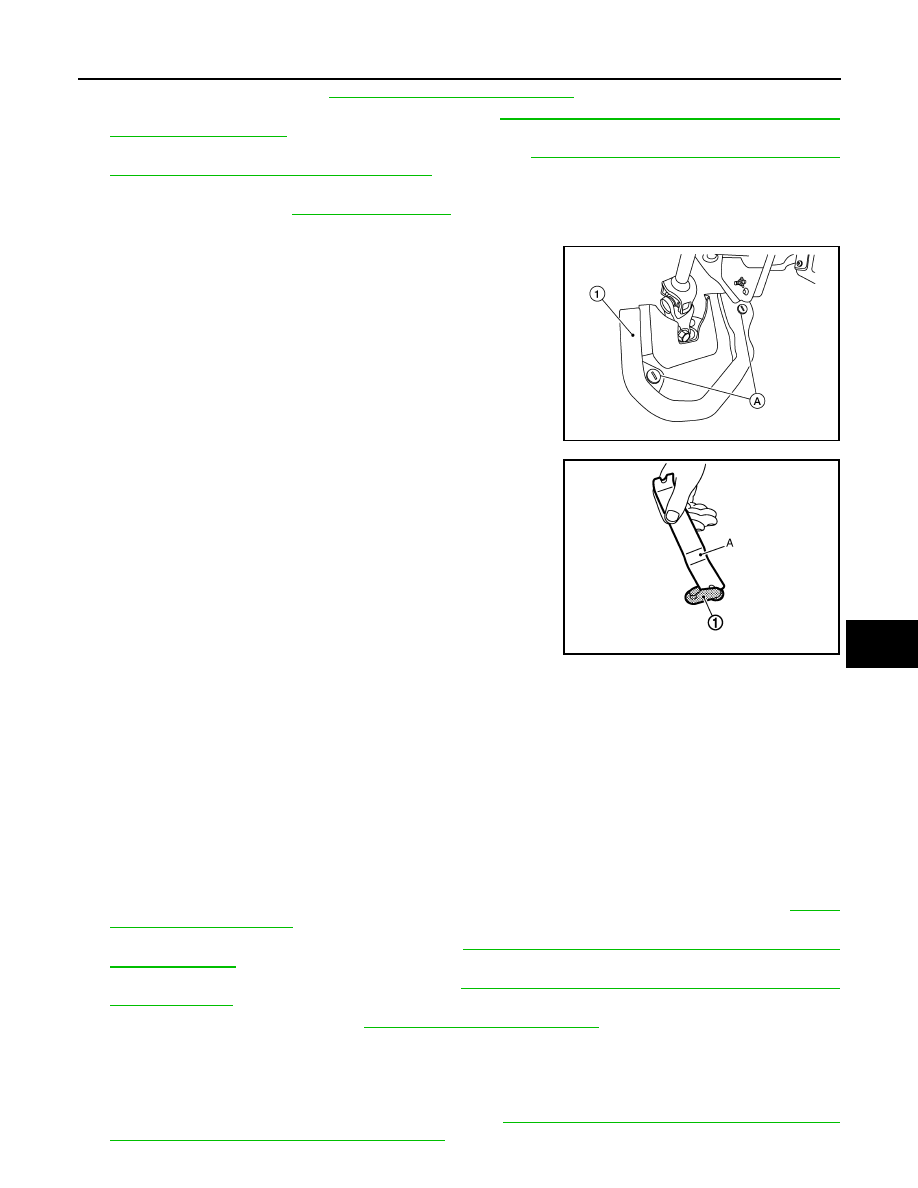

13. Release clips (A) using a suitable tool and remove steering joint

floor cover (1).

14. Remove floor trim hooks (1) using a suitable tool (A) and front

floor trim.

15. Remove the following parts (if necessary).

• Front floor spacer (LH/RH)

• Rear floor spacer (LH/RH)

INSTALLATION

Installation is in the reverse order of removal.

REMOVAL - Rear Floor Trim

CAUTION:

Before servicing, turn the ignition switch off, disconnect both battery cables and wait at least three

minutes.
1. Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to

PG-80,

"Removal and Installation"

.

2. Partially remove front door welts (LH/RH). Refer to

INT-23, "BODY SIDE WELT : Removal and Installation

- Front Door Welt"

.

3. Partially remove rear door welts (LH/RH). Refer to

INT-23, "BODY SIDE WELT : Removal and Installation

- Rear Door Welt"

.

4. Remove second row seats. Refer to

SE-39, "Removal and Installation"

.

5. Remove seat belt lower anchor bolt (LH/RH).

CAUTION:

Before removing the seat belt lower anchor bolt, note the positions of washers and spacers for

correct installation.

6. Remove luggage side lower finisher (LH/RH). Refer to

INT-34, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation - With Third Row Seat"

.

ALJIA1359ZZ

JMJIA1002ZZ

INT-28

< REMOVAL AND INSTALLATION >

FLOOR TRIM

7. Remove third row seats (if equipped). Refer to

SE-43, "Removal and Installation"

.

8. Remove rear floor trim.

INSTALLATION

Installation is in the reverse order of removal.
