FRONT DOOR FINISHER

INT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

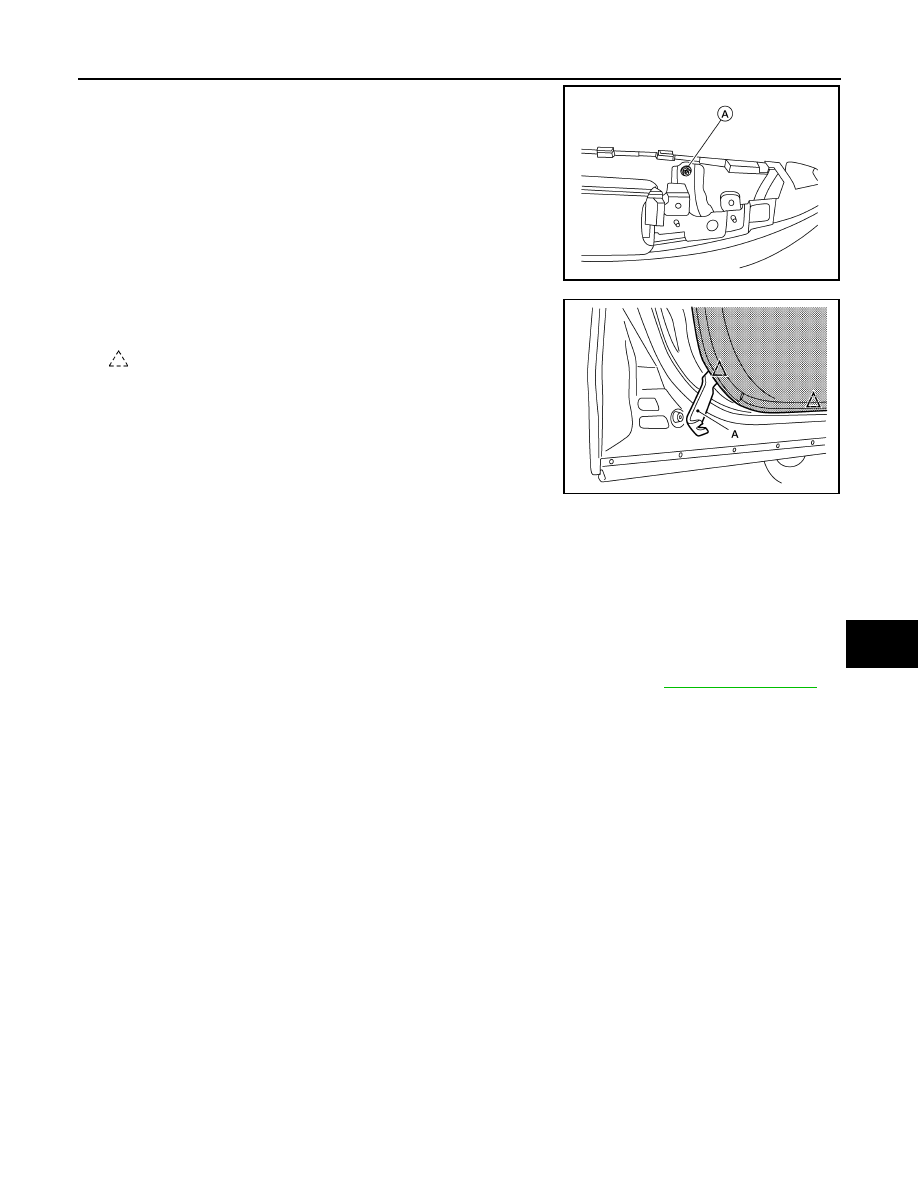

7. Remove front door finisher bolt (A).

8. Insert suitable tool (A) between front door finisher and door

panel to release clips and pawl, starting from the bottom and

working to the top.

: Clip

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation. Replace with new

ones if necessary.

• When installing front door finisher, check that clips and pawls are securely placed in door panel

holes.

NOTE:

When main power window and door lock/unlock switch or power window door lock/unlock switch RH is

removed or replaced, it is necessary to perform the initialization procedure. Refer to

PWC-26, "Work Flow"

.

ALJIA1338ZZ

ALJIA1341ZZ

INT-18

< REMOVAL AND INSTALLATION >

REAR DOOR FINISHER

REAR DOOR FINISHER

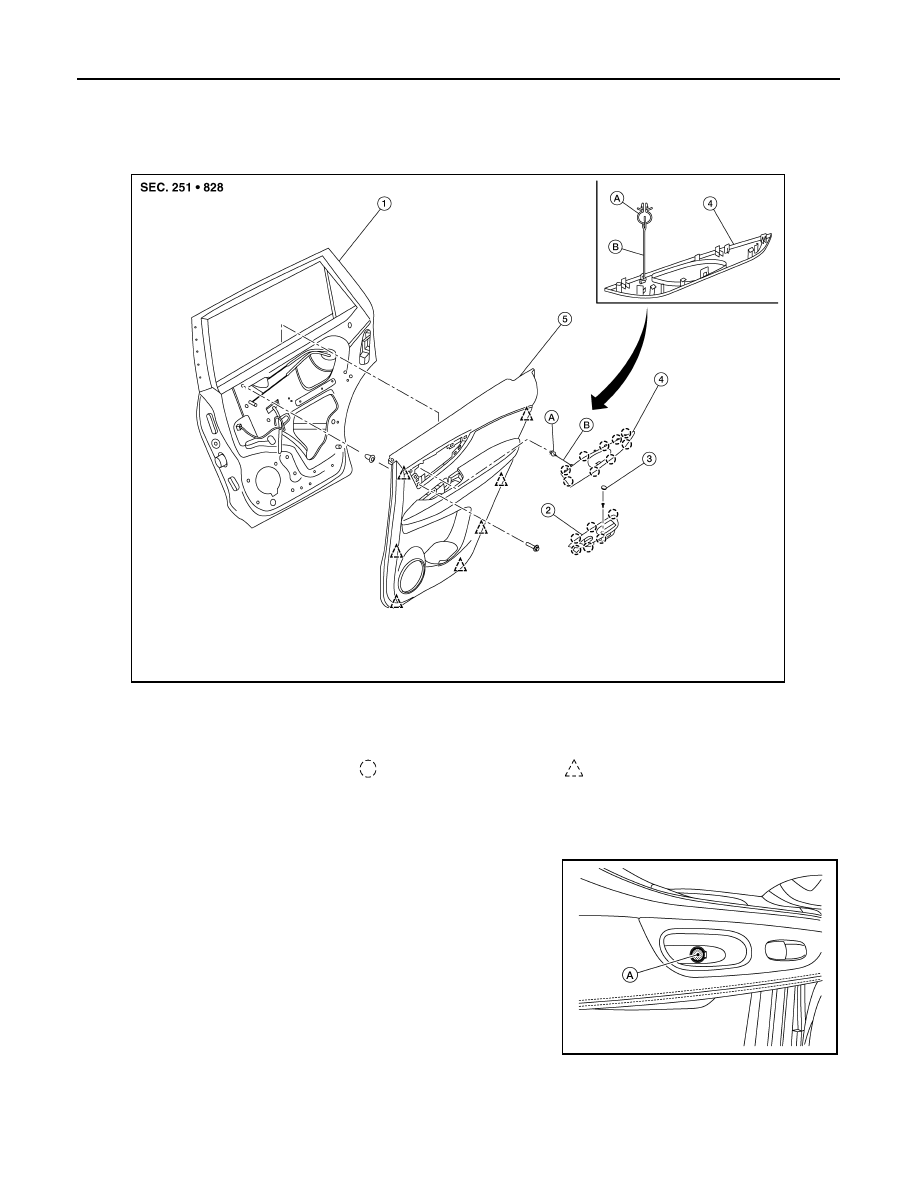

Exploded View

INFOID:0000000011277474

Removal and Installation

INFOID:0000000011277475

REMOVAL

1. Remove screw cover (1).

1.

Rear door

2.

Rear power window switch fin-
isher

3.

Rear door screw cover

4.

Rear door inside handle finisher 5.

Rear door finisher

A.

Tether clip

B.

Tether

Pawl

Clip

AWJIA1312ZZ

ALJIA1377ZZ

REAR DOOR FINISHER

INT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

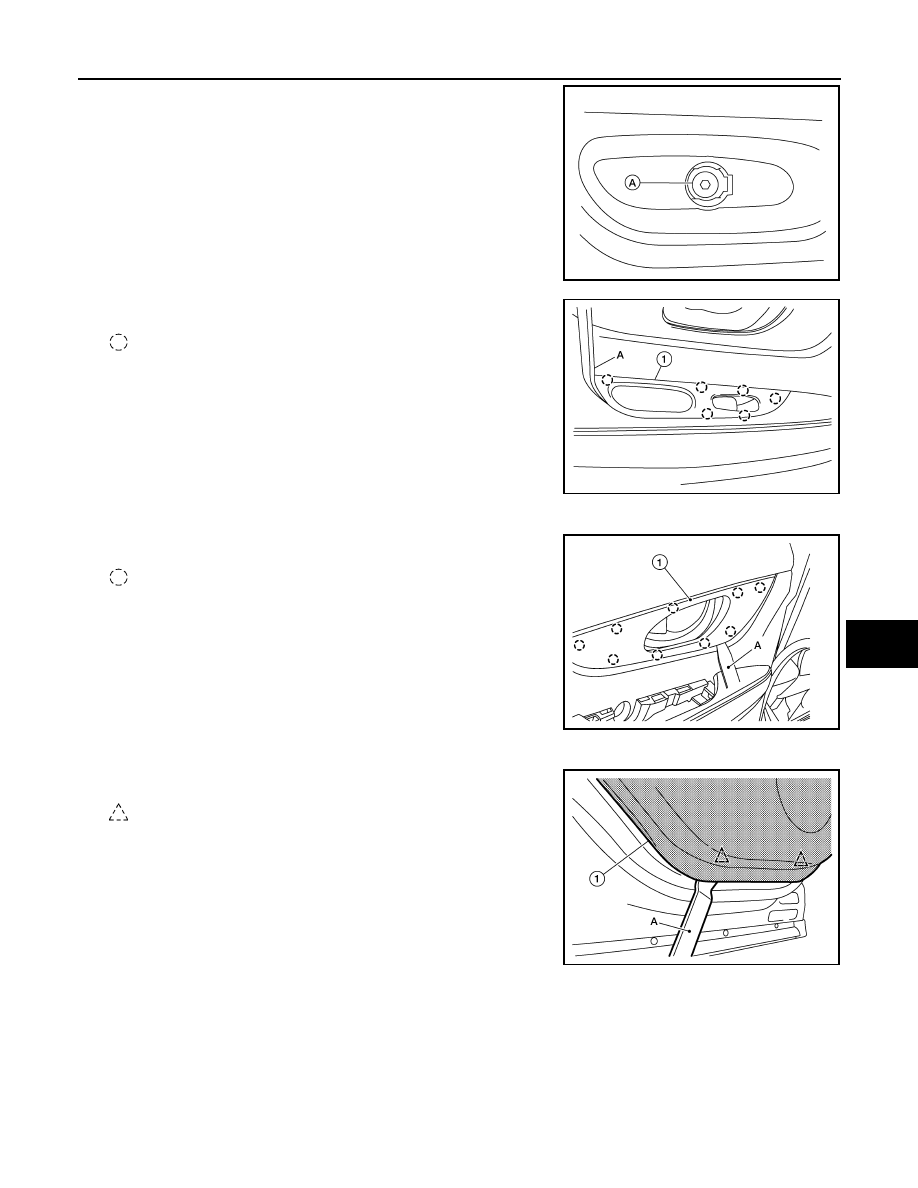

2. Remove screw (A).

3. Release pawls using a suitable tool (A) and remove rear power

window switch finisher (1).

: Pawl

4. Disconnect harness connector from rear power window switch finisher.
5. Release pawls using a suitable tool (A) and remove rear door

inside handle finisher (1).

: Pawl

6. Release clip and remove tether from the front door panel.
7. Release clips using a suitable tool (A) and remove rear door fin-

isher (1).

: Clip

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation. Replace with new

ones if necessary.

• When installing rear door finisher, check that clips and pawls are securely placed in door panel

holes.

ALJIA1378ZZ

ALJIA1344ZZ

AWJIA1321ZZ

ALJIA1355ZZ

INT-20

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

BODY SIDE TRIM

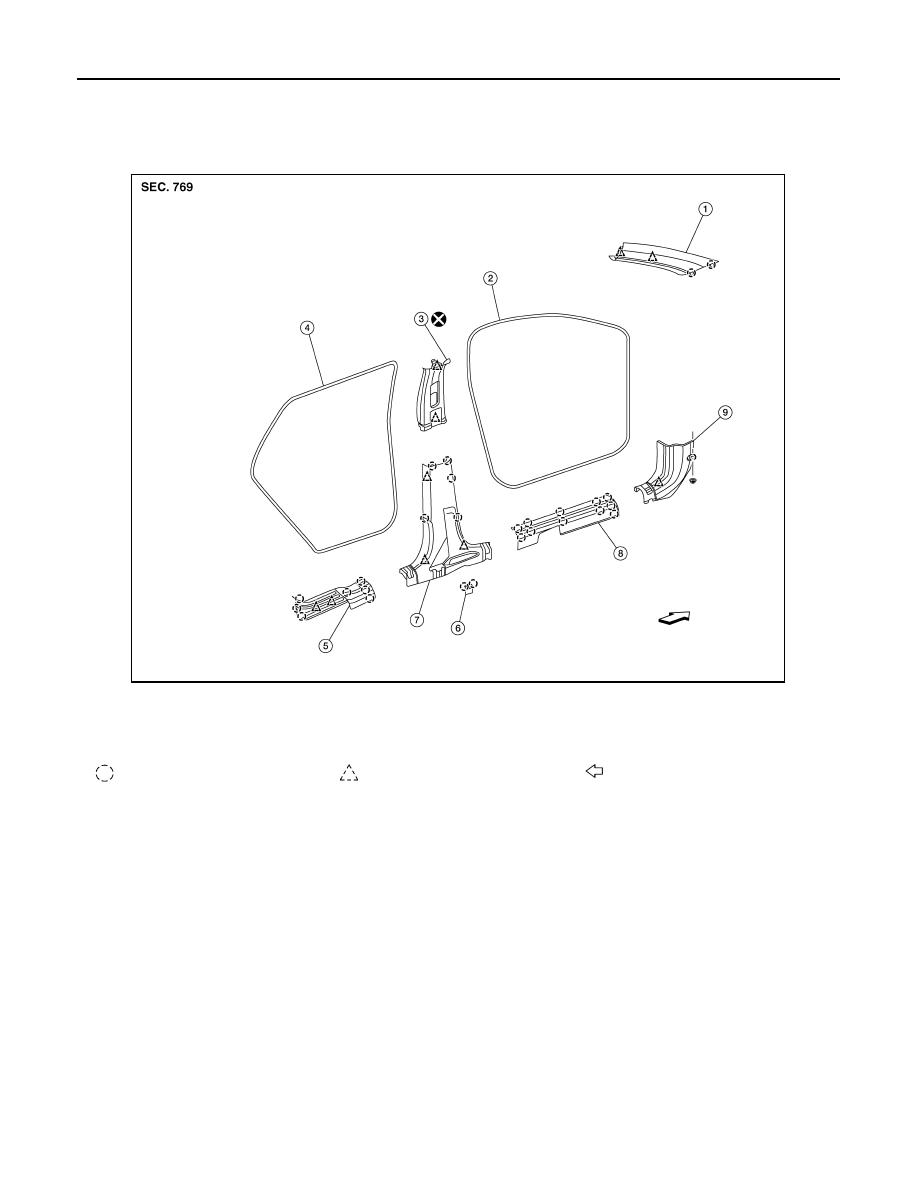

Exploded View

INFOID:0000000011277476

FRONT PILLAR FINISHER
FRONT PILLAR FINISHER : Removal and Installation

INFOID:0000000011277477

REMOVAL

1. Partially remove front door welt (front edge).

1.

Front pillar finisher

2.

Front body side welt

3.

Center pillar upper finisher

4.

Rear body side welt

5.

Rear kicking plate

6.

Seat belt cover

7.

Center pillar lower finisher

8.

Front kicking plate

9.

Dash side finisher

Pawl

Clip

Front

AWJIA1324ZZ
