SQUEAK AND RATTLE TROUBLE DIAGNOSES

INT-13

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

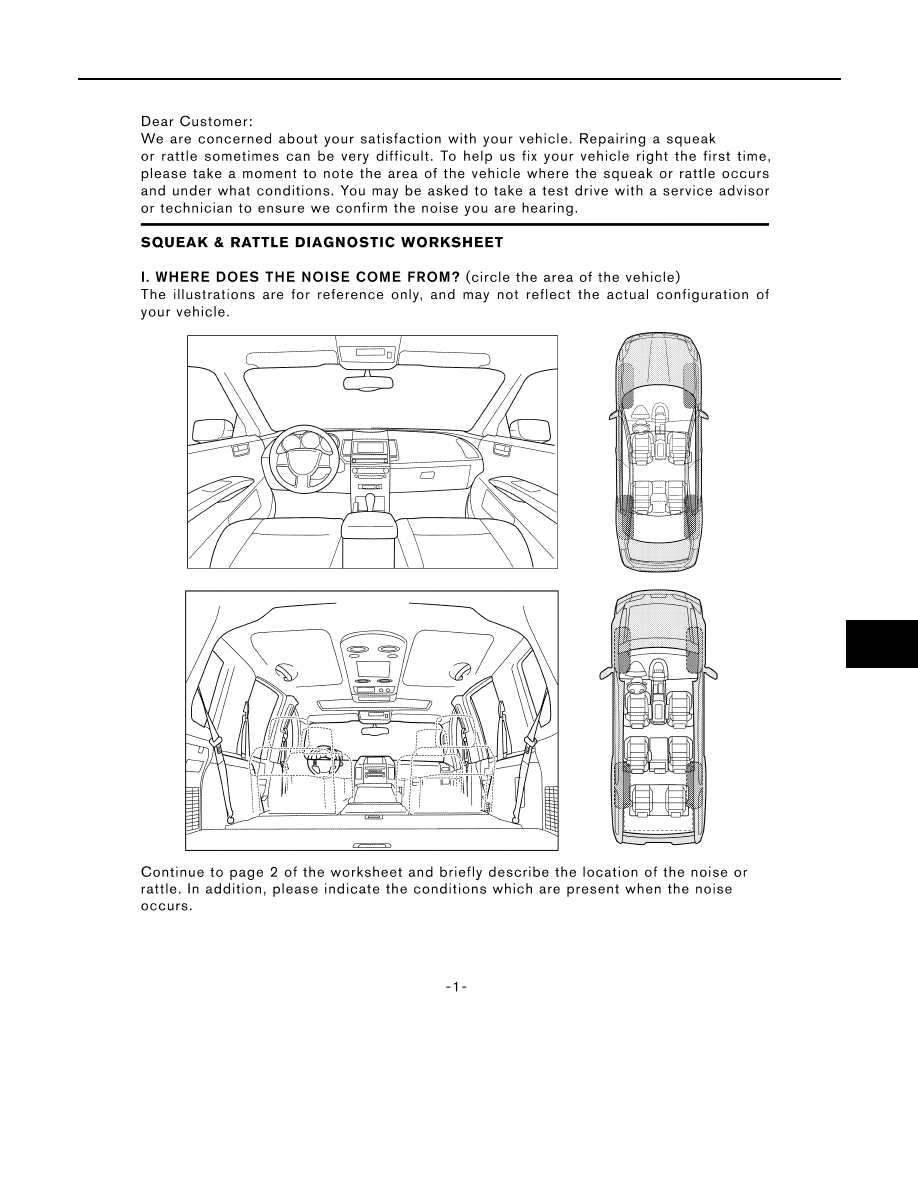

Diagnostic Worksheet

INFOID:0000000011277471

LAIA0072E

INT-14

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

LAIA0071E

FRONT DOOR FINISHER

INT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

REMOVAL AND INSTALLATION

FRONT DOOR FINISHER

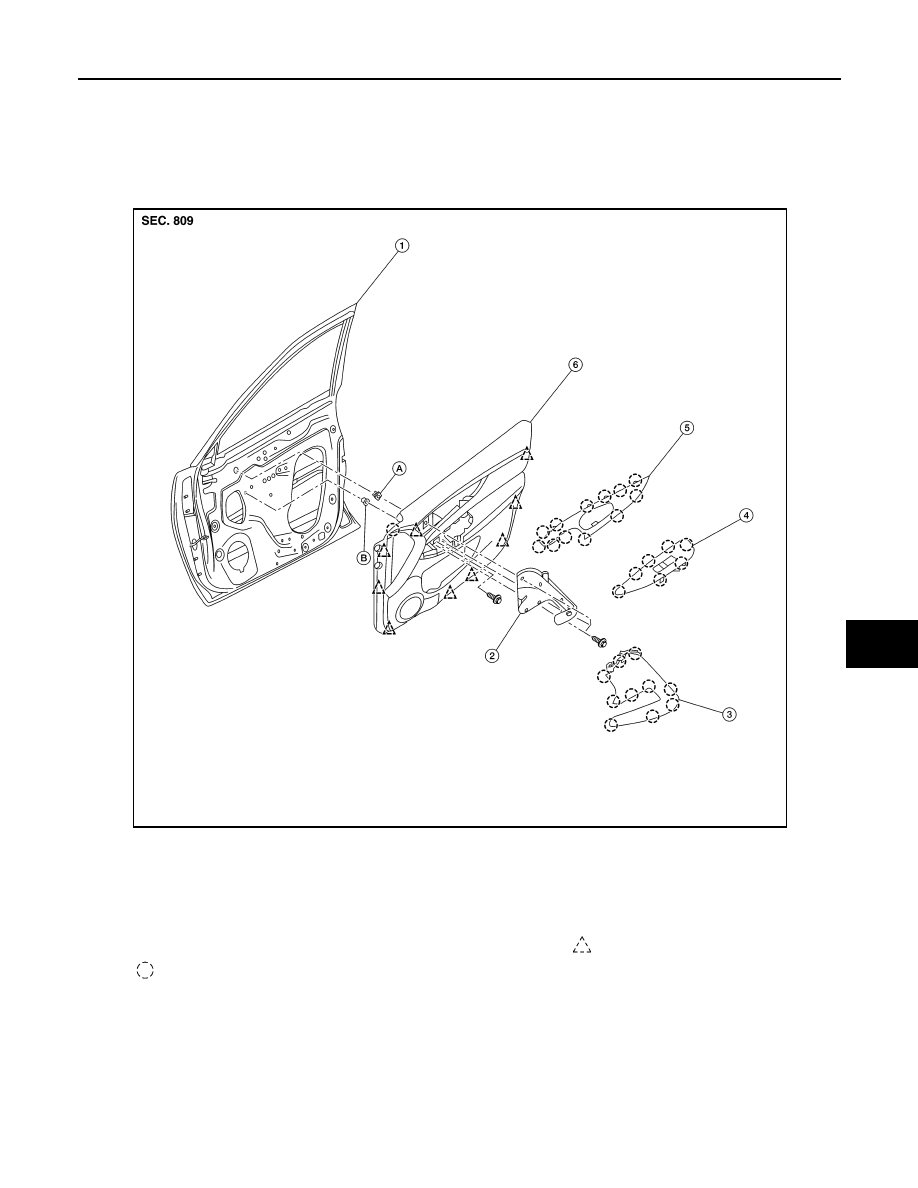

Exploded View

INFOID:0000000011277472

Removal and Installation

INFOID:0000000011277473

REMOVAL

NOTE:

LH shown, RH similar.

1.

Front door

2.

Front door pull handle bracket

3.

Front door pull handle

4.

Main power window and door
lock/unlock switch finisher or
power window and door lock/un-
lock switch RH finisher

5.

Front door inside handle finisher 6.

Front door finisher

A.

Fastener

B.

Grommet

Clip

Pawl

AWJIA1565ZZ

INT-16

< REMOVAL AND INSTALLATION >

FRONT DOOR FINISHER

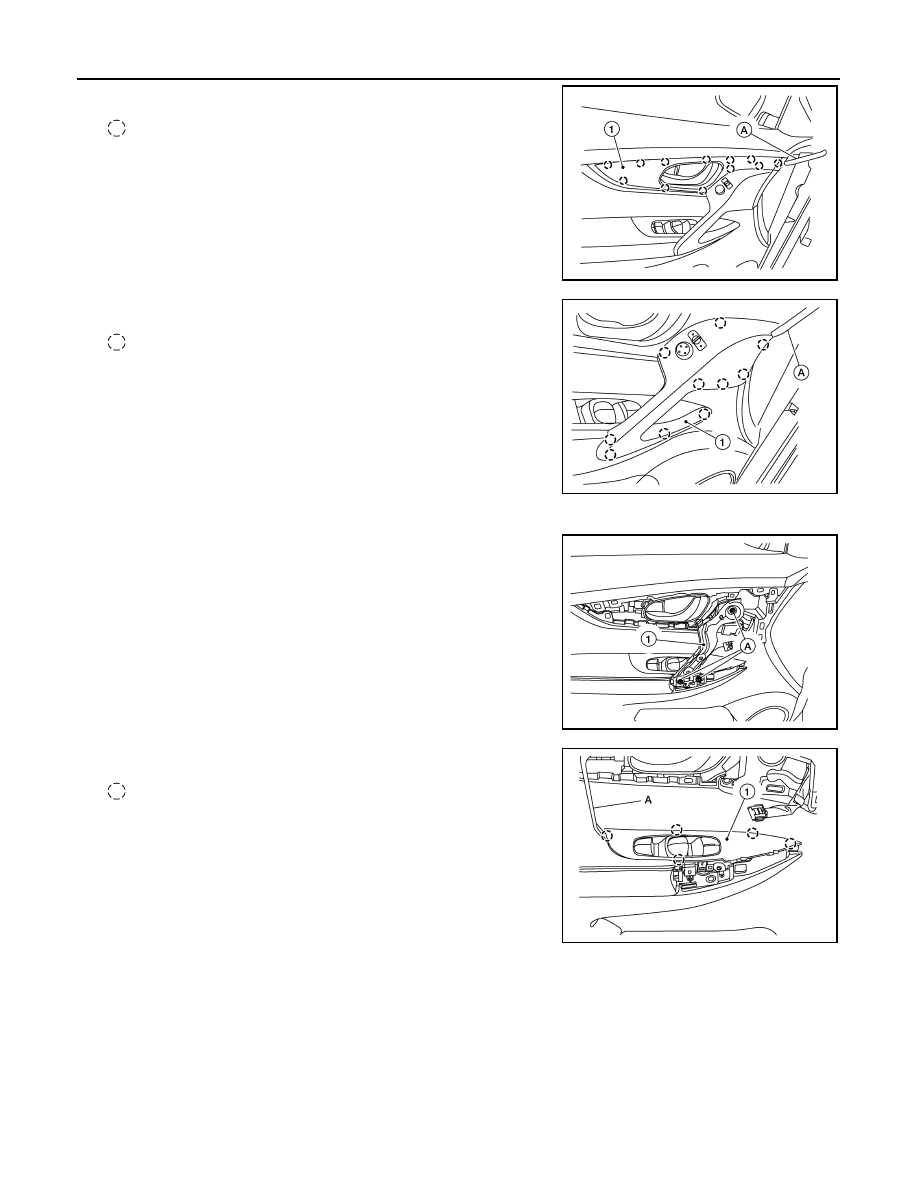

1. Release pawls using a suitable tool (A) from front of inside han-

dle finisher (1) while working toward the rear and remove.

: Pawl

2. Release pawls using a suitable tool (A) from front of inside han-

dle finisher (1) while working toward the rear and remove.

: Pawl

3. Disconnect harness connector from door mirror remote control switch (LH only).
4. Remove bolts (A) and  front door inside pull handle bracket (1).

5. Release pawls using a suitable tool (A) and remove front door

power window and door lock/unlock switch finisher (1).

: Pawl

6. Disconnect harness connectors from front door power window and door lock/unlock switch.

AWJIA1322ZZ

AWJIA1323ZZ

ALJIA1336ZZ

ALJIA1466ZZ
