Nissan Rogue. Manual - part 818





LUGGAGE TRIM

INT-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

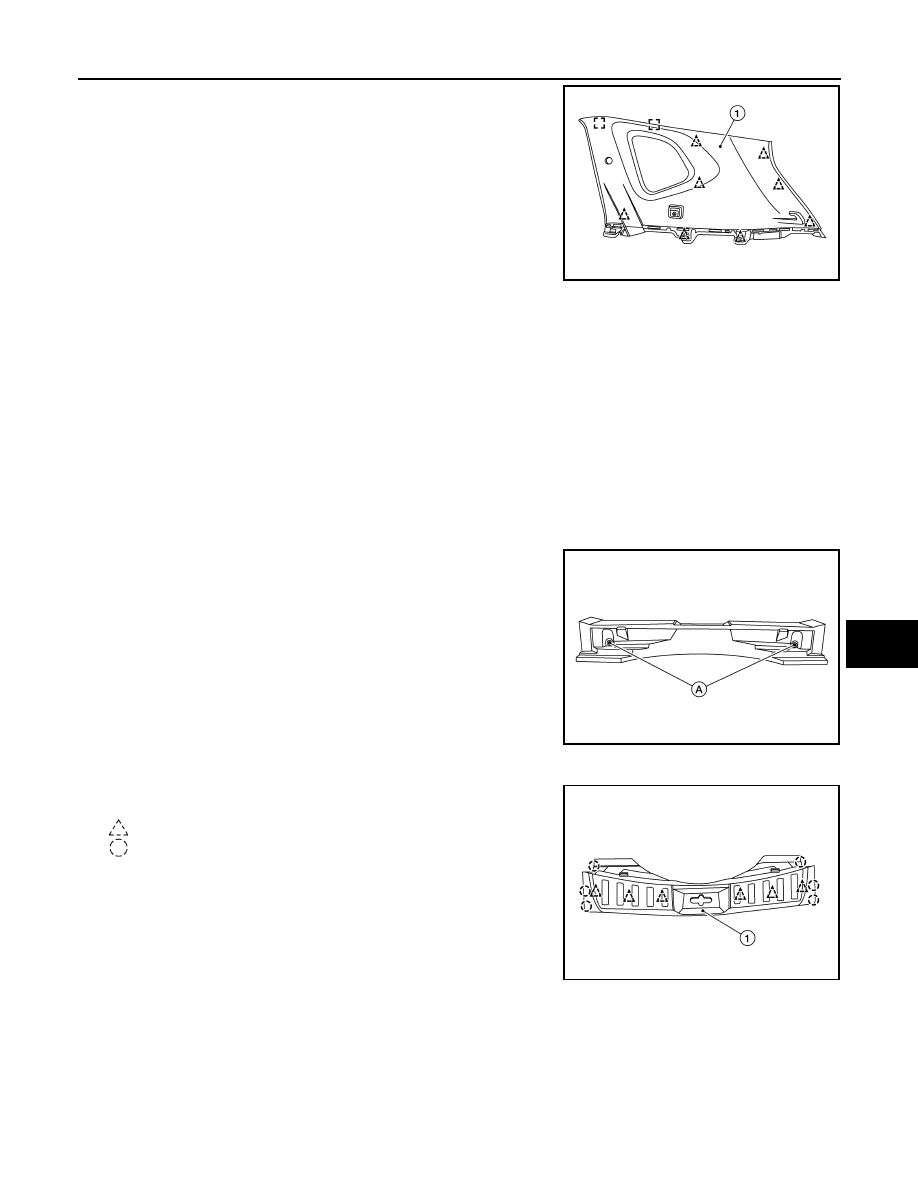

4. Release clips, then remove luggage side upper finisher (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation. Replace with new ones if

necessary.

• When installing luggage side upper finisher, check that clips are securely placed in body panel

holes.

LUGGAGE REAR PLATE
LUGGAGE REAR PLATE : Removal and Installation

INFOID:0000000011277493

REMOVAL

1. Remove the luggage floor cover.
2. Release the luggage rear plate front clips (A) using a suitable

tool.

3. Remove the striker finisher.
4. Release clips and pawls using a suitable tool and remove lug-

gage rear plate (1).

: Clip
: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation. Replace with new

ones if necessary.

• When installing luggage rear plate, check that clips and pawls are securely placed in body panel

holes.

ALJIA1351ZZ

ALJIA1370ZZ

ALJIA1352ZZ

INT-38

< REMOVAL AND INSTALLATION >

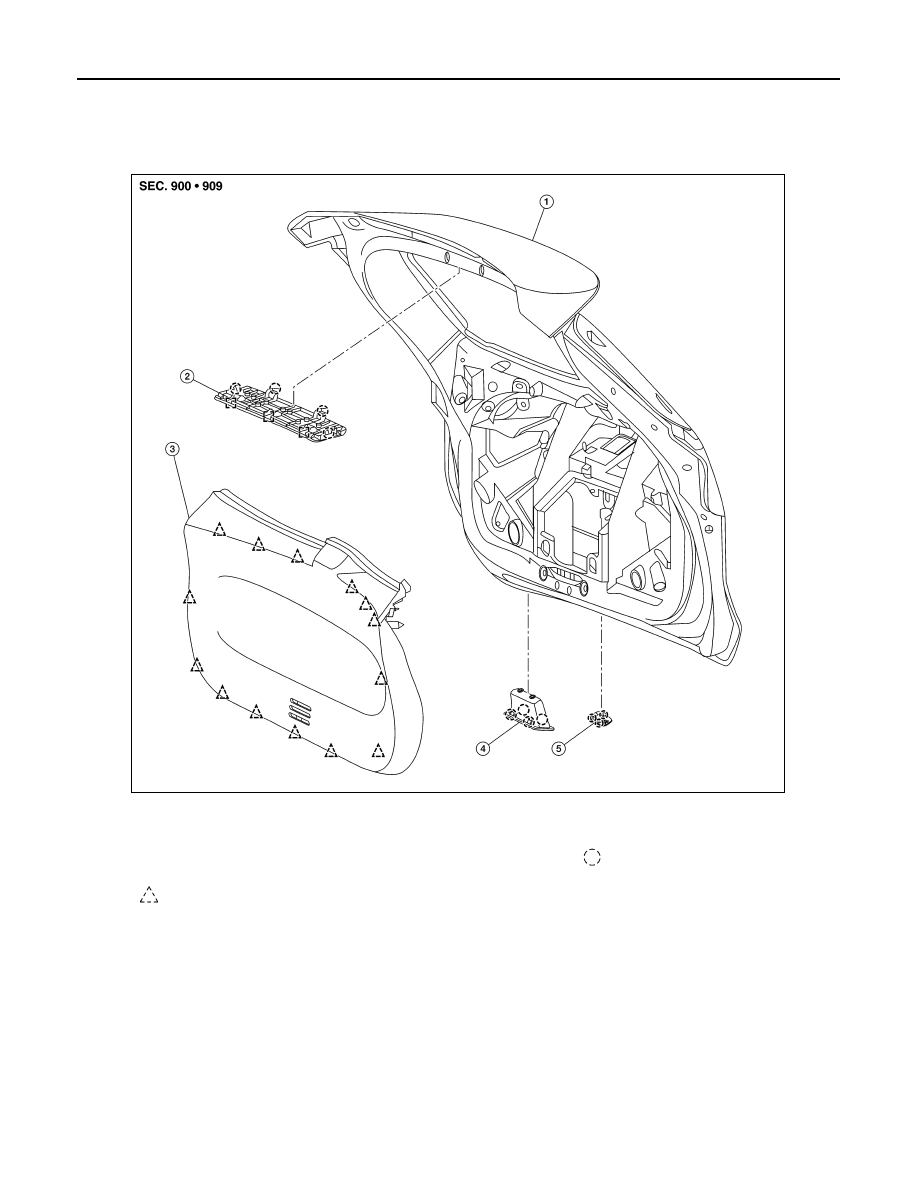

BACK DOOR FINISHER

BACK DOOR FINISHER

Exploded View

INFOID:0000000011277494

Removal and Installation

INFOID:0000000011277495

REMOVAL

1. Back door

2. Access cover

3.

Back door finisher

4. Back door pull handle

5. Mask (without automatic back door close

switch) or automatic back door close switch fin-
isher (with automatic back door close switch)

Pawl

Clip

AWJIA1564ZZ

BACK DOOR FINISHER

INT-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

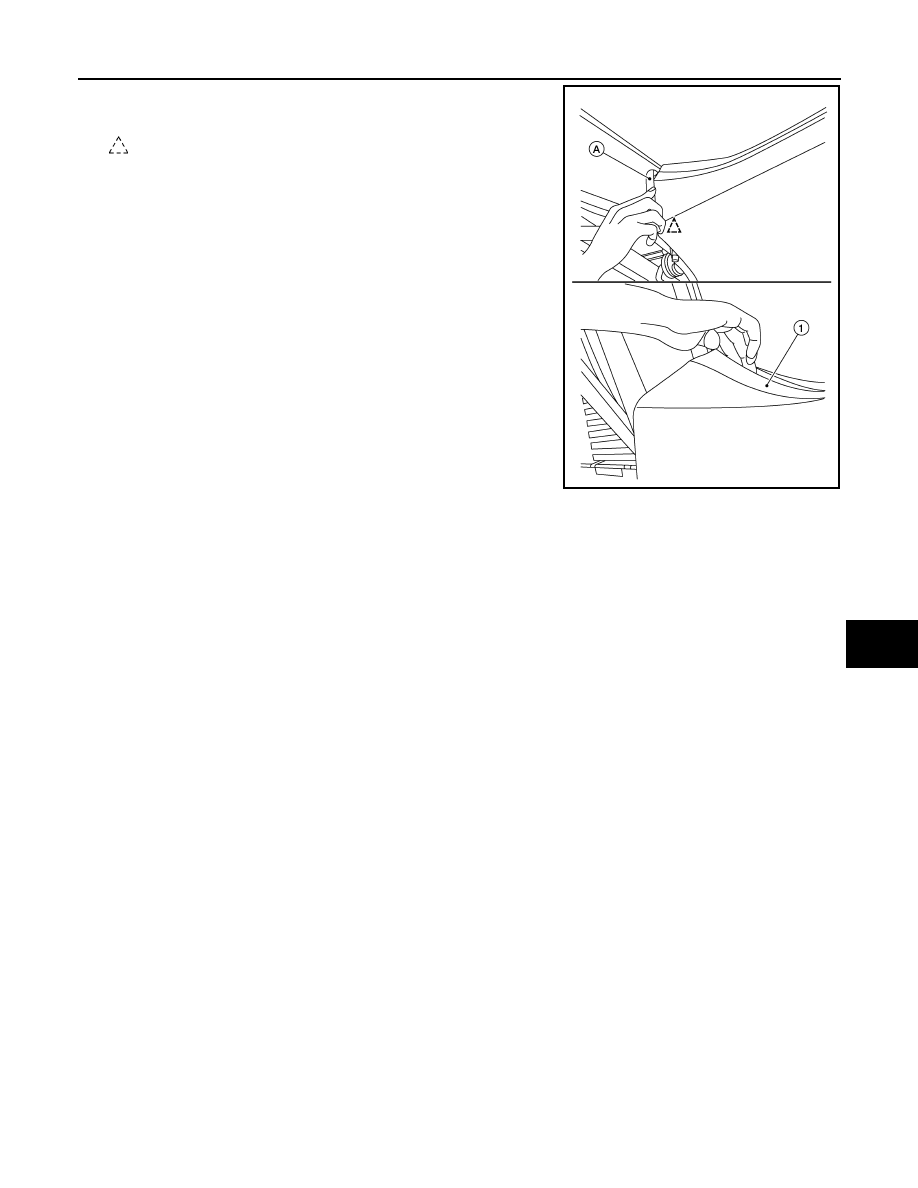

1. Using a suitable tool (A) release upper LH most clip, then

release remaining clips by gently pulling down on back door fin-

isher (1).

 : Clip

2. Remove back door finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing back door finisher, check that clips are securely placed in door panel holes.

ALJIA1379ZZ

IP-1

BODY INTERIOR

C

D

E

F

G

H

I

K

L

M

SECTION

IP

A

B

IP

N

O

P

CONTENTS

INSTRUMENT PANEL

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

Precaution for Work  ..................................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tools ..............................................

3

Commercial Service Tools .......................................

3

CLIP LIST  ............................................................

4

Descriptions for Clips  ................................................

4

SYMPTOM DIAGNOSIS  ...............................

8

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

8

Work Flow  .................................................................

8

Generic Squeak and Rattle Troubleshooting  ............

9

Diagnostic Worksheet  .............................................

12

REMOVAL AND INSTALLATION ...............

14

INSTRUMENT PANEL ASSEMBLY  ..................

14

Exploded View  ........................................................

14

INSTRUMENT PANEL ASSEMBLY ..........................

14

INSTRUMENT PANEL ASSEMBLY : Removal
and Installation  ........................................................

14

INSTRUMENT FINISHER A  ......................................

15

INSTRUMENT FINISHER A : Removal and Instal-
lation ........................................................................

15

INSTRUMENT FINISHER B .......................................

16

INSTRUMENT FINISHER B : Removal and Instal-
lation ........................................................................

16

INSTRUMENT FINISHER E .......................................

16

INSTRUMENT FINISHER E : Removal and Instal-
lation ........................................................................

16

STEERING COLUMN COVERS  .......................

18

Removal and Installation  .........................................

18

CENTER CONSOLE ASSEMBLY  ....................

19

Exploded View .........................................................

19

Removal and Installation  .........................................

19

CLUSTER LID A  ...............................................

21

Removal and Installation  .........................................

21

CLUSTER LID C  ...............................................

22

Exploded View .........................................................

22

Removal and Installation  .........................................

22

INSTRUMENT LOWER PANEL LH ..................

23

Removal and Installation  .........................................

23

GLOVE BOX ASSEMBLY AND HOUSING ......

24

Removal and Installation  .........................................

24

UNIT DISASSEMBLY AND ASSEMBLY  ....

26

CENTER CONSOLE ASSEMBLY  ....................

26

Exploded View .........................................................

26

Disassembly and Assembly .....................................

26
