Nissan Rogue. Manual - part 790





HAC-182

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

FRONT AIR CONTROL

REMOVAL AND INSTALLATION

FRONT AIR CONTROL

Removal and Installation

INFOID:0000000011276718

REMOVAL

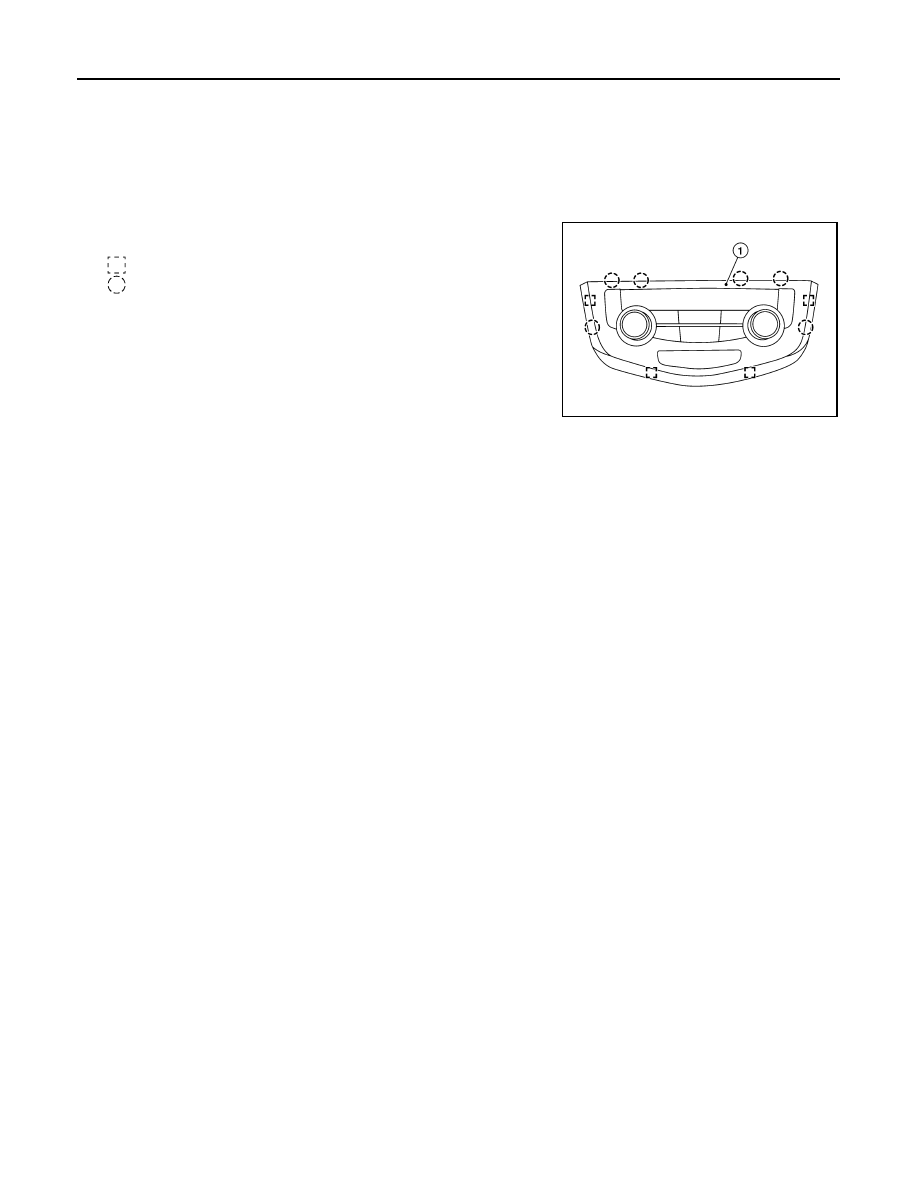

1. Release the front air control clips and pawls using a suitable

tool.

: Metal clip
: Pawl

2. Disconnect the harness connectors from the front air control (1)

and remove.

INSTALLATION

Installation is in the reverse order of removal.

AWIIA1791ZZ

INTAKE SENSOR

HAC-183

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

INTAKE SENSOR

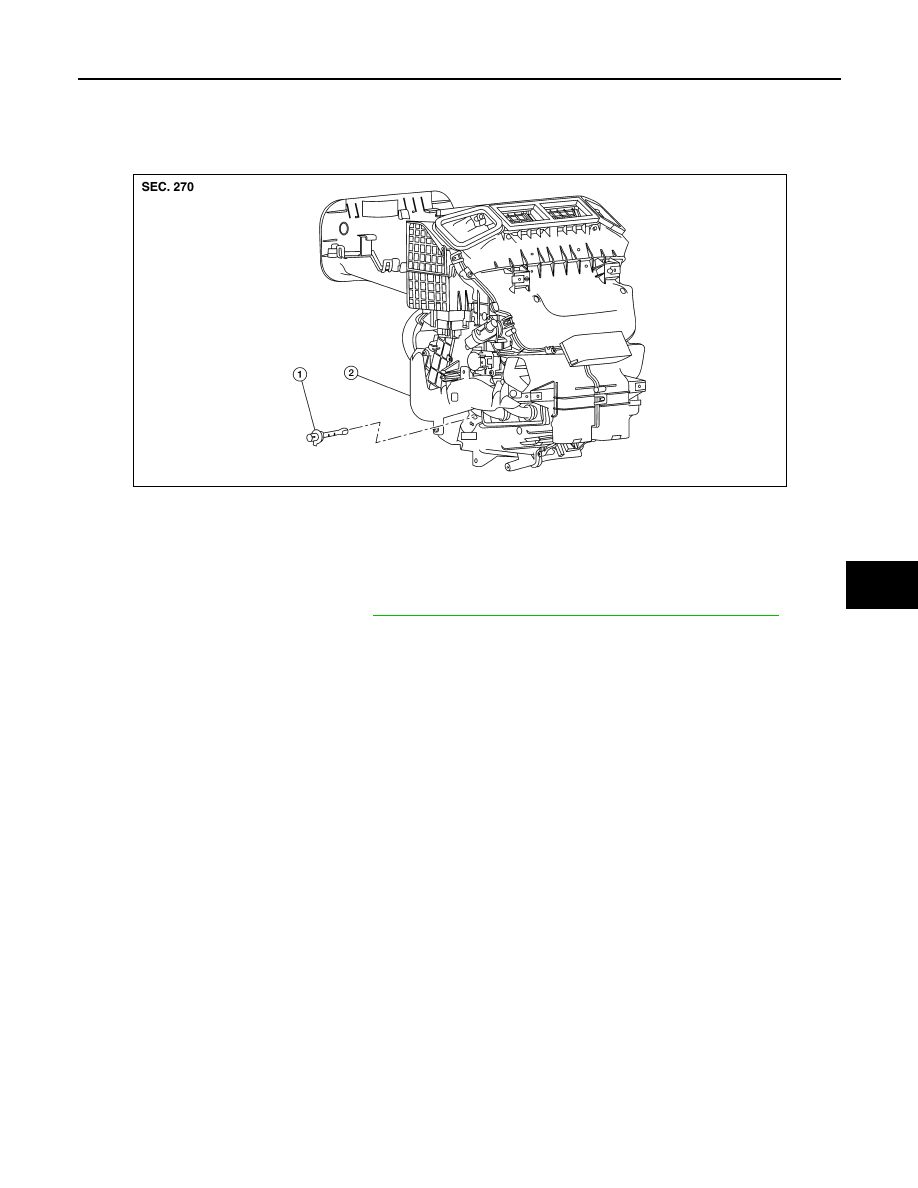

Exploded View

INFOID:0000000011276719

Removal and Installation

INFOID:0000000011276720

REMOVAL

1. Remove front foot duct (LH). Refer to

VTL-10, "FRONT FOOT DUCT : Removal and Installation"

.

2. Disconnect the harness connector and remove intake sensor.

INSTALLATION

Installation is in the reverse order of removal.

1.

Intake sensor

2.

Heating and cooling unit assembly

ALIIA0888ZZ

HAC-184

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

REFRIGERANT PRESSURE SENSOR

REFRIGERANT PRESSURE SENSOR

Removal and Installation

INFOID:0000000011276721

REMOVAL

1. Discharge the refrigerant. Refer to

HA-22, "Recycle Refrigerant"

.

2. Remove front bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

3. Remove air guide (RH). Refer to

HA-37, "Exploded View"

4. Disconnect the harness connector from the refrigerant pressure sensor.

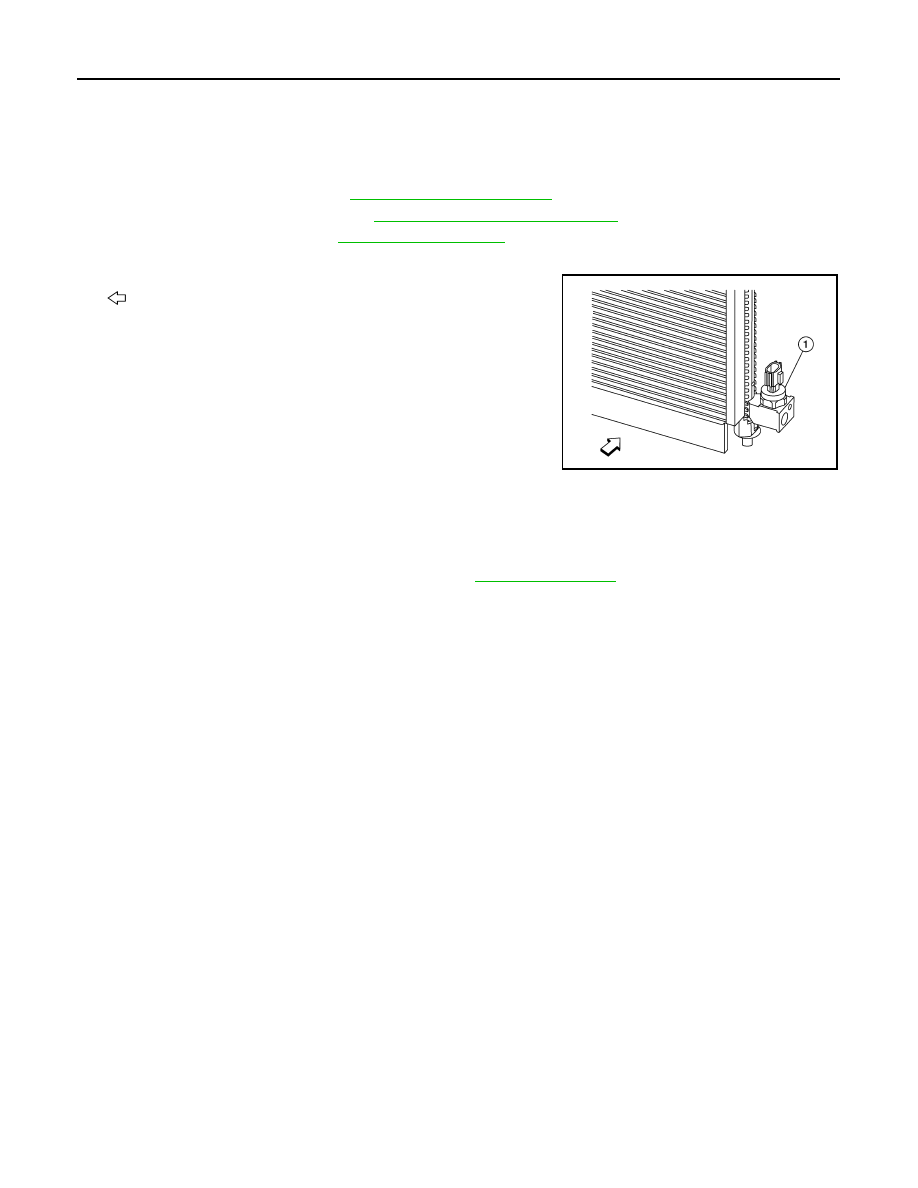

5. Remove the refrigerant pressure sensor (1) from the condenser.

: Front

CAUTION:

Cap or wrap the opening of the refrigerant pressure sensor

with suitable material such as vinyl tape to avoid the entry

of air.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply A/C oil to new O-ring for installation.

• After charging refrigerant, check for leaks. Refer to

HA-21, "Leak Test"

.

ALIIA0714ZZ

DOOR MOTOR

HAC-185

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

DOOR MOTOR

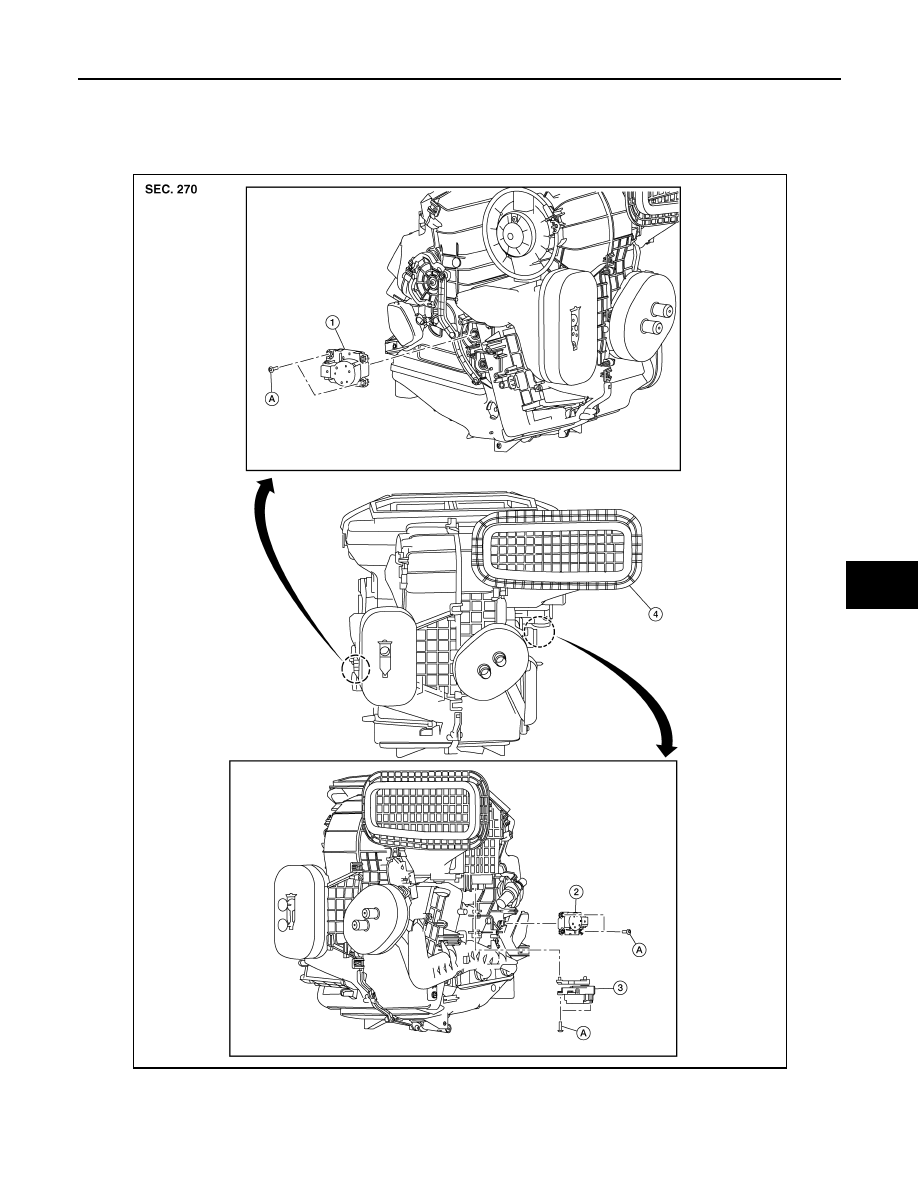

Exploded View

INFOID:0000000011276722

1.

Mode door motor

2.

Air mix door motor

3.

Intake door motor

4.

Heating and cooling unit assembly

A.

Screw

AWIIA1795ZZ
