Nissan Rogue. Manual - part 791

HAC-186

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

DOOR MOTOR

INTAKE DOOR MOTOR
INTAKE DOOR MOTOR : Removal and Installation

INFOID:0000000011276723

REMOVAL

1. Remove front foot duct (LH). Refer to

VTL-10, "FRONT FOOT DUCT : Removal and Installation"

.

2. Disconnect the harness connector from the intake door motor.

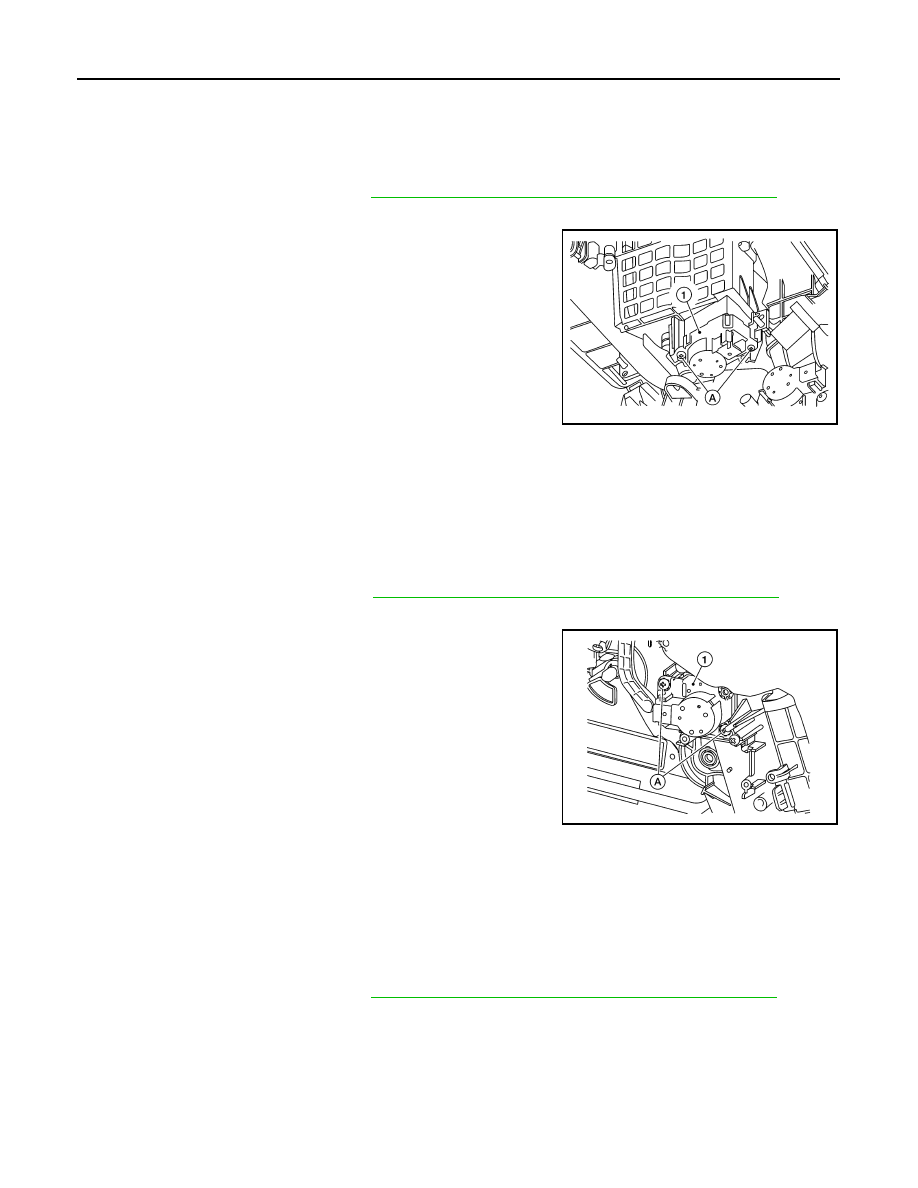

3. Remove screws (A) and intake door motor (1).

INSTALLATION

Installation is in the reverse order of removal.

MODE DOOR MOTOR
MODE DOOR MOTOR : Removal and Installation

INFOID:0000000011276724

REMOVAL

1. Remove front foot duct (RH). Refer to

VTL-10, "FRONT FOOT DUCT : Removal and Installation"

.

2. Disconnect the harness connector from the mode door motor.
3. Remove screws (A) and mode door motor (1).

INSTALLATION

Installation is in the reverse order of removal.

AIR MIX DOOR MOTOR
AIR MIX DOOR MOTOR : Removal and Installation

INFOID:0000000011276725

REMOVAL

1. Remove front foot duct (LH). Refer to

VTL-10, "FRONT FOOT DUCT : Removal and Installation"

.

2. Disconnect the harness connector from the air mix door motor.

ALIIA0880ZZ

ALIIA0952ZZ

DOOR MOTOR

HAC-187

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

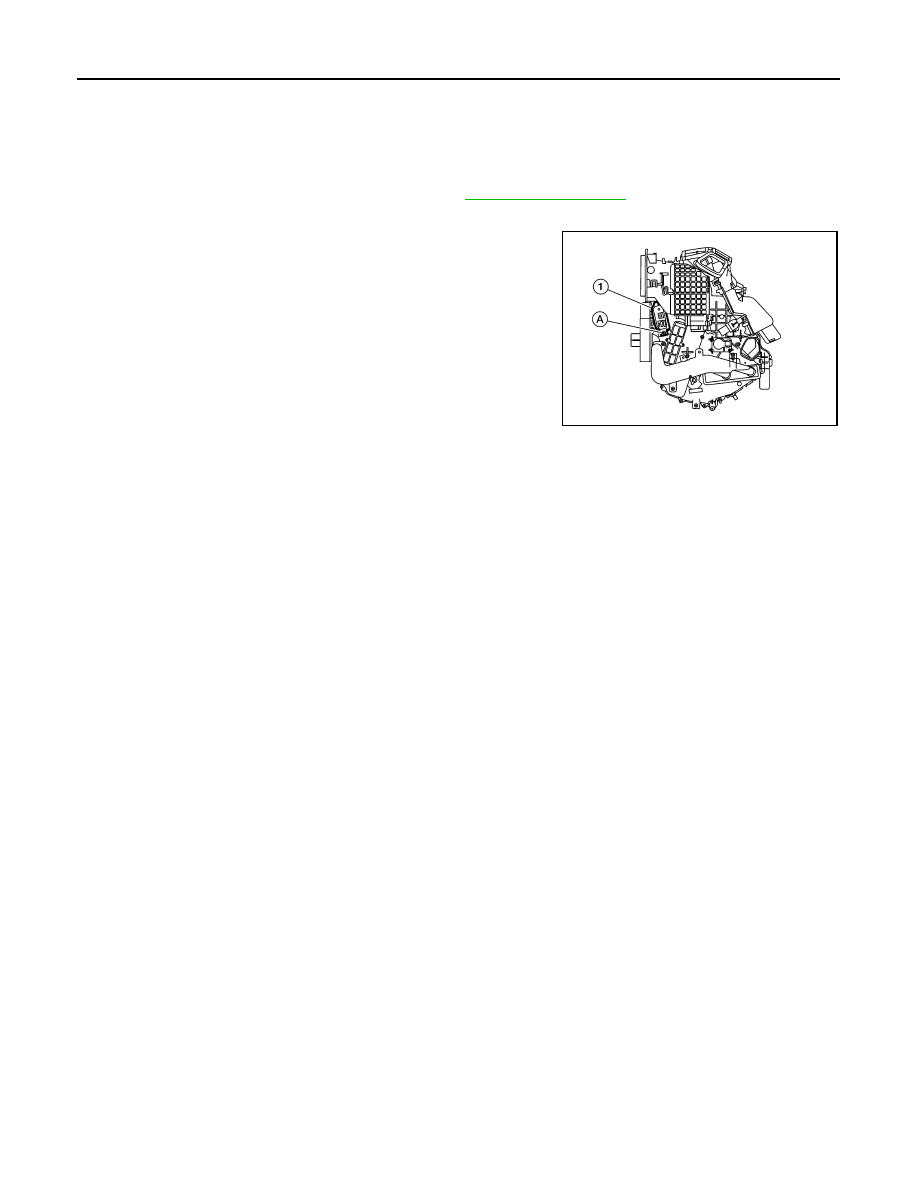

3. Remove screws (A) and air mix door motor (1).

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0883ZZ

HAC-188

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

VARIABLE BLOWER CONTROL

VARIABLE BLOWER CONTROL

Removal and Installation

INFOID:0000000011276726

REMOVAL

1. Remove center console side finisher (LH). Refer to

IP-19, "Exploded View"

.

2. Disconnect the harness connector from the variable blower control.

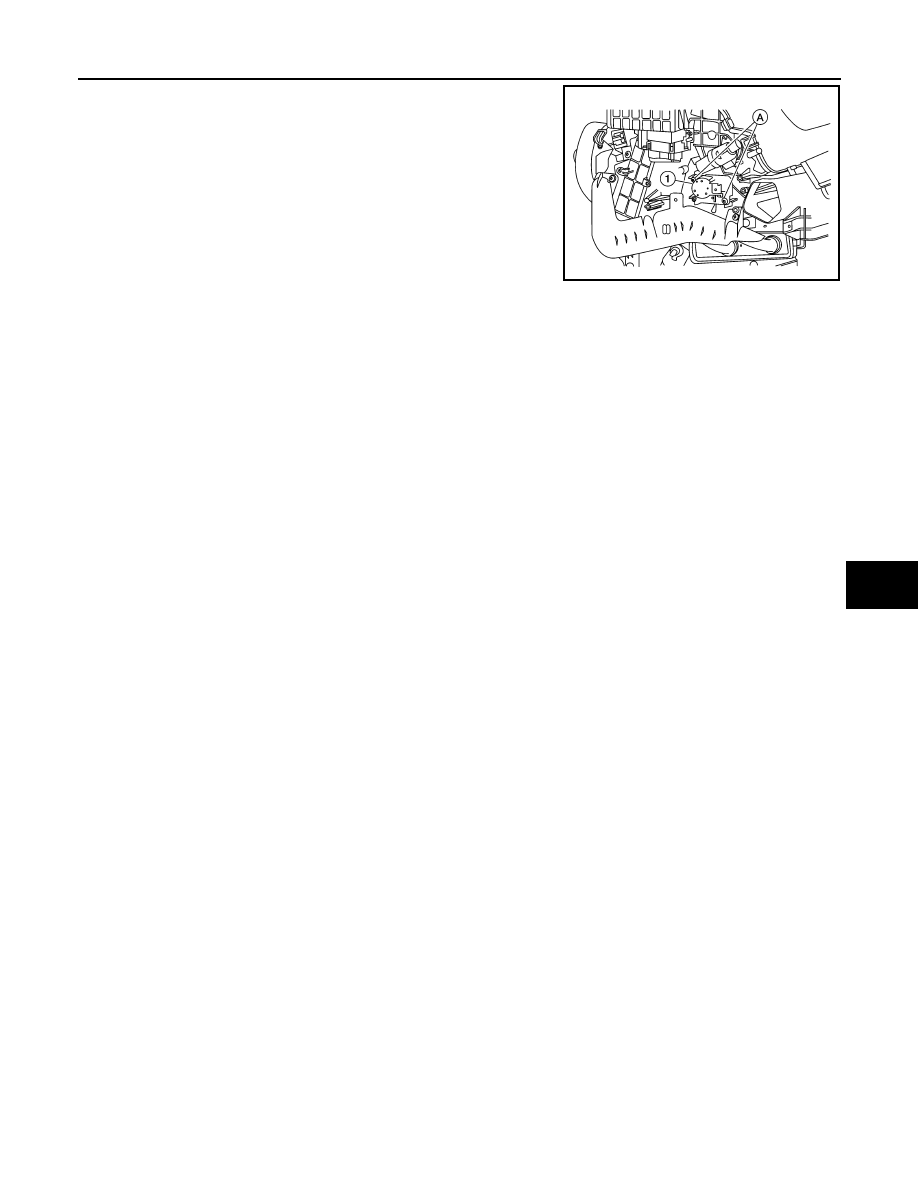

3. Remove screw (A) and variable blower control (1).

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0889ZZ
