HAC-130

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONING]

DIAGNOSIS SYSTEM (IPDM E/R)

HEADLAMP (HI) RH [%]

Indicates condition of headlamp high beam RH.

HEADLAMP (LO) LH [%]

Indicates condition of headlamp low beam LH.

HEADLAMP (LO) RH [%]

Indicates condition of headlamp low beam RH.

A/C RELAY STUCK [NG/OK]

Indicates condition of A/C relay.

A/C RELAY [Off/On]

Indicates condition of A/C relay.

COMP ECV STATUS [NG/OK]

Indicates condition of A/C compressor.

VEHICLE SECURITY HORN [Off/On]

Indicates condition of horn relay.

BATTERY CURRENT SENSOR [NG/OK]

Indicates condition of battery current sensor.

FRONT FOG LAMP [Off/On]

Indicates condition of front fog lamps.

COMP ECV CURRENT [A]

Indicates condition of A/C compressor current.

BATTERY VOLTAGE [V]

Indicates condition of battery voltage.

COOLING FAN DUTY [%]

Indicates condition of cooling fans.

HOOD SW (CAN) [OPEN/CLOSE]

Indicates condition of hood switch.

FRONT WIPER [STOP/LOW/HIGH]

Indicates condition of front wiper motor.

FR WIPER STOP POSITION [STOP P/ACTIVE P]

Indicates condition of front wiper motor stop.

HEADLAMP (HI) [Off/On]

Indicates condition of headlamp high beams.

HEADLAMP (LO) [Off/On]

Indicates condition of headlamp low beams.

IGNITION RELAY STATUS [Off/On]

Indicates condition of ignition relay-1.

IGN RELAY MONITOR [Off/On]

Indicates condition of ignition relay-1 feedback.

IGNITION POWER SUPPLY [Off/On]

Indicates condition of ignition relay-1.

INTERLOCK/PNP SW (CAN) [Off/On]

Indicates condition of transmission range switch P (Park) and N
(Neutral) positions.

PUSH-BUTTON IGN SW (CAN) [Off/On]

Indicates condition of push-button ignition switch.

TAIL LAMP [Off/On]

Indicates condition of tail lamps.

REVERSE SIGNAL (CAN) [Off/On]

Indicates condition of transmission range switch R (Reverse) po-
sition.

ST&ST CONT RELAY STATUS [Off/ST R On]

Indicates condition of starter cut and starter relays.

STARTER MOTOR STATUS [Off/On]

Indicates condition of starter motor.

STARTER RELAY (CAN) [LOW/HIGH]

Indicates condition of starter relay.

IPDM NOT SLEEP [NO RDY/RDY]

Indicates condition of IPDM E/R sleep status.

AFTER COOLING TIME [No request/Request]

Indicates condition of cooling fan request.

AFTER COOLING SPEED [%]

Indicates condition of cooling fans.

COOLING FAN TYPE [NISSAN/RENAULT]

Indicates cooling fan type.

COMPRESSOR REQ1 [Off/On]

Indicates condition of A/C compressor request.

VHCL SECURITY HORN REQ [Off/On]

Indicates condition of horn relay request.

DTRL REQ [Off/On]

Indicates condition of daytime running light request.

SLEEP/WAKE UP [WAKEUP/SLEEP]

Indicates condition of IPDM E/R sleep/wake.

CRANKING ENABLE-TCM [NG/OK]

Indicates condition of crank enable from TCM.

CRANKING ENABLE-ECM [NG/OK]

Indicates condition of crank enable from ECM.

CAN DIAGNOSIS [NG/OK]

Indicates condition of CAN diagnosis.

FRONT FOG LAMP REQ [Off/On]

Indicates condition of front fog lamp request.

HIGH BEAM REQ [Off/On]

Indicates condition of headlamp high beam request.

HORN CHIRP [Off/On]

Indicates condition of horn relay request.

COOLING FAN REQ [%]

Indicates condition of cooling fan request.

ENGINE STATUS [STOP/RUN/IDLING]

Indicates condition of engine status.

Monitor Item [Unit]

Description

DIAGNOSIS SYSTEM (IPDM E/R)

HAC-131

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

ACTIVE TEST

CAN DIAG SUPPORT MNTR

Refer to

LAN-14, "CAN Diagnostic Support Monitor"

.

TURN SIGNAL REQ [Off/LH/RH]

Indicates condition of turn signal request.

FR WIPER REQ [RETURN/LOW/HIGH]

Indicates condition of front wiper motor request.

SHIFT POSITION [P/R/N/D/L]

Indicates condition of transmission range switch positions.

LOW BEAM REQ [Off/On]

Indicates condition of headlamp low beam request.

POSITION LIGHT REQ [Off/On]

Indicates condition of parking lamp request.

COMPRESSOR REQ2 [Off/On]

Indicates condition of A/C compressor request.

IGNITION SW [Off/On]

Indicates condition of ignition switch.

VEHICLE SPEED (METER) [mph/km/h]

Indicates vehicle speed.

BAT DISCHARGE COUNT [0-100]

Indicates condition of battery discharge.

BATTERY STATUS [NG/OK]

Indicates battery status.

Monitor Item [Unit]

Description

Test item

Description

HORN

This test is able to check horn operation [Off/On].

FRONT WIPER

This test is able to check wiper motor operation [Off/Low/High].

COMPRESSOR

This test is able to check A/C compressor operation [Off/On].

COOLING FAN (DUAL)

This test is able to check cooling fan operation [Off/LO/HI].

HEADLAMP (HI)

This test is able to check headlamp high beam operation [Off/3/5].

HEADLAMP (LO)

This test is able to check headlamp low beam operation [Off/3/5].

FRONT FOG LAMP

This test is able to check front fog lamp operation [Off/3/5].

DAYTIME RUNNING LAMP

This test is able to check daytime running lamp operation [Off/3/5].

PARKING LAMP

This test is able to check parking lamp operation [Off/3/5].

TAIL LAMP

This test is able to check tail lamp operation [Off/3/5].

HAC-132

< ECU DIAGNOSIS INFORMATION >

[MANUAL AIR CONDITIONING]

FRONT AIR CONTROL

ECU DIAGNOSIS INFORMATION

FRONT AIR CONTROL

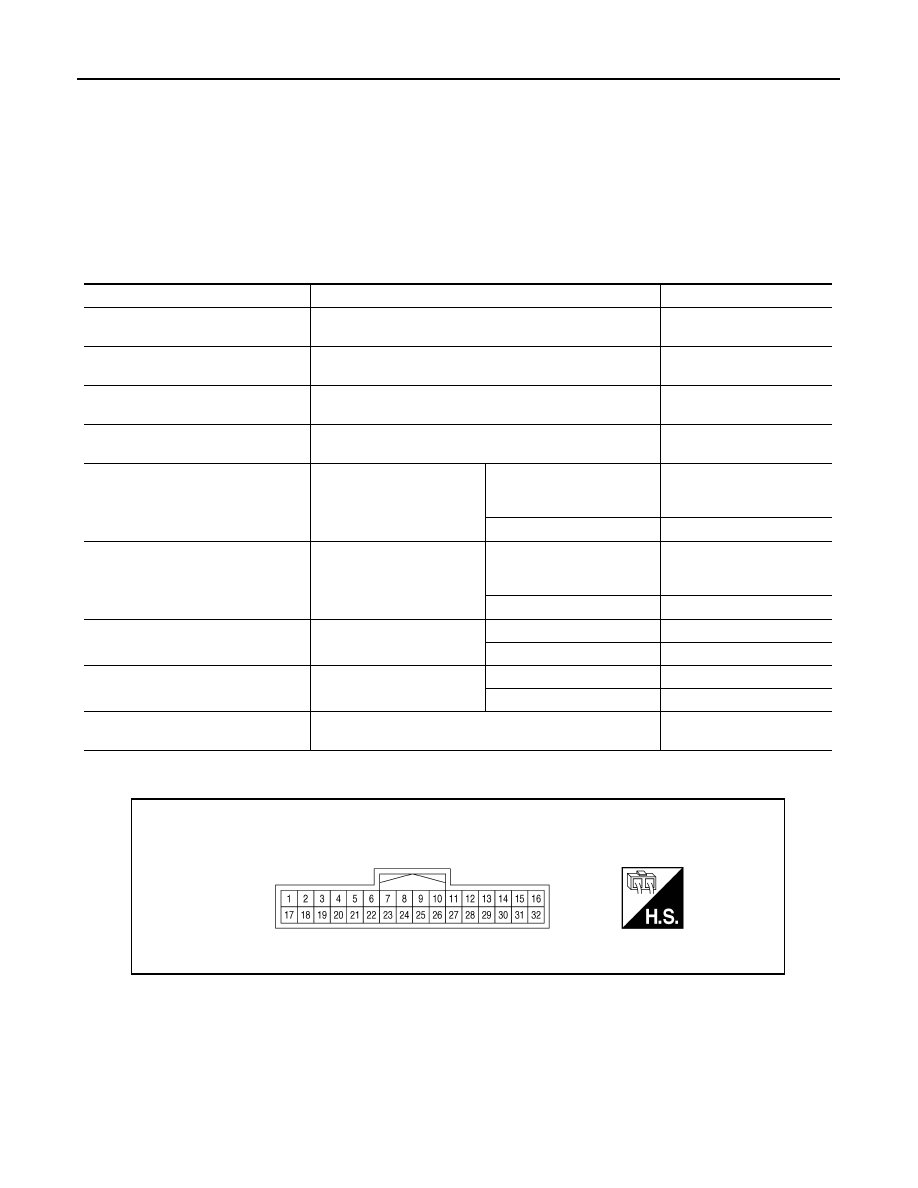

Reference Value

INFOID:0000000011276677

CONSULT DATA MONITOR REFERENCE VALUES

NOTE:

The following table includes information (items) inapplicable to this vehicle. For information (items) applicable

to this vehicle, refer to CONSULT display items.

TERMINAL LAYOUT

PHYSICAL VALUES

Monitor item

Condition

Value/Status

AMB TEMP SEN

Ignition switch ON

Equivalent to ambient tem-
perature

INT TEMP SEN

Ignition switch ON

Values depending on evapo-
rator fin temperature

AMB SEN CAL

Ignition switch ON

Equivalent to ambient tem-
perature

INT TEMP CAL

Ignition switch ON

Values depending on evapo-
rator fin temperature

COMP REQ SIG

Engine: Run at idle after
warming up

A/C switch: ON
(Compressor operation sta-
tus)

On

A/C switch: OFF

Off

COMP ECV DUTY

Engine: Run at idle after
warming up

A/C switch: ON
(Compressor operation sta-
tus)

1 - 100%

A/C switch: OFF

0%

FAN REQ SIG

Engine: Run at idle after
warming up

Blower motor: ON

On

Blower motor: OFF

Off

FAN DUTY

Engine: Run at idle after
warming up

Blower motor: ON

1 – 100

Blower motor: OFF

0

VEHICLE SPEED

Turn drive wheels and compare CONSULT value with the
speedometer indication.

Equivalent to speedometer
reading

ALIIA0927ZZ

FRONT AIR CONTROL

HAC-133

< ECU DIAGNOSIS INFORMATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

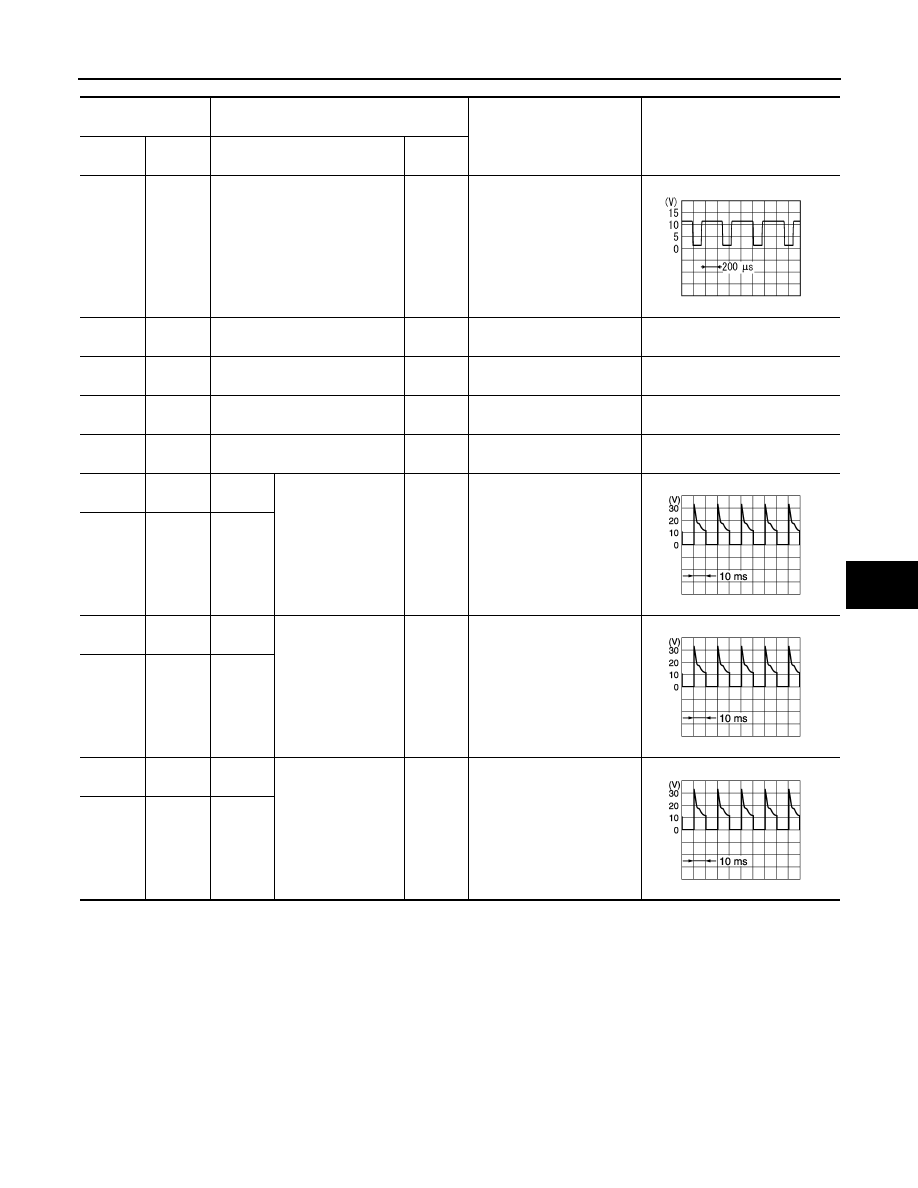

Terminal No.

(Wire color)

Description

Condition

Value

+

−

Signal name

Input/

Output

1

(G)

19

(B)

Power transistor control signal

Output

• Ignition switch ON
• Blower motor: 1st speed

(manual)

3

(SB)

19

(B)

Ignition power supply

Input

Ignition switch ON

Battery voltage

4

(V)

19

(B)

Ignition power supply

Output

Ignition switch ON

Battery voltage

7

(L)

19

(B)

CAN-H

Input/

Output

Ignition switch ON

—

8

(W)

19

(B)

ACTR V

Output

Ignition switch ON

Battery voltage

9

(BG)

19

(B)

A/MIX
drive 1

Air mix door motor
(passenger side)
drive signal

Output

• Ignition switch ON
• Right after the tempera-

ture control switch (pas-
senger side) operation

10

(Y)

19

(B)

A/MIX
drive 2

11

(V)

19

(B)

INTAKE
drive 1

Intake door motor
drive signal

Output

• Ignition switch ON
• Right after the Intake

switch operation

12

(GR)

19

(B)

INTAKE
drive 2

13

(LG)

19

(B)

MODE
drive 1

Mode door motor
drive signal

Output

• Ignition switch ON
• Right after the MODE

switch operation

14

(SB)

19

(B)

MODE
drive 2

ZJIA0863J
