Nissan Rogue. Manual - part 771

HAC-106

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

SUNLOAD SENSOR

SUNLOAD SENSOR

Removal and Installation

INFOID:0000000011276652

REMOVAL

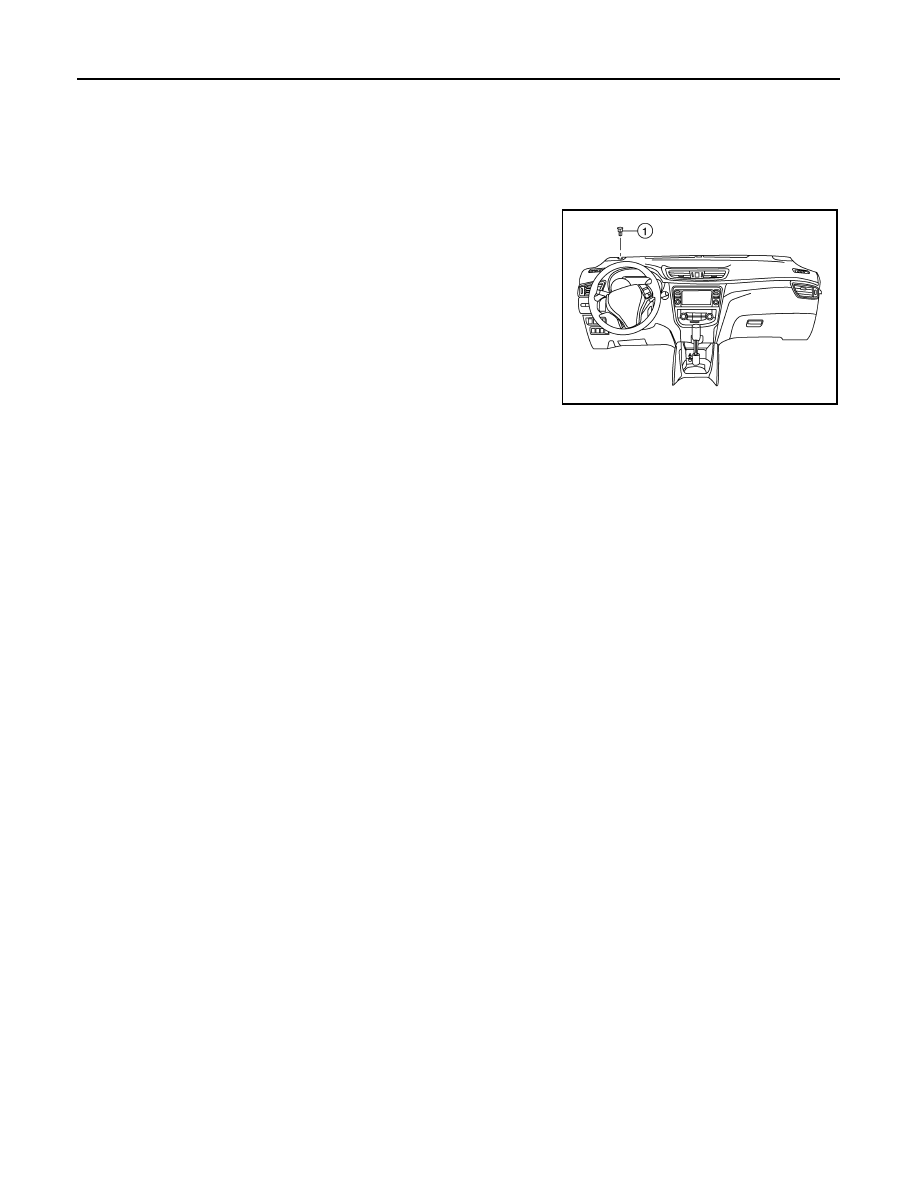

1. Release the sunload sensor pawls using a suitable tool.
2. Disconnect the harness connector from the sunload sensor (1)

and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0893ZZ

INTAKE SENSOR

HAC-107

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

INTAKE SENSOR

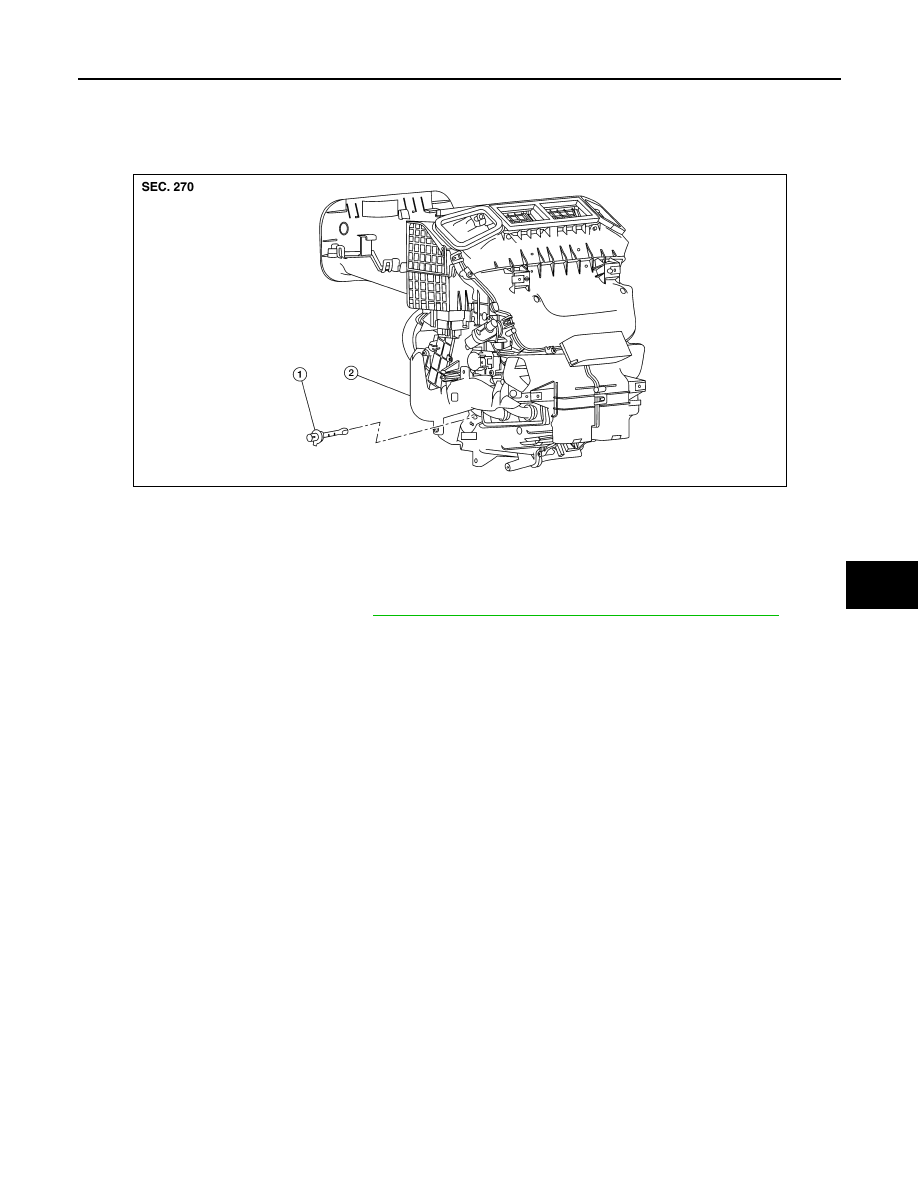

Exploded View

INFOID:0000000011276653

Removal and Installation

INFOID:0000000011276654

REMOVAL

1. Remove front foot duct (LH). Refer to

VTL-10, "FRONT FOOT DUCT : Removal and Installation"

.

2. Disconnect the harness connector and remove intake sensor.

INSTALLATION

Installation is in the reverse order of removal.

1.

Intake sensor

2.

Heating and cooling unit assembly

ALIIA0888ZZ

HAC-108

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

REFRIGERANT PRESSURE SENSOR

REFRIGERANT PRESSURE SENSOR

Removal and Installation

INFOID:0000000011276655

REMOVAL

1. Discharge the refrigerant. Refer to

HA-22, "Recycle Refrigerant"

.

2. Remove front bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

3. Remove air guide (RH). Refer to

HA-37, "Exploded View"

.

4. Disconnect the harness connector from the refrigerant pressure sensor.

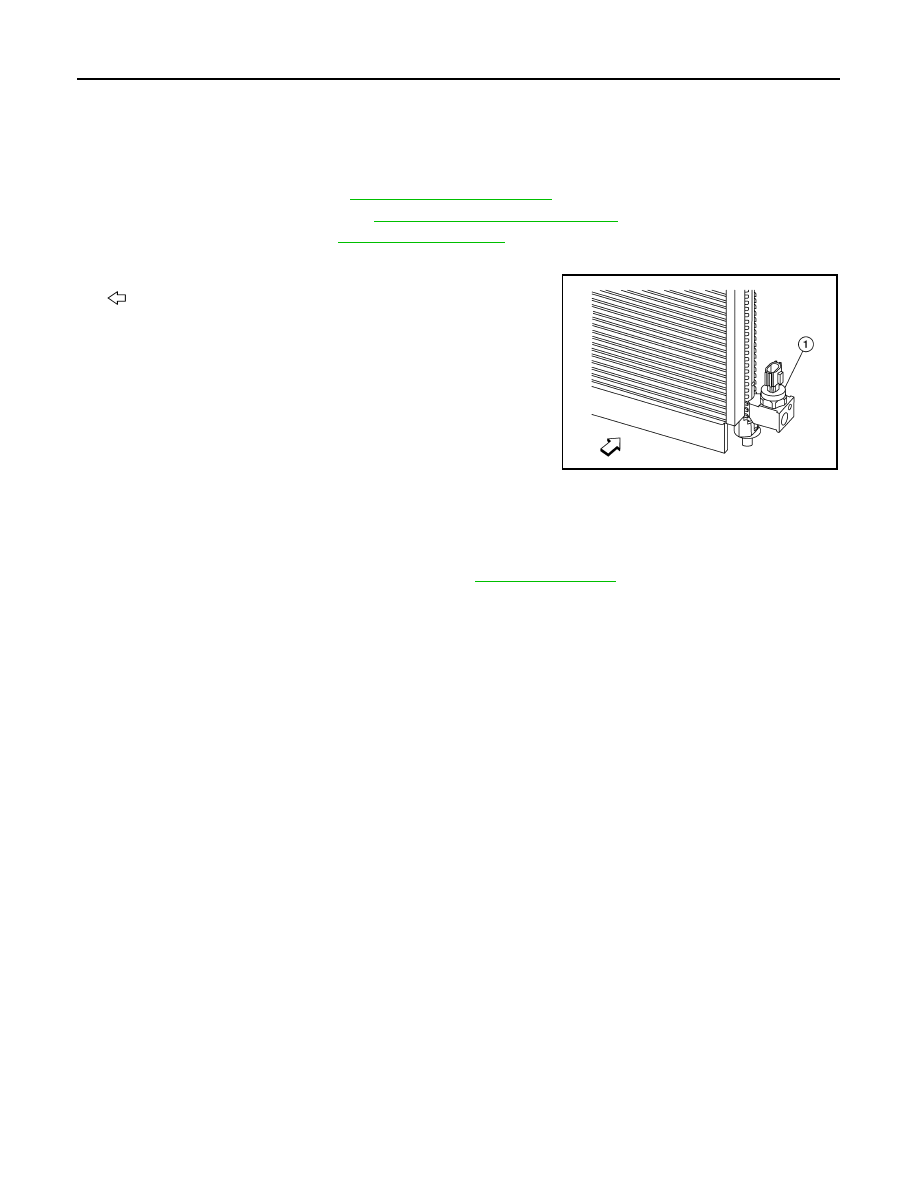

5. Remove the refrigerant pressure sensor (1) from the condenser.

: Front

CAUTION:

Cap or wrap the opening of the refrigerant pressure sensor

with suitable material such as vinyl tape to avoid the entry

of air.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply A/C oil to new O-ring for installation.

• After charging refrigerant, check for leaks. Refer to

HA-21, "Leak Test"

.

ALIIA0714ZZ

DOOR MOTOR

HAC-109

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

DOOR MOTOR

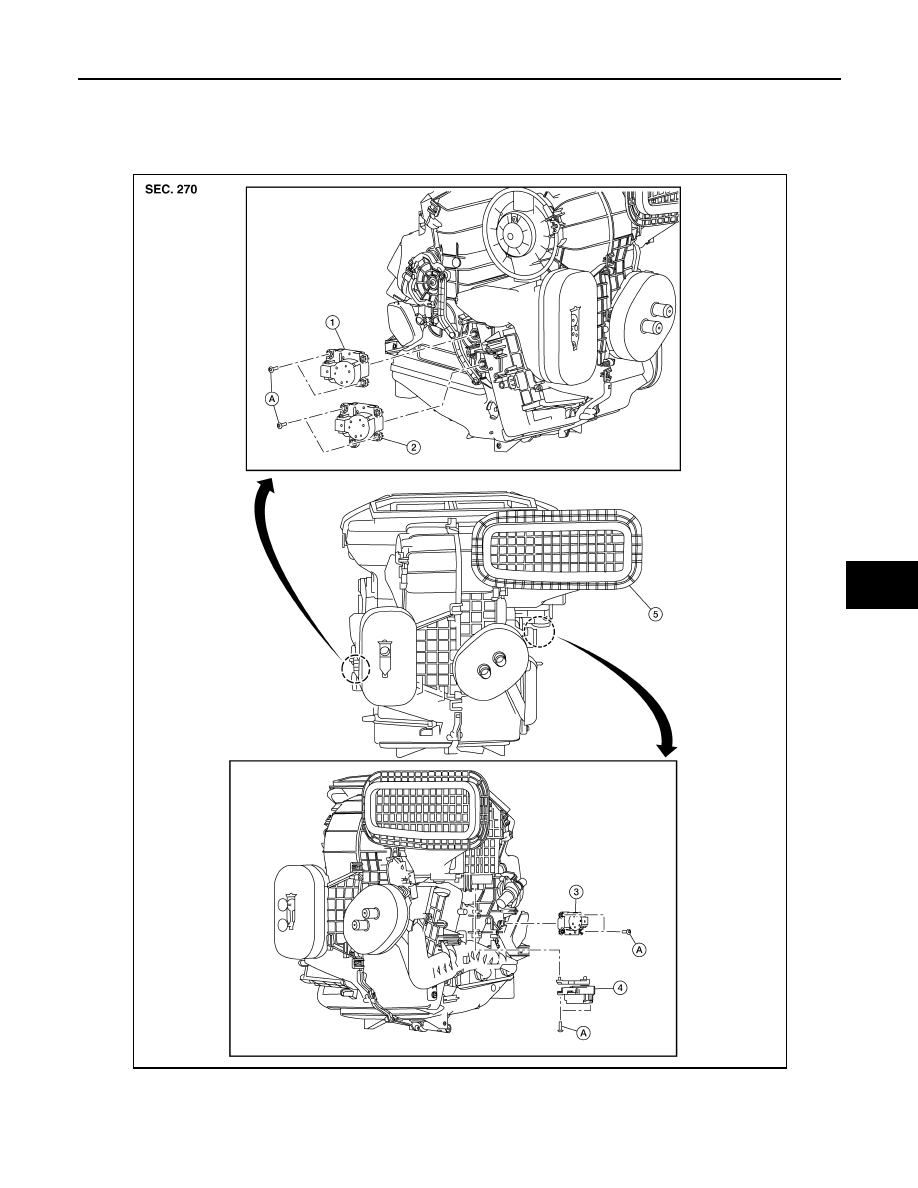

Exploded View

INFOID:0000000011276656

1.

Mode door motor

2.

Air mix door motor (RH)

3.

Air mix door motor (LH)

4.

Intake door motor

5.

Heating and cooling unit assembly

A.

Screw

AWIIA1794ZZ
