Nissan Rogue. Manual - part 770





HAC-102

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

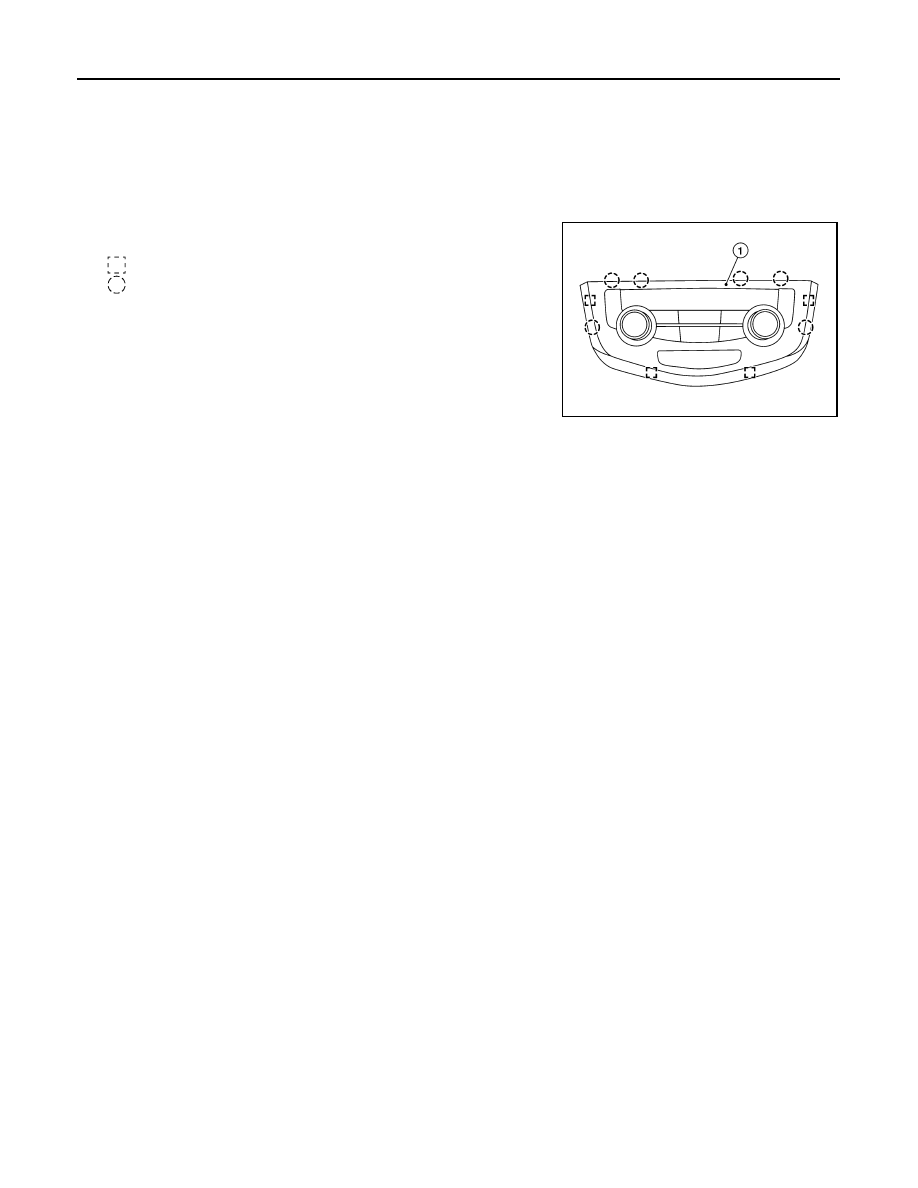

A/C SWITCH ASSEMBLY

REMOVAL AND INSTALLATION

A/C SWITCH ASSEMBLY

Removal and Installation

INFOID:0000000011276648

REMOVAL

1. Release the A/C switch assembly clips and pawls using a suit-

able tool.

: Metal clip
: Pawl

2. Disconnect the harness connectors from the A/C switch assem-

bly (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

AWIIA1791ZZ

A/C AUTO AMP.

HAC-103

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

A/C AUTO AMP.

Removal and Installation

INFOID:0000000011276649

REMOVAL

1. Remove instrument side finisher (RH). Refer to

IP-14, "Exploded View"

.

2. Disconnect the harness connectors from the A/C auto amp.
3. Release pawls and remove A/C auto amp.

INSTALLATION

Installation is in the reverse order of removal.

HAC-104

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

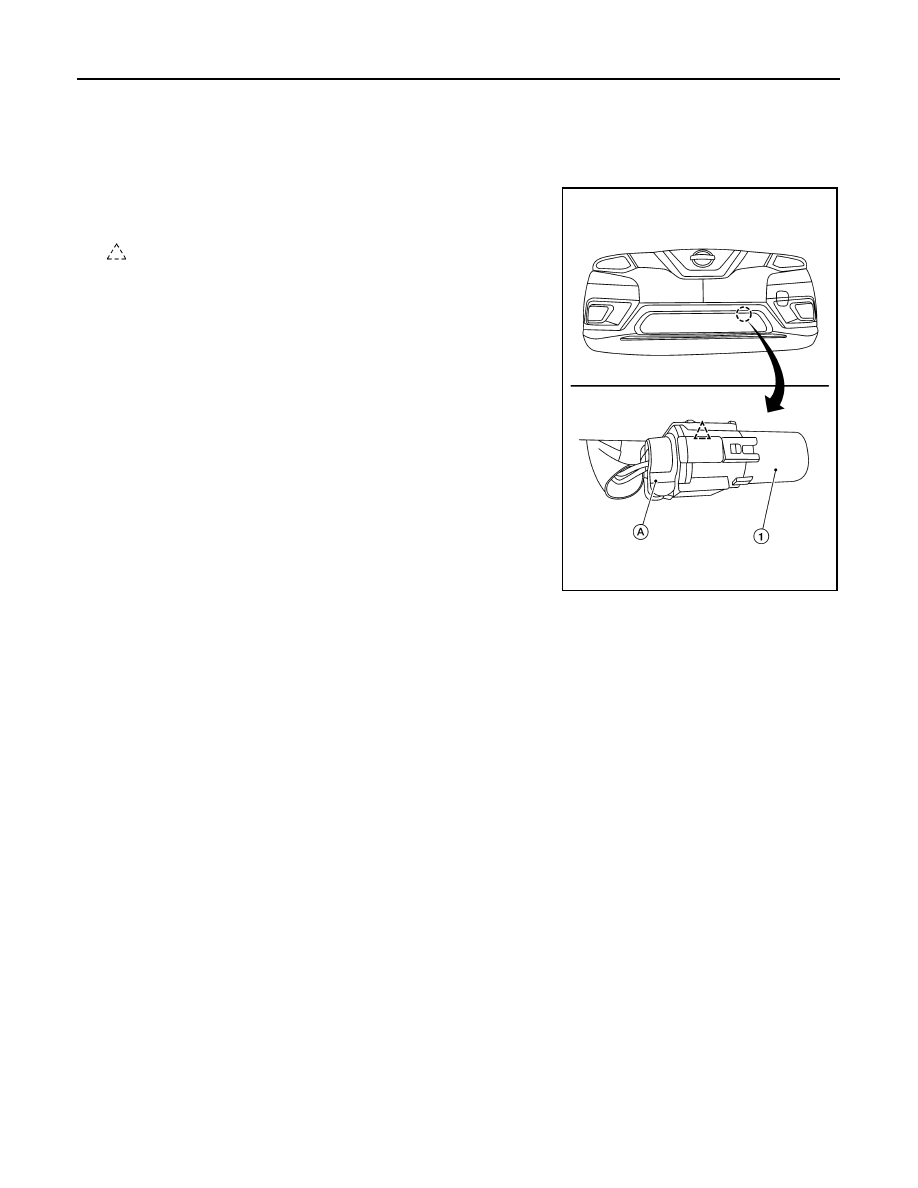

AMBIENT SENSOR

AMBIENT SENSOR

Removal and Installation

INFOID:0000000011276650

REMOVAL

1. Disconnect the harness connector (A) from the ambient sensor

(1).

2. Release the clip and remove ambient sensor.

: Clip

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0885ZZ

IN-VEHICLE SENSOR

HAC-105

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

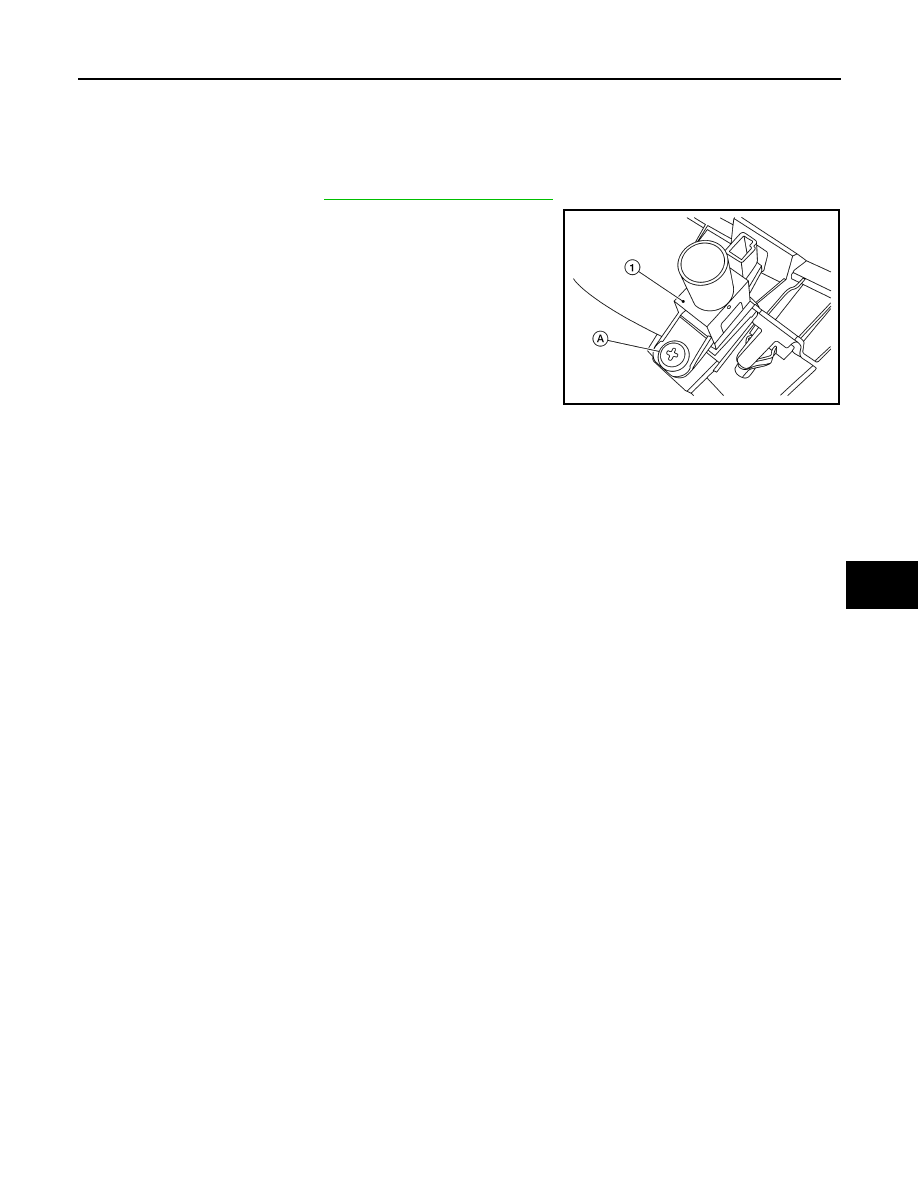

IN-VEHICLE SENSOR

Removal and Installation

INFOID:0000000011276651

REMOVAL

1. Remove cluster lid C. Refer to

IP-22, "Removal and Installation"

.

2. Remove screw (A) and in-vehicle sensor (1).

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0891ZZ
