Nissan Rogue. Manual - part 743





HA-40

< REMOVAL AND INSTALLATION >

HEATING AND COOLING UNIT ASSEMBLY

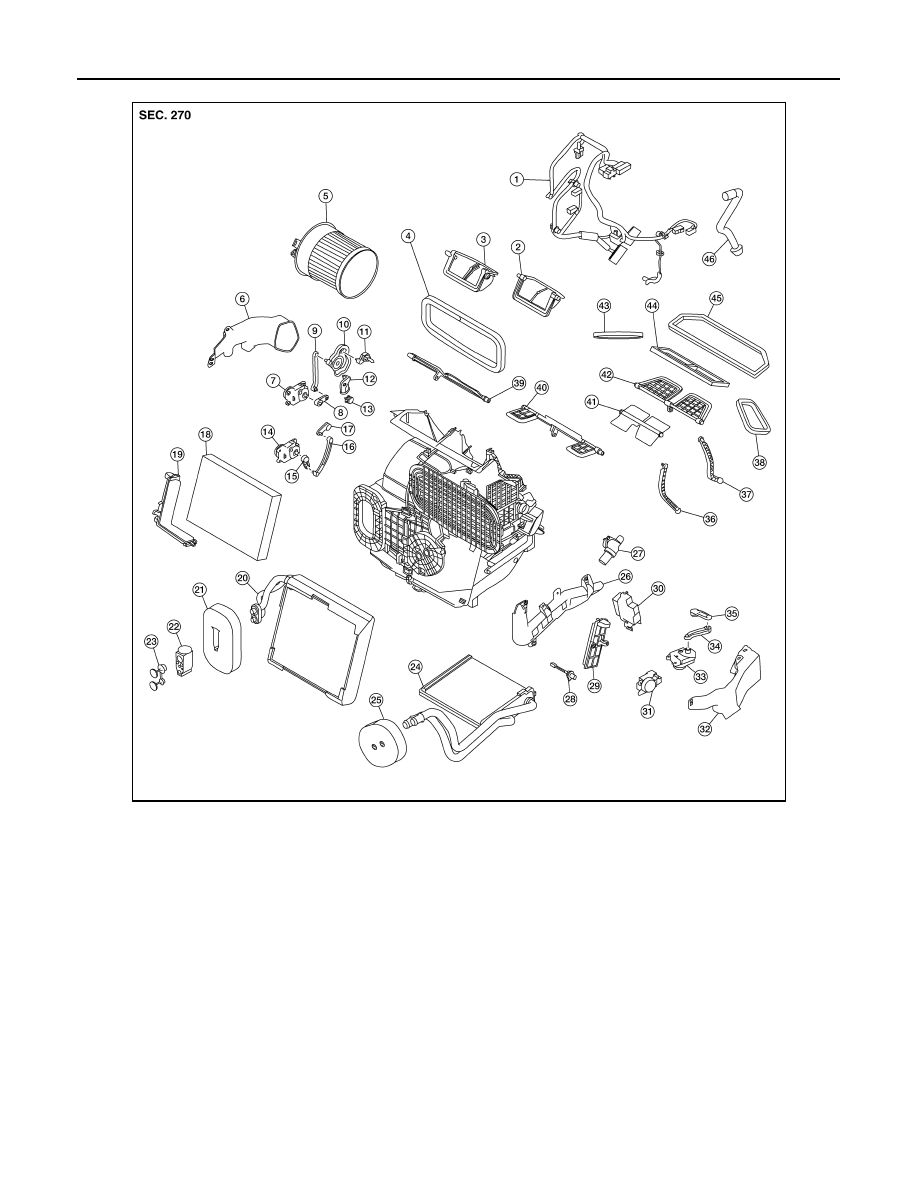

Automatic Air Conditioning

ALIIA0943ZZ

1.

Wiring harness

2.

Air mix door duct (LH)

3.

Air mix door duct (RH)

4.

Intake housing gasket

5.

Blower motor

6.

Front foot duct (RH)

7.

Mode door motor

8.

Mode door motor link

9.

Mode door motor link 2

10. Mode door motor main link

11. Rear foot door lever

12. Front foot door link

13. Front foot door lever

14. Air mix door motor (RH)

15. Air mix door motor link (RH)

16. Air mix door motor link 2 (RH)

17. Air mix door lever (RH)

18. In-cabin microfilter

19. In-cabin microfilter cover

20. Evaporator

21. Evaporator grommet

22. Expansion valve

23. Expansion valve plug

24. Heater core

25. Heater core grommet

26. Heater core pipe cover

27. Aspirator

28. Intake sensor

29. Inspection cover

30. Variable blower control

31. Air mix door motor (LH)

32. Front foot duct (LH)

33. Intake door motor

34. Intake door motor link

35. Intake door lever

36. Internal door linkage 1

37. Internal door linkage 2

38. Side ventilator duct gasket (LH)

39. Rear foot door

40. Front foot door

41. Center ventilator door

42. Defroster door

43. Side ventilator duct gasket (RH)

44. Center ventilator duct gasket

45. Defroster duct gasket

46. Drain hose

HEATING AND COOLING UNIT ASSEMBLY

HA-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

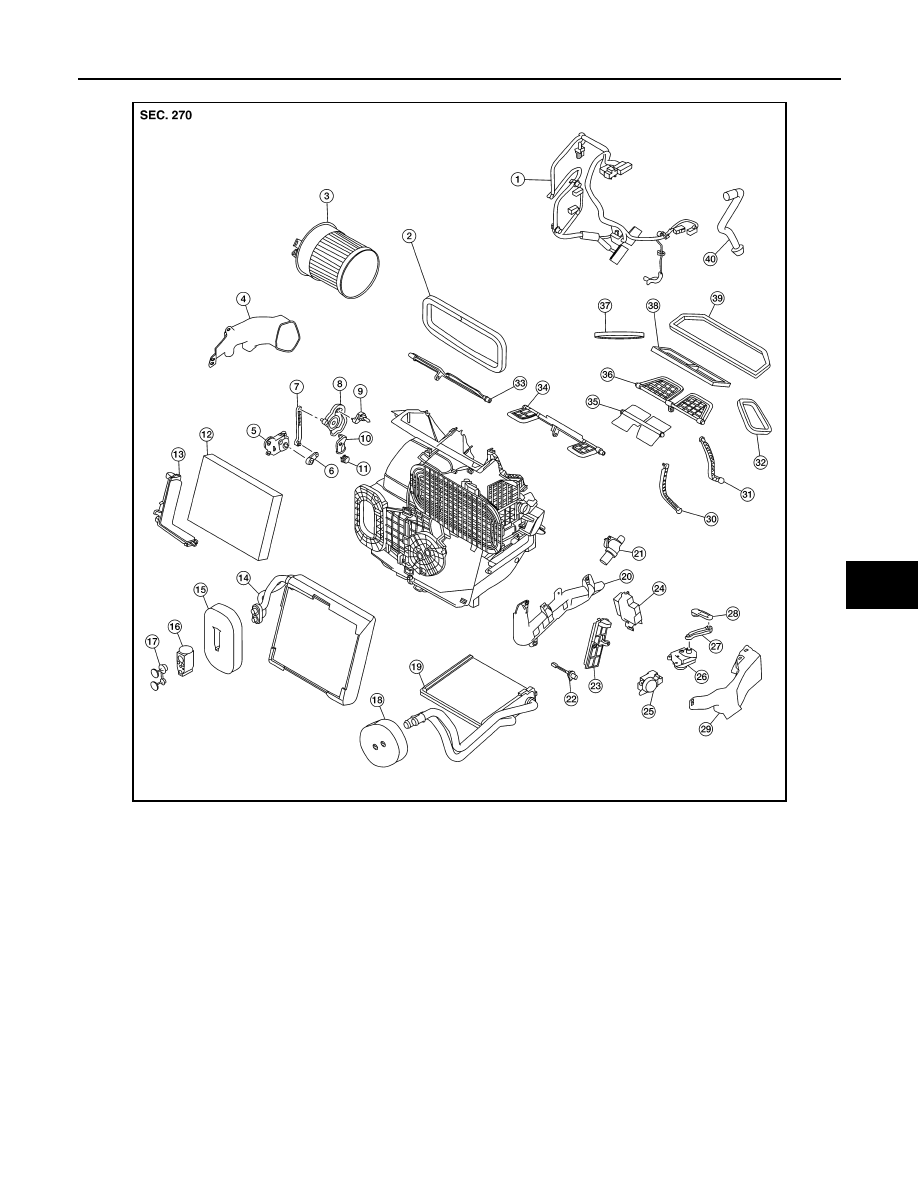

Manual Air Conditioning

HEATING AND COOLING UNIT ASSEMBLY

AWIIA1788ZZ

1.

Wiring harness

2.

Intake housing gasket

3.

Blower motor

4.

Front foot duct

5.

Mode door motor

6.

Mode door motor link

7.

Mode door motor link 2

8.

Mode door motor main link

9.

Rear foot door lever

10. Front foot door link

11. Front foot door lever

12. In-cabin microfilter

13. In-cabin microfilter cover

14. Evaporator

15. Evaporator grommet

16. Expansion valve

17. Expansion valve plug

18. Heater core grommet

19. Heater core

20. Heater core pipe cover

21. Aspirator

22. Intake sensor

23. Inspection cover

24. Variable blower control

25. Air mix door motor

26. Intake door motor

27. Intake door motor link

28. Intake door lever

29. Front foot duct (LH)

30. Internal door linkage 1

31. Internal door linkage 2

32. Side ventilator duct gasket (LH)

33. Rear foot door

34. Front foot door

35. Center ventilator door

36. Defroster door

37. Side ventilator duct gasket (RH)

38. Center ventilator duct gasket

39. Defroster duct gasket

40. Drain hose

HA-42

< REMOVAL AND INSTALLATION >

HEATING AND COOLING UNIT ASSEMBLY

HEATING AND COOLING UNIT ASSEMBLY : Removal and Installation

INFOID:0000000011279503

REMOVAL

CAUTION:

Before servicing, turn the ignition switch off, disconnect both battery cables and wait at least three

minutes.

NOTE:

When removing components such as hoses, lines/tubes, etc., cap or plug openings to prevent fluid from leak-

ing.
1. Disconnect the negative and positive battery terminals and wait at least three minutes. Refer to

PG-78,

"Removal and Installation (Battery)"

.

2. Discharge the refrigerant. Refer to

HA-22, "Recycle Refrigerant"

.

3. Drain the engine coolant. Refer to

CO-8, "Draining"

.

4. Remove instrument panel assembly. Refer to

IP-14, "INSTRUMENT PANEL ASSEMBLY : Removal and

Installation"

.

5. Remove steering column. Refer to

ST-12, "Removal and Installation"

.

6. Remove dash side finishers (LH/RH). Refer to

INT-24, "DASH SIDE FINISHER : Removal and Installa-

tion"

.

7. Remove front floor connecting ducts (LH/RH). Refer to

VTL-10, "FRONT FLOOR DUCT : Removal and

Installation - Front Floor Connecting Duct"

.

8. Remove the cowl top extension. Refer to

EXT-25, "Removal and Installation"

.

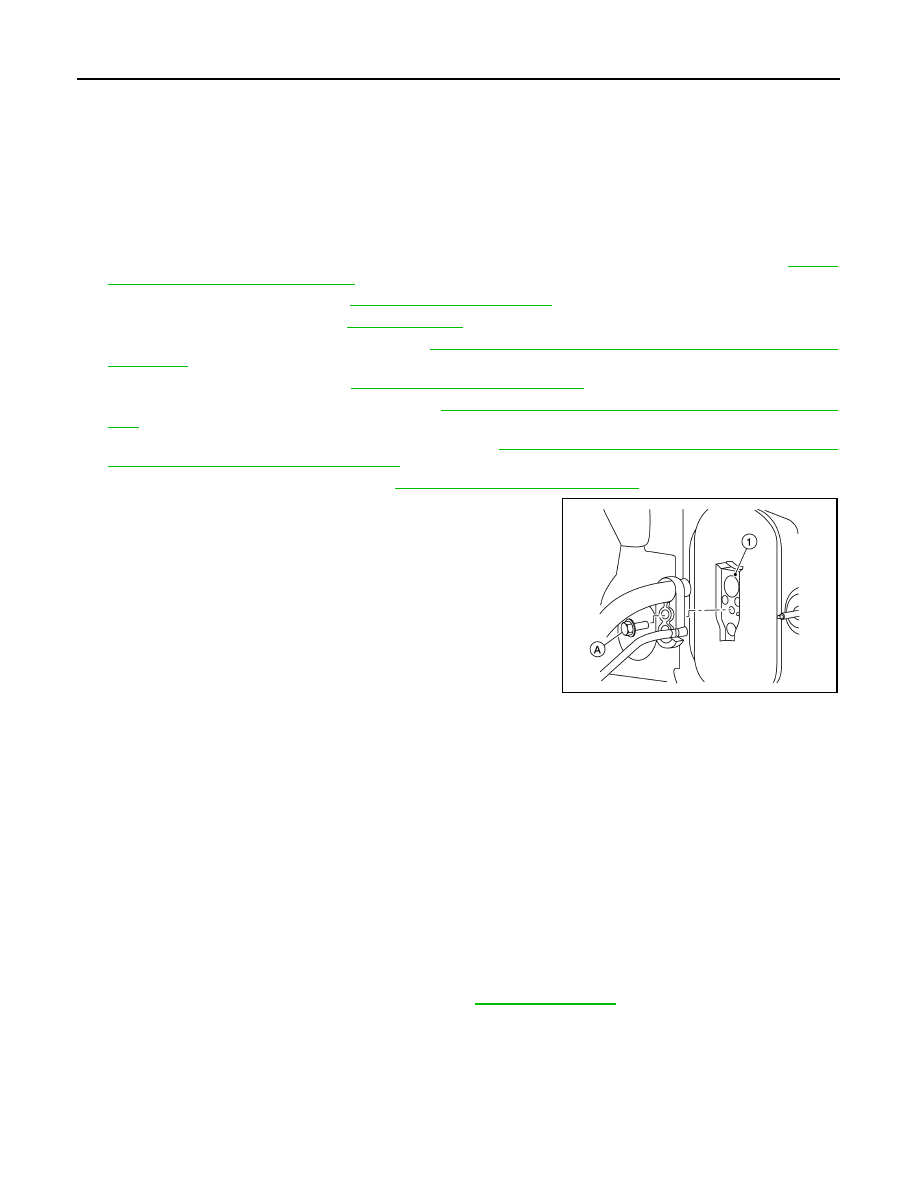

9. Remove the bolt (A) that retains the low-pressure pipe and high-

pressure pipe to the expansion valve (1).

CAUTION:

Cap or wrap the joint of the pipe with suitable material such

as vinyl tape to avoid the entry of air.

10. Disconnect the heater hoses from the heater core.
11. Remove the nuts and bolts that retain the steering member to the vehicle body.
12. Disconnect the drain hose from the heating and cooling unit assembly.
13. Disconnect the harness connectors from the heating and cooling unit assembly and steering member.
14. Remove the heating and cooling unit assembly and steering member from the vehicle as an assembly.

CAUTION:

Use care not to damage the seats when removing the steering member.

15. Remove the bolts that retain the heating and cooling unit assembly to the steering member.
16. Separate the heating and cooling unit assembly from the steering member.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-rings.

• Apply A/C oil to new O-rings for installation.

• After charging refrigerant, check for leaks. Refer to

HA-21, "Leak Test"

.

HEATER CORE

ALIIA0935ZZ

HEATING AND COOLING UNIT ASSEMBLY

HA-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

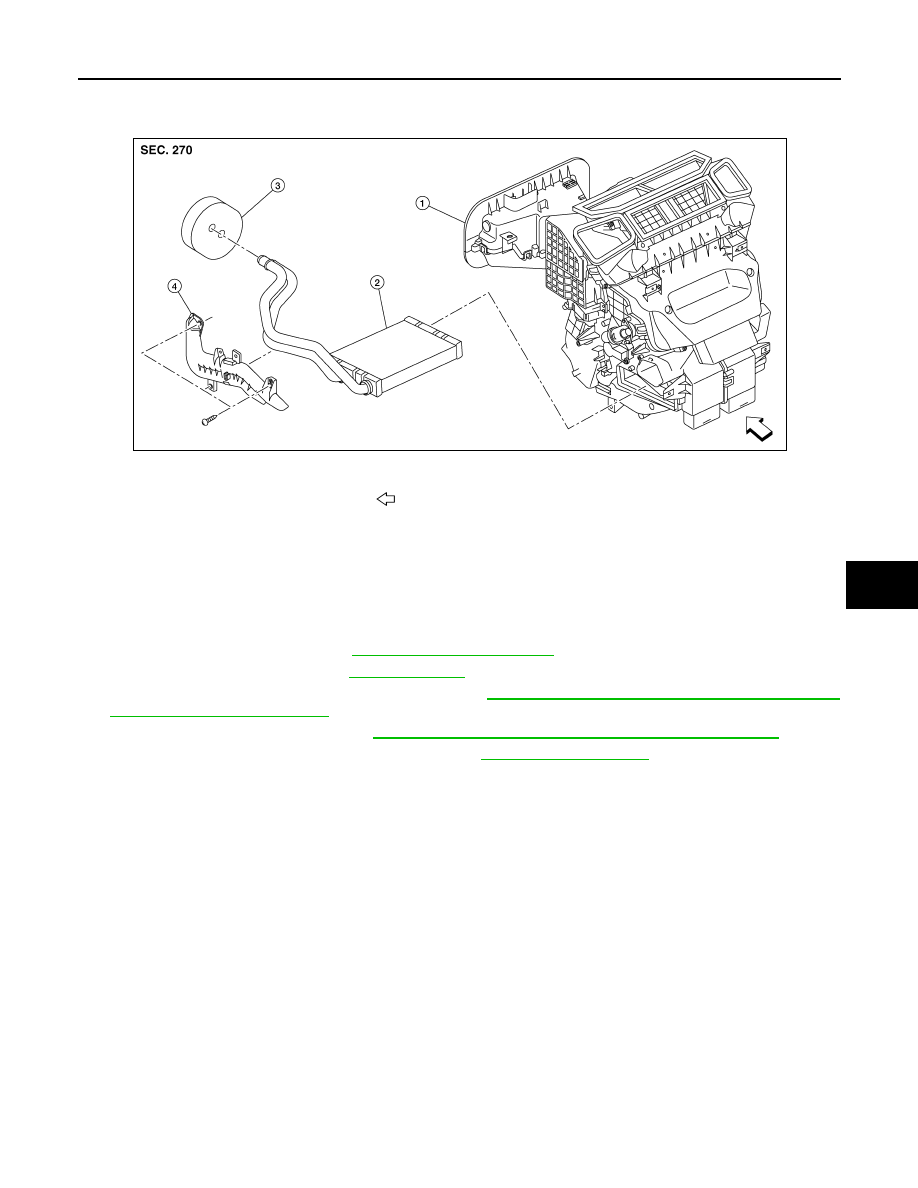

HEATER CORE : Exploded View

INFOID:0000000011279504

HEATER CORE : Removal and Installation

INFOID:0000000011279505

REMOVAL

NOTE:

When removing components such as hoses, lines/tubes, etc., cap or plug openings to prevent fluid from spill-

ing.
1. Discharge the refrigerant. Refer to

HA-22, "Recycle Refrigerant"

.

2. Drain the engine coolant. Refer to

CO-8, "Draining"

.

3. Remove heating and cooling unit assembly. Refer to

HA-42, "HEATING AND COOLING UNIT ASSEM-

BLY : Removal and Installation"

.

4. Remove front foot duct (LH). Refer to

VTL-10, "FRONT FOOT DUCT : Removal and Installation"

.

5. Remove screws and heater core pipe cover. Refer to

HA-39, "Exploded View"

.

6. Remove heater core.

INSTALLATION

Installation is in the reverse order of removal.

EVAPORATOR

1.

Heating and cooling unit assembly

2.

Heater core

3.

Heater core grommet

4.

Heater core pipe cover

Front

AWIIA1802ZZ
