HA-36

< REMOVAL AND INSTALLATION >

COOLER PIPE AND HOSE

• Tighten bolts to specified torque. Refer to

HA-37, "Exploded View"

.

• Do not reuse O-rings.

• Apply A/C oil to new O-rings for installation.

• After charging the refrigerant, check for leaks. Refer to

HA-21, "Leak Test"

.

CONDENSER

HA-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

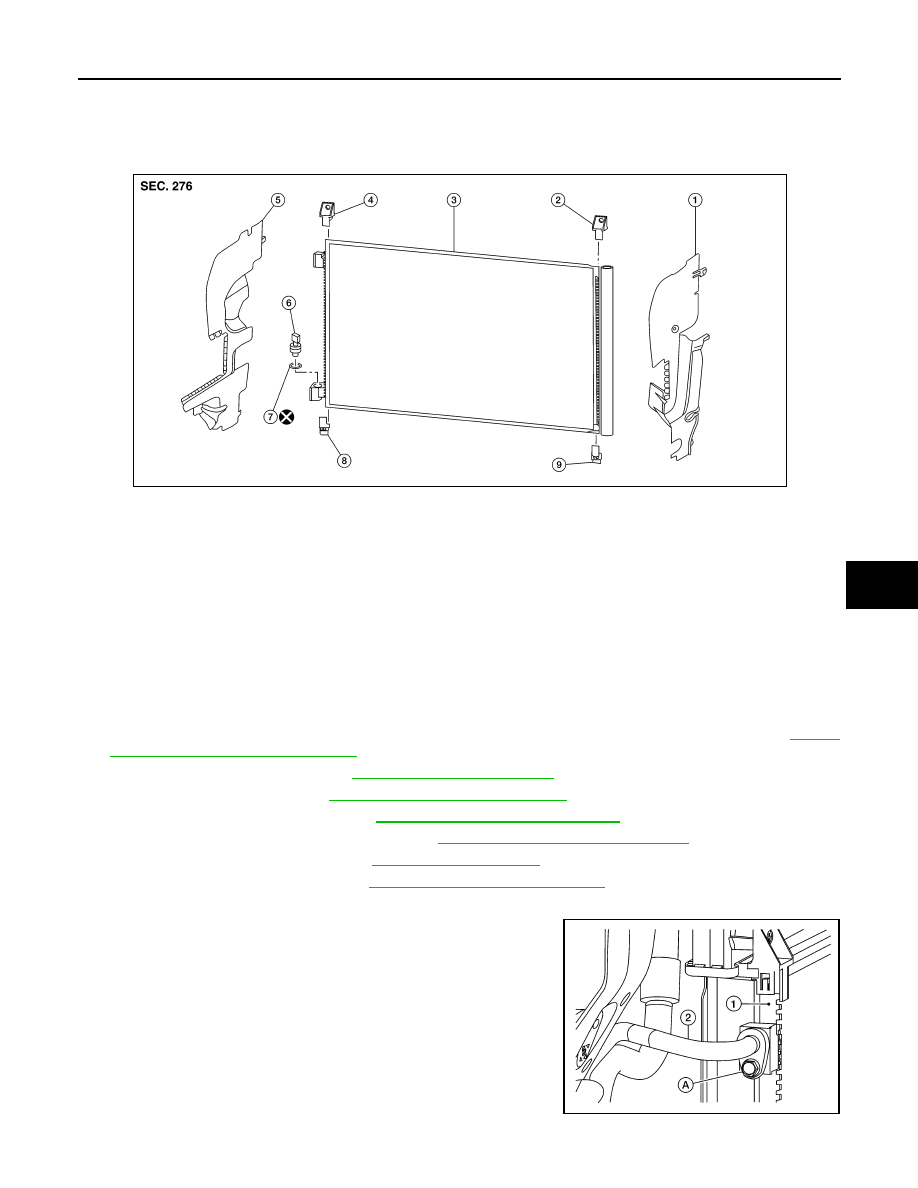

CONDENSER

Exploded View

INFOID:0000000011279498

CONDENSER
CONDENSER : Removal and Installation

INFOID:0000000011279499

REMOVAL

CAUTION:

Before servicing, turn the ignition switch off, disconnect both battery cables and wait at least three

minutes.
1. Disconnect the negative and positive battle terminals and wait at least three minutes. Refer to

PG-78,

"Removal and Installation (Battery)"

.

2. Discharge the refrigerant. Refer to

HA-22, "Recycle Refrigerant"

.

3. Remove front air duct. Refer to

EM-26, "Removal and Installation"

.

4. Remove front bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

5. Remove front combination lamp (RH). Refer to

EXL-119, "Removal and Installation"

.

6. Remove air guides (LH/RH). Refer to

HA-37, "Exploded View"

.

7. Remove crash zone sensor. Refer to

SR-22, "Removal and Installation"

.

8. Disconnect the harness connector from the refrigerant pressure sensor.
9. Remove the bolt (A) that retains the high-pressure flexible hose

(2) to the condenser (1).

CAUTION:

Cap or wrap the joint of the pipe with suitable material such

as vinyl tape to avoid the entry of air.

1.

Air guide (LH)

2.

Condenser upper bracket (LH)

3.

Condenser (includes liquid tank)

4.

Condenser upper bracket (RH)

5.

Air guide (RH)

6.

Refrigerant pressure sensor

7.

O-ring

8.

Condenser lower bracket (RH)

9.

Condenser lower bracket (LH)

AWIIA1872ZZ

ALIIA0937ZZ

HA-38

< REMOVAL AND INSTALLATION >

CONDENSER

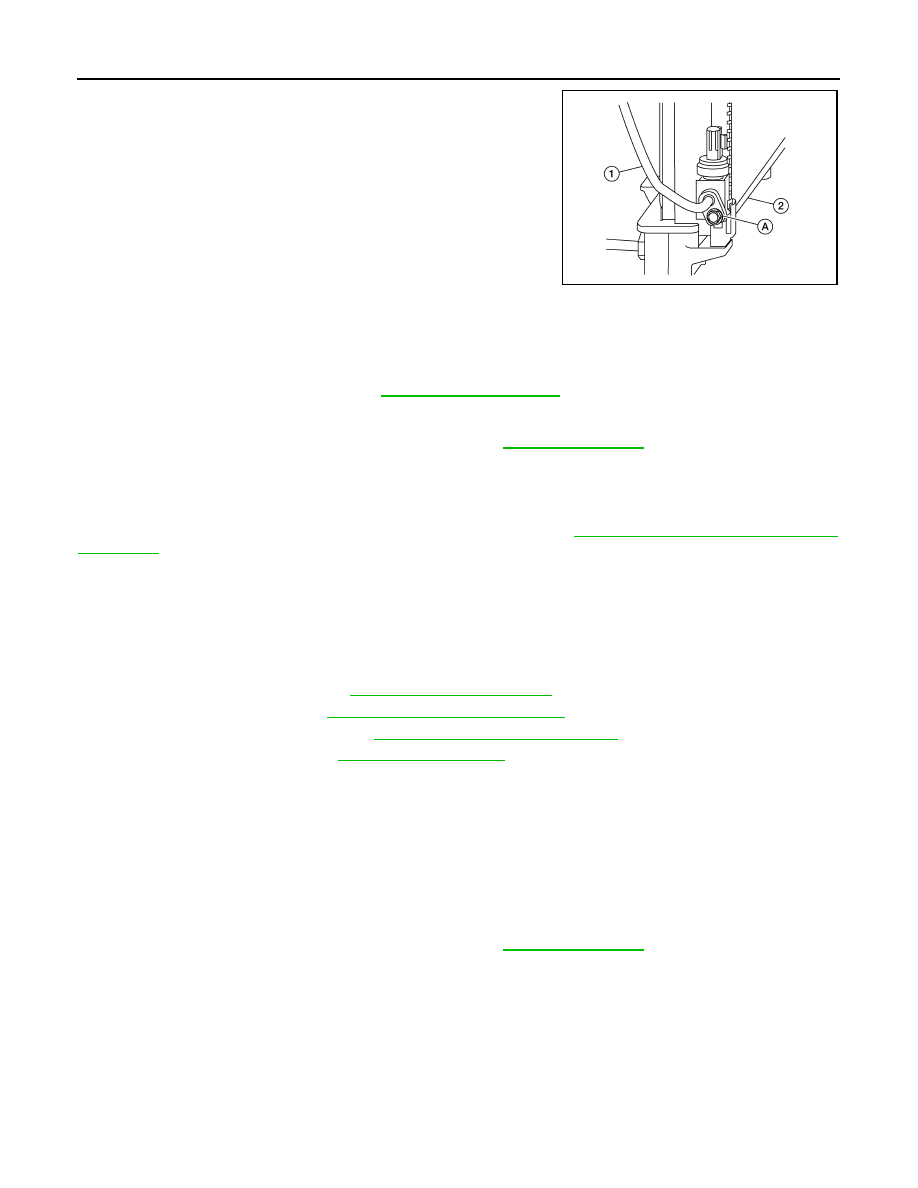

10. Remove bolt (A) that retains high-pressure pipe (1) to condenser

(2).

11. Remove the condenser bracket bolts and condenser.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten bolts to specification. Refer to

HA-31, "Exploded View"

.

• Do not reuse O-rings.

• Apply A/C oil to new O-rings for installation.

• After charging the refrigerant, check for leaks. Refer to

HA-21, "Leak Test"

.

LIQUID TANK
LIQUID TANK : Removal and Installation

INFOID:0000000011279500

The liquid tank is serviced as an assembly with the condenser. Refer to

HA-37, "CONDENSER : Removal and

Installation"

.

REFRIGERANT PRESSURE SENSOR
REFRIGERANT PRESSURE SENSOR : Removal and Installation

INFOID:0000000011279501

REMOVAL

1. Discharge the refrigerant. Refer to

HA-22, "Recycle Refrigerant"

.

2. Remove front air duct. Refer to

EM-26, "Removal and Installation"

.

3. Remove front bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

4. Remove air guide (RH). Refer to

HA-37, "Exploded View"

.

5. Disconnect the harness connector from the refrigerant pressure sensor and remove.

CAUTION:

Cap or wrap the opening of the refrigerant pressure sensor with suitable material such as vinyl

tape to avoid the entry of air.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply A/C oil to new O-rings for installation.

• After charging the refrigerant, check for leaks. Refer to

HA-21, "Leak Test"

.

ALIIA0938ZZ

HEATING AND COOLING UNIT ASSEMBLY

HA-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

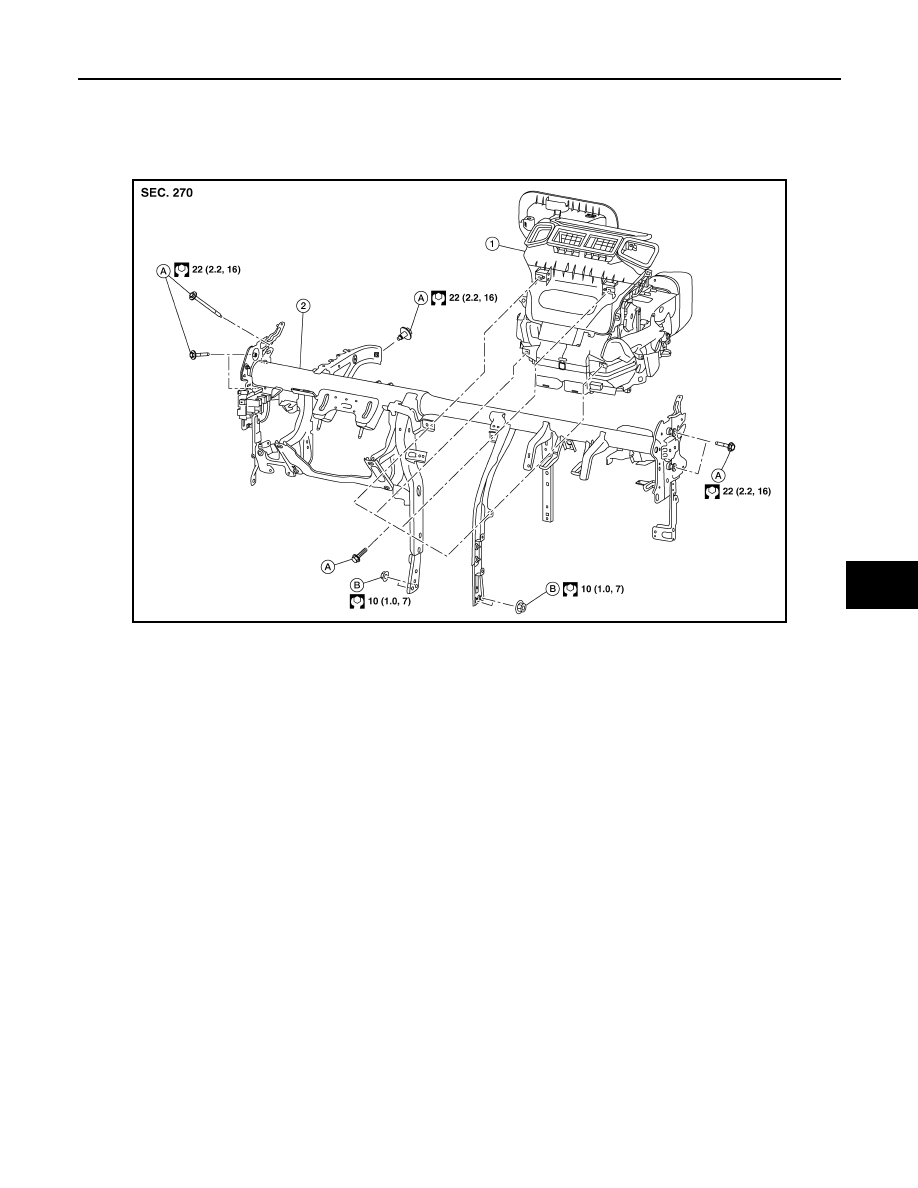

HEATING AND COOLING UNIT ASSEMBLY

Exploded View

INFOID:0000000011279502

Steering Member

AWIIA1801ZZ

1.

Heating and cooling unit assembly

2.

Steering member

A.

Bolt

B.

Nut
