HA-32

< REMOVAL AND INSTALLATION >

COOLER PIPE AND HOSE

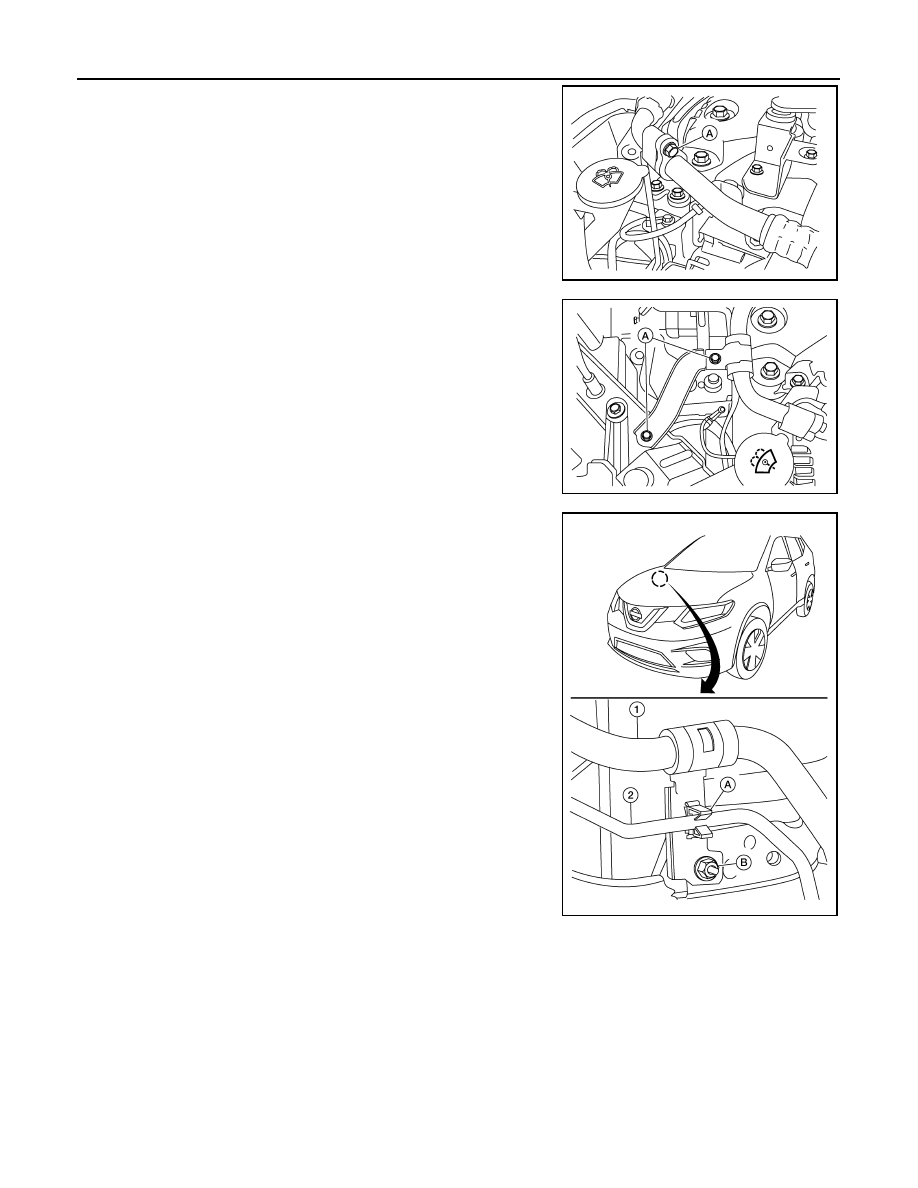

3. Remove the bolt (A) that retains the low-pressure flexible hose

to the low-pressure pipe.

CAUTION:

Cap or wrap the joint of the pipe with suitable material such

as vinyl tape to avoid the entry of air.

4. Remove low-pressure pipe bracket bolts (A) and bracket.

5. Release high-pressure pipe (2) from clamp (A).
6. Remove nut (B) and low-pressure pipe (1).

7. Remove the bolt (A) that retains the low-pressure and high-pressure pipe to the expansion valve (1).

CAUTION:

ALIIA0913ZZ

ALIIA0932ZZ

AWIIA1799ZZ

COOLER PIPE AND HOSE

HA-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

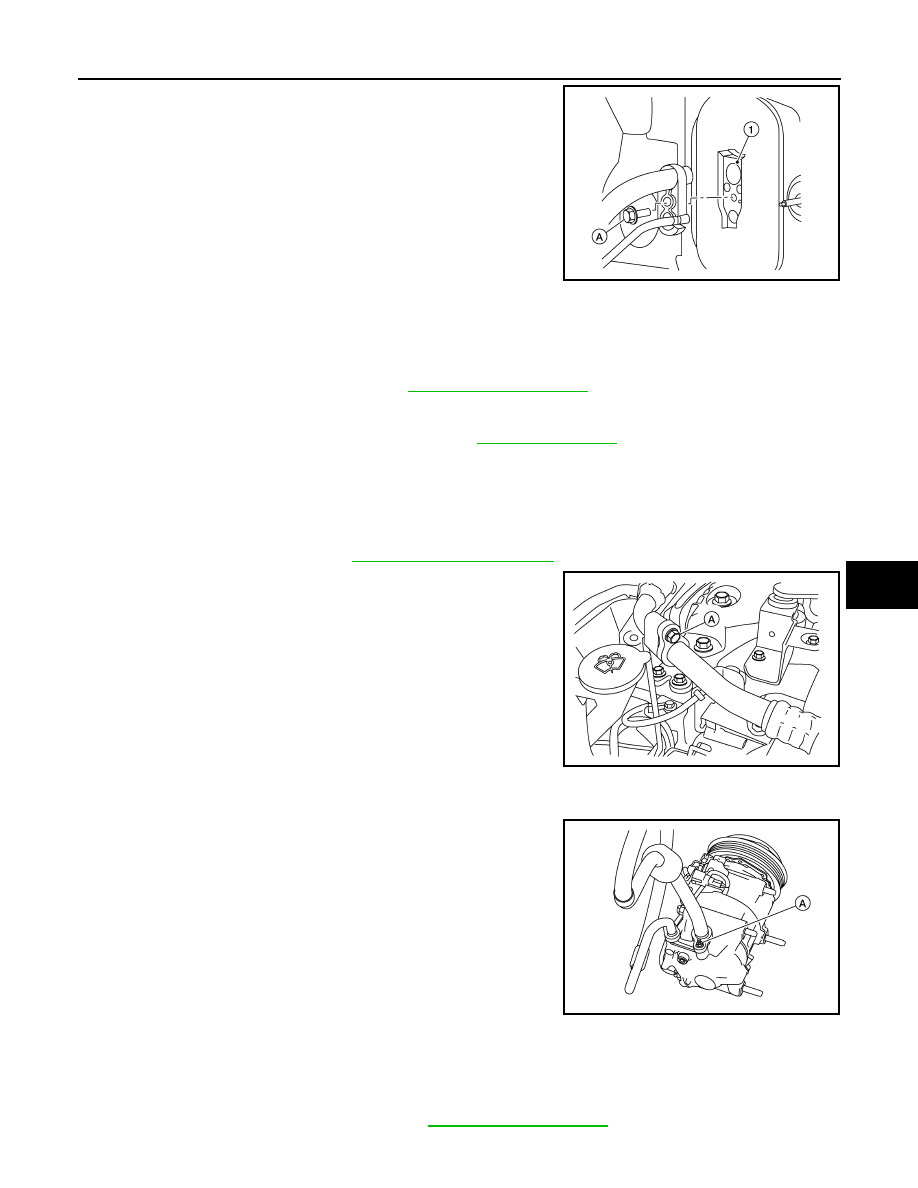

Cap or wrap the joint of the pipe with suitable material such

as vinyl tape to avoid the entry of air.

8. Remove low-pressure pipe.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten bolts to specified torque. Refer to

HA-31, "Exploded View"

.

• Do not reuse O-rings.

• Apply A/C oil to new O-rings for installation.

• After charging refrigerant, check for leaks. Refer to

HA-21, "Leak Test"

.

LOW-PRESSURE FLEXIBLE HOSE
LOW-PRESSURE FLEXIBLE HOSE : Removal and Installation

INFOID:0000000011279495

REMOVAL

1. Discharge the refrigerant. Refer to

HA-22, "Recycle Refrigerant"

.

2. Remove the bolt (A) that retains the low-pressure flexible hose

to the low-pressure pipe.

CAUTION:

Cap or wrap the joint of the pipe with suitable material such

as vinyl tape to avoid the entry of air.

3. Remove the nut (A) that retains the low-pressure flexible hose to the compressor.

CAUTION:

Cap or wrap the joint of the pipe with suitable material such

as vinyl tape to avoid the entry of air.

4. Remove the low-pressure flexible hose.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten nut/bolt to specified torque. Refer to

HA-31, "Exploded View"

.

• Do not reuse O-rings.

ALIIA0935ZZ

ALIIA0913ZZ

ALIIA0914ZZ

HA-34

< REMOVAL AND INSTALLATION >

COOLER PIPE AND HOSE

• Apply A/C oil to new O-rings for installation.

• After charging refrigerant, check for leaks. Refer to

HA-21, "Leak Test"

.

HIGH-PRESSURE PIPE
HIGH-PRESSURE PIPE : Removal and Installation

INFOID:0000000011279496

REMOVAL

1. Discharge the refrigerant. Refer to

HA-22, "Recycle Refrigerant"

.

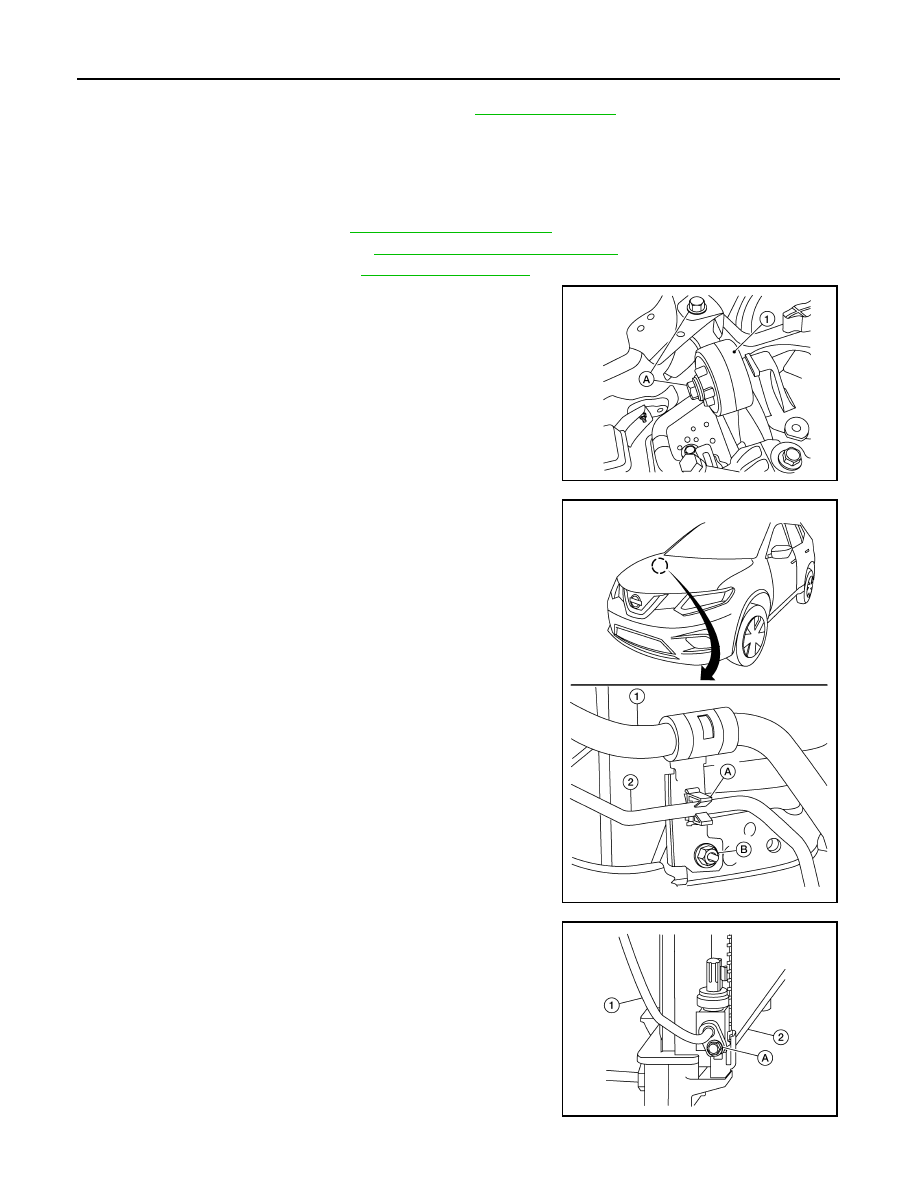

2. Remove front bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

3. Remove air duct assembly. Refer to

EM-26, "Exploded View"

.

4. Remove bolts (A) and upper engine mount (1).

5. Release high-pressure pipe (2) from clamp (A).

(1): Low-pressure pipe

(B): Nut

6. Remove bolt (A) that retains high-pressure pipe (1) to the con-

denser (2).

CAUTION:

Cap or wrap the joint of the pipe with suitable material such

as vinyl tape to avoid the entry of air.

ALIIA0933ZZ

AWIIA1799ZZ

ALIIA0938ZZ

COOLER PIPE AND HOSE

HA-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

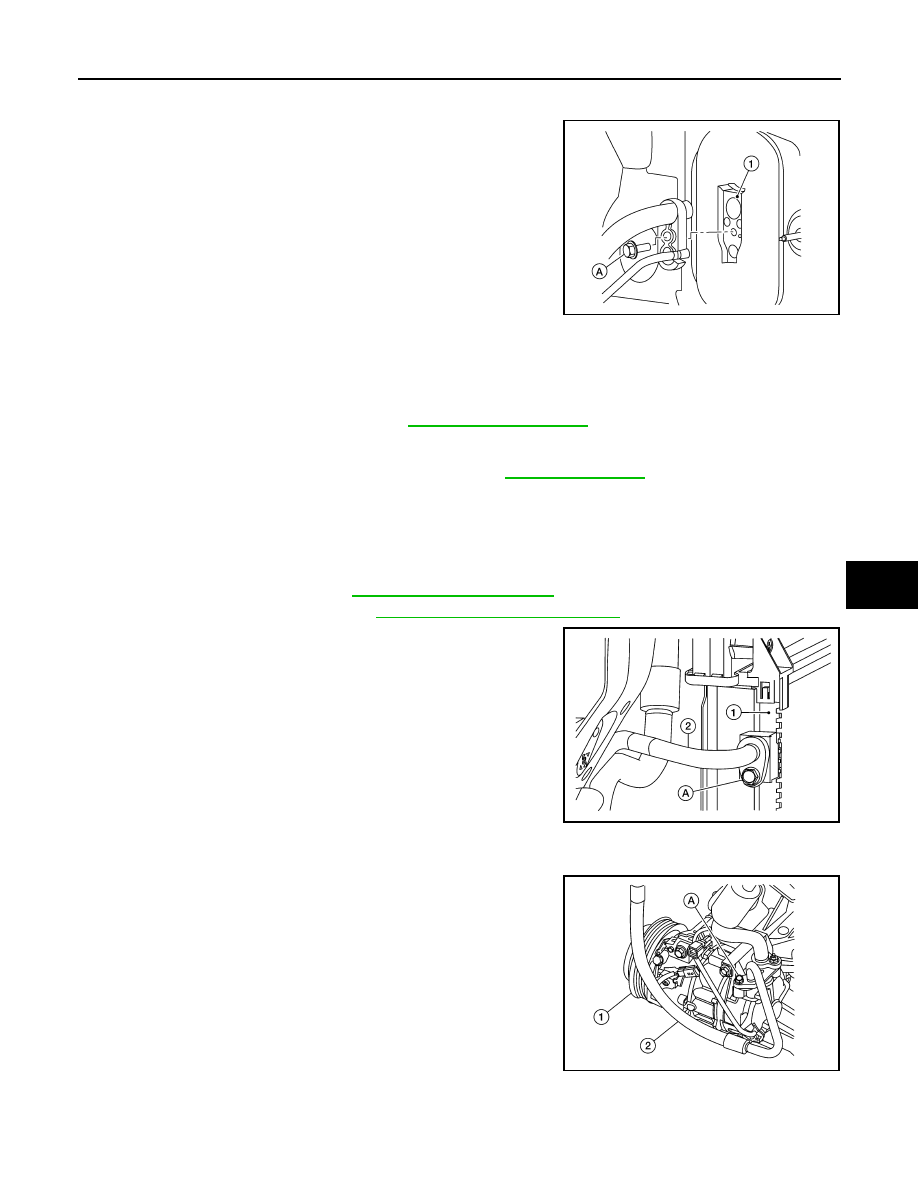

7. Remove the bolt (A) that retains the high-pressure and low-pressure pipe to the expansion valve (1).

CAUTION:

Cap or wrap the joint of the pipe with suitable material such

as vinyl tape to avoid the entry of air.

8. Remove high-pressure pipe.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten bolts to specified torque. Refer to

HA-31, "Exploded View"

.

• Do not reuse O-rings.

• Apply A/C oil to new O-rings for installation.

• After charging the refrigerant, check for leaks. Refer to

HA-21, "Leak Test"

.

HIGH-PRESSURE FLEXIBLE HOSE
HIGH-PRESSURE FLEXIBLE HOSE : Removal and Installation

INFOID:0000000011279497

REMOVAL

1. Discharge the refrigerant. Refer to

HA-22, "Recycle Refrigerant"

.

2. Remove front bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

3. Remove the bolt (A) that retains the high-pressure flexible hose

(2) to the condenser (1).

CAUTION:

Cap or wrap the joint of the pipe with suitable material such

as vinyl tape to avoid the entry of air.

4. Remove the bolt (A) that retains the high-pressure flexible hose (2) to the compressor (1).

CAUTION:

Cap or wrap the joint of the pipe with suitable material such

as vinyl tape to avoid the entry of air.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

ALIIA0935ZZ

ALIIA0937ZZ

ALIIA0936ZZ
