Nissan Rogue. Manual - part 696





SERVICE DATA AND SPECIFICATIONS (SDS)

FAX-77

< SERVICE DATA AND SPECIFICATIONS (SDS)

[AWD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000011278663

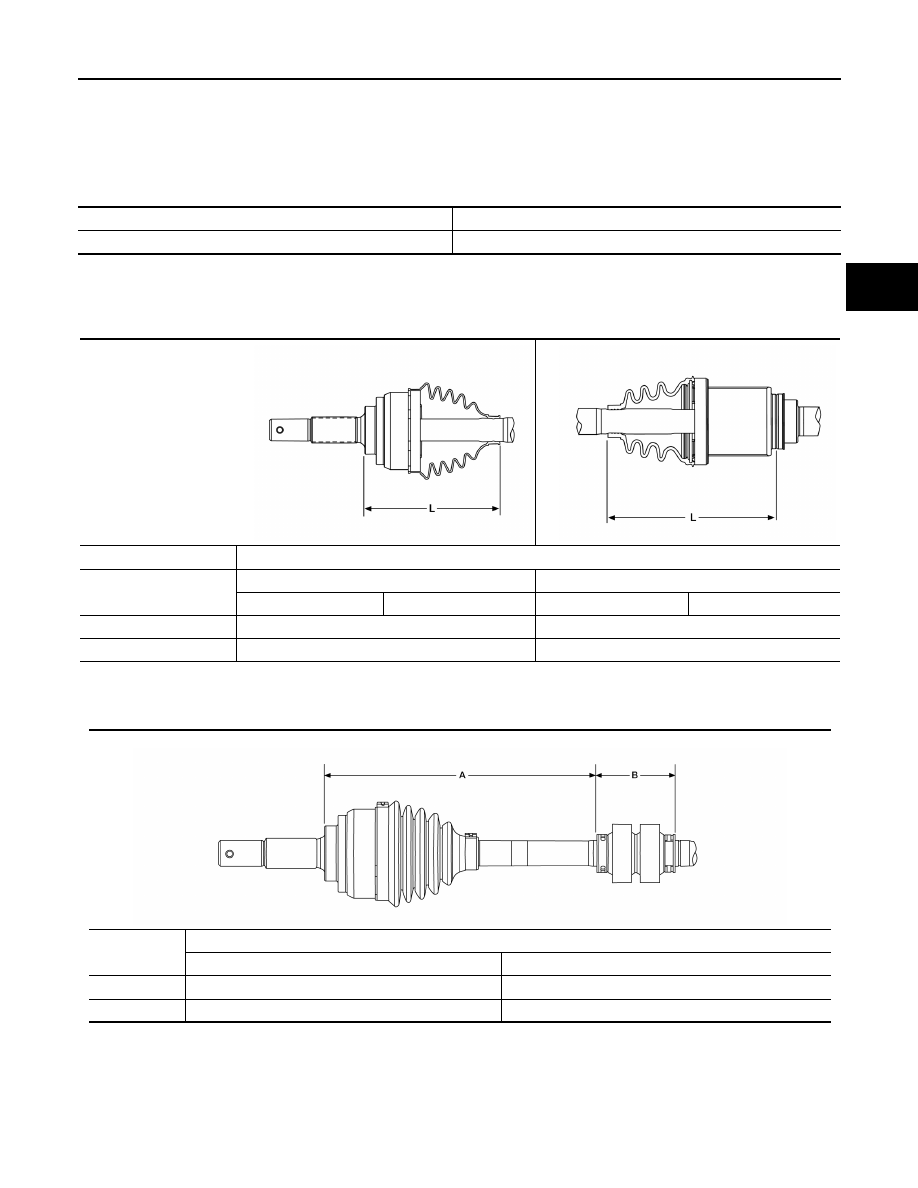

Drive Shaft

INFOID:0000000011278664

Drive Shaft Specifications

*Always check with the Parts Department for the latest parts information.

Dynamic Damper Specifications

Unit: mm (in)

Boot Band Specification

Item

Standard

Axial end play

0.0 mm (0.0 in)

Application

AWD

Joint type

Wheel side

Transaxle side

(LH)

(RH)

(LH)

(RH)

Grease quantity*

125

±  10 g (4.41 ± 0.35 oz)

185

± 10 g (6.52 ± 0.35 oz)

Boot installed length (L)

141.5 mm (5.57 in)

176.9 mm (6.96 in)

ALDIA0269ZZ

ALDIA0268ZZ

Application

AWD

(LH)

(RH)

Dimension (A)

243

± 3 (9.57 ± 0.1)

243

± 3 (9.57 ± 0.1)

Dimension (B)

70 (2.76)

50 (1.97)

ALDIA0270ZZ

FAX-78

< SERVICE DATA AND SPECIFICATIONS (SDS)

[AWD]

SERVICE DATA AND SPECIFICATIONS (SDS)

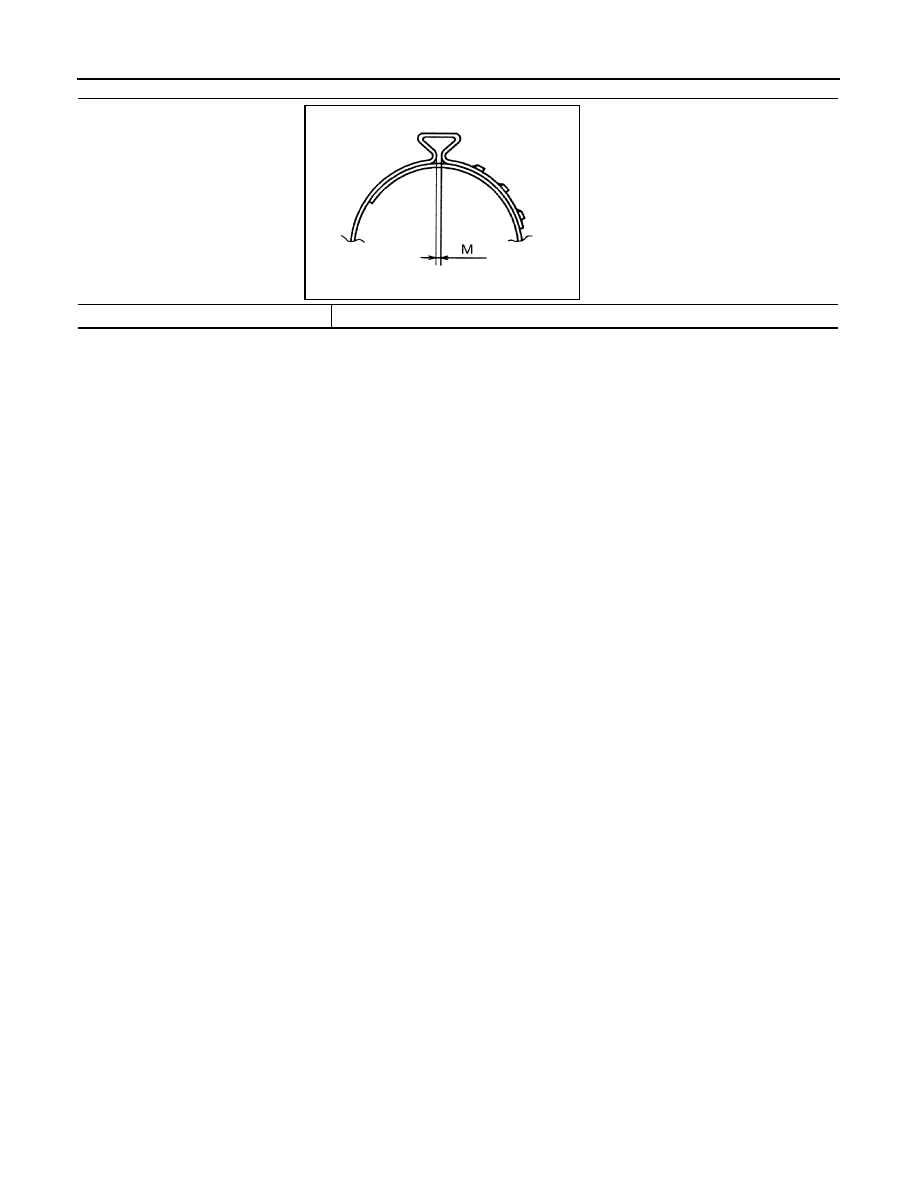

Unit: mm (in)

Dimension (M) - maximum

1.0 - 4.0 mm (0.039 - 0.157 in)

DSF0047D

FL-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

FL

A

FL

N

O

P

CONTENTS

FUEL SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

General Precaution  ...................................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

PERIODIC MAINTENANCE ..........................

4

FUEL SYSTEM ....................................................

4

Inspection ..................................................................

4

Quick Connector  .......................................................

4

REMOVAL AND INSTALLATION ................

5

FUEL LEVEL SENSOR UNIT, FUEL FILTER
AND FUEL PUMP ASSEMBLY  ..........................

5

Exploded View  ..........................................................

5

Removal and Installation ...........................................

5

Inspection ..................................................................

9

FUEL TANK ........................................................

11

FWD ...........................................................................

11

FWD : Exploded View  .............................................

11

FWD : Removal and Installation ..............................

11

FWD : Inspection .....................................................

14

AWD ...........................................................................

14

AWD : Exploded View  .............................................

15

AWD : Removal and Installation ..............................

15

AWD : Inspection .....................................................

18

EVAP CANISTER ..............................................

19

Exploded View .........................................................

19

Removal and Installation  .........................................

19

Inspection ................................................................

20

EVAP CANISTER VENT CONTROL VALVE  ...

21

Exploded View .........................................................

21

Removal and Installation  .........................................

21

EVAP CONTROL SYSTEM PRESSURE SEN-
SOR ...................................................................

22

Exploded View .........................................................

22

Removal and Installation  .........................................

22

EVAP CANISTER FILTER  ................................

23

Exploded View .........................................................

23

Removal and Installation  .........................................

23

DISASSEMBLY AND ASSEMBLY ..............

24

FUEL LEVEL SENSOR UNIT  ...........................

24

Exploded View .........................................................

24

Disassembly and Assembly .....................................

24

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

26

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

26

Fuel Tank .................................................................

26

FL-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011326280

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

General Precaution

INFOID:0000000011279609

WARNING:

When replacing fuel line parts, be sure to observe the following.

• Put a “CAUTION: FLAMMABLE” sign in the workshop.

• Be sure to work in a well ventilated area and furnish workshop with a CO

2

 fire extinguisher.

• Do not smoke while servicing fuel system. Keep open flames and sparks away from the work area.

CAUTION:

• Use gasoline required by the regulations for octane number. Refer to

GI-25, "Fuel (Regular Unleaded

Gasoline Recommended)"

.

• Before removing fuel line parts, perform out the following procedures:

- Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in

safe area.

- Release fuel pressure from the fuel lines. Refer to

EC-147, "Work Procedure"

.

- Disconnect the battery cable from the negative terminal.

• Always replace O-ring and clamps with new ones.

• Do not kink or twist tubes when they are being installed.

• Do not tighten hose clamps excessively to avoid damaging hoses.

• After installing tubes, check there is no fuel leaks at connections in the following steps.

- Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then check

for fuel leaks at connections.

- Start engine and rev it up and check for fuel leaks at connections.

• Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the

“MIL” may come on.
