FRONT DRIVE SHAFT

FAX-69

< UNIT DISASSEMBLY AND ASSEMBLY >

[AWD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

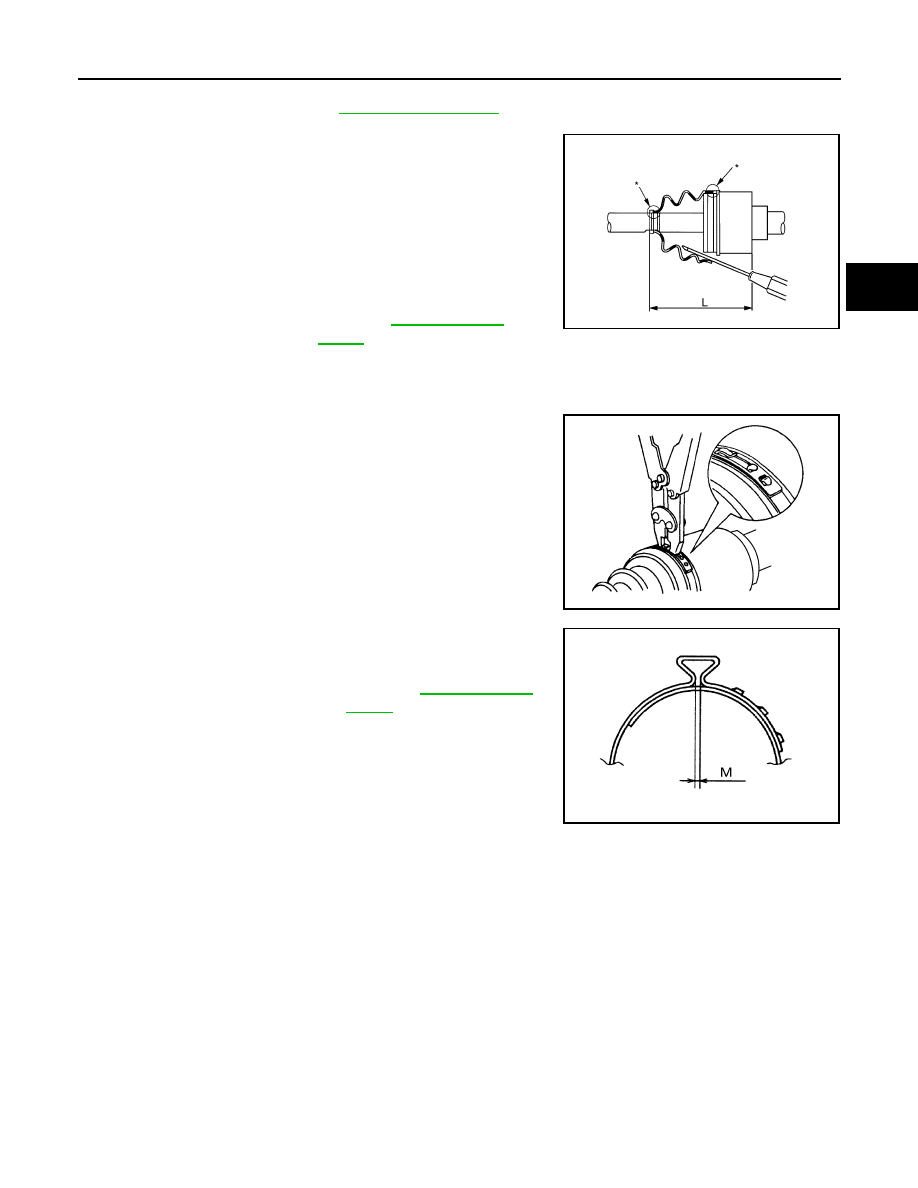

6. Install boot securely into grooves (indicated by "* marks) as

shown.

CAUTION:

If there is grease on boot mounting surfaces (indicated by

"* marks) on shaft or joint sub-assembly, boot may come

off. Remove all grease from surfaces.

7. Make sure boot installation length (L) is the specified length indi-

cated below. Insert a suitable tool into the large end of boot.

Bleed air from boot to prevent boot deformation.

CAUTION:

• Boot may break if boot installation length is less than standard value.

• Be careful that suitable tool does not contact inside surface of boot.

8. Install new large and small boot bands securely using Tool.

CAUTION:

Do not reuse boot bands.

9. Secure boot band so that dimension (M) meets specification as

shown.

10. Attempt to rotate the boot to check whether or not the boot bands are securing the boot. If the boot is not

secure, remove the boot bands, reposition the boot, and install new boot bands.

CAUTION:

Do not reuse boot bands.

Grease quantity : Refer to

FAX-77, "Drive Shaft"

.

Boot installation
length (L)

: Refer to

FAX-77, "Drive

Shaft"

.

Tool number

: KV40107300 (

)

JPDIF0144ZZ

RAC1133D

Dimension (M)

: Refer to

FAX-77, "Drive

Shaft"

.

DSF0047D

FAX-70

< UNIT DISASSEMBLY AND ASSEMBLY >

[AWD]

FRONT DRIVE SHAFT

Exploded View (RH)

INFOID:0000000011278661

Disassembly and Assembly (RH)

INFOID:0000000011278662

DISASSEMBLY

Transaxle Side

1. Secure front drive shaft in a vise.

CAUTION:

When securing shaft in a vise, always use copper or aluminum plates between vise and shaft.

2. Remove boot bands and slide the boot back.
3. Remove stopper ring.
4. Put matching marks on housing and shaft, and then pull out housing from shaft.

CAUTION:

Use paint or an equivalent for matching marks. Do not scratch the surfaces.

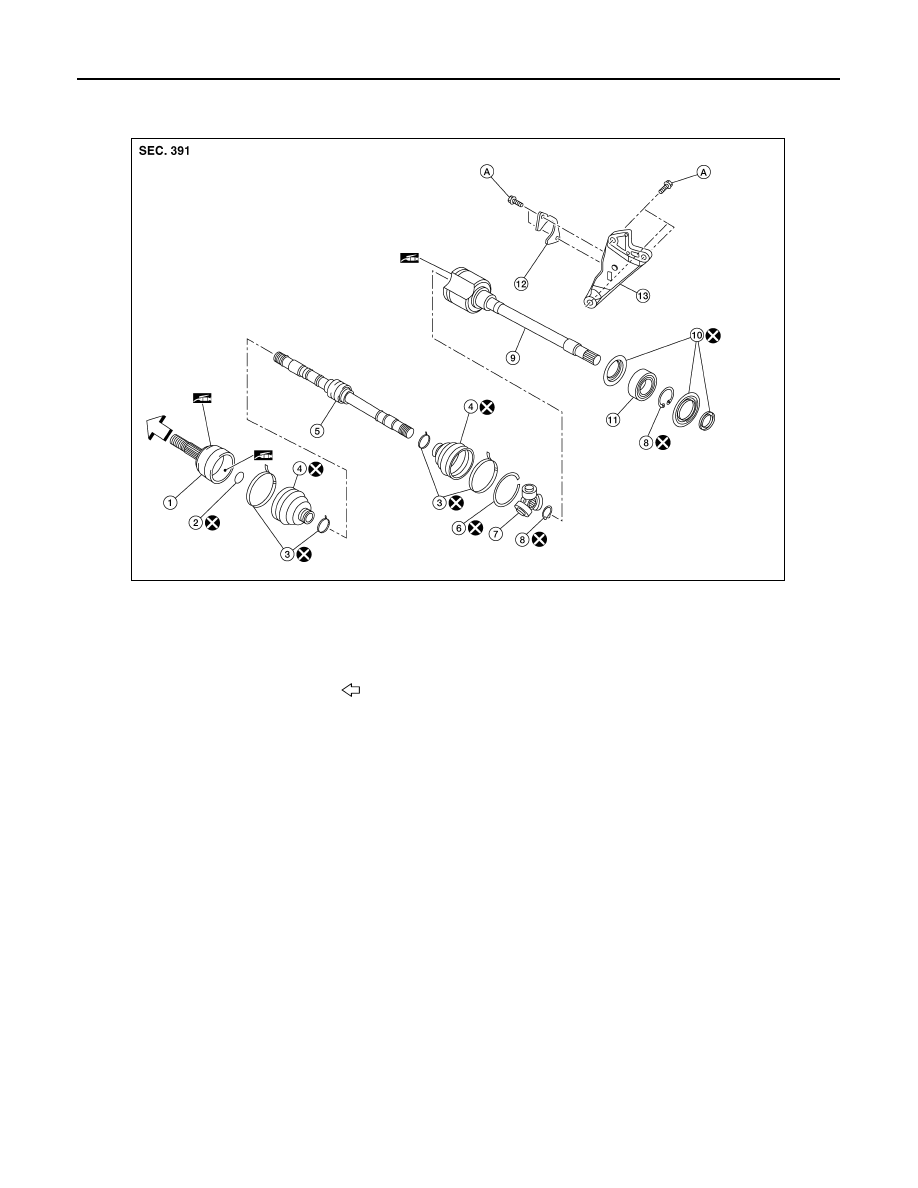

1.

Joint sub-assembly

2.

Circular clip

3.

Boot band

4.

Boot

5.

Shaft

6.

Stopper ring

7.

Spider assembly

8.

Snap ring

9.

Housing

10. Dust shield

11. Support bearing

12. Bearing retainer

13. Support bearing bracket

Wheel side

A.

Refer to FRONT DRIVE SHAFT IN-
STALLATION

AWDIA1206ZZ

FRONT DRIVE SHAFT

FAX-71

< UNIT DISASSEMBLY AND ASSEMBLY >

[AWD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

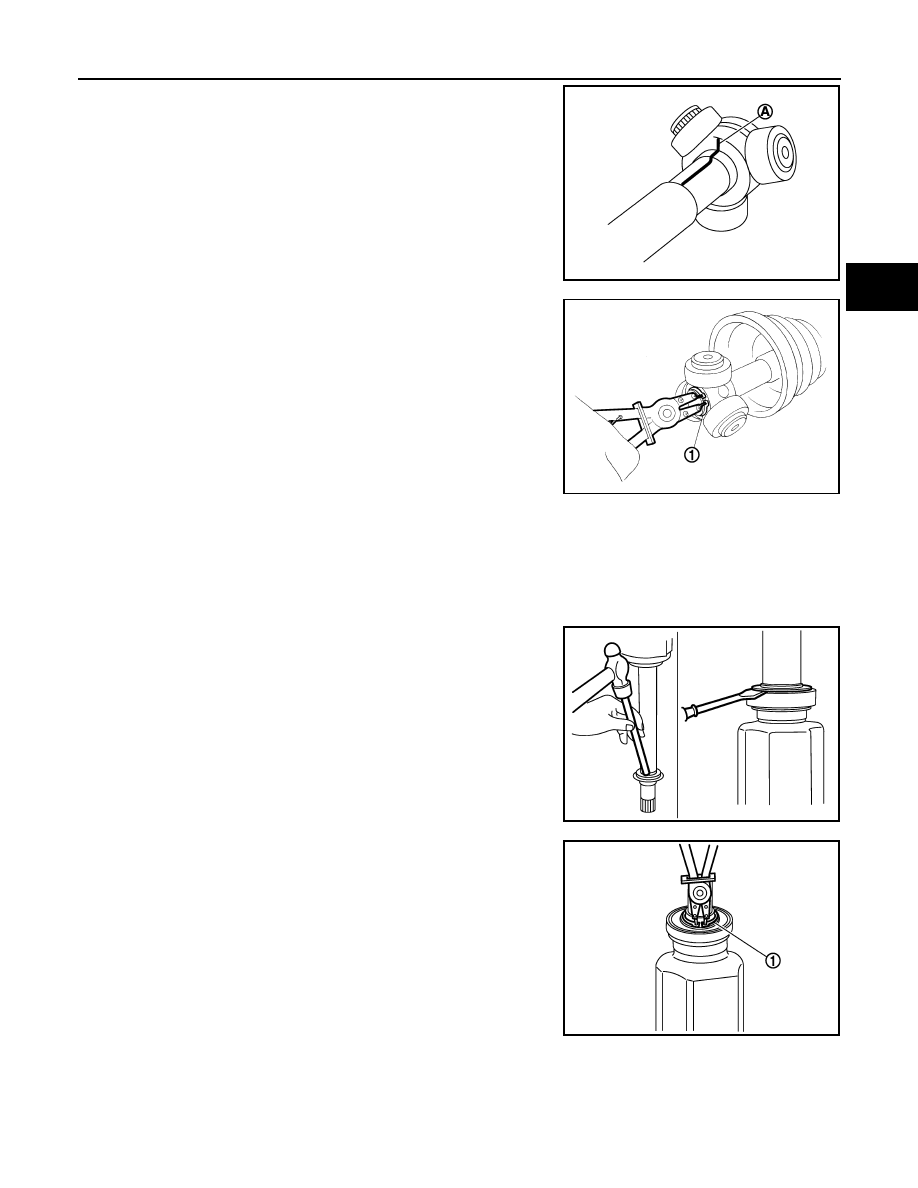

5. Put matching marks (A) on the spider assembly and shaft.

CAUTION:

Use paint or an equivalent for matching marks. Do not

scratch the surfaces.

6. Remove snap ring (1), and then remove spider assembly from

shaft.

7. Remove boot from shaft.
8. Remove circular clip from housing.
9. Remove dust shield from housing.
10. Clean old grease on housing using paper shop cloths.

Support Bearing

1. Remove dust shield from housing.

2. Remove snap ring (1).

JPDIF0006ZZ

JPDIF0014ZZ

JPDIF0121ZZ

JPDIF0106ZZ

FAX-72

< UNIT DISASSEMBLY AND ASSEMBLY >

[AWD]

FRONT DRIVE SHAFT

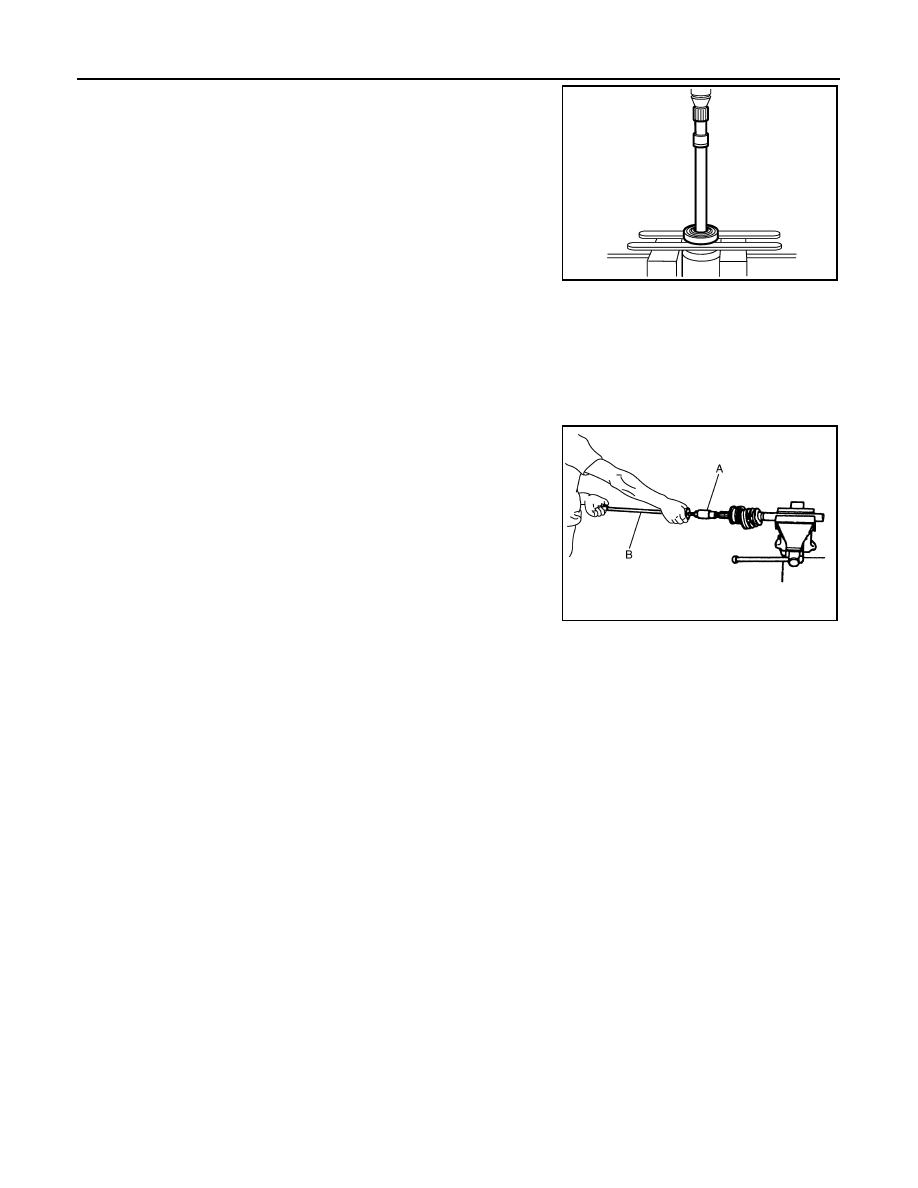

3. Press out support bearing from housing.

4. Remove dust shield.

Wheel Side

1. Secure front drive shaft in a vise.

CAUTION:

When securing shaft in a vise, always use copper or aluminum plates between vise and shaft.

2. Remove boot bands and slide the boot back.
3. Screw a suitable tool (A) 30 mm (1.18 in) or more into threaded

part of joint sub-assembly. Pull joint sub-assembly out of shaft.

CAUTION:

• If joint sub-assembly cannot be removed after five or

more unsuccessful attempts, replace shaft and joint sub

assembly as a set.

• Align suitable tool (B) and drive shaft then remove joint

sub-assembly by pulling directly.

4. Remove circular clip from shaft.
5. Remove boot from shaft.
6. Clean old grease on joint sub-assembly using paper shop cloths while rotating ball cage.

INSPECTION AFTER DISASSEMBLY

Shaft

Check shaft for runout, cracks, or other damage. Replace entire drive shaft if necessary.

Dynamic Damper

Check damper for cracks or wear. Replace drive shaft if necessary.

Joint Sub-Assembly (Wheel Side)

Check the following:

• Joint sub-assembly for rough rotation and excessive axial looseness

• The inside of the joint sub-assembly for entry of foreign material

• Joint sub-assembly for compression scars, cracks, and fractures inside of joint sub-assembly

Replace entire drive shaft if there are any non-standard conditions of components.

Housing and Spider assembly (Transaxle Side)

Replace entire drive shaft if there is scratching or wear of housing roller contact surface or spider roller contact

surface.

Support Bearing

Make sure support bearing rolls freely and is free from noise, cracks, pitting or wear. Replace support bearing

if there are any non-standard conditions.

Support Bearing Bracket

Check for bending, cracks, or damage. Replace support bearing bracket if there are any non-standard condi-

tions.

ASSEMBLY

YAX004

JPDIF0015ZZ
