Nissan Rogue. Manual - part 697





PREPARATION

FL-3

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

PREPARATION

PREPARATION

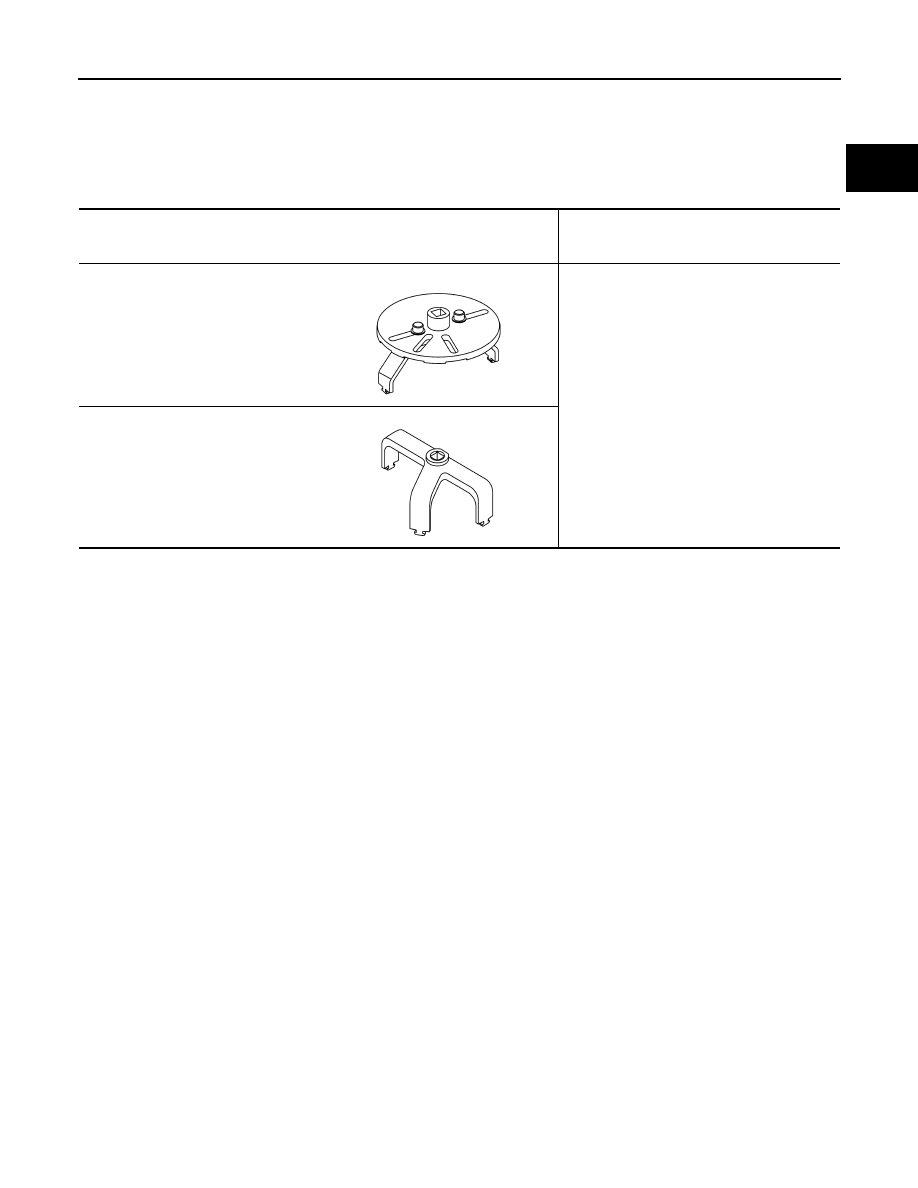

Special Service Tool

INFOID:0000000011279610

The actual shape of the tools may differ from those illustrated here

Tool number
(TechMate No.)
Tool name

Description

KV101207S0
( — )
Unified fuel lock ring wrench

Removing and installing fuel tank lock ring

(J-45747)
Fuel tank lock ring wrench

JPBIA6384ZZ

JSBIA1952ZZ

FL-4

< PERIODIC MAINTENANCE >

FUEL SYSTEM

PERIODIC MAINTENANCE

FUEL SYSTEM

Inspection

INFOID:0000000011279611

Inspect fuel lines, fuel filler cap, and fuel tank for improper attach-

ment, leaks, cracks, damage, loose connections, chafing or deterio-

ration.

If necessary, repair or replace damaged parts.

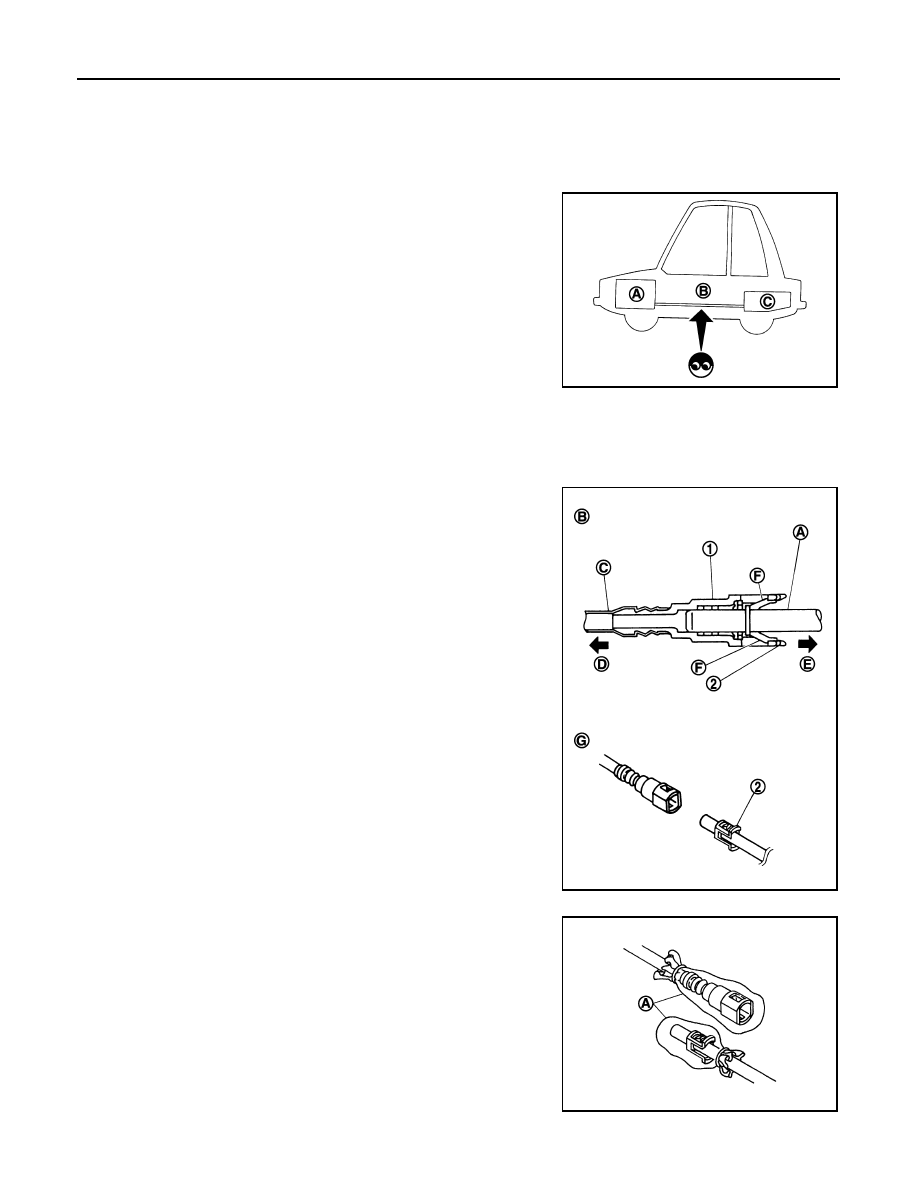

Quick Connector

INFOID:0000000011279612

CAUTION:

• After connecting fuel tube quick connectors, check that quick connectors are secure.

• Ensure that connector and resin tube never contact any adjacent parts.

• Quick connector (1) can be disconnected when the tabs (F)

are depressed completely. Do not twist it more than neces-

sary.

• Do not use any tools to disconnected quick connector.

• Keep resin tube (C) away from heat. Be especially careful

when welding near the resin tube.

• Prevent acid liquid such as battery electrolyte, etc. from get-

ting on resin tube.

• Do not bend or twist resin tube during installation and discon-

nection.

• Do not remove the remaining retainer (2) on hard tube (or the

equivalent) (A) except when resin tube or retainer is replaced.

• When resin tube or hard tube (or the equivalent) is replaced,

also replace retainer with new one.

• To keep the connecting portion clean and to avoid damage

and foreign materials, cover them completely with plastic

bags (A) or something similar.

(A)

: Engine

(B)

: Fuel line

(C)

: Fuel tank

JPBIA0129ZZ

(B)

: Connection (cross-section)

(D)

: To under floor fuel line

(E)

: To fuel tank

(G)

: Disconnection

JPBIA0130ZZ

JPBIA0135ZZ

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

FL-5

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

REMOVAL AND INSTALLATION

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

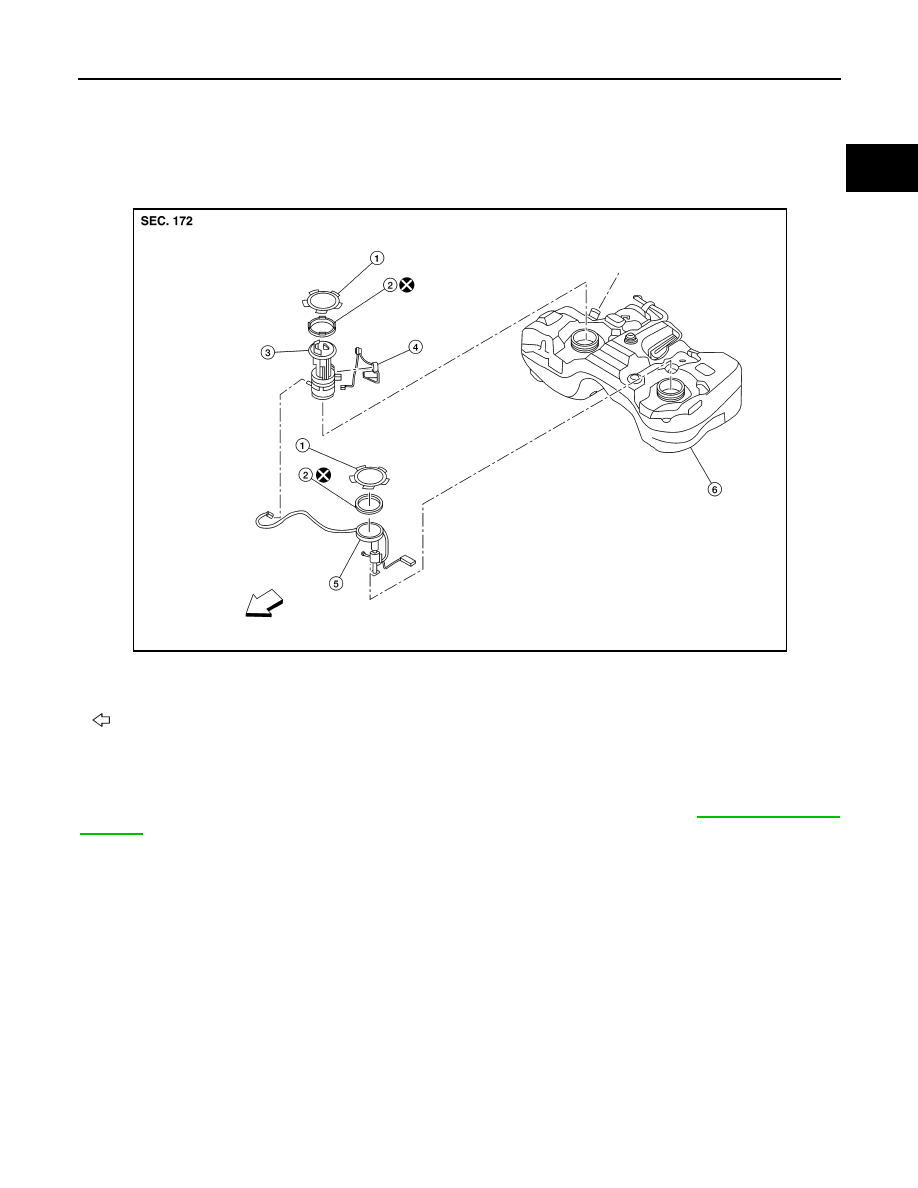

Exploded View

INFOID:0000000011279613

Removal and Installation

INFOID:0000000011279614

WARNING:

Be sure to read “General Precautions” before working on the fuel system. Refer to

FL-2, "General Pre-

caution"

.

CAUTION:

Do not remove or disassemble parts unless instructed as shown.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

Fuel Level Sensor Unit, Fuel Filter And Fuel Pump Assembly

1. Lock ring

2. O-ring

3. Fuel filter and fuel pump assembly

4. Fuel level sensor and fuel tank temperature sensor 5. Sub fuel level sensor assembly 6. Fuel tank

Front

AWBIA2278ZZ

FL-6

< REMOVAL AND INSTALLATION >

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

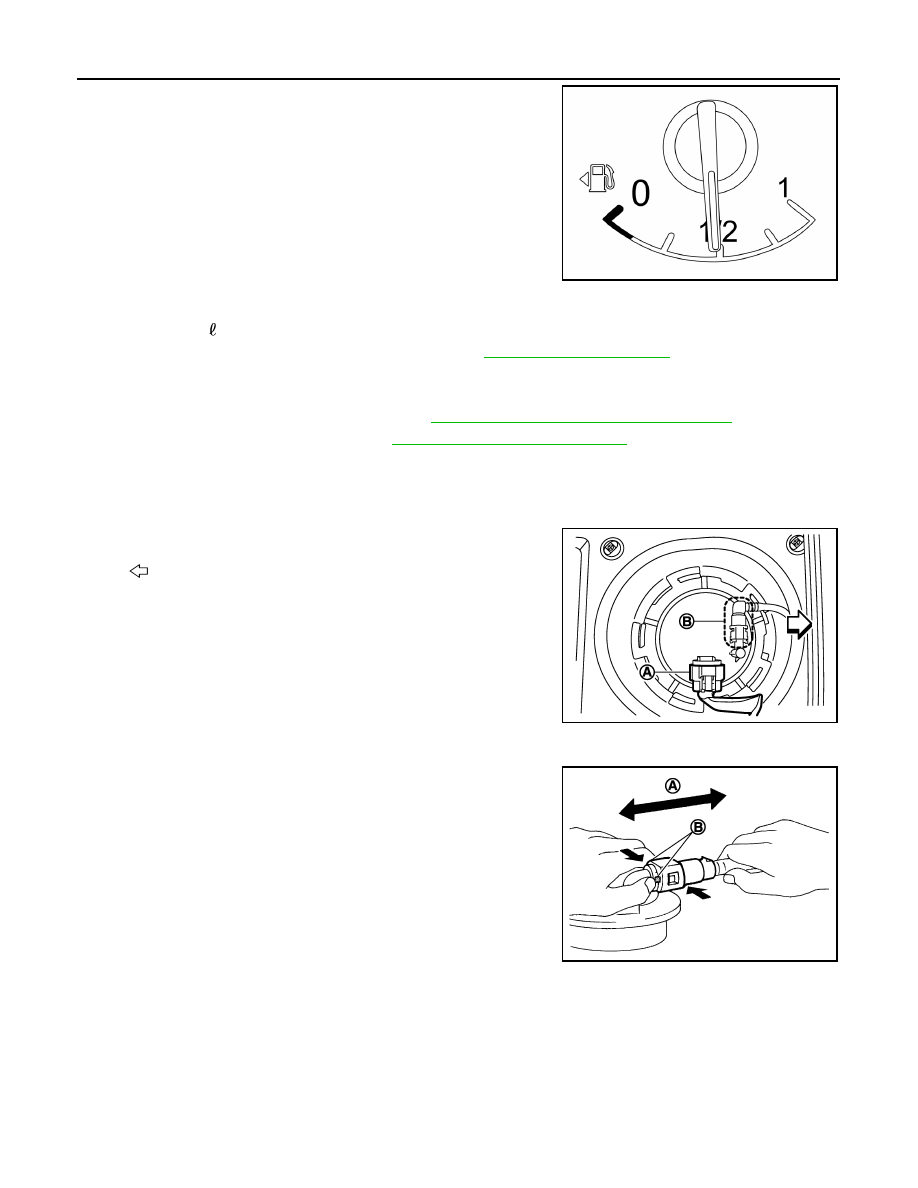

1. Check the fuel level with the vehicle on a level surface. If the fuel

gauge indicates more than the level as shown (1/2 full), drain

the fuel from the fuel tank until the fuel gauge indicates a level at

or below as shown (1/2 full).

• In case the fuel pump does not operate, use the following pro-

cedure.

a. Insert fuel tubing of less than 25mm (0.98in) diameter into the

fuel filler tube through the fuel filler opening to drain fuel from the

fuel filler tube.

b. Disconnect the fuel filler hose from the fuel filler tube.
c.

Insert fuel tubing into the fuel tank through the fuel filler hose to

drain fuel from the fuel tank.

• As a guide, the fuel level reaches or is less than the level on the fuel gauge as shown, when approxi-

mately 27.5   (7-1/4 US gal, 6 Imp gal) of fuel is drained from a full fuel tank.

2. Release the fuel pressure from the fuel lines. Refer to

EC-147, "Work Procedure"

.

3. Open fuel filler lid.
4. Open fuel filler cap and release the pressure inside the fuel tank.
5. Disconnect negative battery terminal. Refer to

PG-78, "Removal and Installation (Battery)"

.

6. Remove second row seat (RH). Refer to

SE-39, "Removal and Installation"

.

7. Turn the four retainers 90 degrees to disengage the clips and remove the fuel pump inspection hole cover.

CAUTION:

Cover the immediate area surrounding the fuel pump inspection hole cover with plastic to avoid

gasoline damage to carpet.

8. Disconnect harness connector (A) and quick connector (B).

Disconnect quick connector as follows:

• Hold the sides of connector, press tabs and pull out fuel feed

tube.

If quick connector sticks to tube of main fuel level sensor unit, push and pull quick connectors several

times until they start to move. Then disconnect them by pulling.

CAUTION:

: Front

ALBIA0787ZZ

JPBIA1266ZZ

(A)

: Pull

(B)

: Push in tabs

JPBIA0134ZZ
