SIDE AIR SPOILER

Exploded View

INFOID:0000000011280061

Removal and Installation

INFOID:0000000011280062

REMOVAL

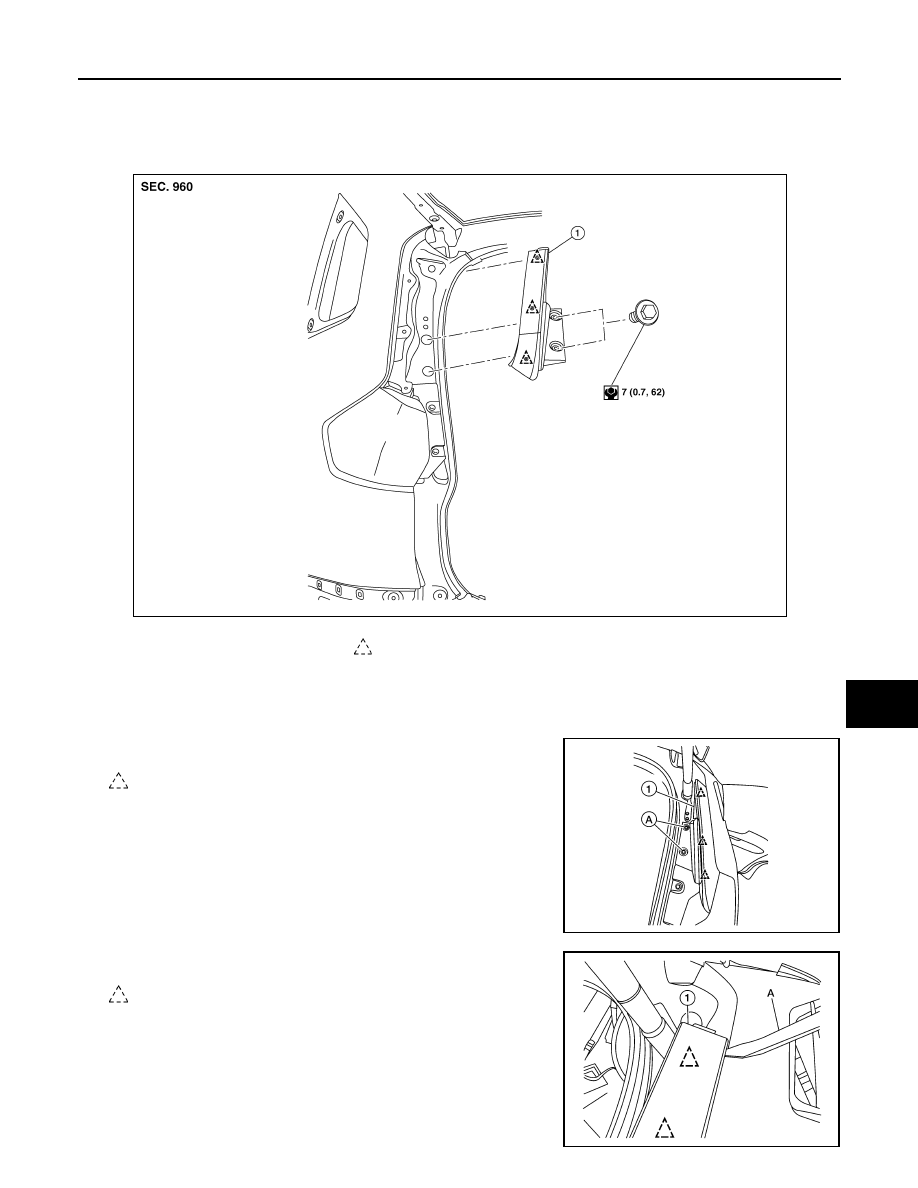

1. Remove side air spoiler bolts (A).

(1): Side air spoiler

: Clips

2. Release clips using suitable tool (A) and remove side air spoiler

(1).

: Clips

1.

Side air spoiler

Clip

ALKIA3356ZZ

AWKIA3215ZZ

ALKIA3406ZZ

EXT-50

< REMOVAL AND INSTALLATION >

SIDE AIR SPOILER

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When installing, visually check the side air spoiler and clips and replace them with new parts if they

have been damaged.

• When installing side air spoiler, check that clips and bolts are securely placed in body panel holes.

BACK DOOR OUTER FINISHER

EXT-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

BACK DOOR OUTER FINISHER

Exploded View

INFOID:0000000011280063

Removal and Installation

INFOID:0000000011280064

REMOVAL

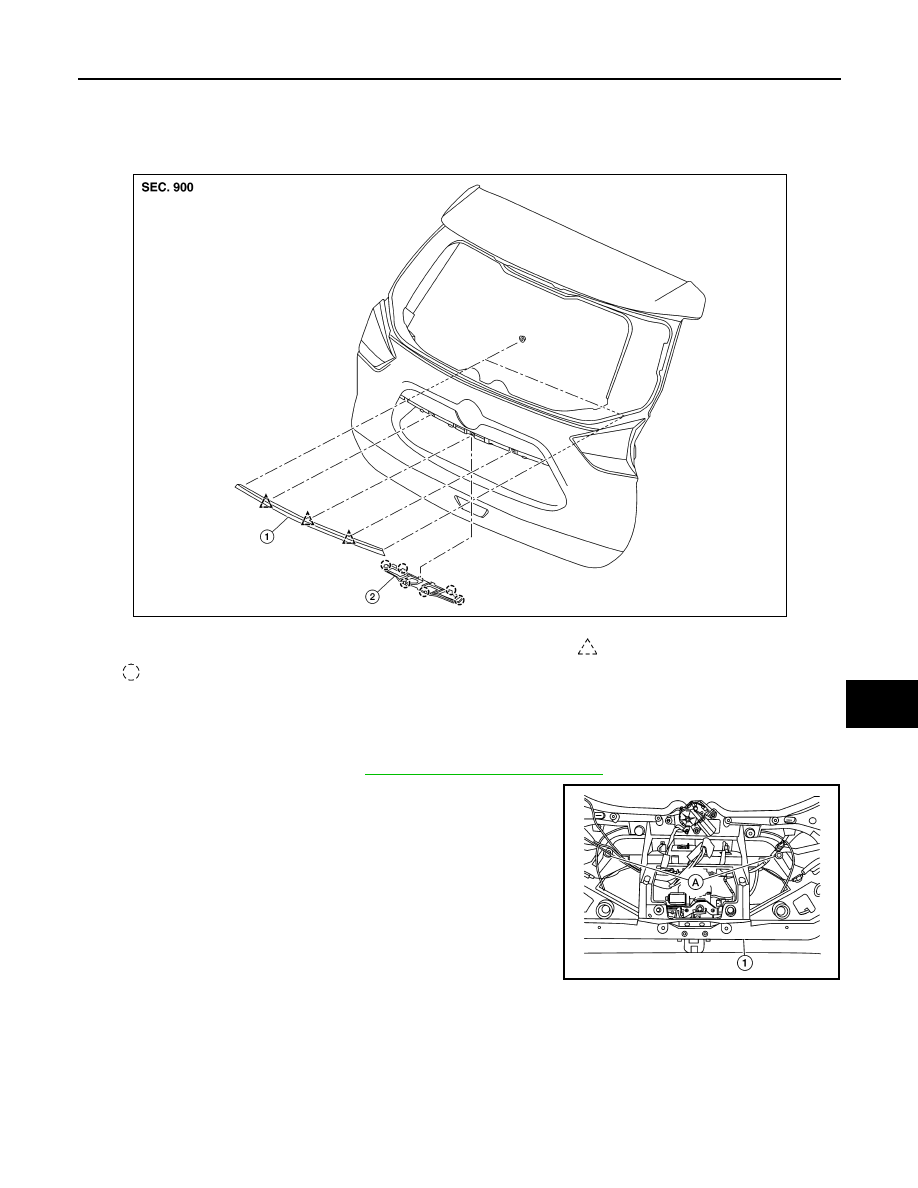

1. Remove back door finisher. Refer to

INT-38, "Removal and Installation"

.

2. Remove plugs (A) from back door (1).

3. Remove back door outer finisher nuts.

1.

Back door outer finisher

2.

License lamp finisher

Clip

Pawl

ALKIA3664ZZ

ALKIA3400ZZ

EXT-52

< REMOVAL AND INSTALLATION >

BACK DOOR OUTER FINISHER

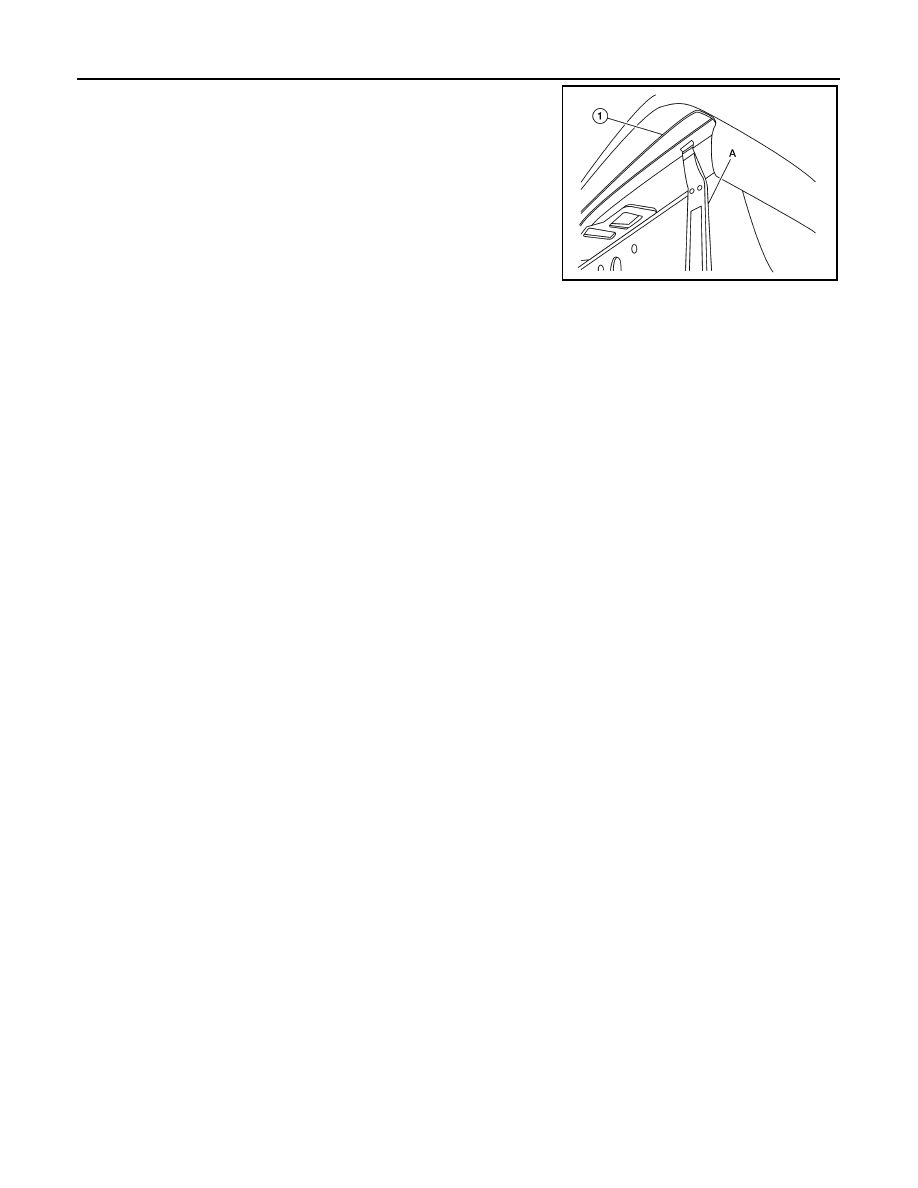

4. Release clips using suitable tool (A) and remove back door
