ROOF RACK

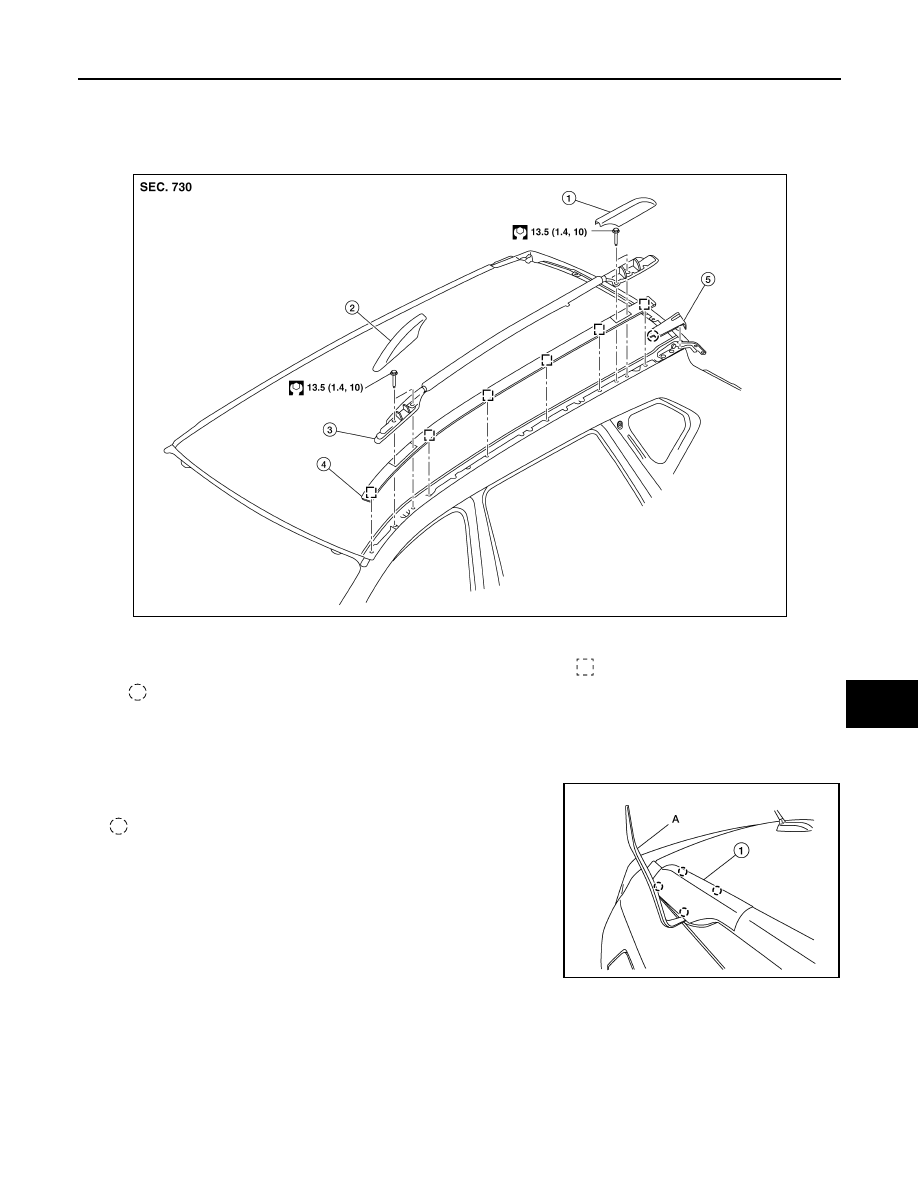

Exploded View

INFOID:0000000011280056

Removal and Installation

INFOID:0000000011280057

REMOVAL

1. Release pawls and remove roof rack front and rear cover (1)

using suitable tool (A).

: Pawl

2. Remove bolts and remove roof rack.

INSTALLATION

Installation is in the reverse order of removal.

1. Roof rack rear bolt cover

2. Roof rack front bolt cover

3. Roof rack

4. Roof side molding

5. Back door hinge cover

Metal Clip

Pawl

ALKIA3361ZZ

ALKIA3389ZZ

EXT-46

< REMOVAL AND INSTALLATION >

DOOR OUTSIDE LOWER MOLDING

DOOR OUTSIDE LOWER MOLDING

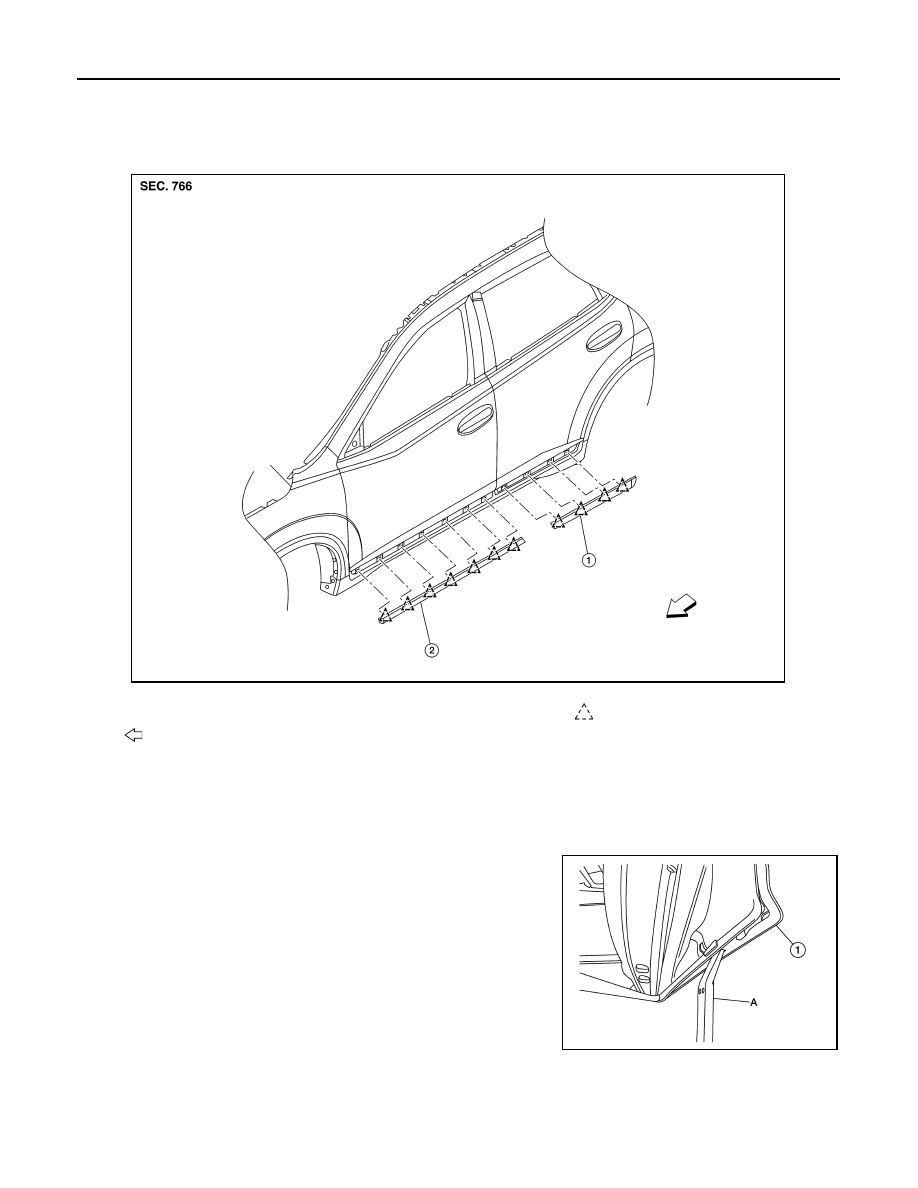

Exploded View

INFOID:0000000011280058

Removal and Installation

INFOID:0000000011280059

FRONT DOOR OUTSIDE LOWER MOLDING

Removal

1. Using a suitable tool (A) release clips from front door outside

lower molding (1) starting at the rear and working forward.

CAUTION:

• Release the clips slowly and carefully.

• Do not pull the front door outside lower molding.

2. Remove the front door outside lower molding.

Installation

Installation is in the reverse order of removal.

1.

Rear door outside lower molding

2.

Front door outside lower molding

Clip

Front

ALKIA3365ZZ

ALKIA3366ZZ

DOOR OUTSIDE LOWER MOLDING

EXT-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

CAUTION:

• Do not reuse double-sided tape, always replace with new tape.

• When installing, visually check the front door outside lower molding and clips, replace with new

clips if they have been damaged.

• When installing front door outside lower molding, make sure clips are attached to the molding. Make

sure old clips have all been removed from door.

NOTE:

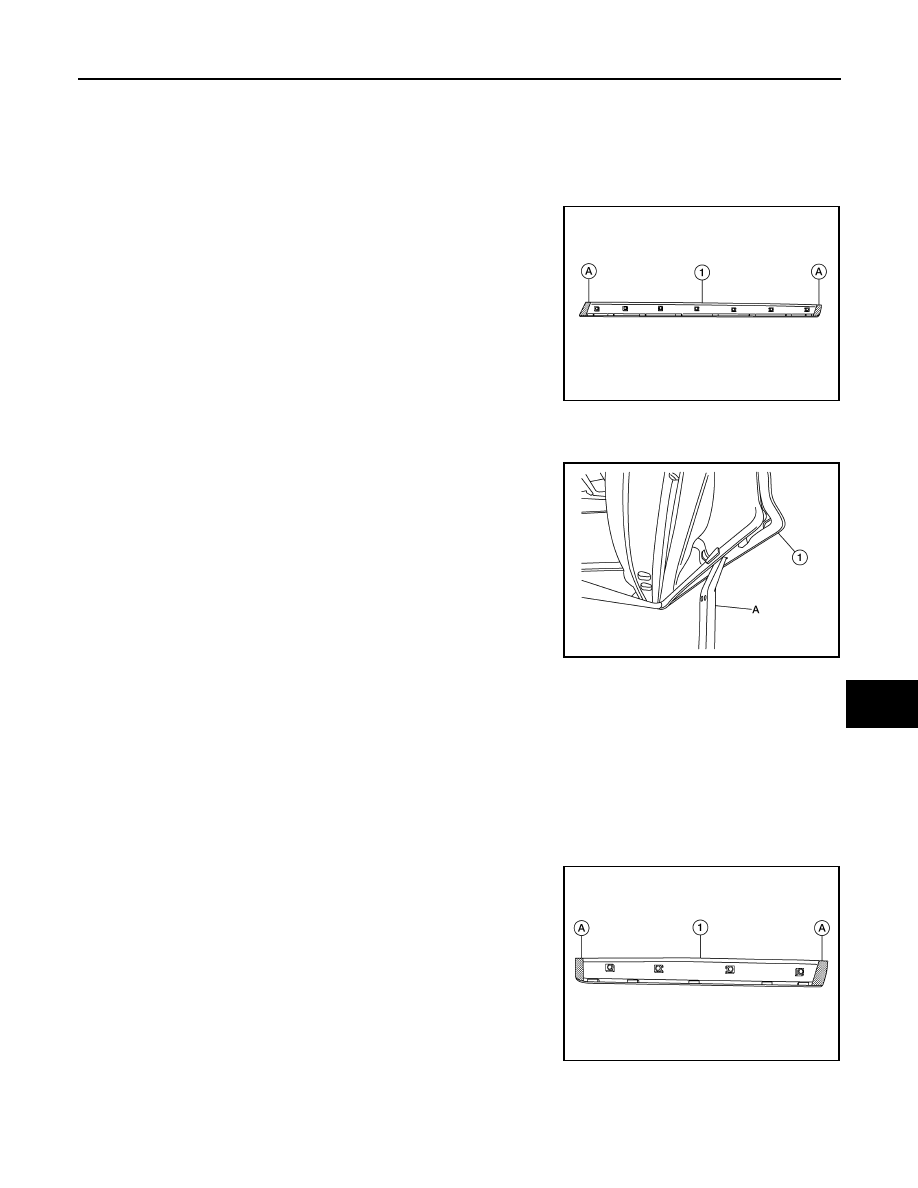

Install new double-sided tape (A) to front door outside lower molding

(1) as shown.

REAR DOOR OUTSIDE LOWER MOLDING

Removal

1. Using a suitable tool (A) release clips from rear door outside

lower molding (1) starting at the rear and working forward.

CAUTION:

• Release the clips slowly and carefully.

• Do not pull the front door outside lower molding.

2. Remove the rear door outside lower molding.

Installation

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse double-sided tape, always replace with new tape.

• When installing, visually check the front door outside lower molding and clips, replace with new

clips if they have been damaged.

• When installing front door outside lower molding, make sure clips are attached to the molding. Make

sure old clips have all been removed from door.

NOTE:

Install new double-sided tape (A) to front door outside lower molding

(1) as shown.

ALKIA3378ZZ

ALKIA3366ZZ

ALKIA3379ZZ

EXT-48

< REMOVAL AND INSTALLATION >

REAR SPOILER

REAR SPOILER

Removal and Installation

INFOID:0000000011280060

The rear spoiler is part of the back door assembly. Refer to

DLK-255, "BACK DOOR ASSEMBLY : Removal

and Installation"

 (WITH INTELLIGENT KEY SYSTEM) or

DLK-376, "BACK DOOR ASSEMBLY : Removal and

Installation"

(WITHOUT INTELLIGENT KEY SYSTEM).
